Cámara Térmica UNI-T UTi716S (160x120) Inspección Hogar - Termógrafo Infrarrojo Portátil Fugas Agua/Calor (Multi-Idioma)

$494.464 CLP

~~$502.463 CLP~~ $494.464 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Ships From CHINA

Cantidad

SPECIFICATIONS

Brand Name: UNI-T

Certification: CE,FCC,RoHS

Choice: yes

Display Size: 2.0 - 3.9 Inches

Hign-concerned Chemical: None

Is Smart Device: No

Origin: Mainland China

Power Type: Charger

Style: Handheld

UNI-T Model: UTi716S

semi_Choice: yes

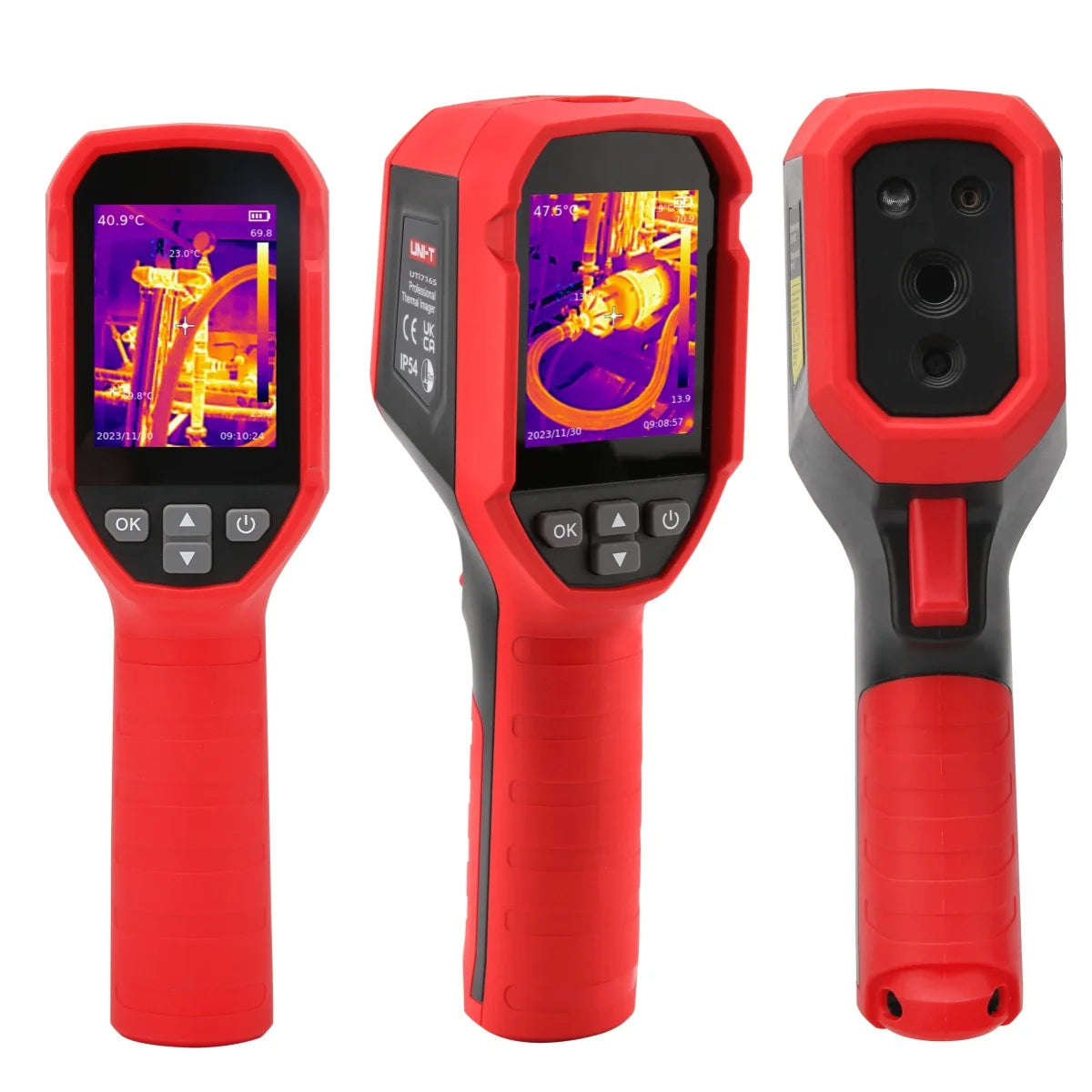

UNI-T UTi716S Thermal Camera for Home Inspection 160x120 Handheld Infrared Imager Heat Loss Water Leakage Inspection Multi-Languages, a great DIY tool for Houseowners

Description:

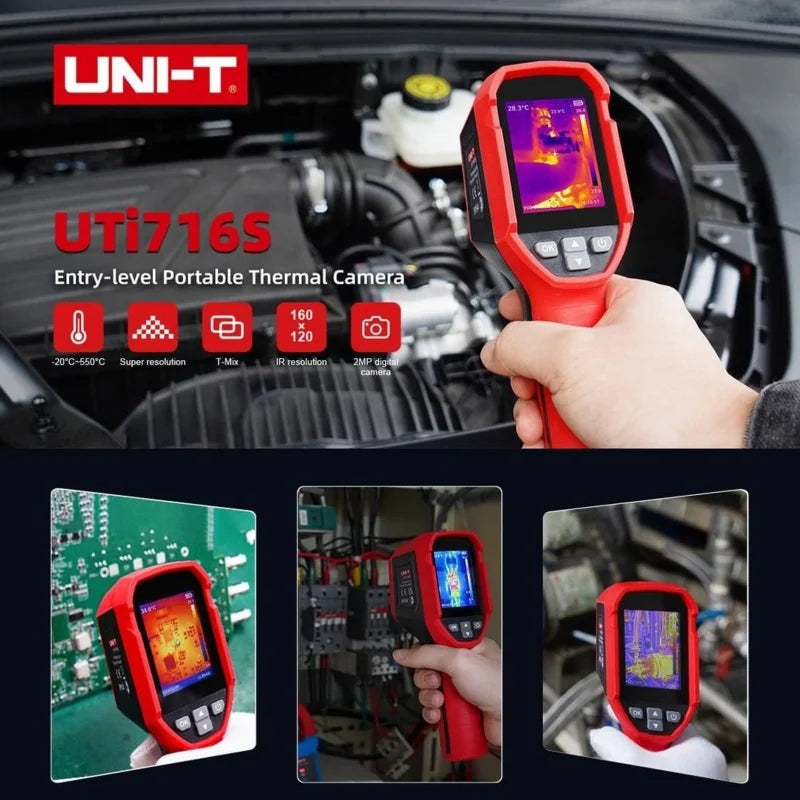

UTi716S is equipped with a 12μm infrared detector with 160×120 pixels and 2MP digital camera, combined with Super resolution function and self-developed T-Mix auto-adaptive dual-light fusion algorithm technology for gernerating high-definition IR images with visible details. Its extended temp. measurement range and the built-in LED light & laser pointer meet more application scenarios. 4-button and light-weight design make inspection work easily. Widely used in HVAC, Automotive inspection and electric utility.

Feature:

1. 160×120 pixels / 12μm infrared detector

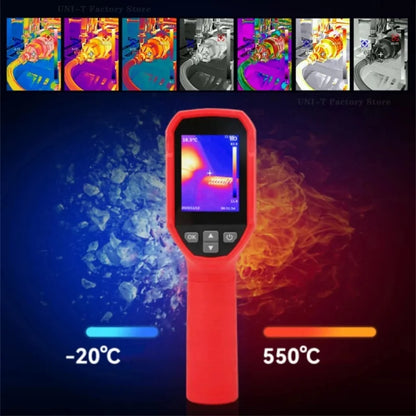

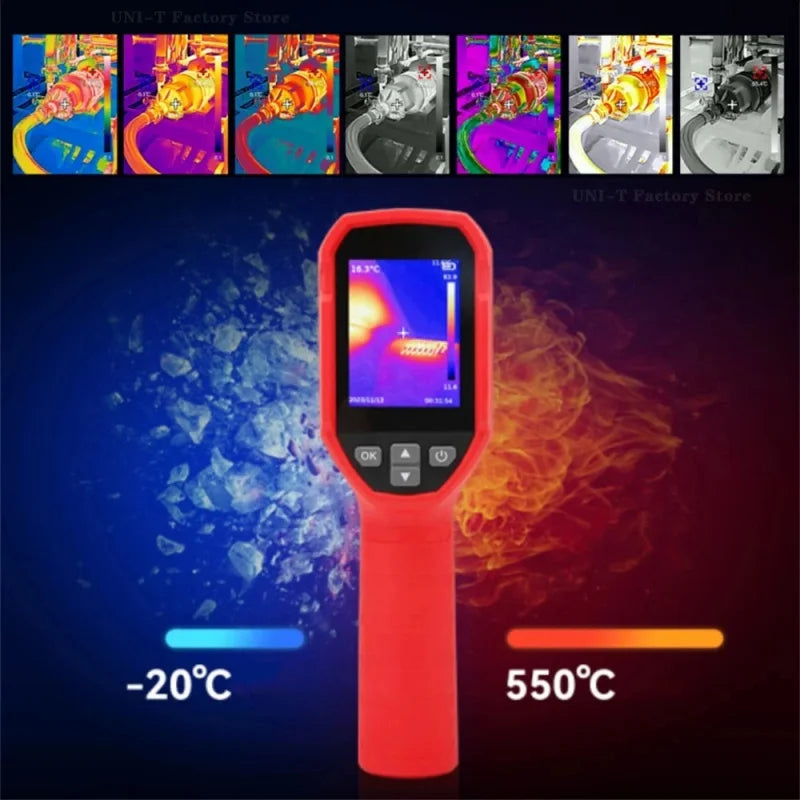

2. Temp. measurement range from -20℃ to 550℃

3. 2MP digital camera

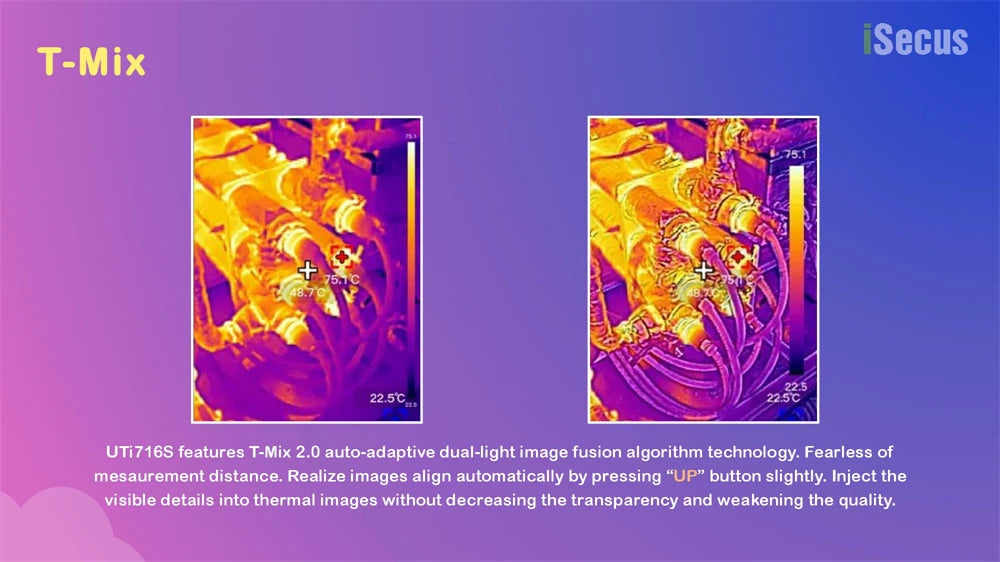

4. Self-developed T-Mix auto-adaptive dual-light image fusion algorithm technology

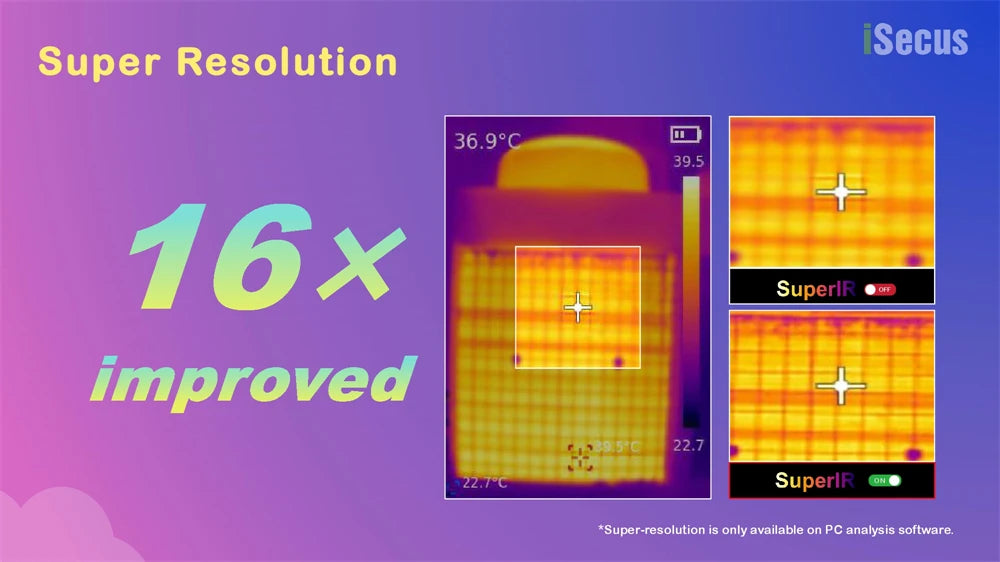

5. Super resolution is supported (Available on PC analysis software)

6. Multi-languages OS:

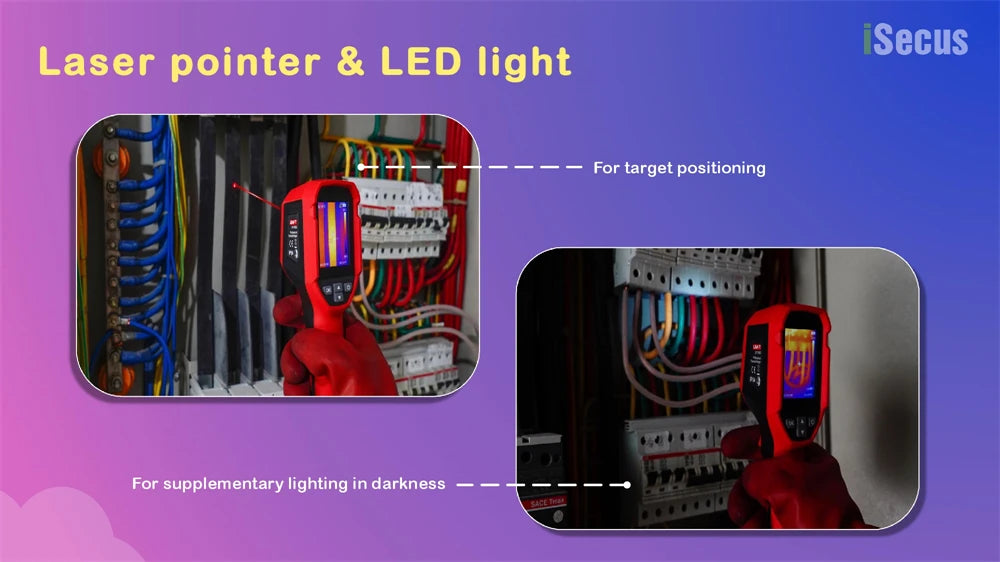

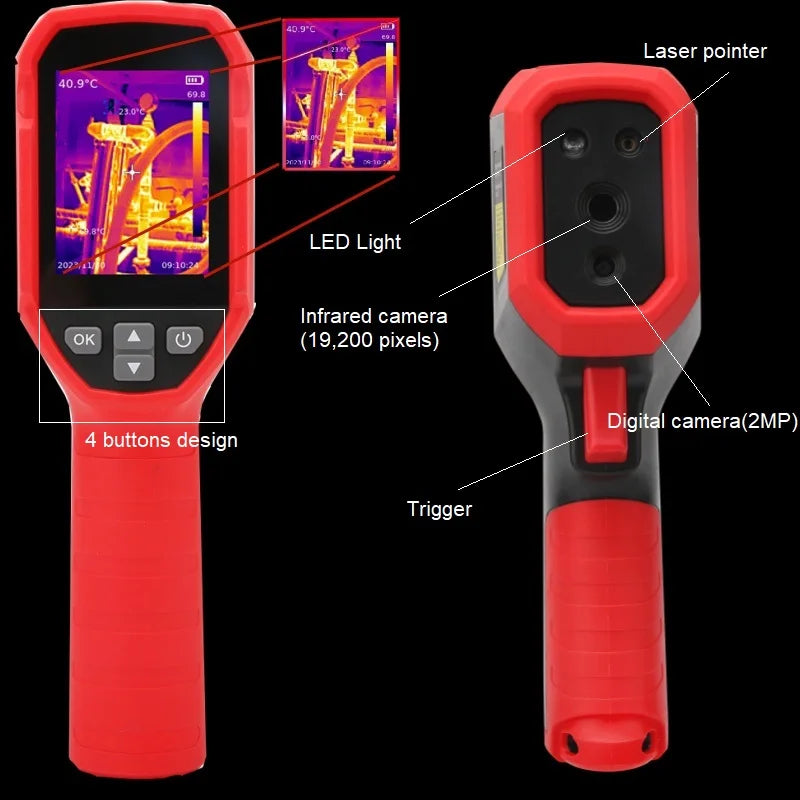

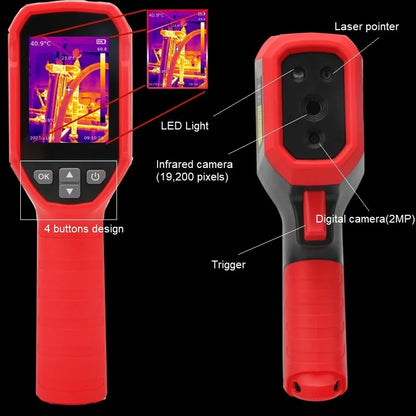

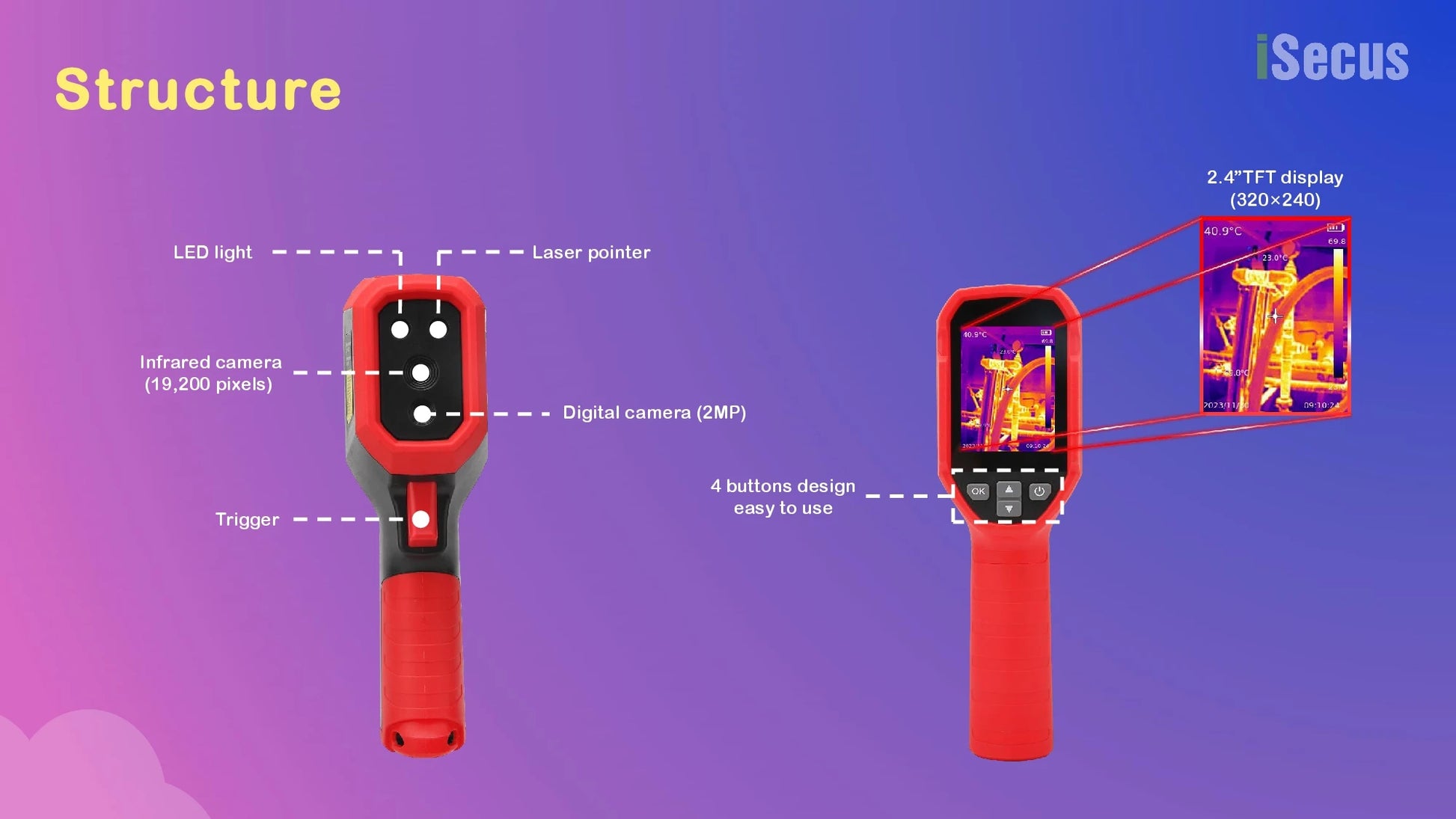

7. With LED light & Laser pointer

8. IP54 and wistand the drop of 2m height

Specifications:

Display	2.4” TFT (320×240)
IR resolution(Pixels)	160×120
Super resolution(Pixels)	√(640×480)
Spectral range	8~14µm
Pixel size	12µm
Frame rate	≤25Hz
Thermal sensitivity(NETD)	≤50mK
Focus	Focus Free
Field of view(FOV)	40°(H) × 30°(V)
Spatial resolution(IFOV)	4.62mrad
Temperature measurement range	-20℃~550℃
Accuracy	±2℃ or ±2% whichever is greater
Functions

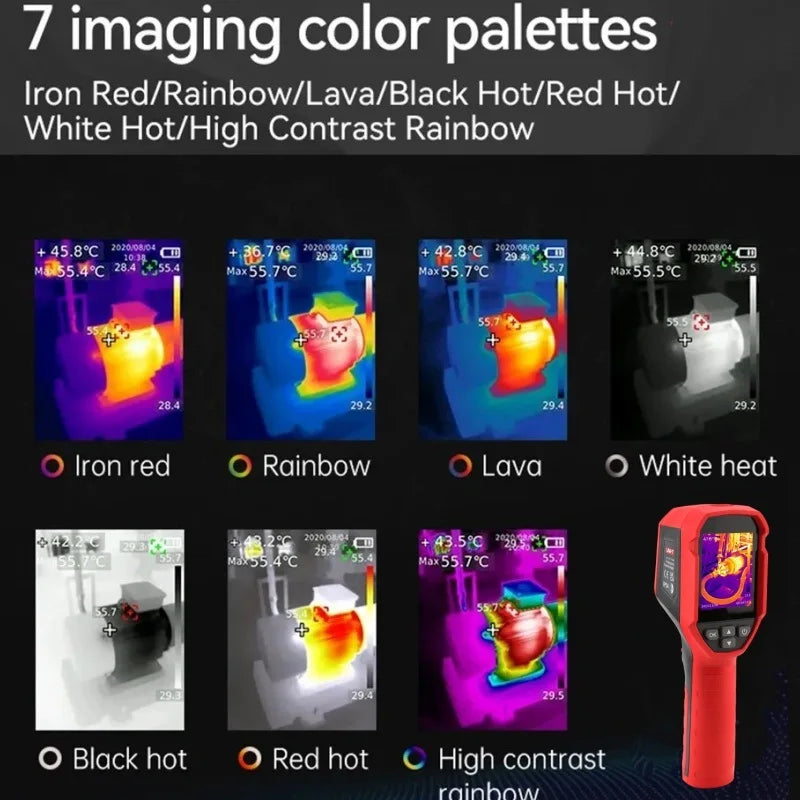

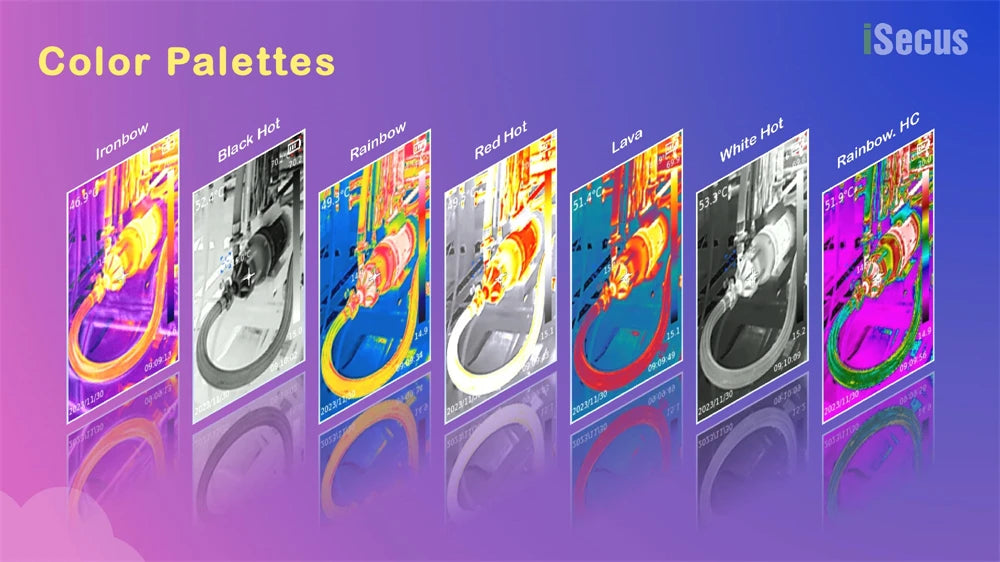

Color palettes	White Hot, Black Hot, Red Hot, Ironbow, Lava, Rainbow, Rainbow HC

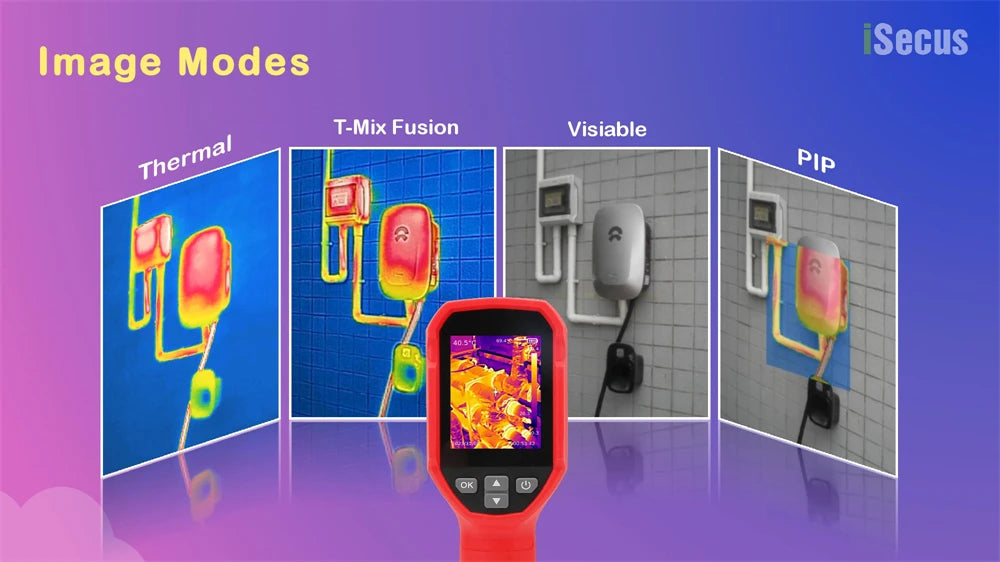

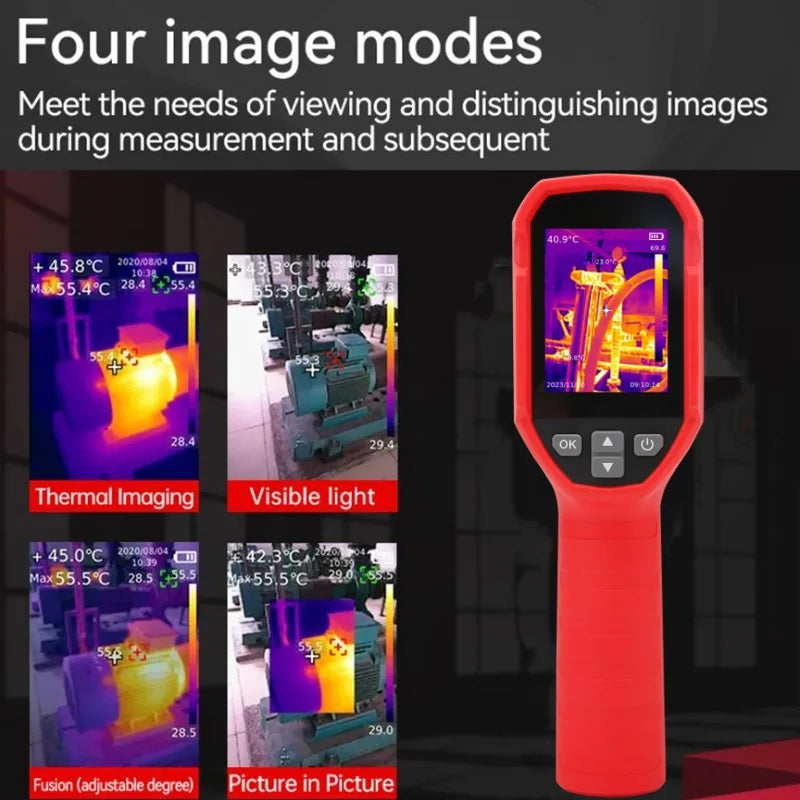

Image modes	Thermal, Visual image, Fusion (T-Mix), PIP

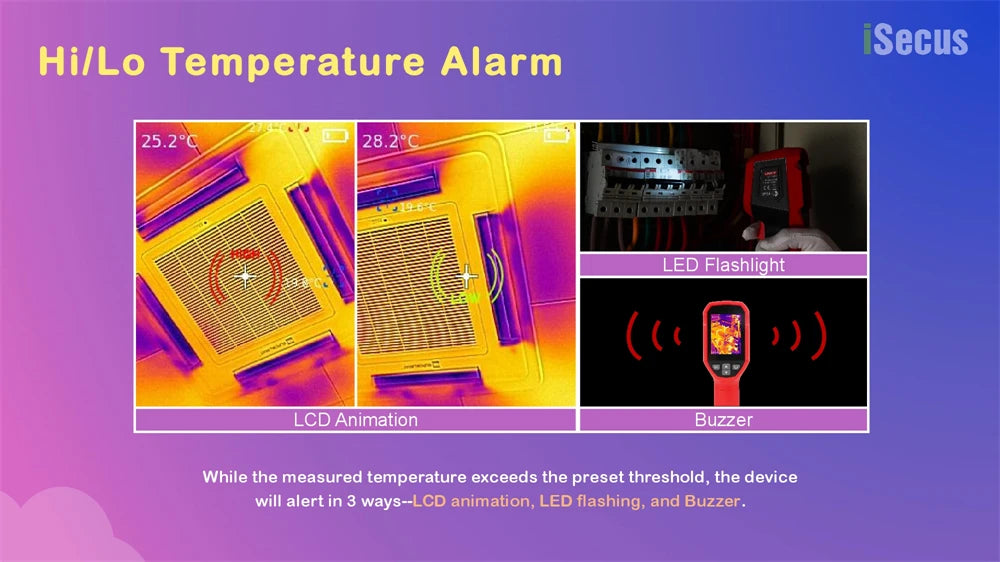

Hi/Lo temperature alarm	LCD animation, LED flashlight, Buzzer
Hi/Lo temperature tracking	√
Digital camera resolution	2MP
Laser pointer / LRF	√ / —
LED lighting	√
Analysis software	PC
General Characteristics
Battery	2600mAh rechargeable Li-ion battery
Operating time	≥6 hours
USB	Type-C
Storage	32GB Internal
Image storage format	JPG
Protection	IP54 & 2m drop proof
Certificates	CE, FCC, RoHS
Languages	EN, FR, DE, ES, IT, SV, PL, CZ
Weight	600g
Dimension	197mm×72mm×60mm
