SPECIFICATIONS

Brand Name: UNI-T

Certification: CE,FCC,RoHS

Display Size: 2.0 - 3.9 Inches

Hign-concerned Chemical: None

Is Smart Device: YES

Origin: Mainland China

Power Type: Charger

Style: Handheld

UNI-T Model: UTI720E

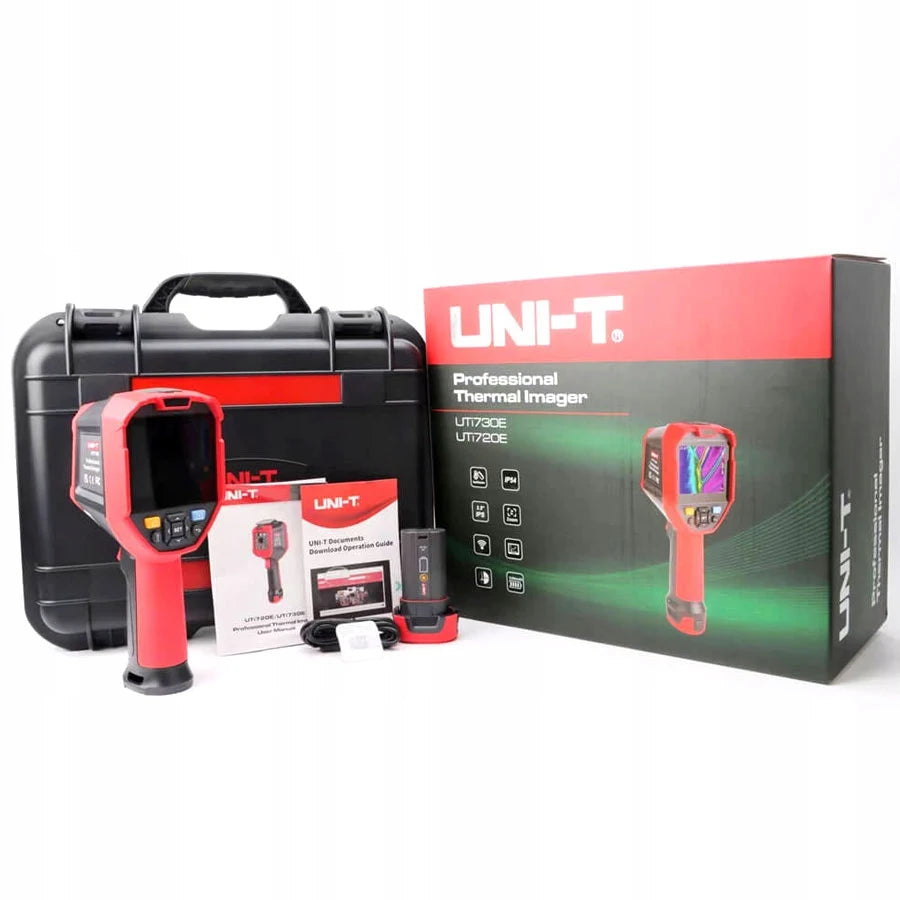

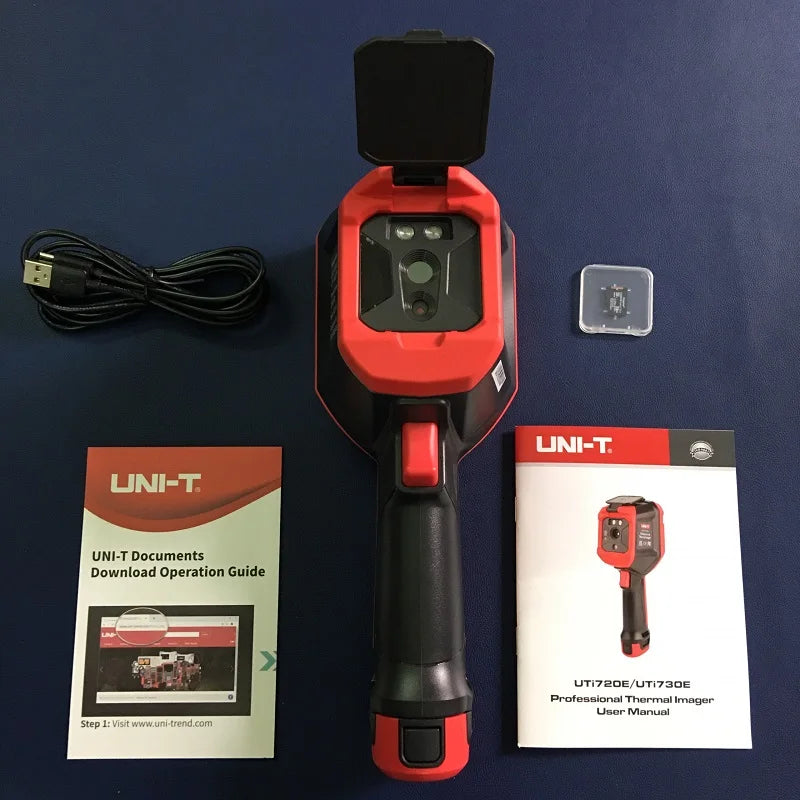

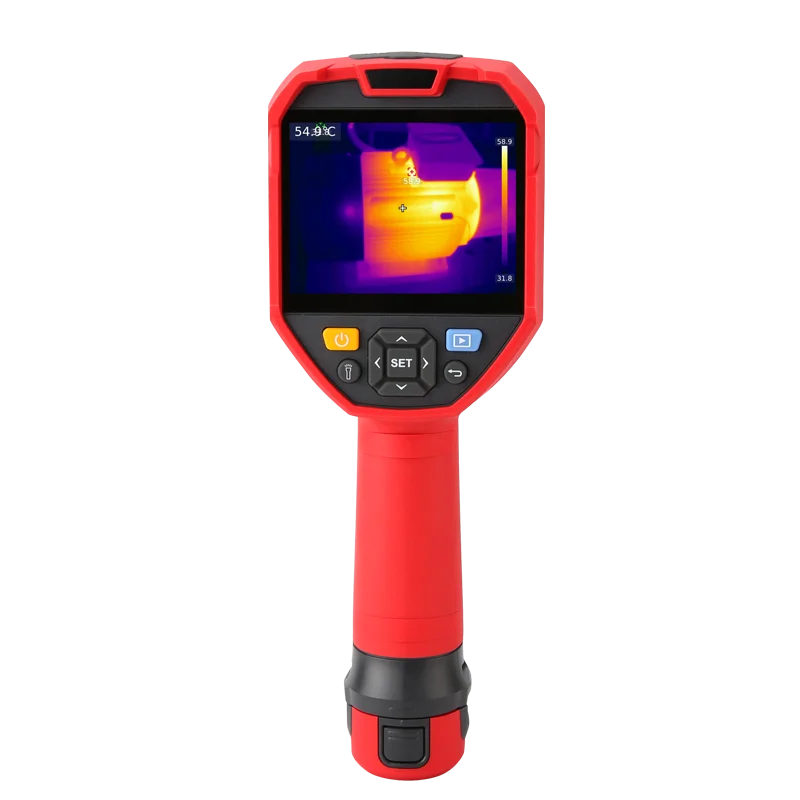

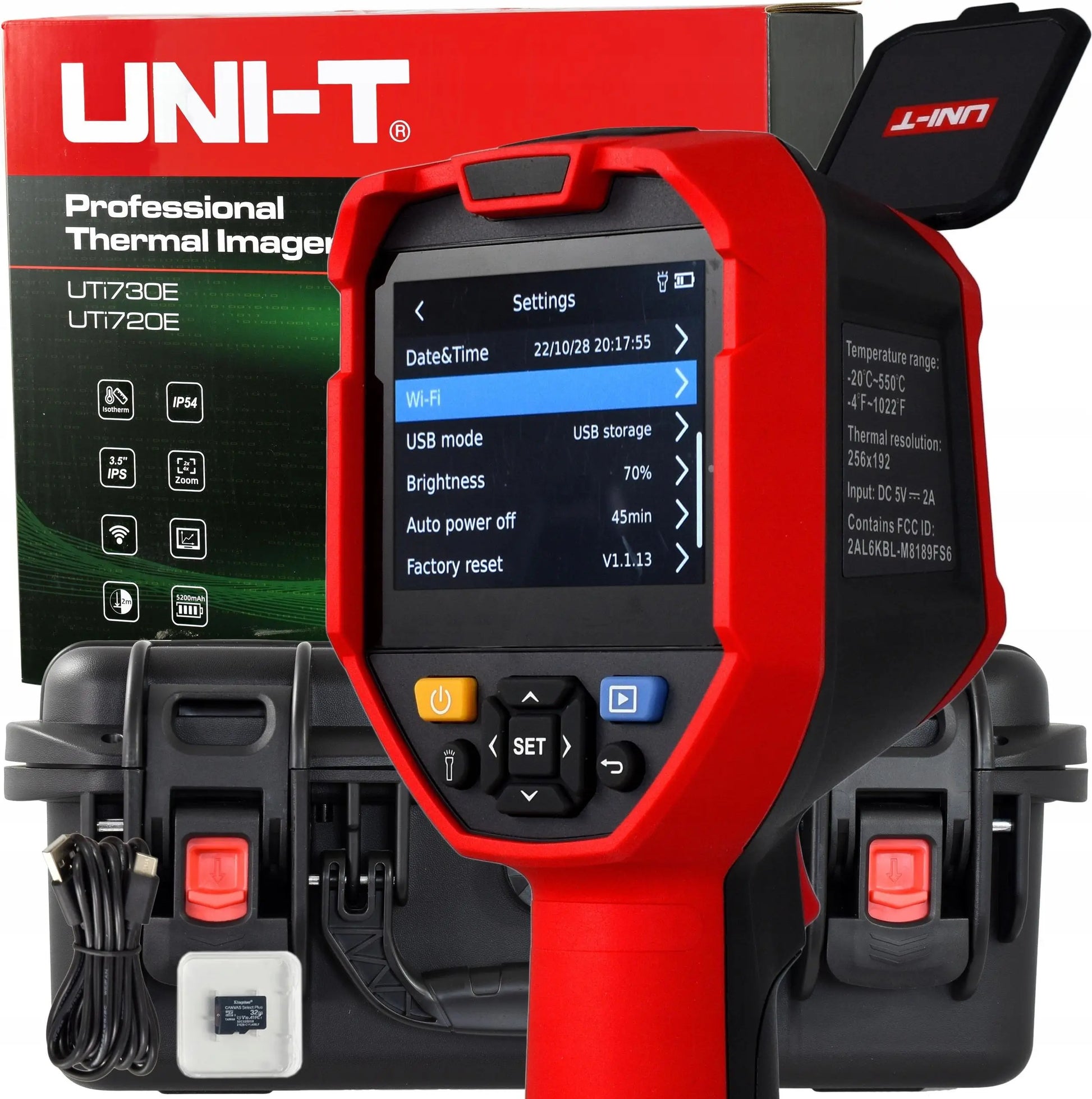

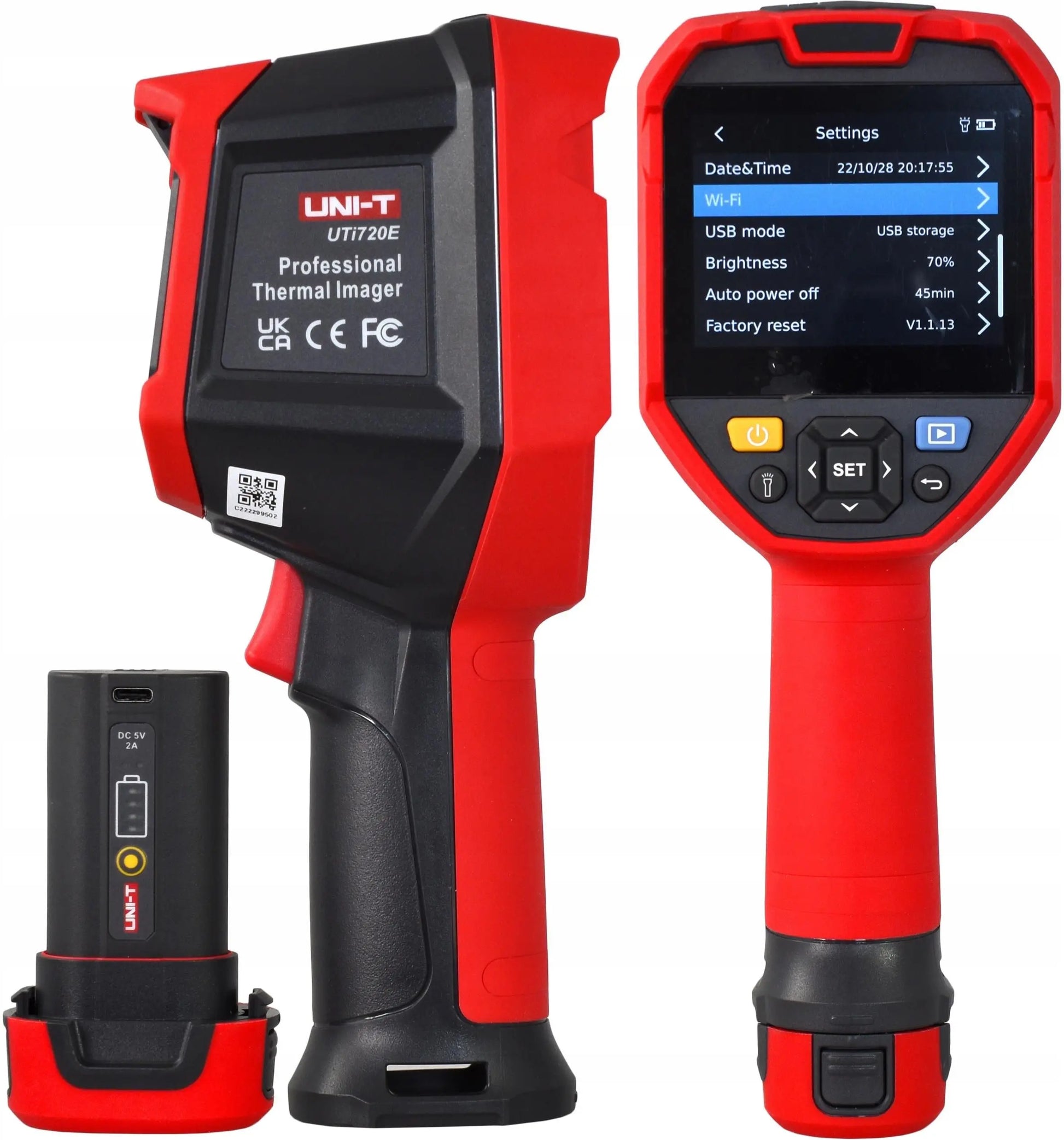

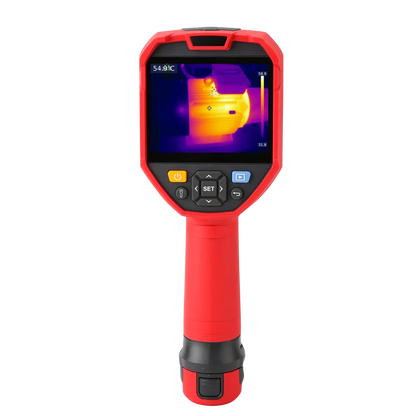

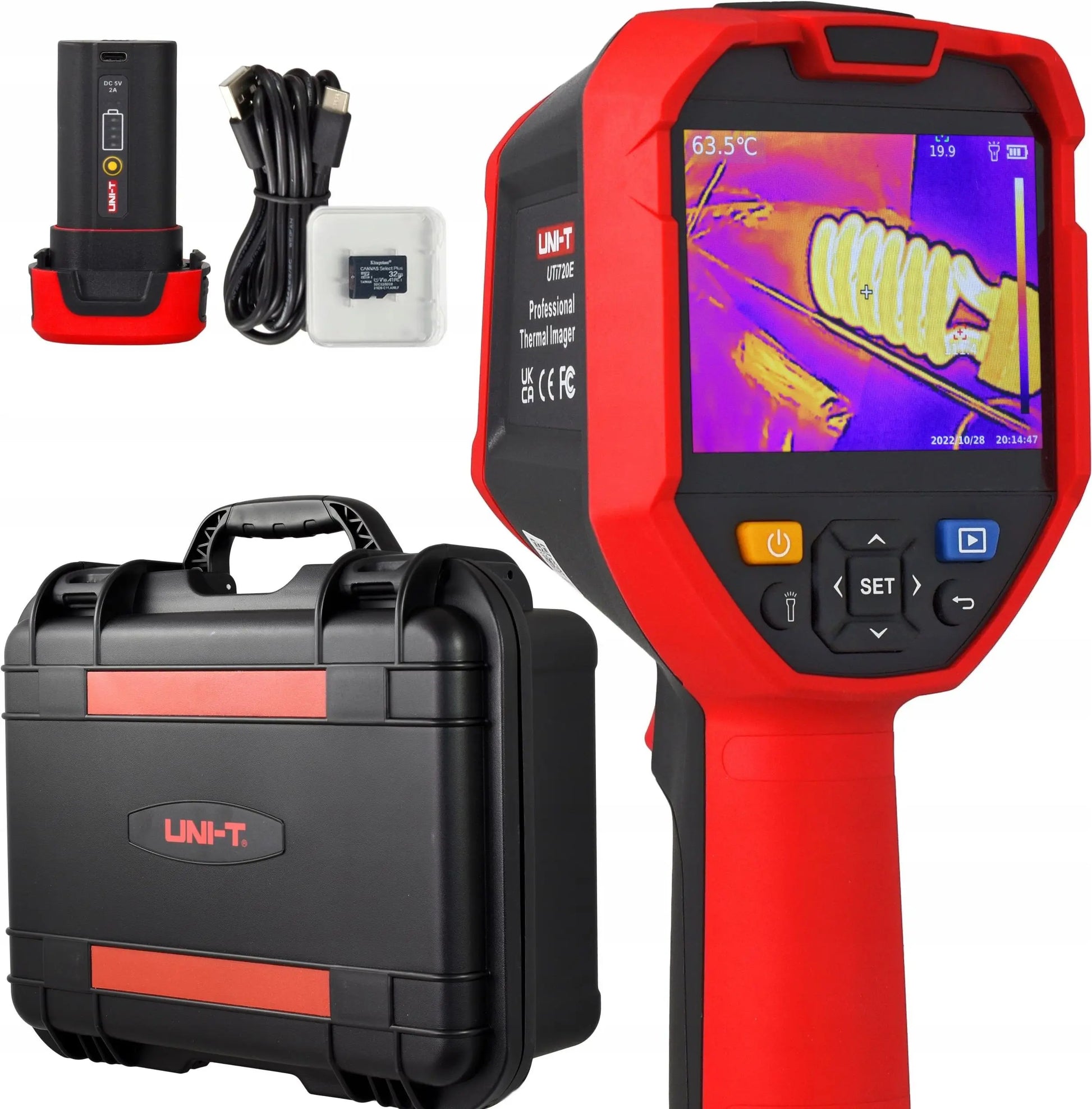

UNI-T UTi720E Enhanced Professional Infrared Thermal Imager PCB Circuit Industrial Testing Floor Heating Thermal Camera

Features :

1. 3.5” IPS display screen (640×480 Pixels)

2. IR resolution: 256×192

3. Temperature measurement range:-20℃ to 550℃ / -4℉ to 1022 ℉

4. Auto alarm for high/low temperature

5. Auto tracking for hot spot/cold spot

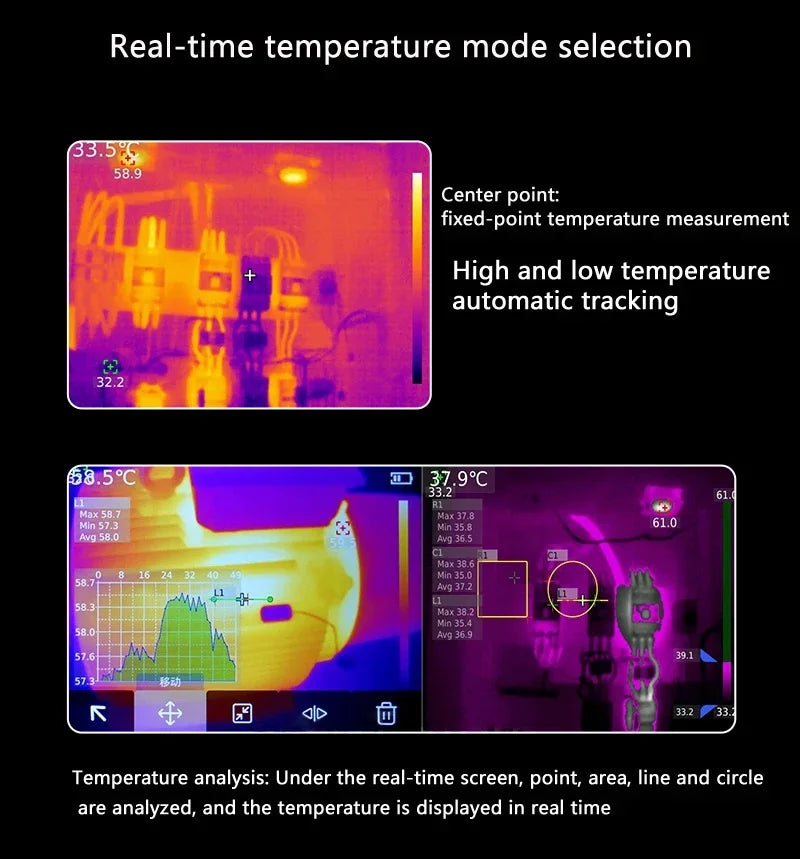

6. On screen analyzer :5 Points/1 Line/3 Rectangles/3 Circles

7. Image capture

8. Digital camera resolution: 2MP

9. Digital zoom: 2x, 4x

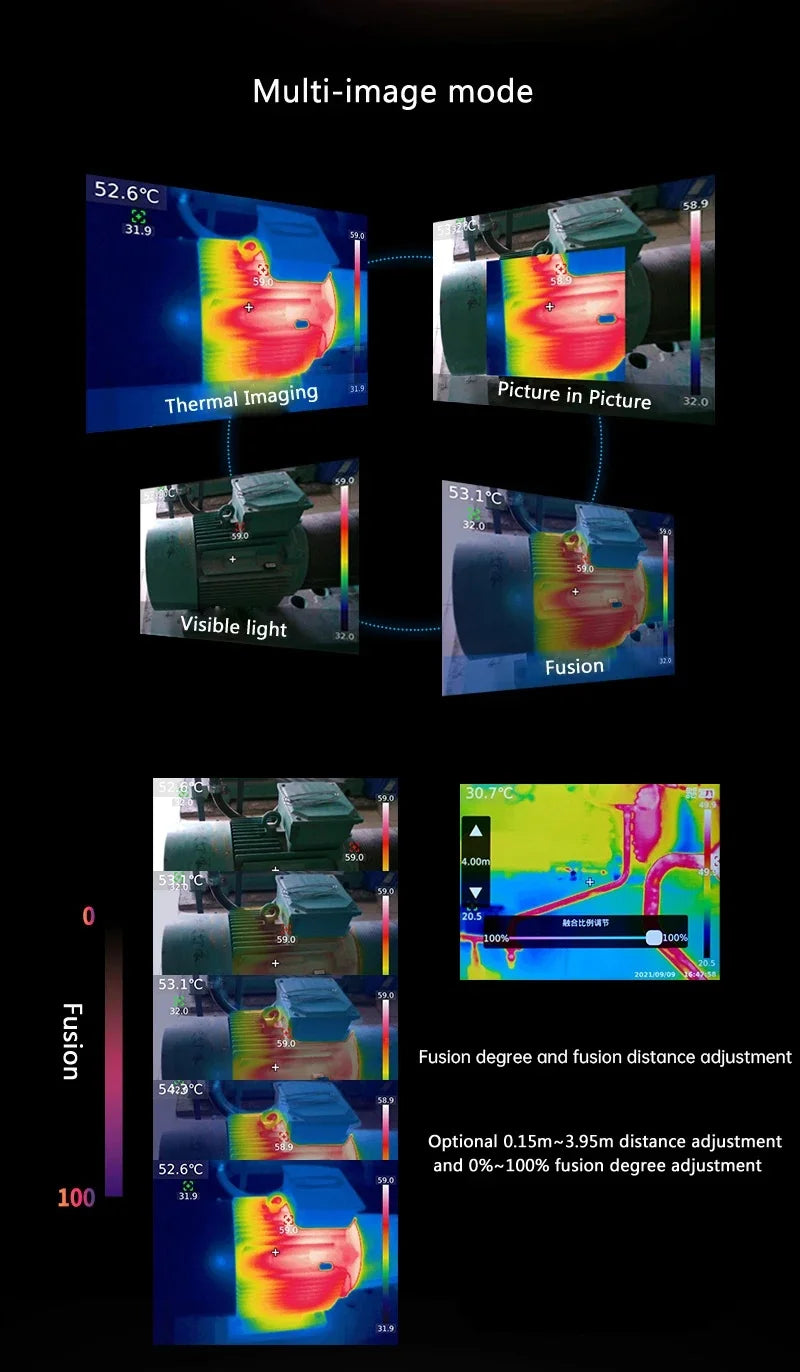

10. Image modes: Thermal,Visual image,Fusion,PIP

11. Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)

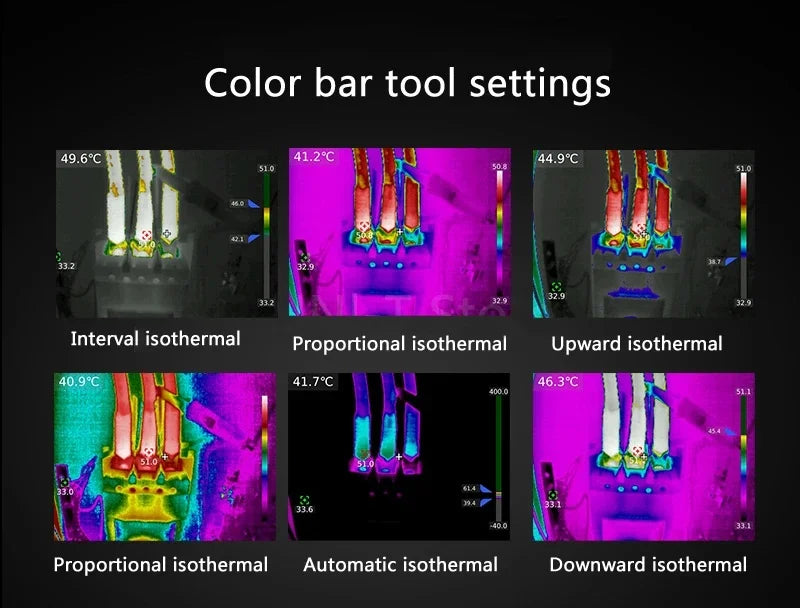

12. Isotherm(Auto/Ratio/Below/Above/Section/Manual)

13. LED flashlight

14. Wi-Fi connection through Mobile App

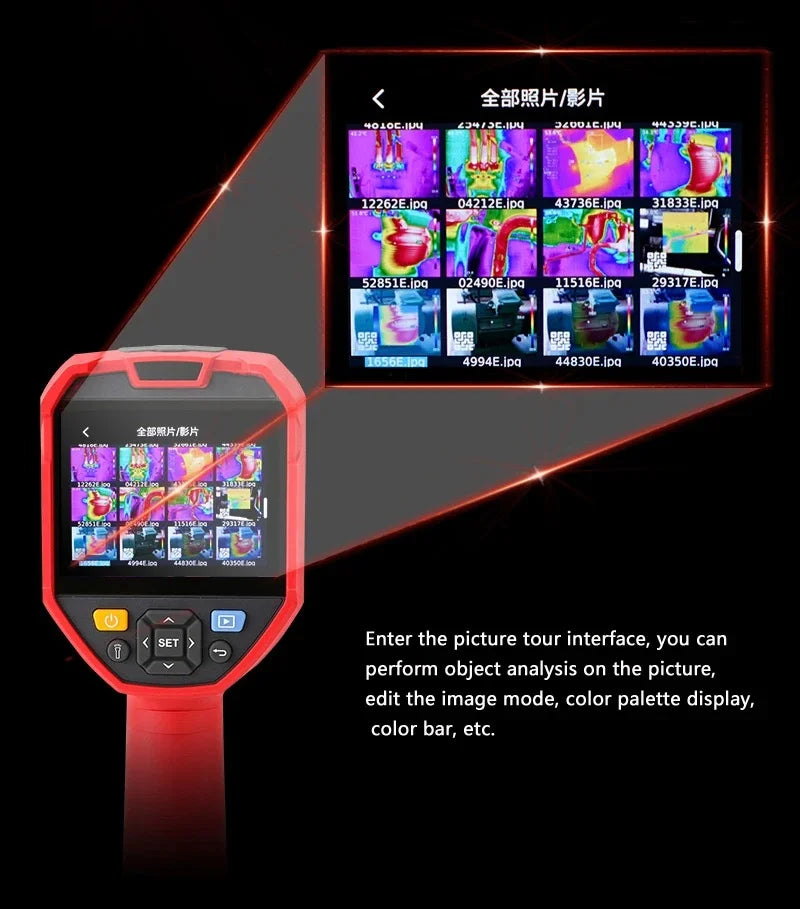

15. QR Code – photo management

16. PC software: analysis and real-time image projection

17. 5200mAh replaceable battery pack (Type-C rechargeable)

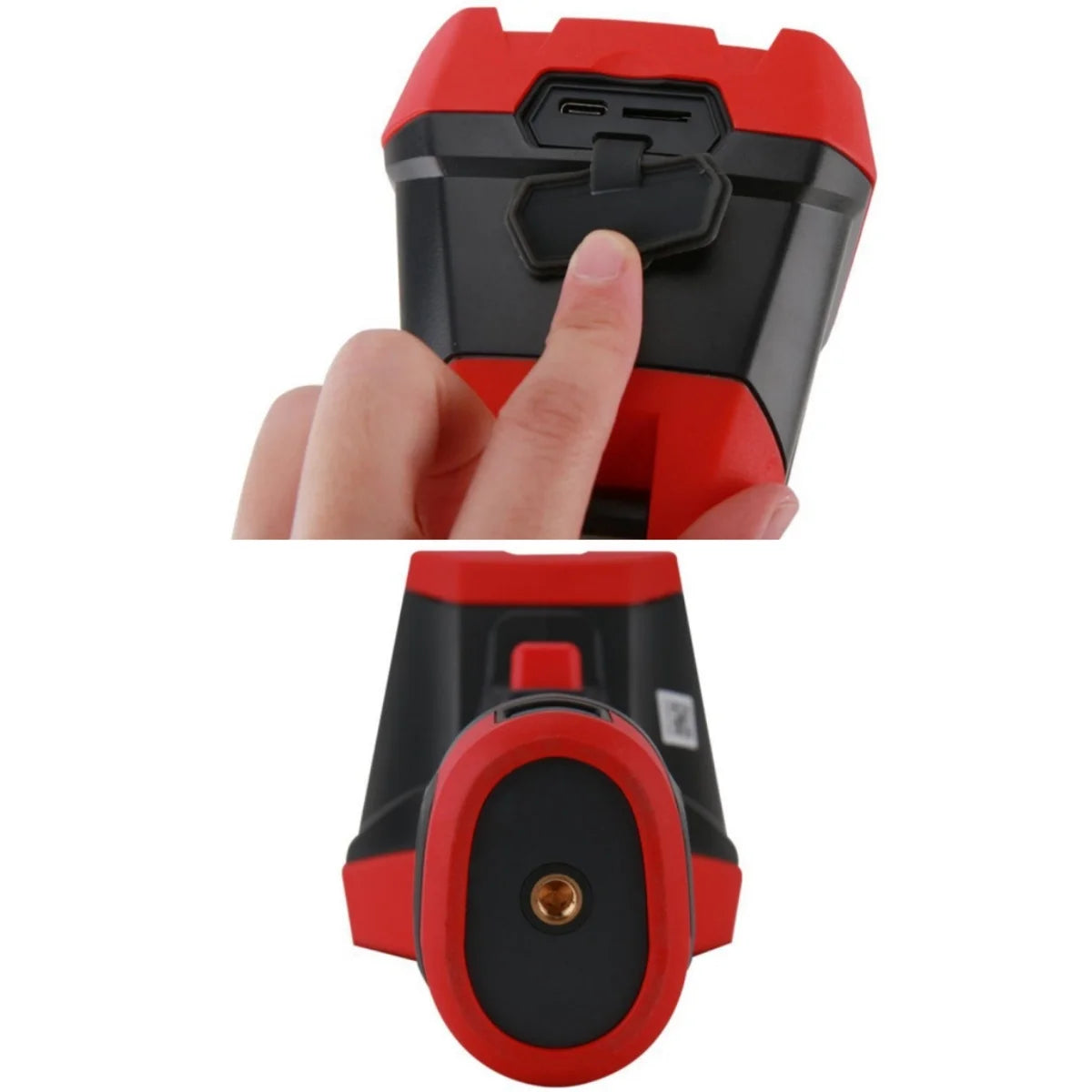

18. 1/4”tripod mounting hole

19. IP54

20. 2m drop proof

Technical Data：

IR resolution (Pixels)：256×192

Display：3.5'' IPS (640×480)

Field of view(FOV): 56°×42°

Thermal sensitivity(NETD): ≤50mK

Spatial resolution(IFOV): 3.8mrad

Frame rate: ≤25Hz

Spectral range: 8~14µm

Focus: Focus Free

Temperature measurement range: -20℃~550℃

Accuracy: ±2℃ or ±2% whichever is greater

Emissivity: 0.01~1.00 adjustable (0.95 default)

Functions：

Color palettes： 7(White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)

Image modes：Thermal,Visual image,Fusion,PIP

On screen analyzer：5 Points/1 Line/3 Rectangles/3 Circles

Digital camera resolution：2MP

Digital zoom：2x, 4x

Hi/Lo temperature alarm：Icon,LED flashlight

Isotherm：Auto/Ratio/Below/Above/Section/Manual

Software analysis：PC+APP

Wi-Fi：√

General Characteristics:

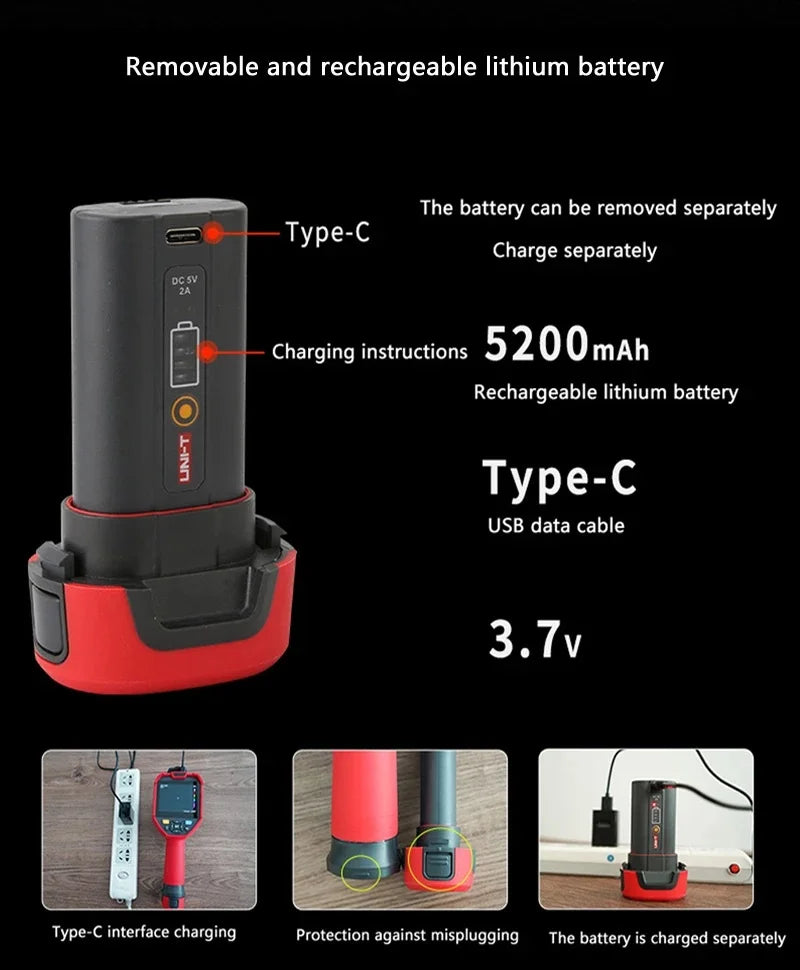

Battery: Detachable Li-ion battery pack(3.7V 5200mAh)

Battery operation time: ≥ 3 hours (with Wi-Fi off)

USB: Type-C

IP rating: IP54

Drop proof: 2m

Storage: 16G Micro SD card

Image/Video storage format: JPEG

Certificates: CE,UKCA,FCC,RoHS

Product net weight: 654g

Product size： 260mm×97mm×99mm
