SPECIFICATIONS

Brand Name: wishiot

Choice: yes

Model Number: FZ3199

Model Type: USB Interface GPS Module

Origin: Mainland China

Support: Support GLONASS Beidou GPS

Work or: for Arduino Pixhawk Flight Control

semi_Choice: yes

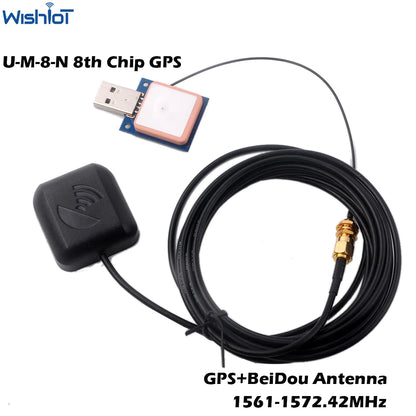

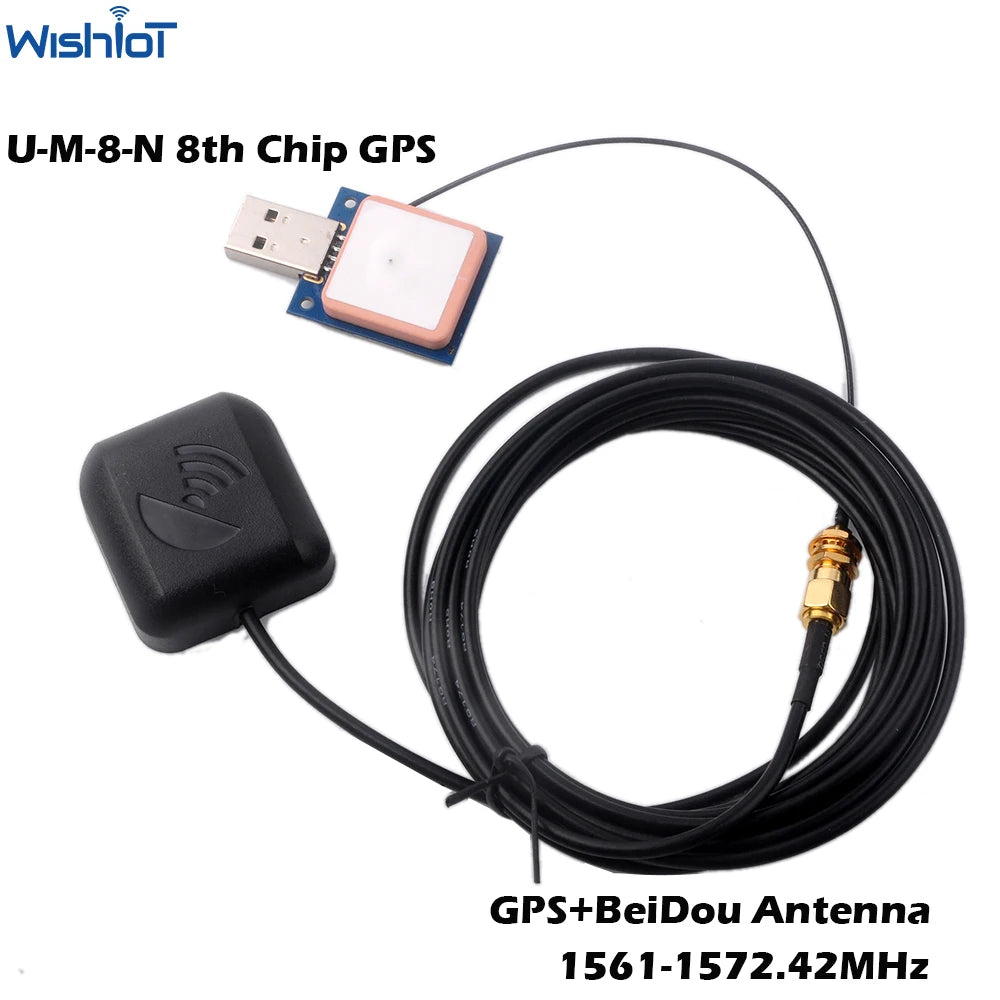

USB GPS Module Support GLONASS Beidou GPS Built in Flash High Sensitivity Ceramic Antenna for Arduino Pixhawk Flight Control with IPEX Antenna Socket

Description of GPS Module:
Chip: 8th Chip
Size: 28 x 48 x 8.5 mm

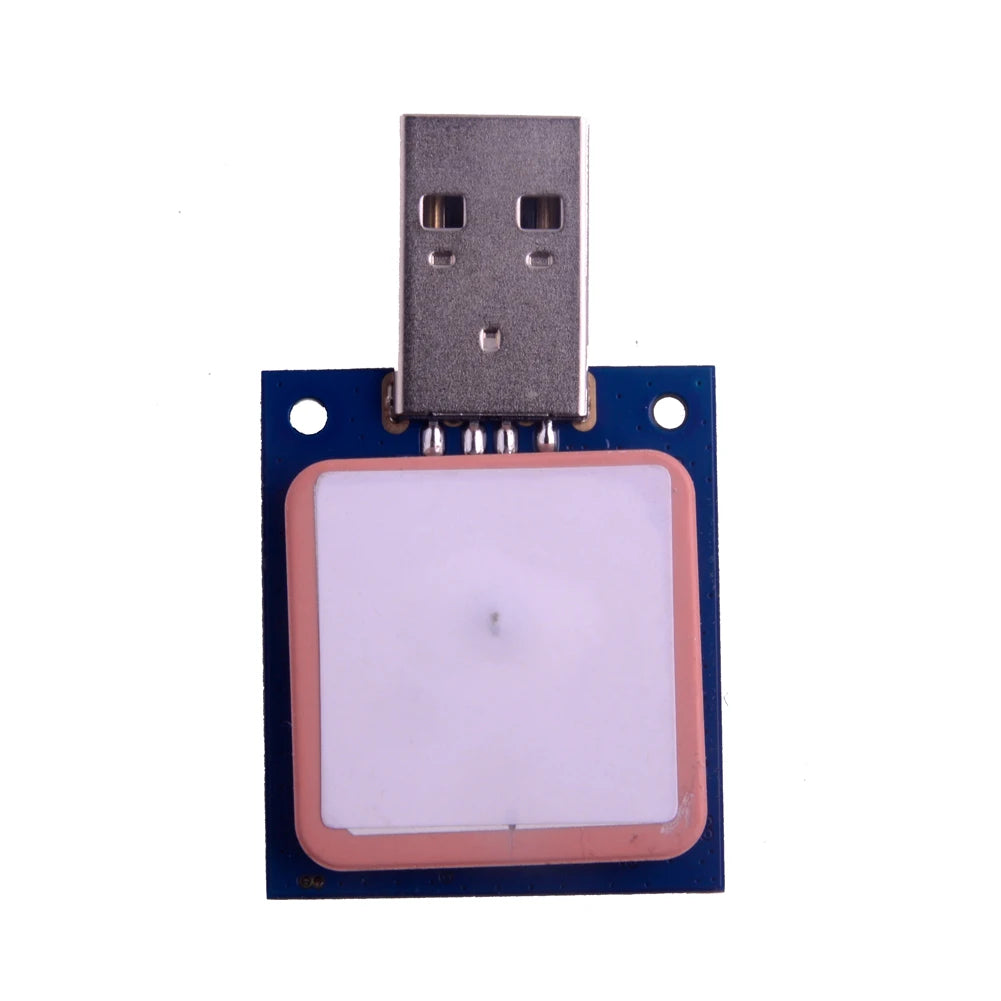

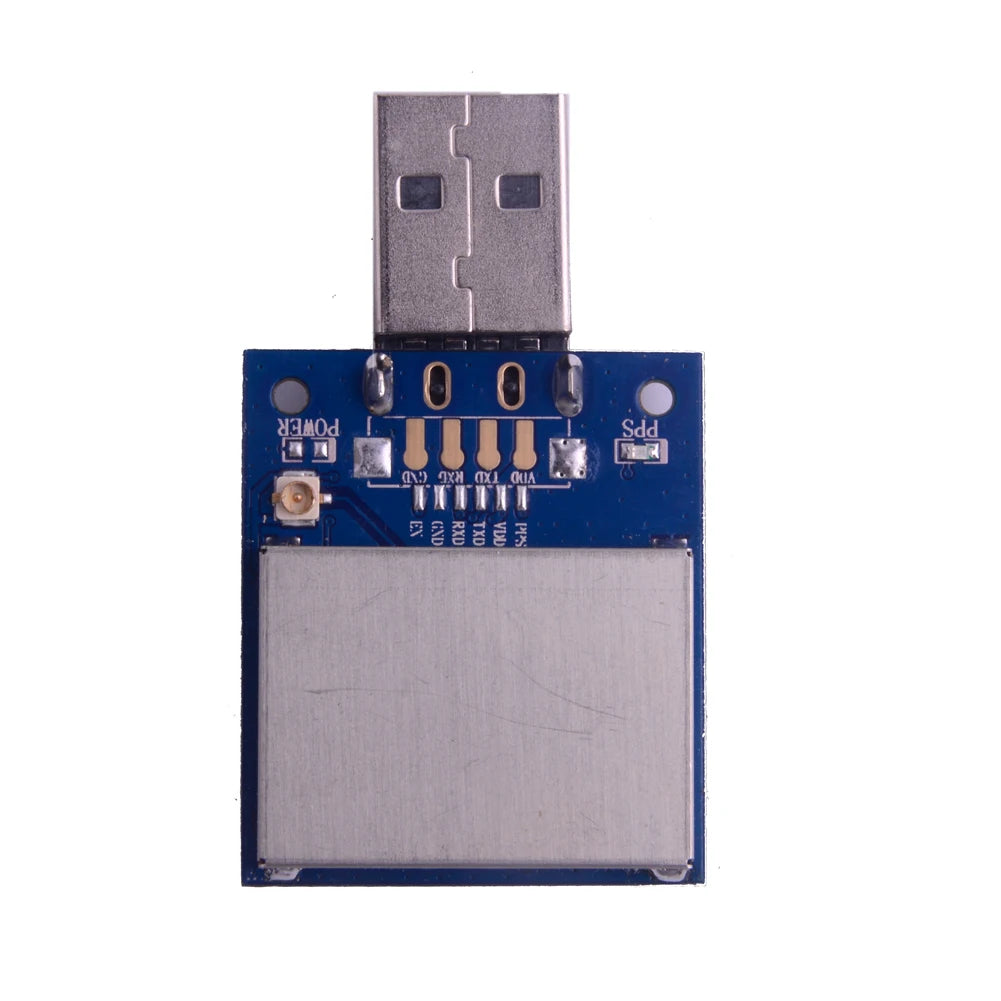

Product comes with high sensitivity ceramic antenna; with IPEX antenna socket, you can use external active antenna too
Supports GPS+GLONASS (default); GPS+Beidou; GLONASS+ BeiDou multiple modes Built-in LNA signal amplifier
Built-in Flash, free configuration product baud rate, output statement, output rate, second pulse and other parameters
Built-in TCXO Crystal and Farad Capacitors for Faster Hot Start
1-10Hz update rate

Frequency: L1, 1575.42MHz
Baud rate: 4800,9600,19200,38400,57600,112500bps
Channel: 56
Sensitivity
Tracking: -164dBm Capture: -159dBm Cold Start -147dBm
Cold start:  average 26 seconds
Warm start:  Average 24 seconds
Hot start:  average 1 second
Accuracy:
HorizontalPosition:Autonomous<2.5maverage SBAS < 2.0m average
Timepulse signal: RMS 30 ns
The maximum height: 50000 meters
Speed:  500 m/s
Acceleration:  ≦4G
Update frequency:  1-10 Hz
Operating Temperature:  -40°C to 85°C
Storage temperature:  -40°C to 85°C

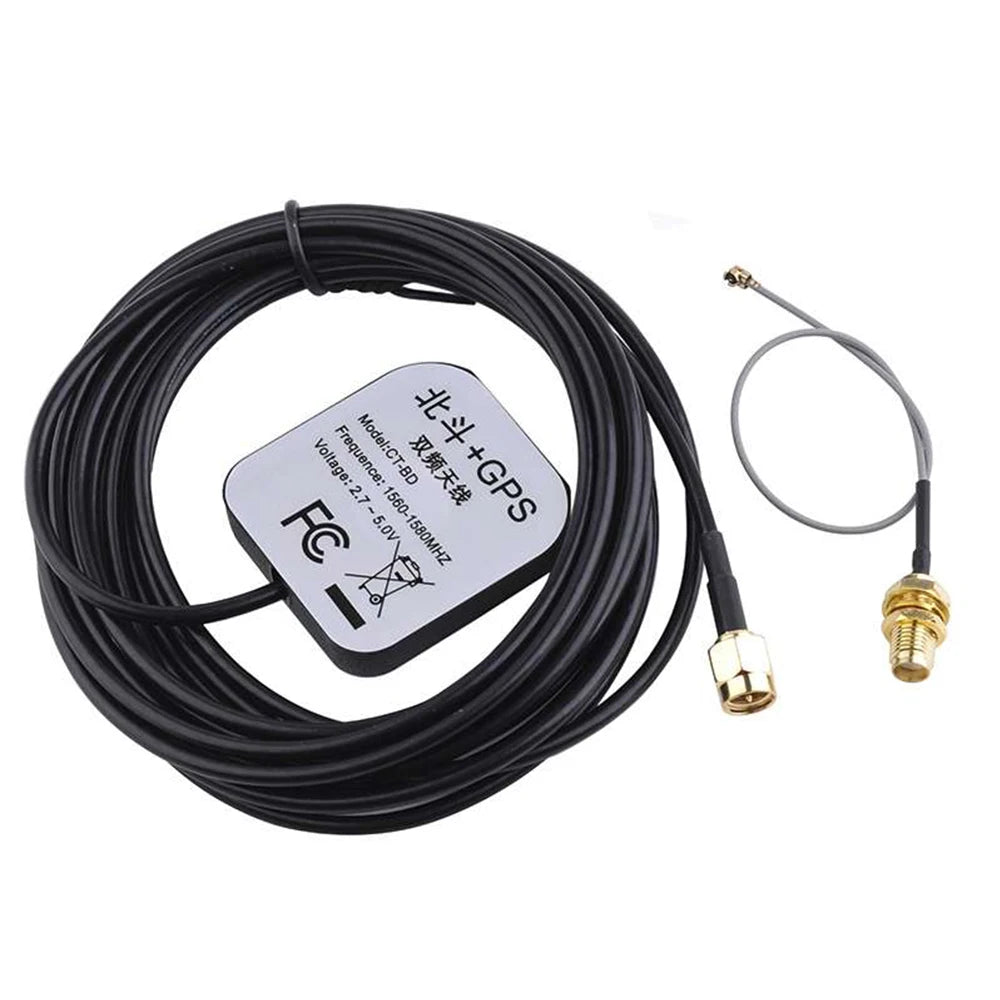

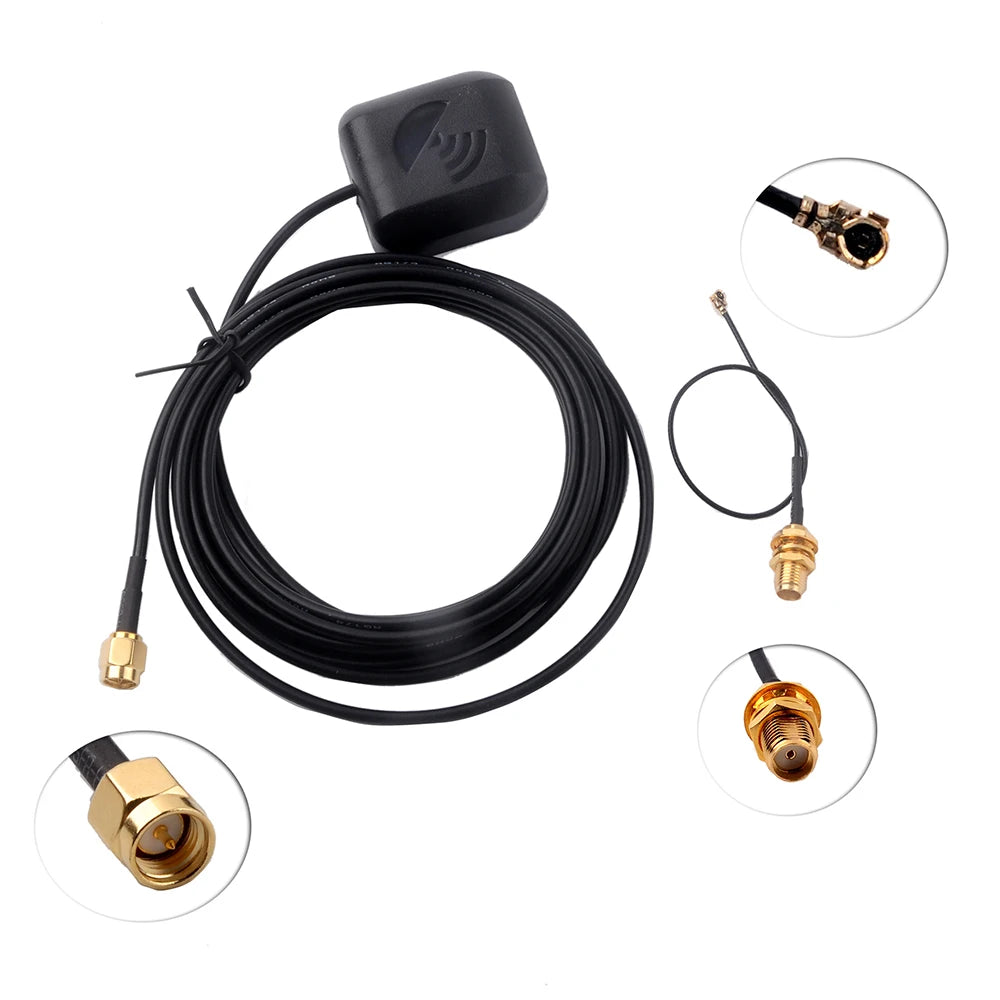

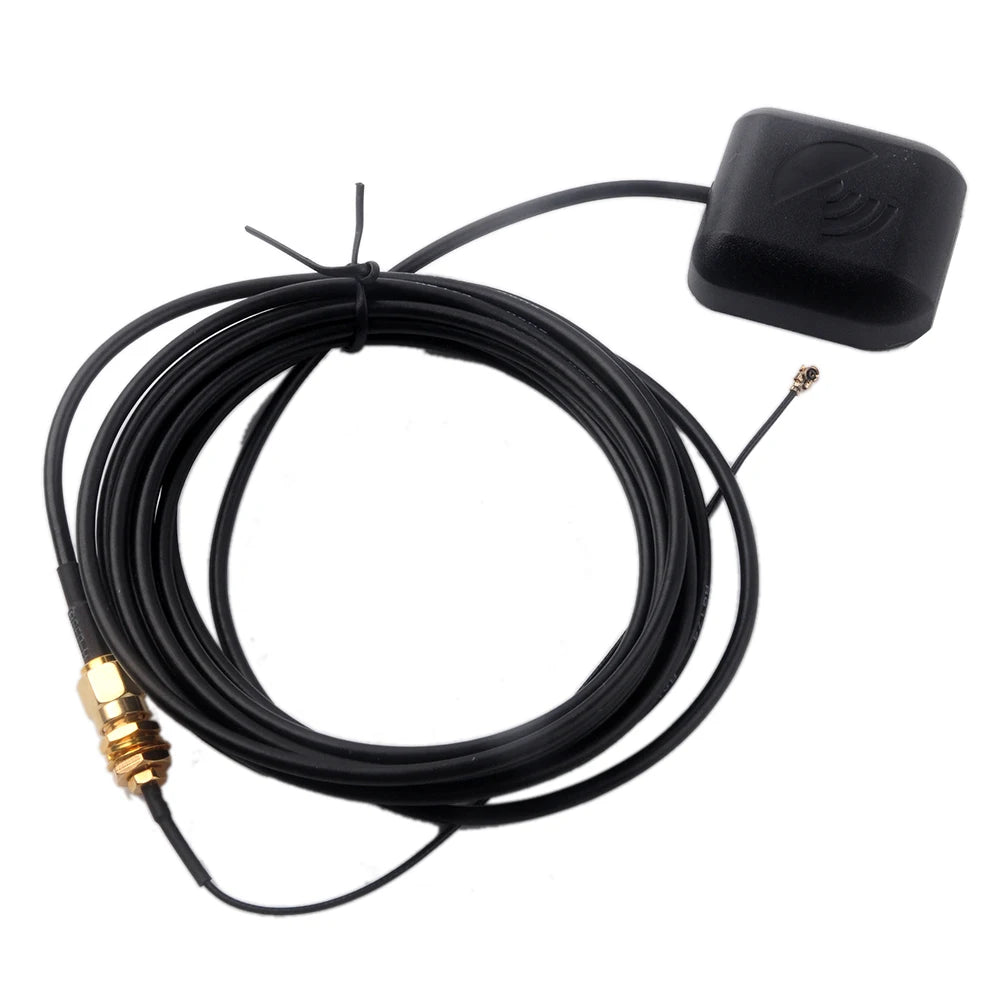

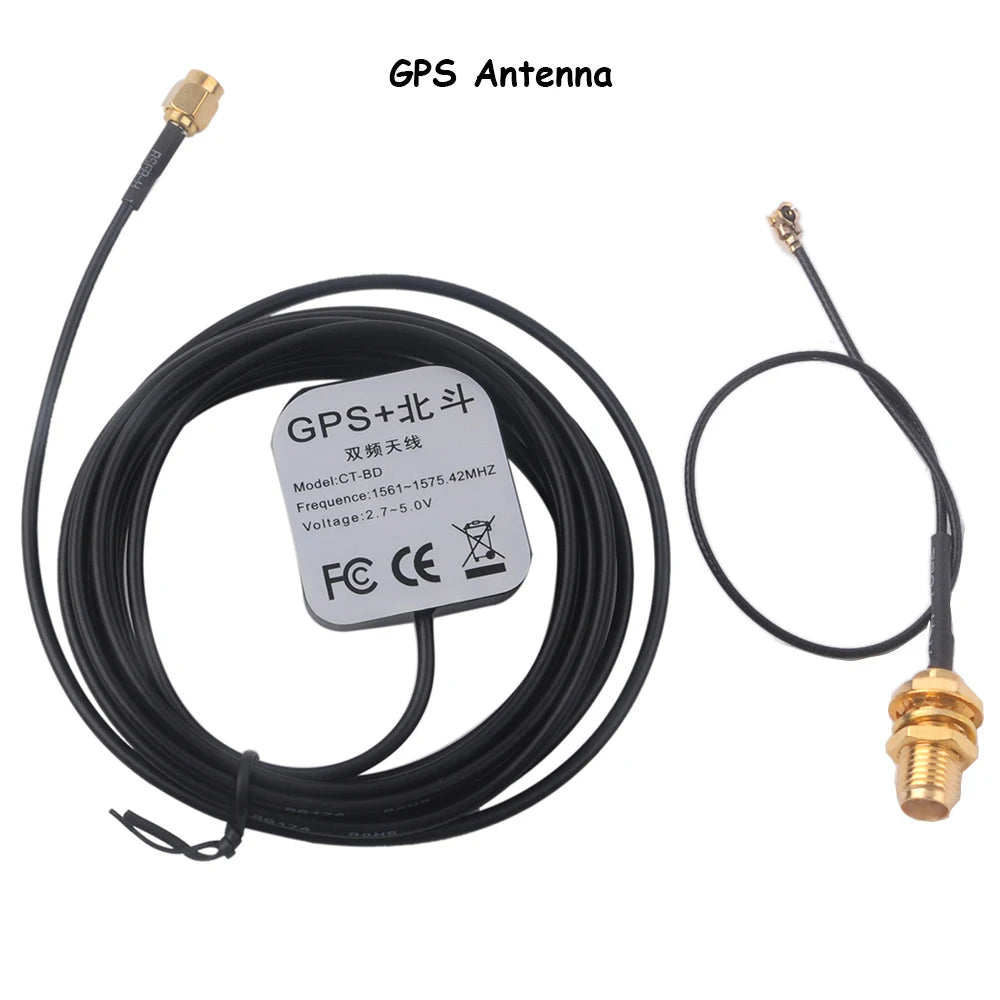

Description of GPS Antenna:
GPS frequency: 1575.42±5MHz
Cable length: 3 meters
Beidou frequency: 1561.098±5MHz
Standing wave ratio: ≤1.3
Gain: 28±2dB
Impedance: 50±10Ω
Working current: ≤9mA@3.3V
Voltage range: 2.7-5.0V
Wire: RG174 96
Connector form: SMA straight
Working temperature: -40 ° C ~ +80 ° C
Waterproof rating: IP65, IP67
Vibration: 10-55Hz 1.5mm amplitude, lasting 2 hours

Package Includes:

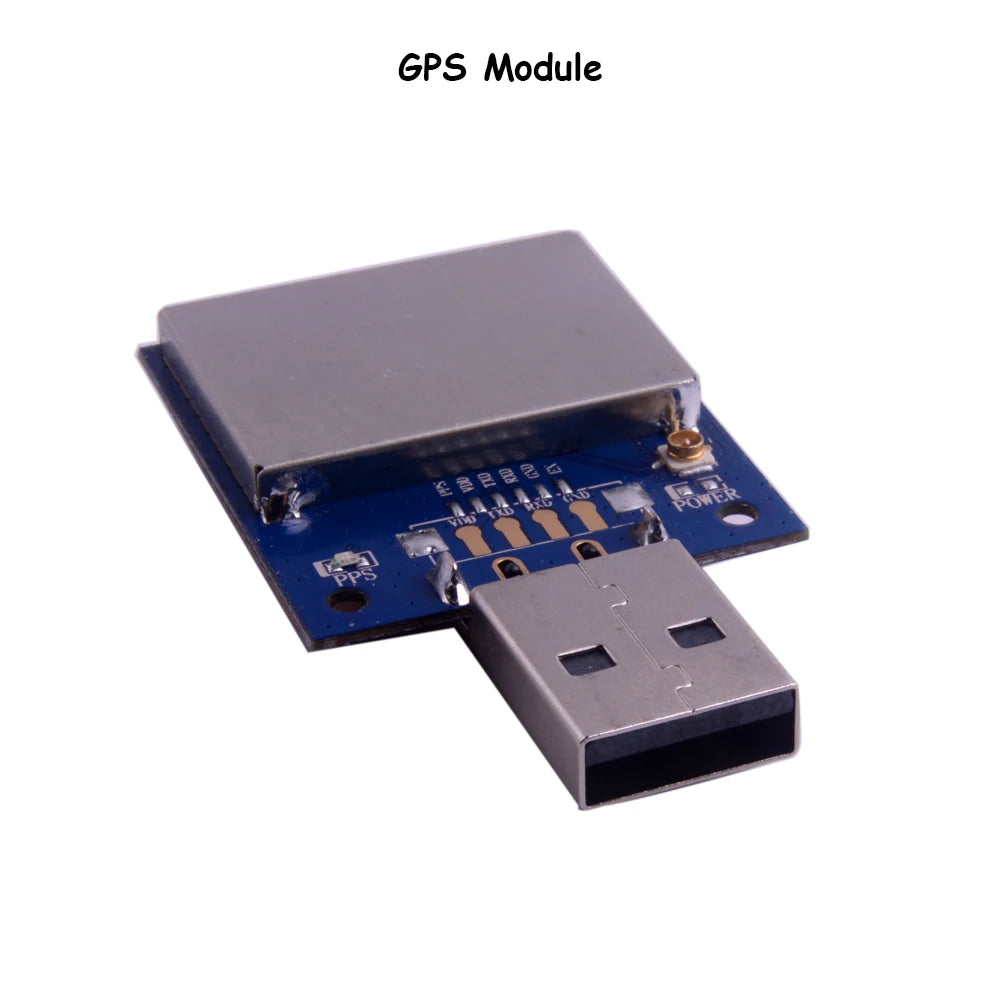

Bundle 1      GPS Moudle
Bundle 2      GPS Antenna

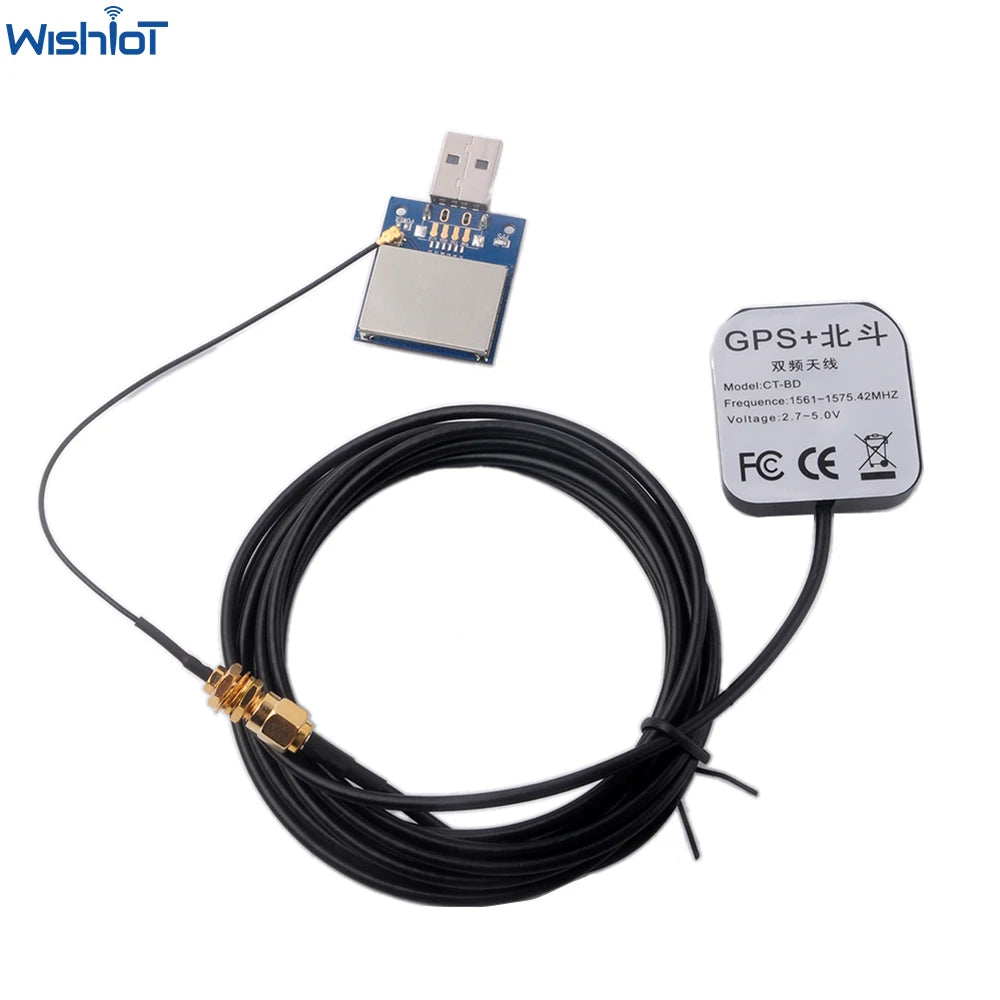

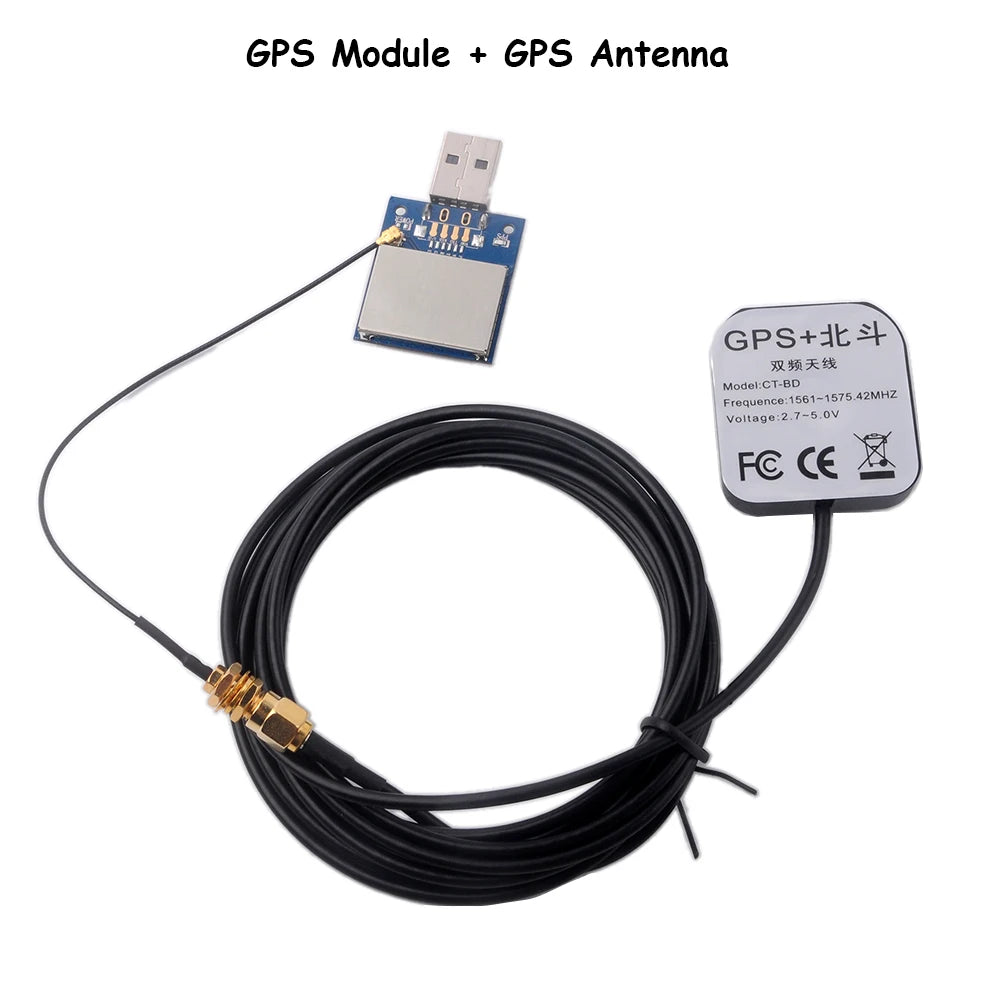

Bundle 3      GPS Moudle+GPS Antenna
