SPECIFICATIONS

Brand Name: wishiot

Model Number: FZ3199

Model Type: USB Interface GPS Module

Origin: Mainland China

Support: Support GLONASS Beidou GPS

Work or: for Arduino Pixhawk Flight Control

USB GPS Module Support GLONASS Beidou GPS Built in Flash High Sensitivity Ceramic Antenna for Arduino Pixhawk Flight Control with IPEX Antenna Socket

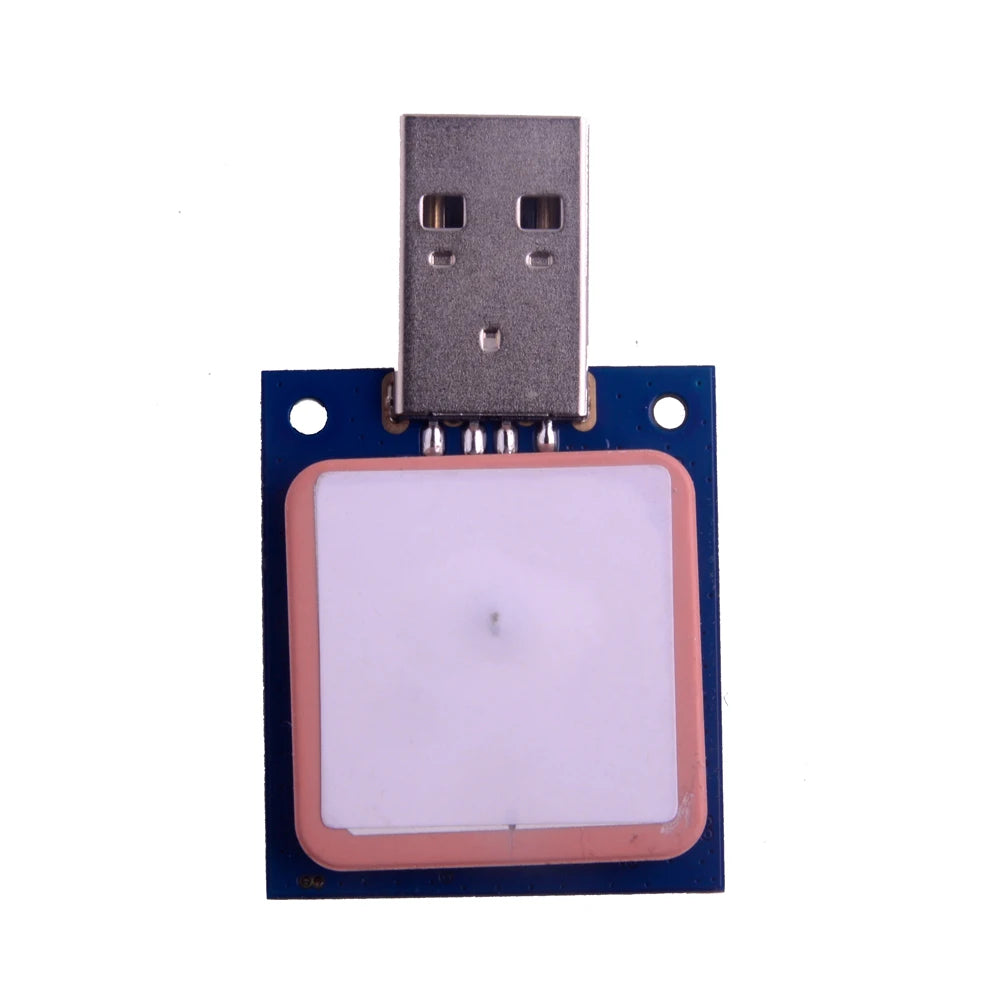

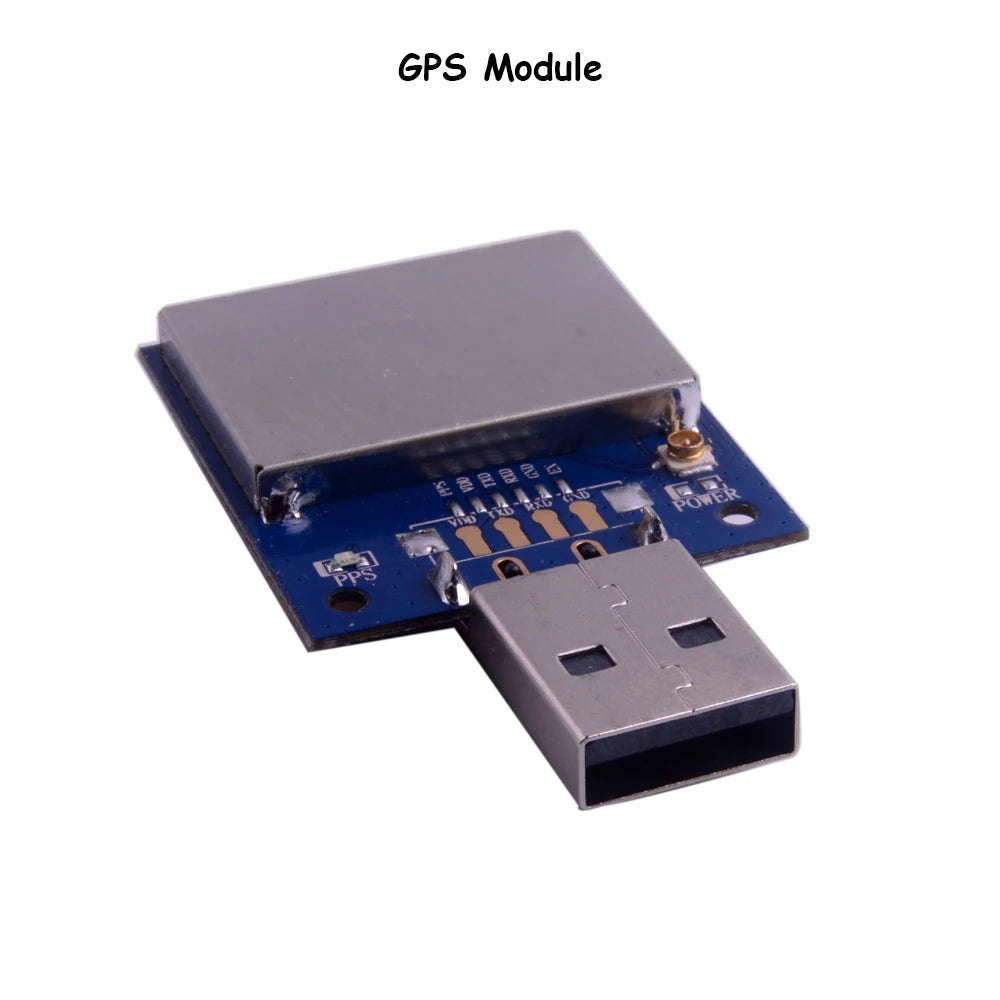

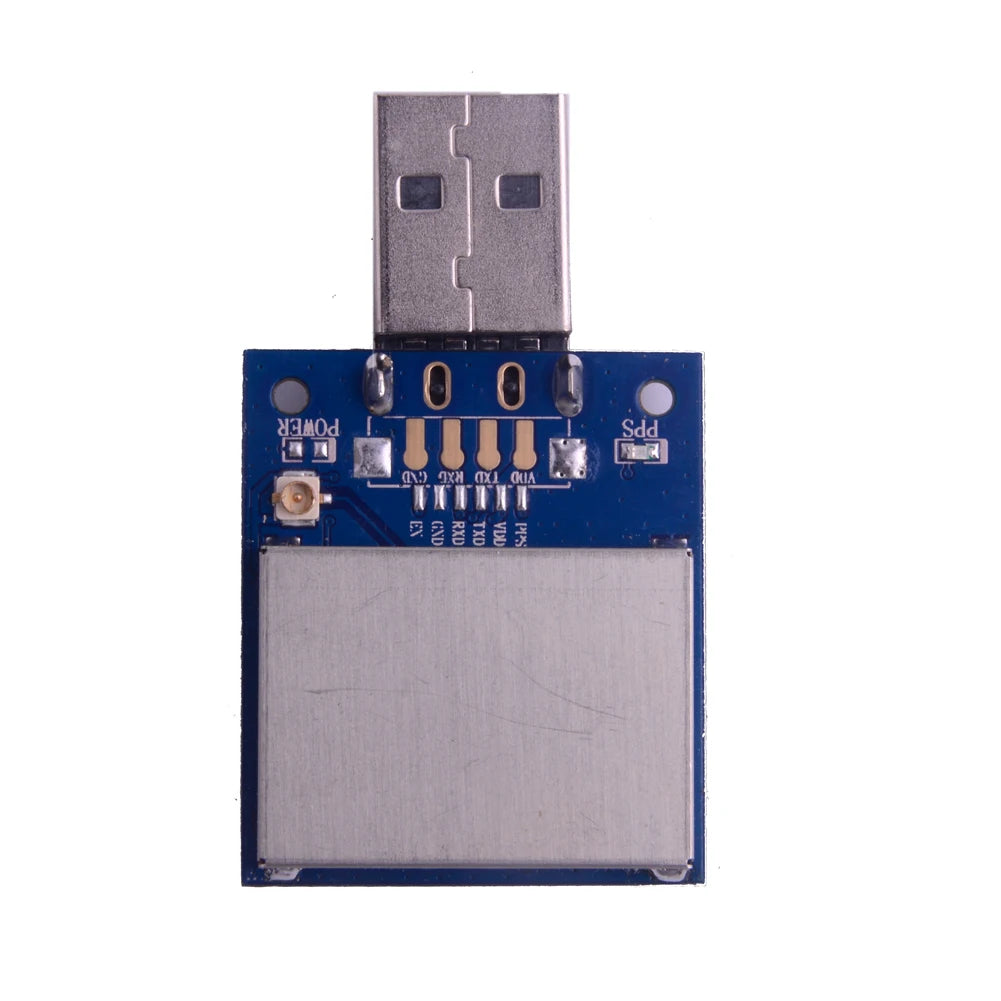

Description of GPS Module:
Chip: 8th Chip
Size: 28 x 48 x 8.5 mm
Product comes with high sensitivity ceramic antenna; with IPEX antenna socket, you can use external active antenna too
Supports GPS+GLONASS (default); GPS+Beidou; GLONASS+ BeiDou multiple modes Built-in LNA signal amplifier
Built-in Flash, free configuration product baud rate, output statement, output rate, second pulse and other parameters
Built-in TCXO Crystal and Farad Capacitors for Faster Hot Start
1-10Hz update rate

Frequency: L1, 1575.42MHz
Baud rate: 4800,9600,19200,38400,57600,112500bps
Channel: 56
Sensitivity
Tracking: -164dBm Capture: -159dBm Cold Start -147dBm
Cold start:  average 26 seconds
Warm start:  Average 24 seconds
Hot start:  average 1 second
Accuracy:
HorizontalPosition:Autonomous<2.5maverage SBAS < 2.0m average
Timepulse signal: RMS 30 ns
The maximum height: 50000 meters
Speed:  500 m/s
Acceleration:  ≦4G
Update frequency:  1-10 Hz
Operating Temperature:  -40°C to 85°C
Storage temperature:  -40°C to 85°C

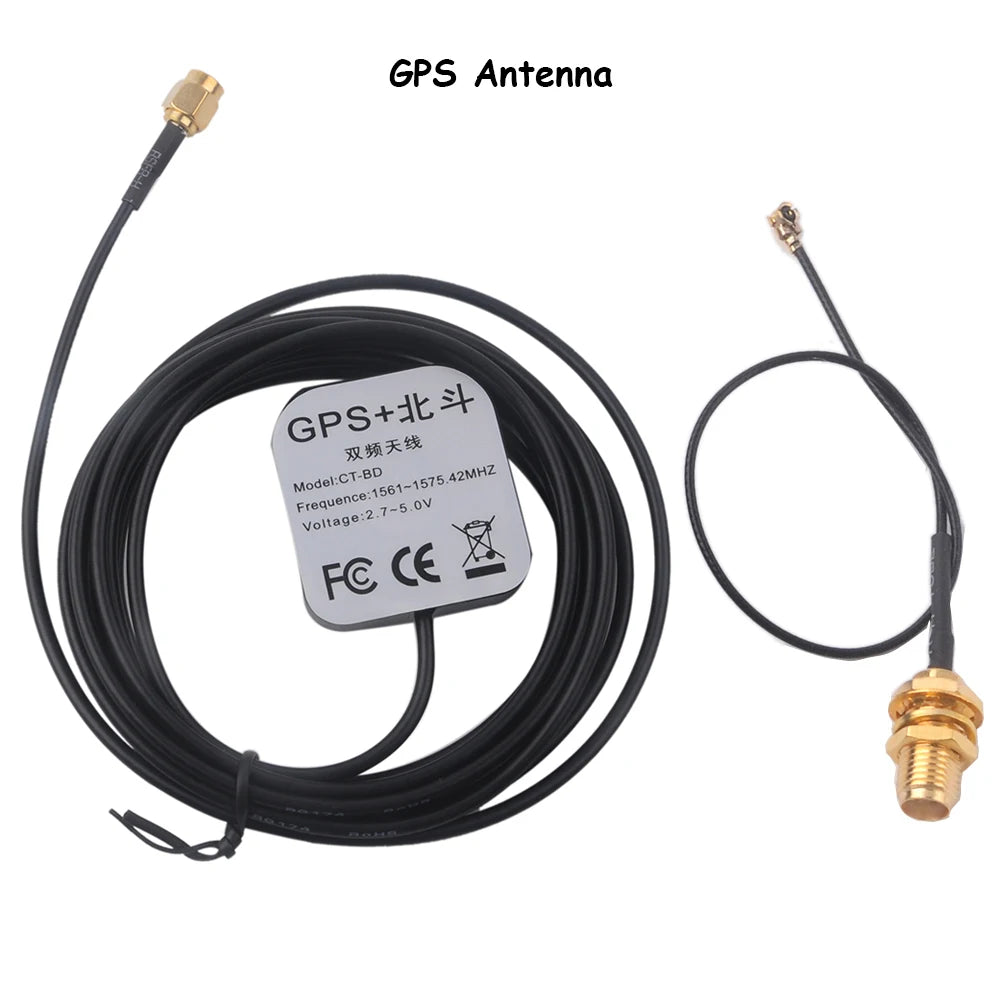

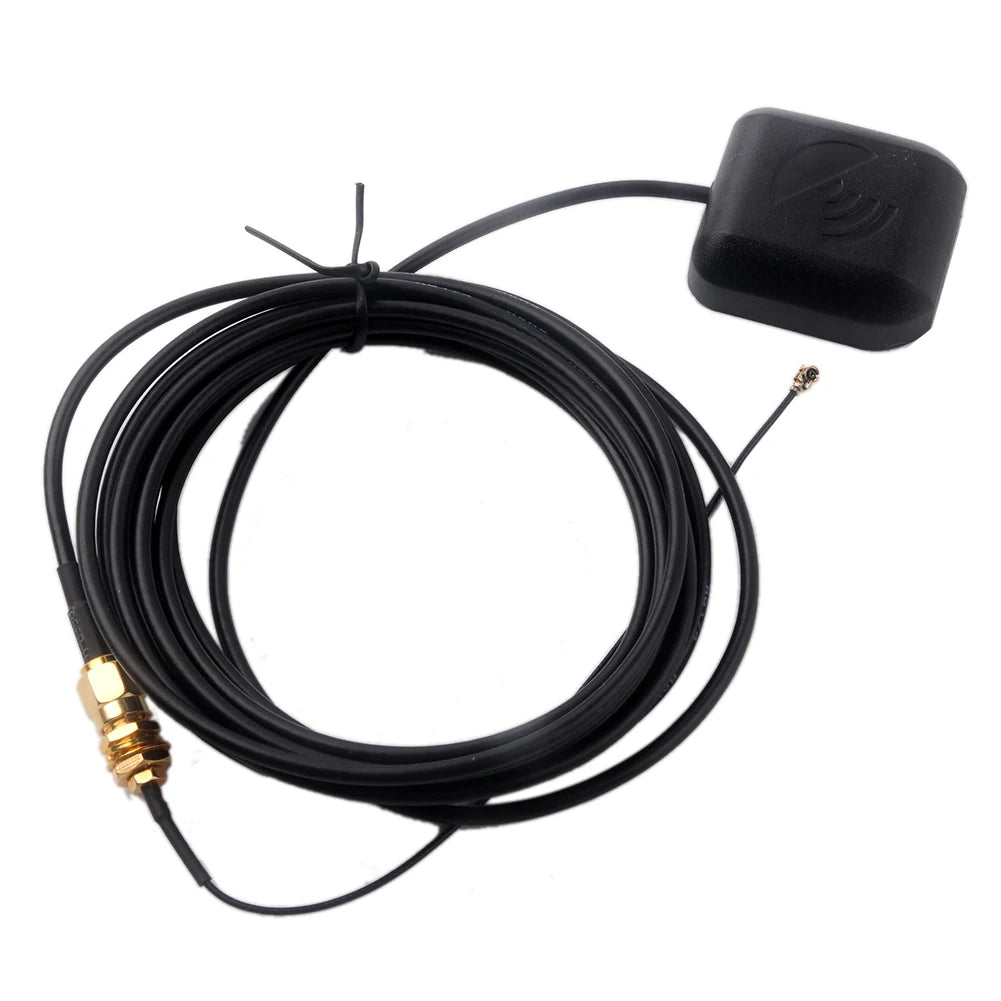

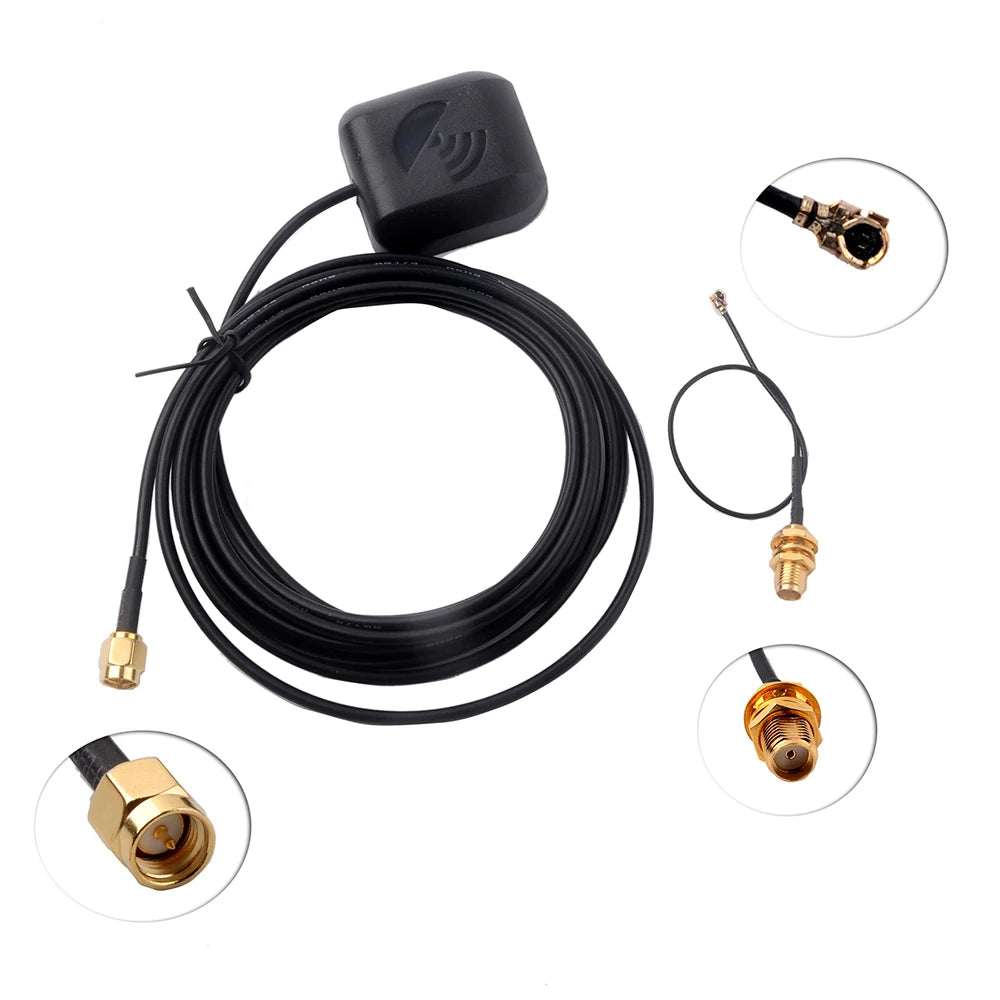

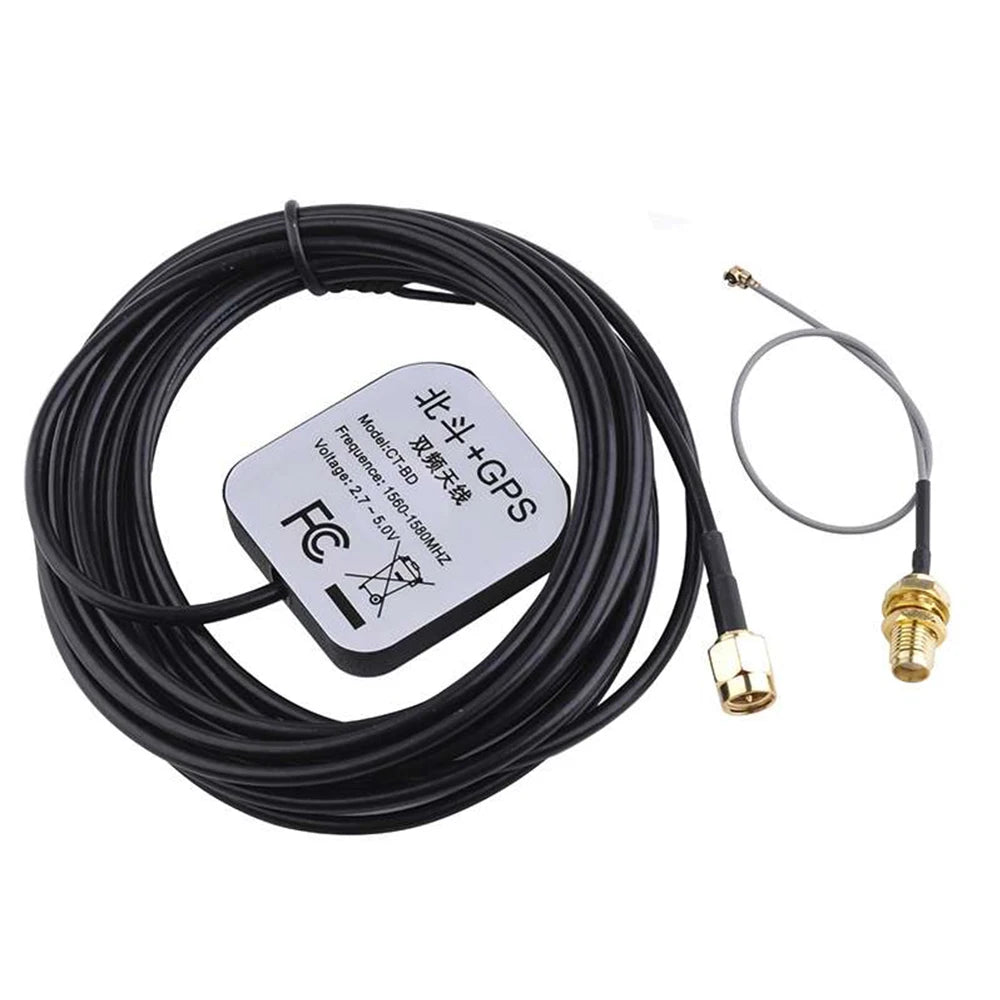

Description of GPS Antenna:
GPS frequency: 1575.42±5MHz
Cable length: 3 meters
Beidou frequency: 1561.098±5MHz
Standing wave ratio: ≤1.3
Gain: 28±2dB
Impedance: 50±10Ω
Working current: ≤9mA@3.3V
Voltage range: 2.7-5.0V
Wire: RG174 96
Connector form: SMA straight
Working temperature: -40 ° C ~ +80 ° C
Waterproof rating: IP65, IP67
Vibration: 10-55Hz 1.5mm amplitude, lasting 2 hours

Package Includes:
Bundle 1      GPS Moudle
Bundle 2      GPS Antenna

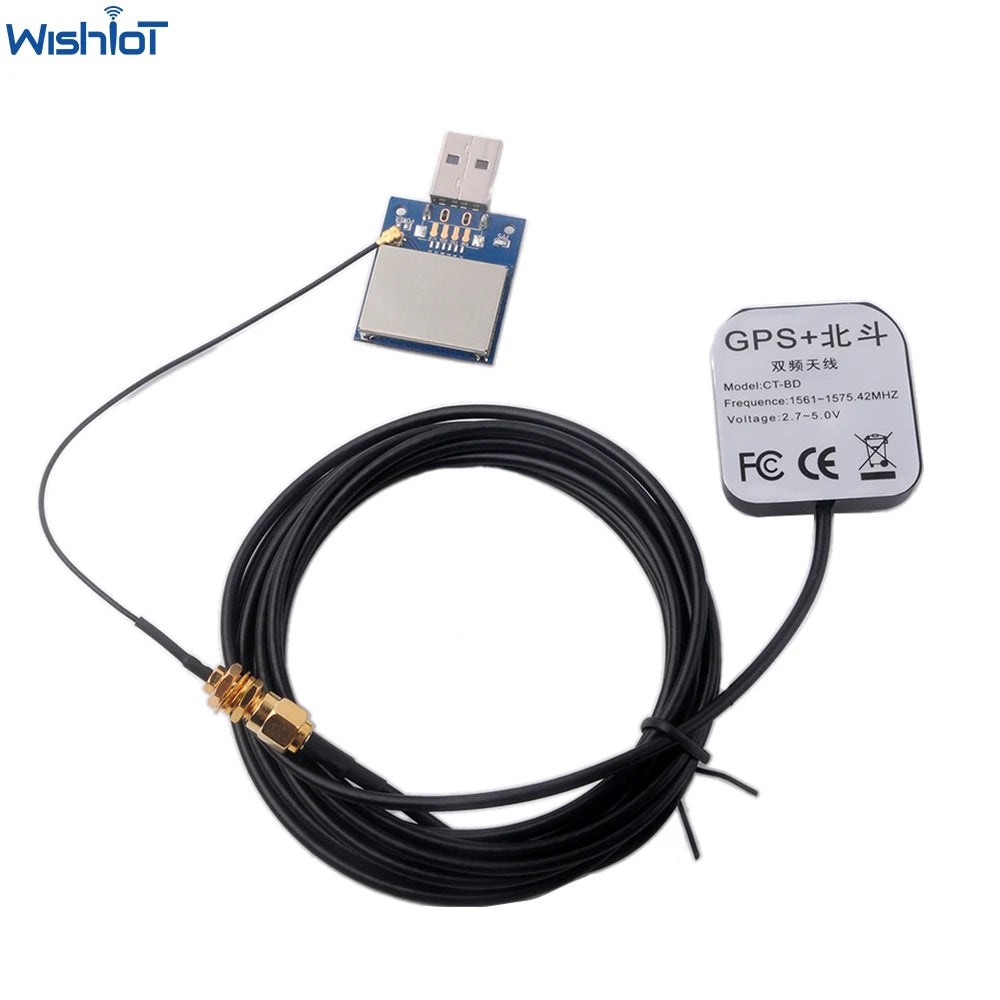

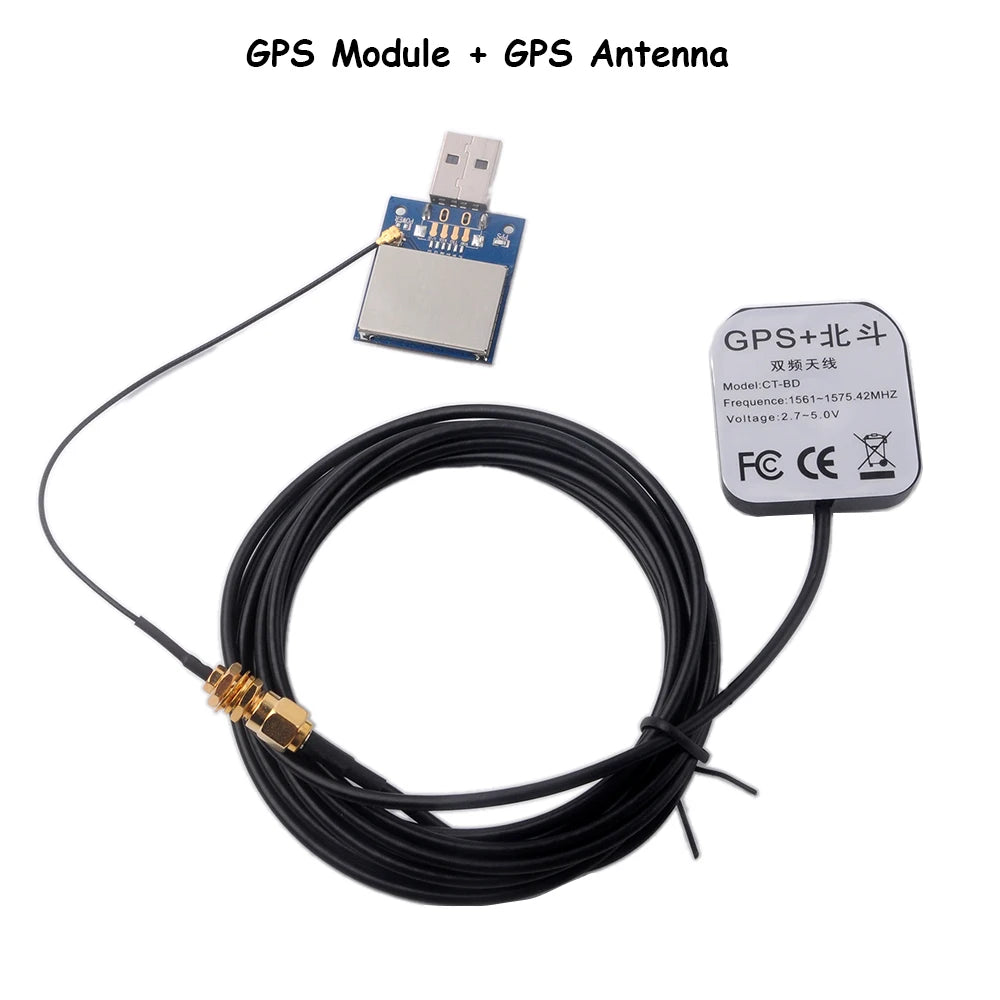

Bundle 3      GPS Moudle+GPS Antenna
