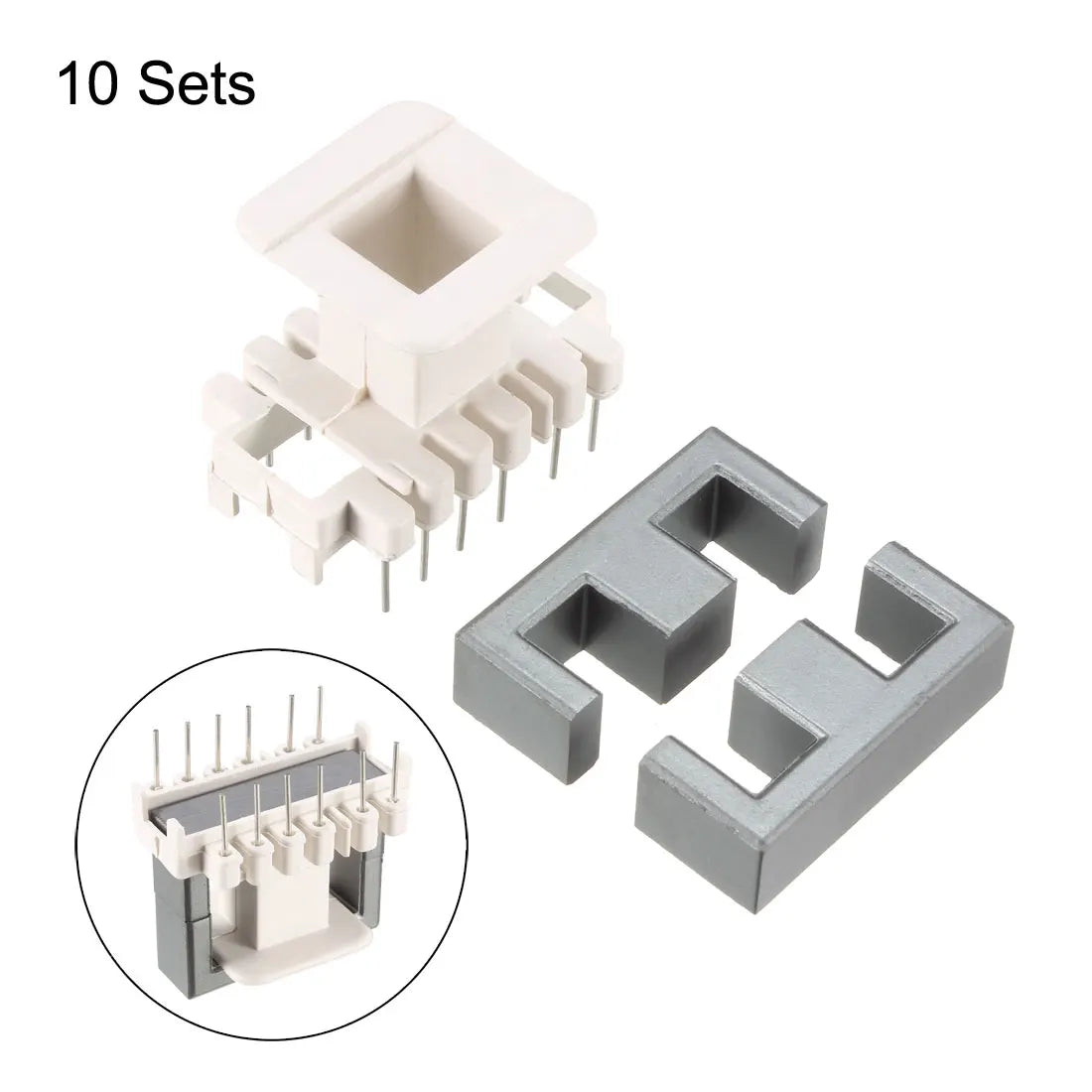

Set Núcleo Ferrita EE35/6 PC40 con Bobina Vertical 6 Pines (10 Juegos: 20 Mitades + 10 Bobinas)
Set Núcleo Ferrita EE35/6 PC40 con Bobina Vertical 6 Pines (10 Juegos: 20 Mitades + 10 Bobinas)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UXCELL
Certification: None
Model Number: EE35
Origin: Mainland China

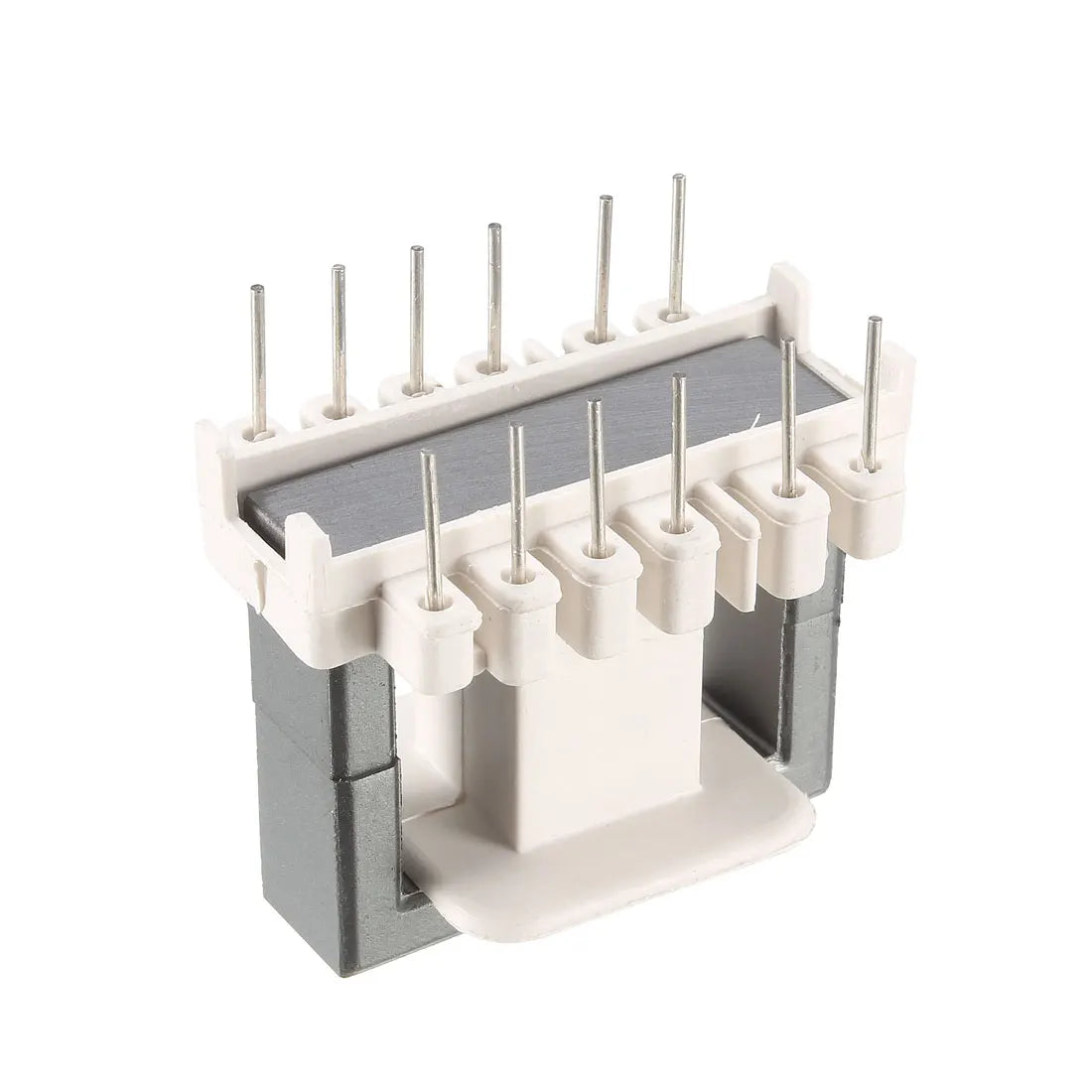

Type 1: Vertical Type Ferrite Magnetic Core Bobbin
Type 2: PC40 Transformer Inductor
Type 3: Power Transformers Ferrite Cores
Usage: electronic
is_customized: Yes
Product Description
Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EE35

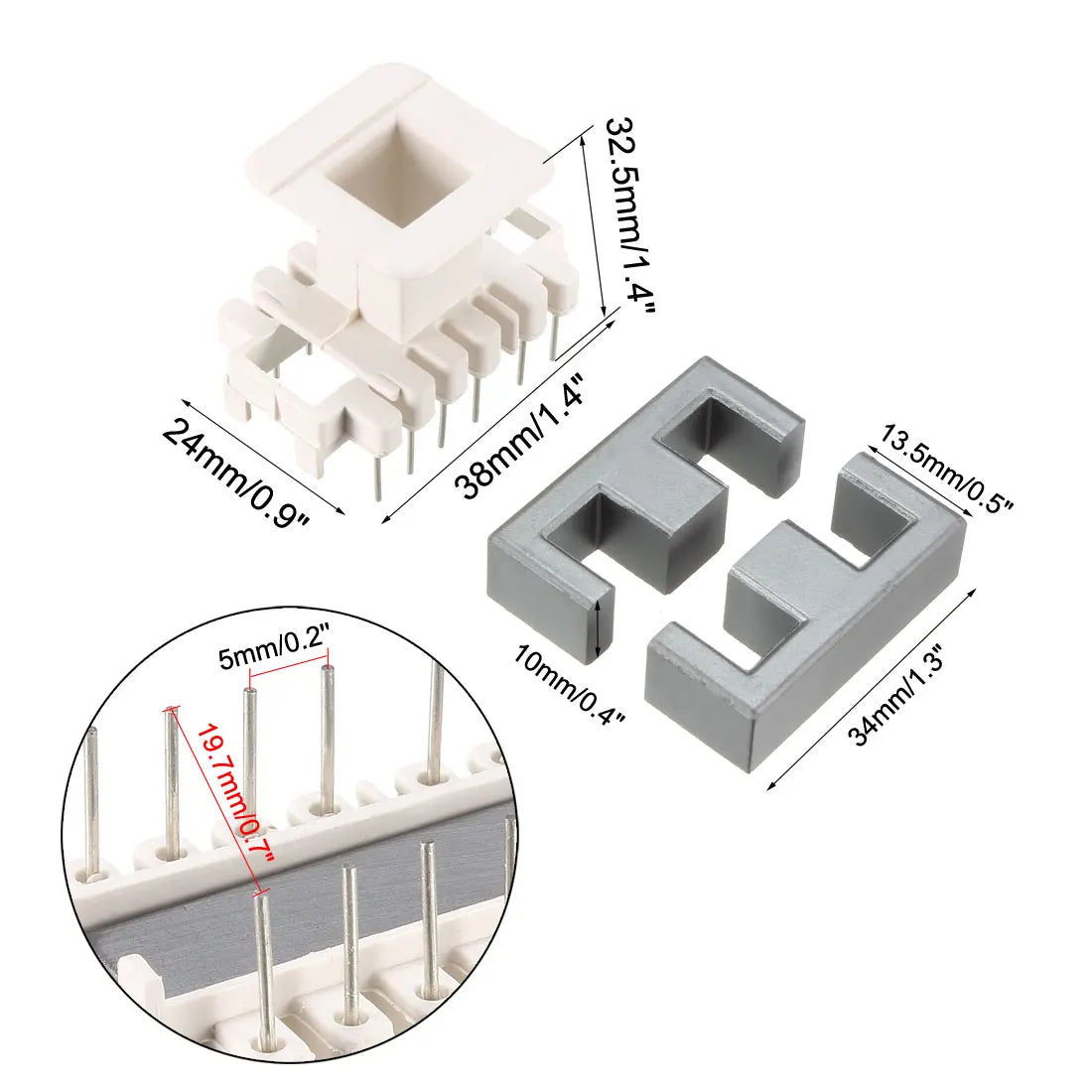

Pin spacing: 5mm/0.2''
Row spacing: 19.7mm/0.7"
Ferrite core Size: 34 x 10 x 13.5mm/1.3" x 0.4" x 0.5"(L*W*T)
Bobbin size: 38 x 24 x 32.5mm/1.4" x 0.9" x 1.4"(L*W*H)
Winding frame size: 15 x 12.5 x 14mm/0.6" x 0.5" x 0.55"(L*W*T)

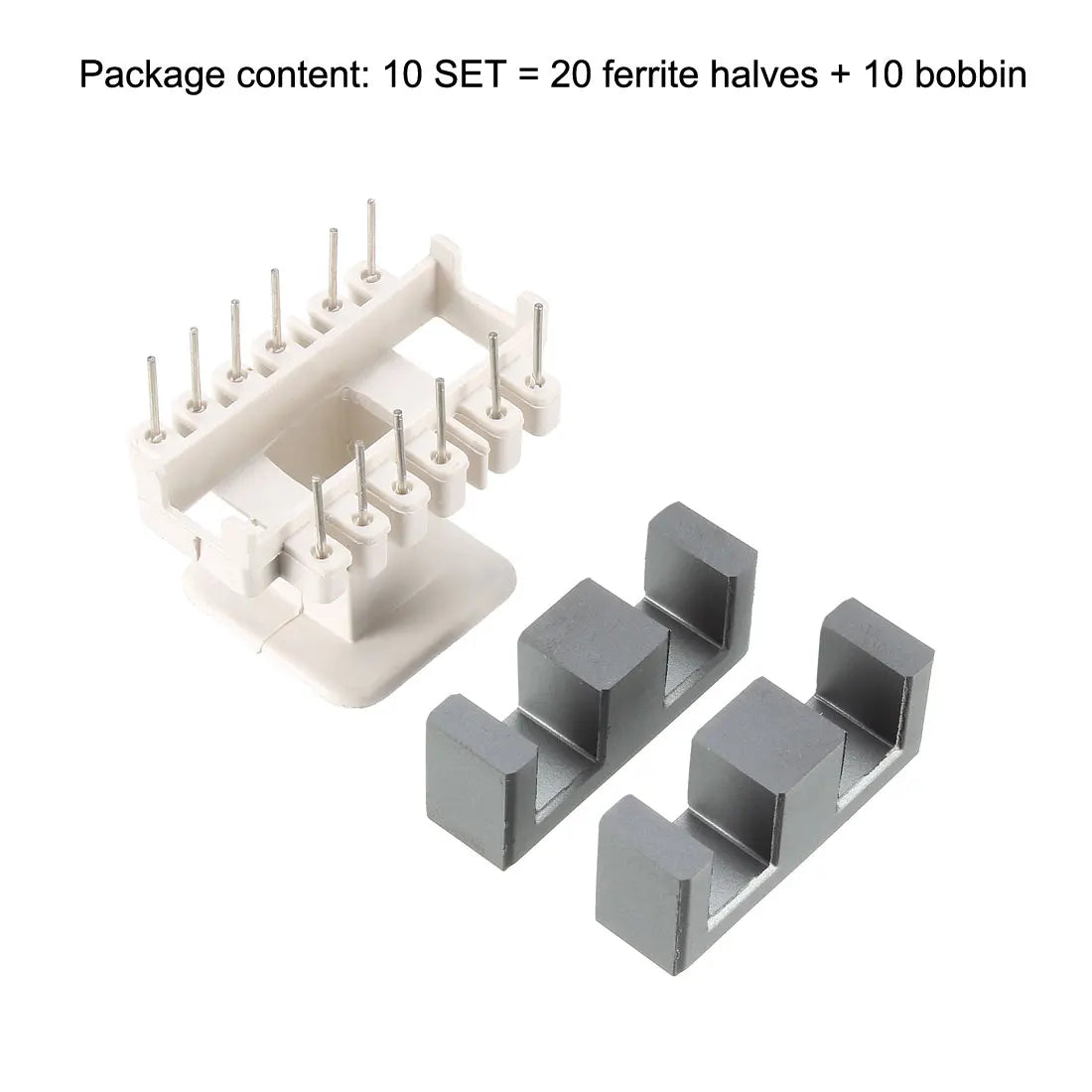

Package content: 10 SET = 20 ferrite halves + 10 bobbin
