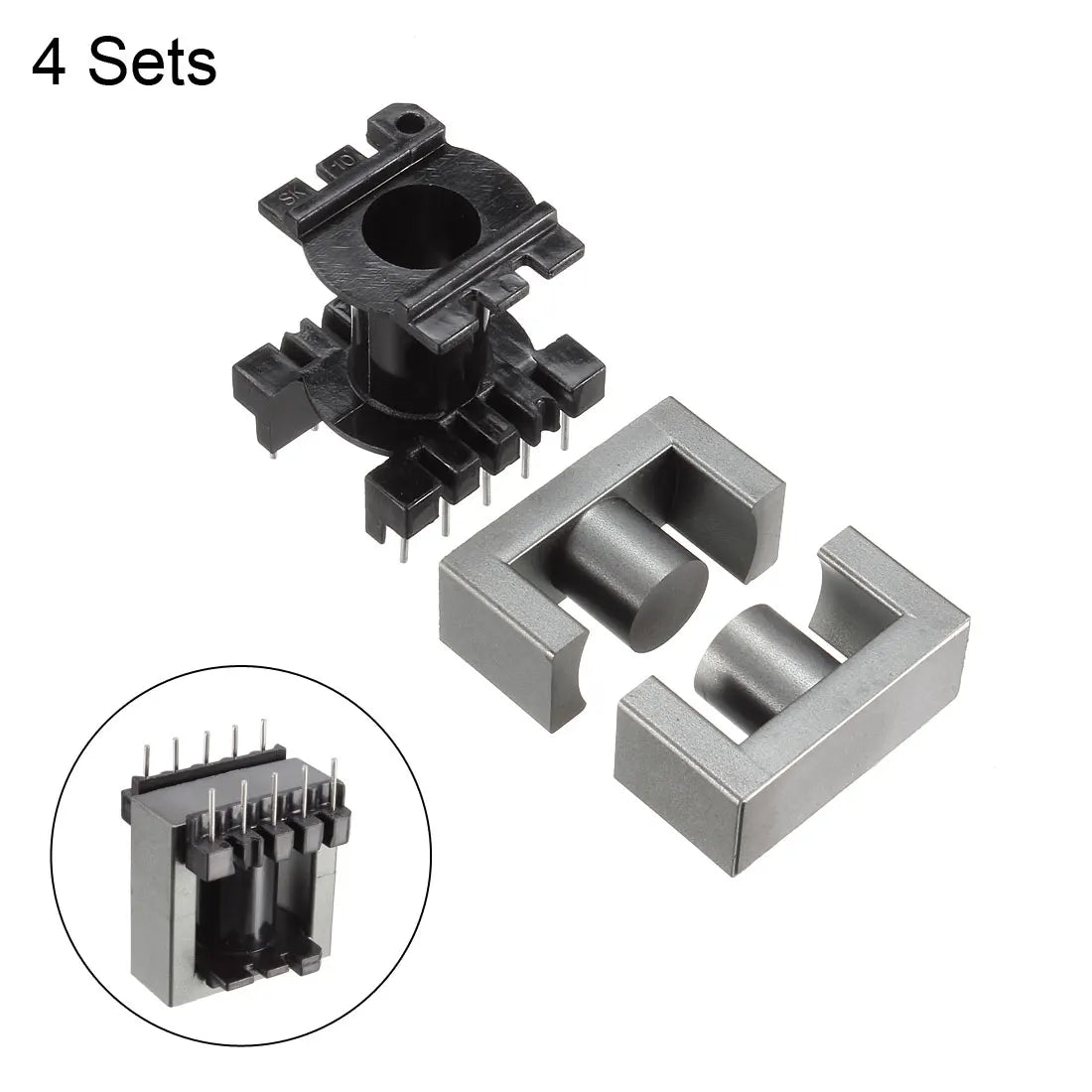

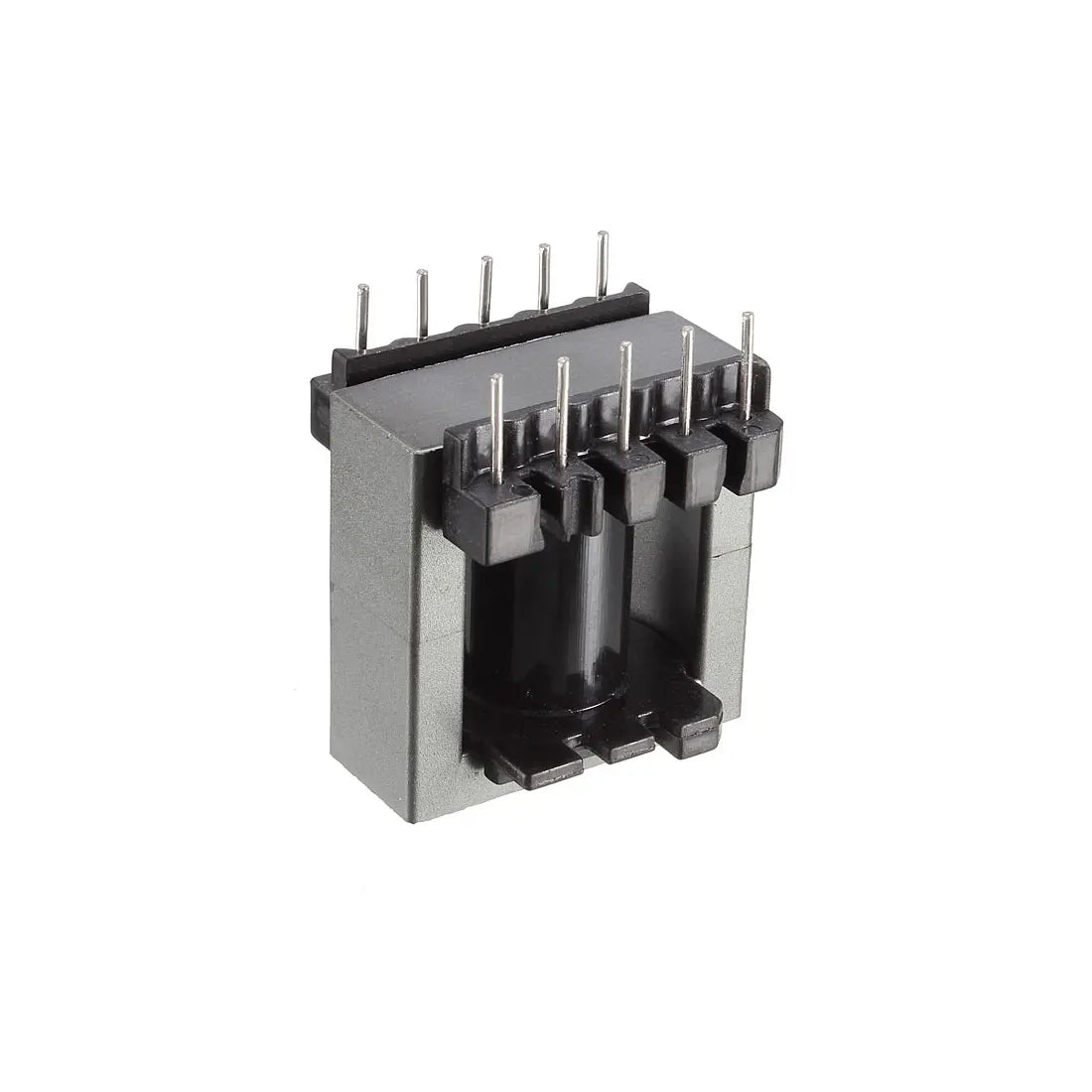

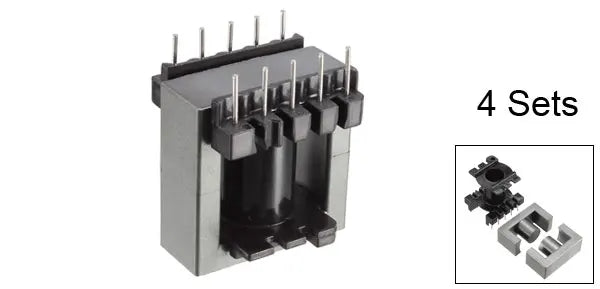

Set Núcleo Ferrita EC28/5 PC40 con Bobina Vertical 5 Pines (4 Juegos: 8 Mitades + 4 Bobinas)
Set Núcleo Ferrita EC28/5 PC40 con Bobina Vertical 5 Pines (4 Juegos: 8 Mitades + 4 Bobinas)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UXCELL
Certification: None
Choice: yes
Model Number: EC28
Origin: Mainland China
Package Content: 8 Ferrite Halves + 4 Bobbin
Type 1: Vertical Type Ferrite Magnetic Core Bobbin
Type 2: PC40 Transformer Inductor
Type 3: Power Transformers Ferrite Cores
Usage: electronic
is_customized: Yes
semi_Choice: yes
Description:
Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
Specification:
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.
Type: EC28

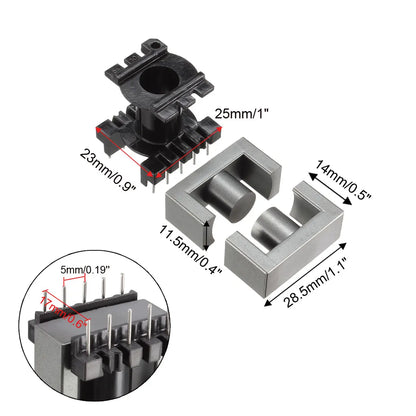

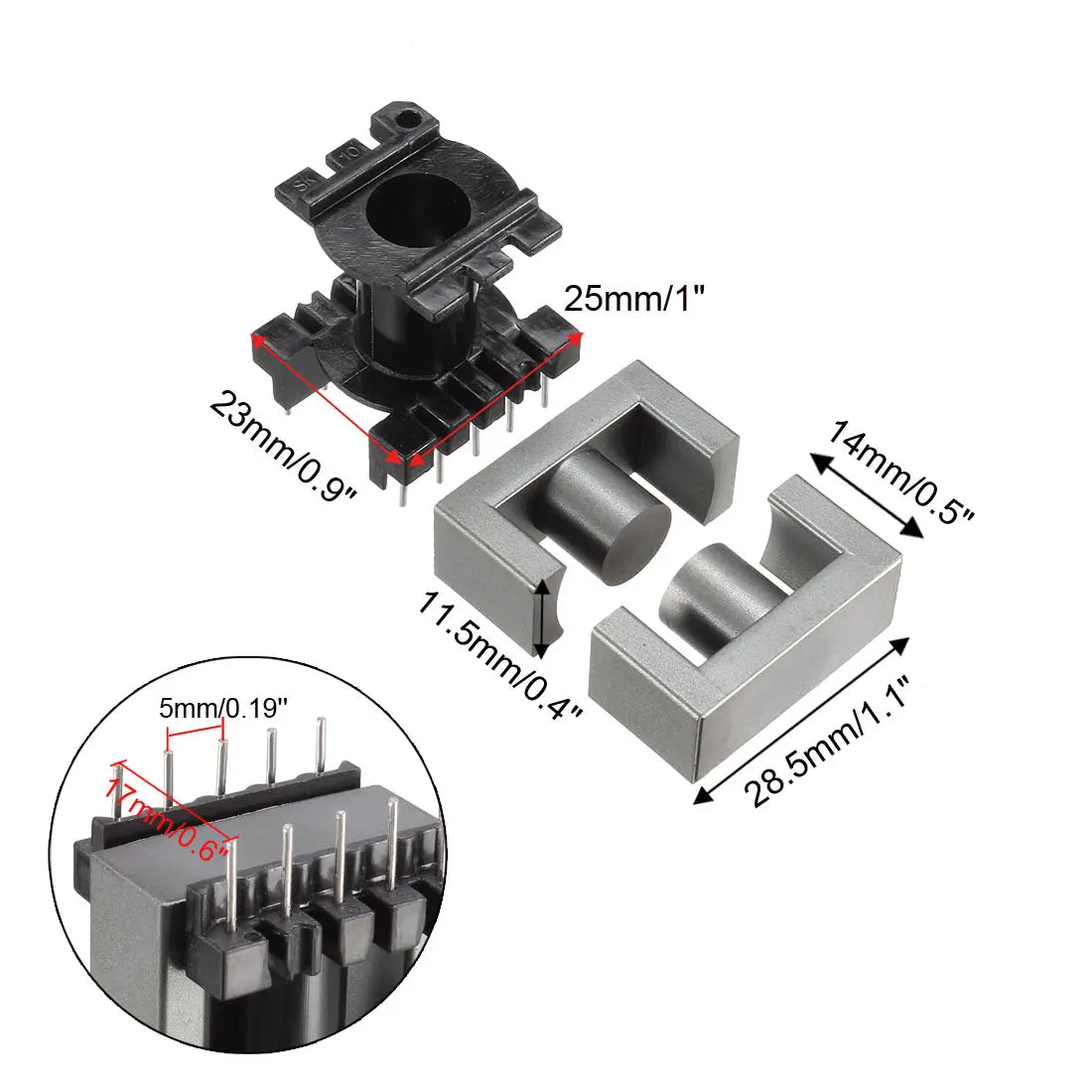

Pin spacing: 5mm/0.19''
Ferrite core Size: 28.5 x 11.5 x 14mm/1.1" x 0.4" x 0.5"(L*W*T)
Bobbin size: 25 x 23 x 32mm/1" x 0.9" x 1.2"(L*W*H)
Winding frame size: 17 x 12mm/0.6" x 0.4" (L*W)
Package Content:

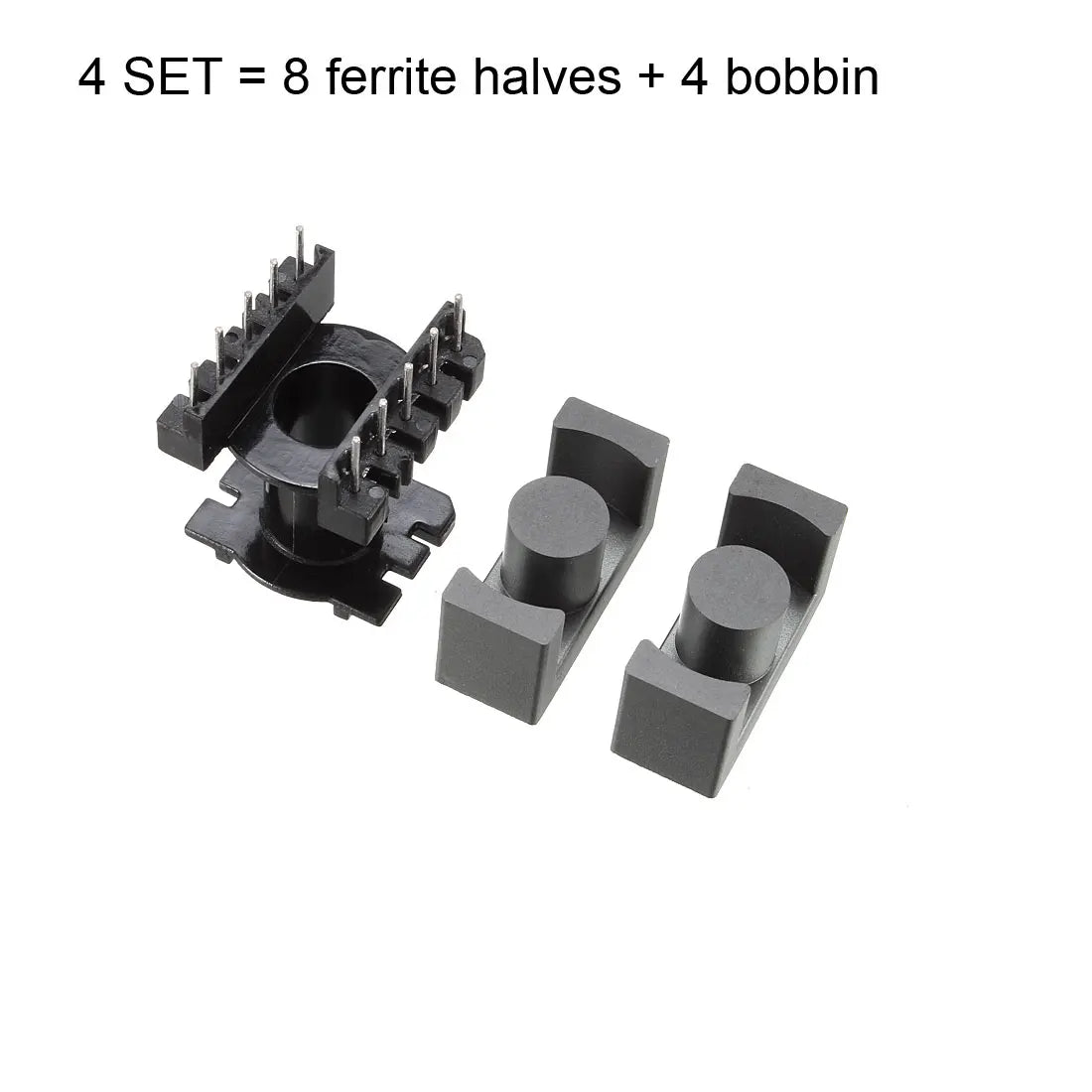

4 SET = 8 ferrite halves + 4 bobbin
