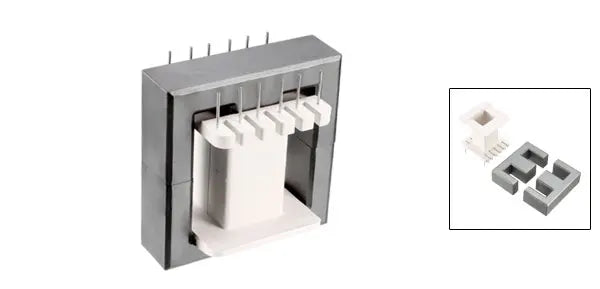

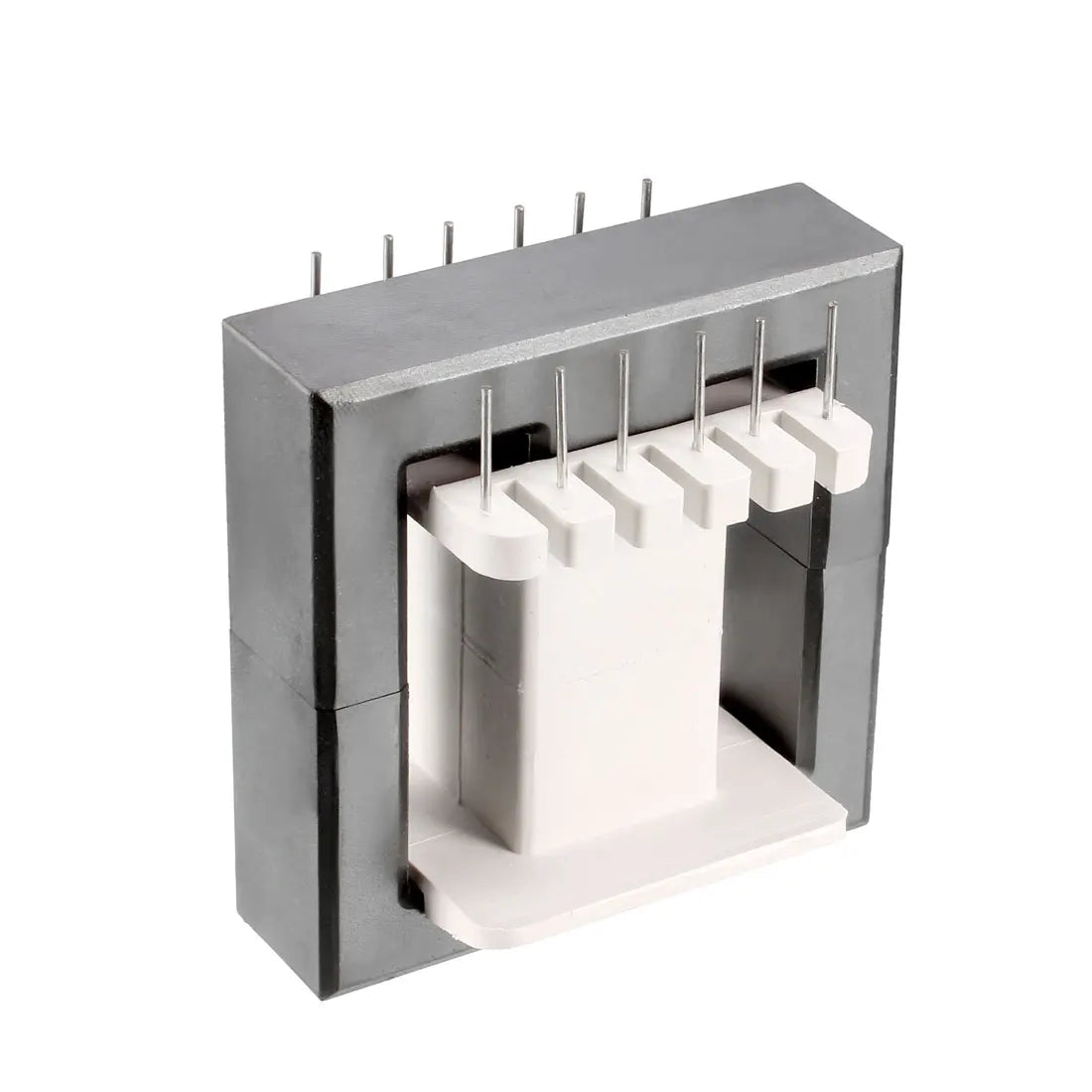

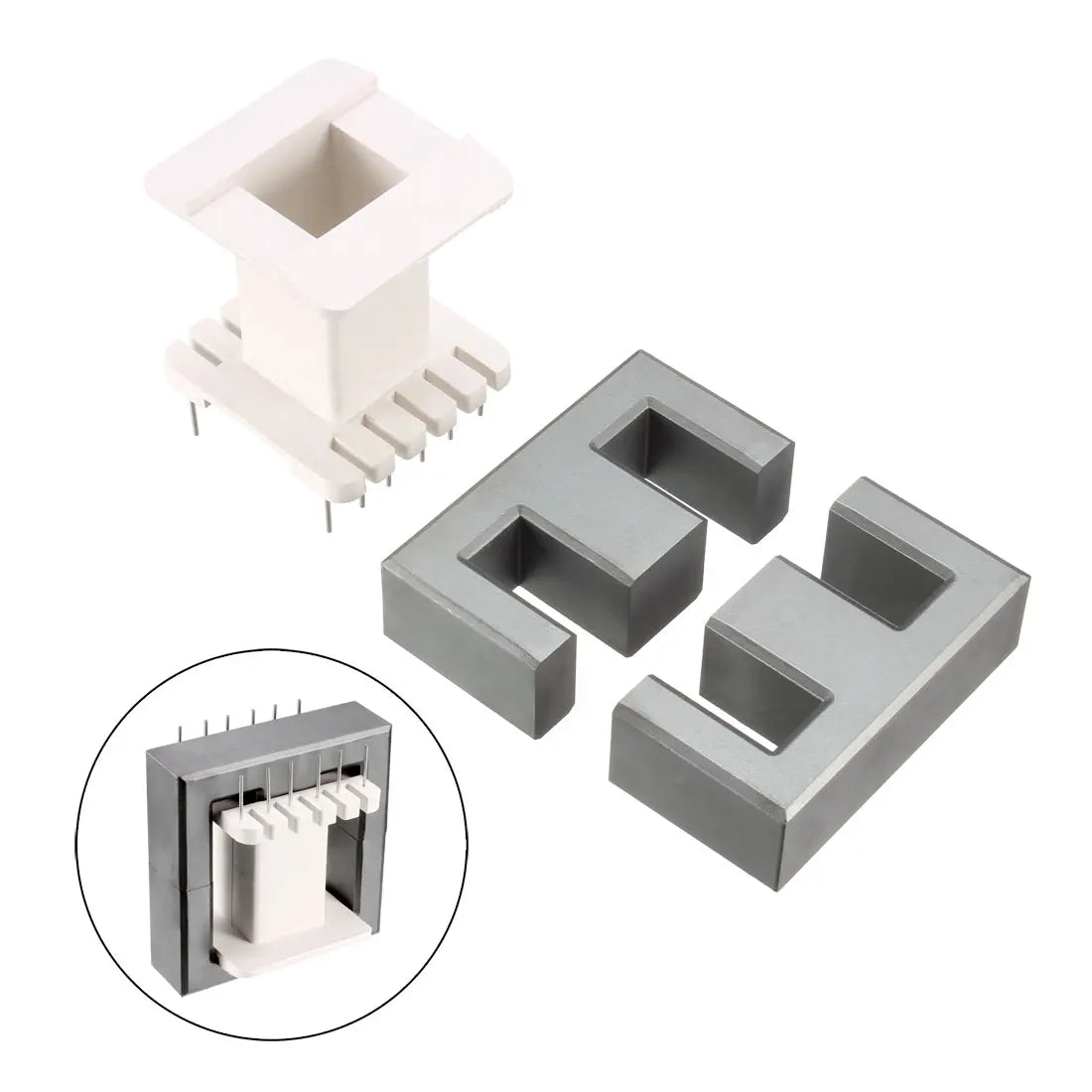

Set Núcleo Ferrita EE65A/6 PC40 con Bobina Vertical 6 Pines para Fuente Conmutada (1 Juego)
Set Núcleo Ferrita EE65A/6 PC40 con Bobina Vertical 6 Pines para Fuente Conmutada (1 Juego)
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: UXCELL
Certification: None
Model Number: EE65A
Origin: Mainland China
Type 1: Vertical Type Ferrite Magnetic Core Bobbin
Type 2: PC40 Transformer Inductor
Type 3: Power Transformers Ferrite Cores
Usage: electronic
is_customized: Yes
Description:
Widely used in color TV, monitor, electric charger, DVD, switching power supply, UP power supply, DC-DC converter, high frequency transformer, filter, inductor, household appliance, industrial automation, instrumentation, communication, energy saving Lighting and more!
Specification:
Product Range: Transformers, filter inductors, coils, bobbins, magnetic cores.

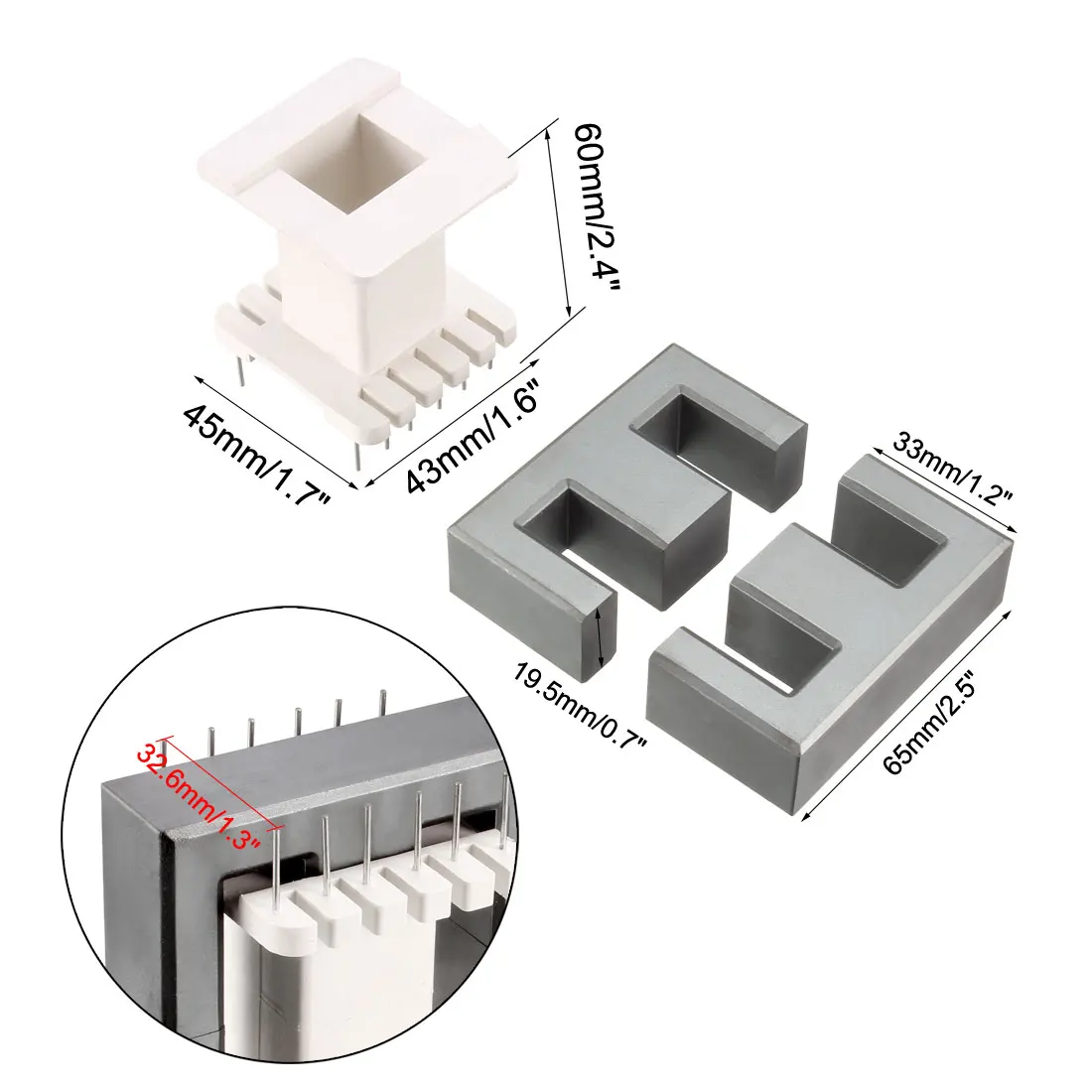

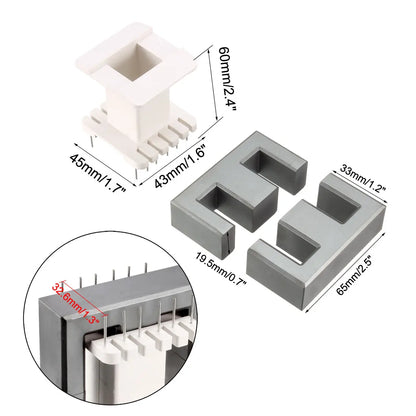

Type: EE65A
Row spacing: 32.6mm/1.3"
Ferrite core Size: 65 x 19.5 x 33mm/2.5" x 0.7" x 1.2"(L*W*T)
Bobbin size: 43 x 45 x 60mm/1.6" x 1.7" x 2.4"(L*W*H)
Winding frame size: 38 x 23.5mm/1.5" x 0.9"(L*W*T)
Package content:

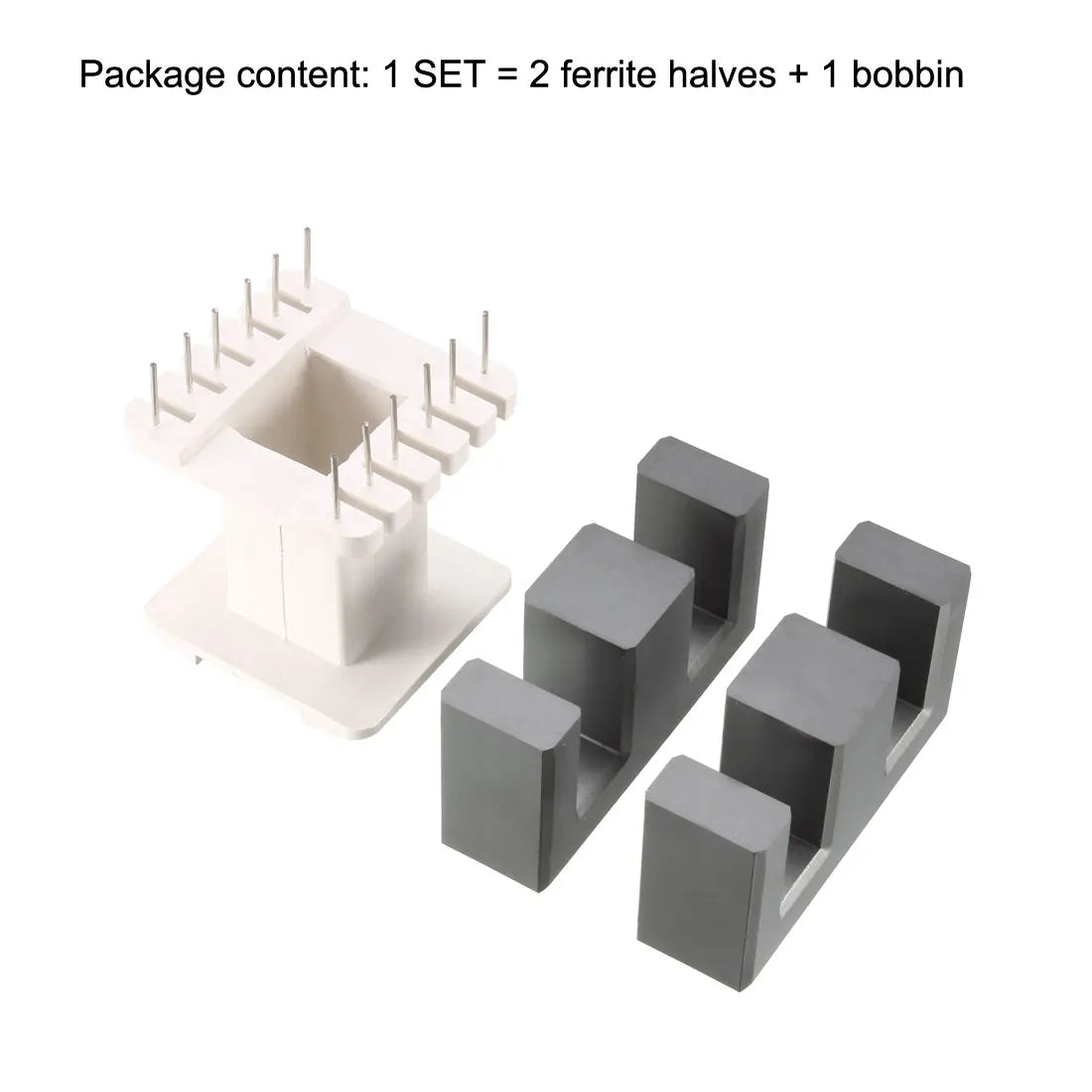

1 SET = 2 ferrite halves + 1 bobbin
