Tester Curva VI OLED Doble Canal - Analizador ASA para Reparación Placas Online
Tester Curva VI OLED Doble Canal - Analizador ASA para Reparación Placas Online
Precio habitual
$76.635 CLP
Precio habitual
$84.635 CLP
Precio de oferta
$76.635 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Brand Name: NoEnName_Null
Certification: CE
DIY Supplies: ELECTRICAL
Origin: Mainland China
Note: The knobs are uncapped

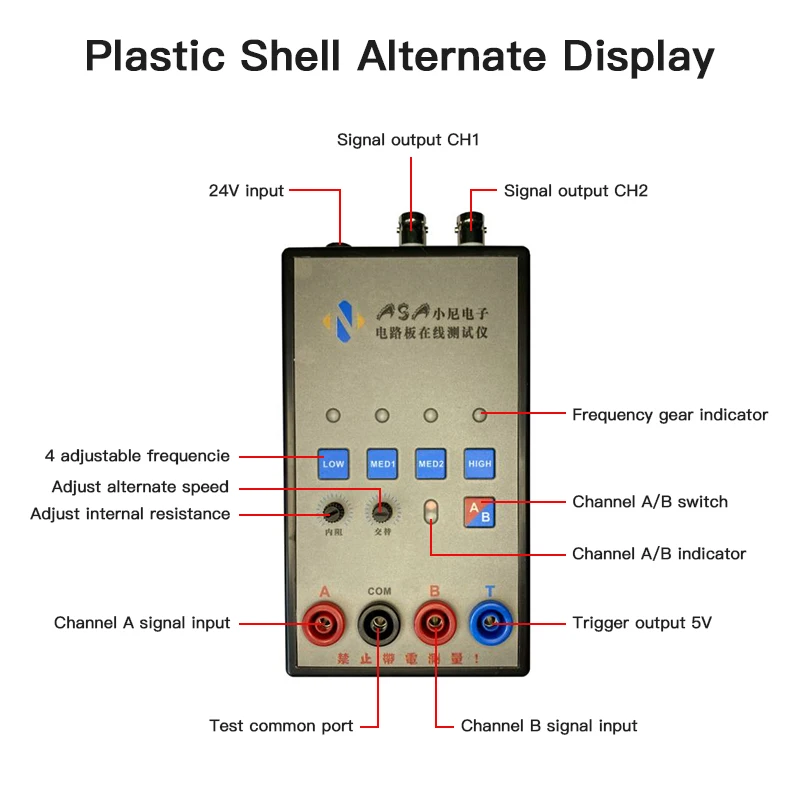

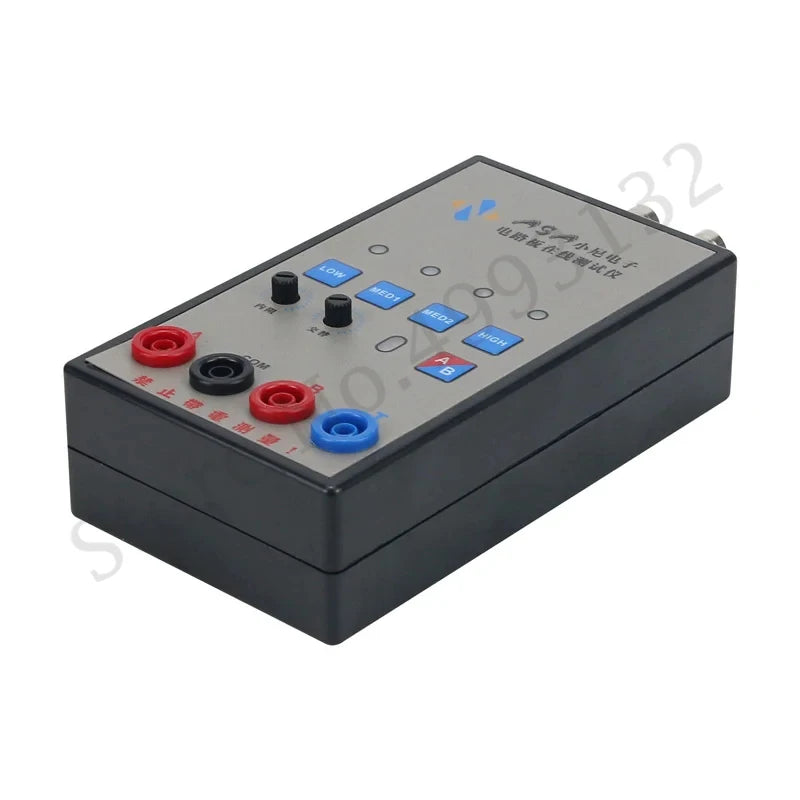

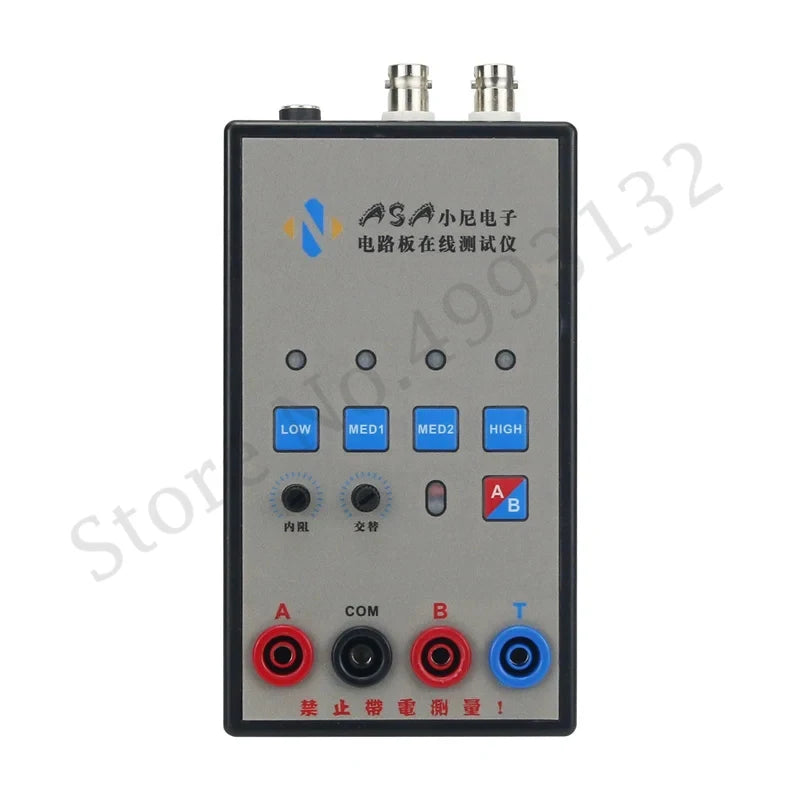

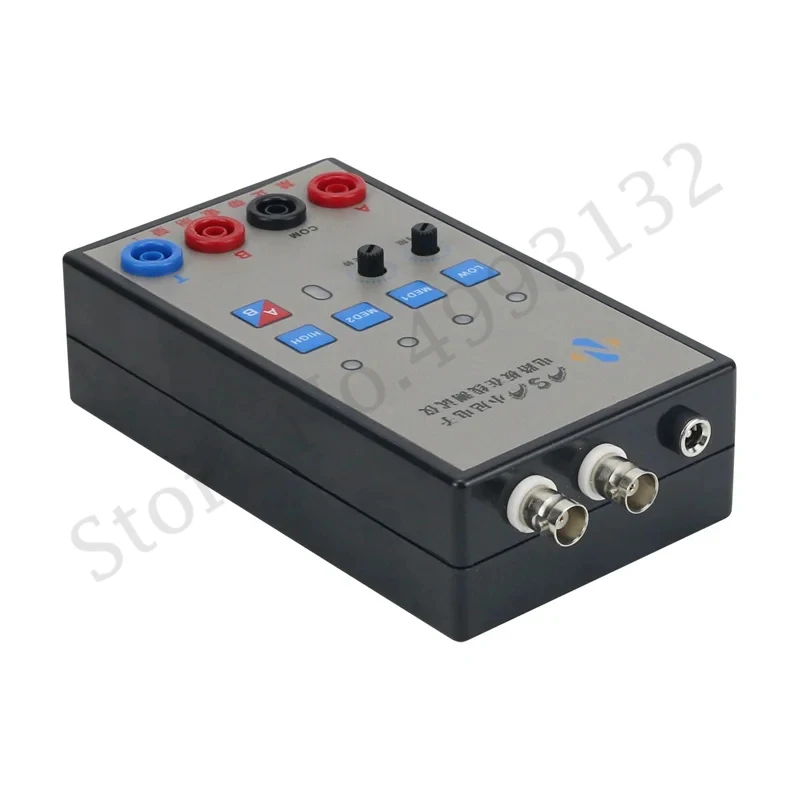

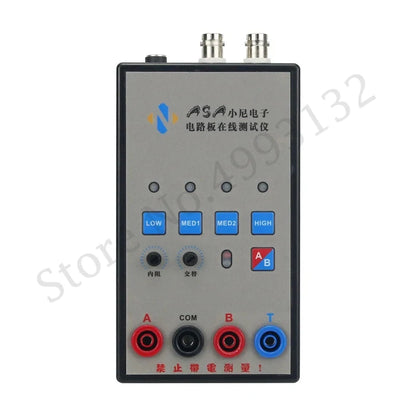

Features:
- Plastic shell with alternate display
- Dual-channel signal input
- Alternately display 4 frequencies
- Adjustable internal resistance and alternation speed
- One key to open one-channel or alternate display

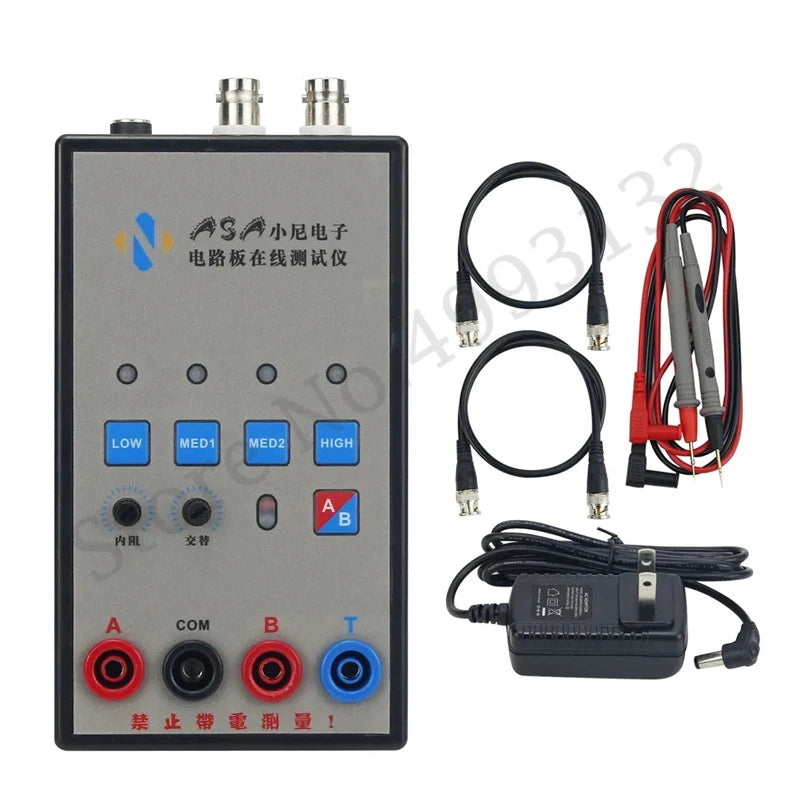

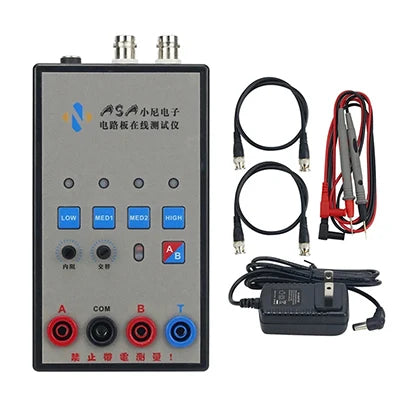

Package Included:
- 1 x VI Curve Tester
- 1 x Set of Test Leads
- 1 x BNC Connecting Cable
- 1 x Power Adapter
Oscilloscope Parameter Settings:
- Adjust your oscilloscope to X-Y mode (different oscilloscopes have different adjustment methods, please explore by yourself)
- The vertical parameters of X/Y 2 channels are adjusted to 1V/div, and a single trace oscilloscope only needs to adjust one.
- Analog oscilloscope does not need to adjust the time base;
digital oscilloscope time base is adjusted to 1-5ms
- When connected correctly, the oscilloscope will display a horizontal line.
If the vertical line is displayed, the XY plugs need to be reversed.
- The horizontal and vertical lines are in the display frame when adjusting the vertical and horizontal parameters.
Connect Analog Oscilloscope:
The connection of the analog oscilloscope is relatively simple.
Different oscilloscopes are slightly different.
Adjust an oscilloscope to the X-Y mode.
Some oscilloscopes are selected by pressing buttons, and some are selected by the knob to the XY mode.
Please research by yourself.
Connect your oscilloscope with a BNC cable and then power on, a horizontal line will be displayed under normal conditions.
Adjust the XY vertical channel parameters by about 1V/div, and then adjust the XY attenuation so that the horizontal line is in the display frame.
The horizontal line length can also be adjusted via the X attenuation potentiometer on the VI tester board.
Short-circuit the test leads, a vertical line will be displayed under normal conditions.
If the vertical line is too long or too short, you need to adjust the Y channel parameters so that the vertical line is within the display frame, generally half a grid or 1 grid to the edge.
When the horizontal and vertical lines are normal, you can enter the normal measurement.
Connect Digital Oscilloscope:
Enter the XY mode of your digital oscilloscope through the menu or keys, and adjust the two channels of X and Y to 1V/div. The single-trace oscilloscope only needs to adjust the Y channel.
The adjustment time base is 1-5ms.
Select DC coupling for X Y channels with 1X attenuation.
When the oscilloscope is not connected, the screen should be a bright spot, adjust the horizontal and vertical so that the bright spot is centered.
After the VI tester is connected, there is normally a horizontal line.
Adjust the 103 potentiometer at the top of the VI board so that the horizontal line is within the display frame, half a grid or 1 grid to the edge.
Short-circuit the test leads, the display should be a vertical line at this time, adjust the Y channel parameters so that the vertical line is in the display box.
At this point, the debugging is over.
Test Online Circuit Board:
When testing a circuit board online, the circuit board should not be charged.
If there is a large capacitor on the circuit board, discharge the capacitor first, otherwise the VI test board will be burnt out.
