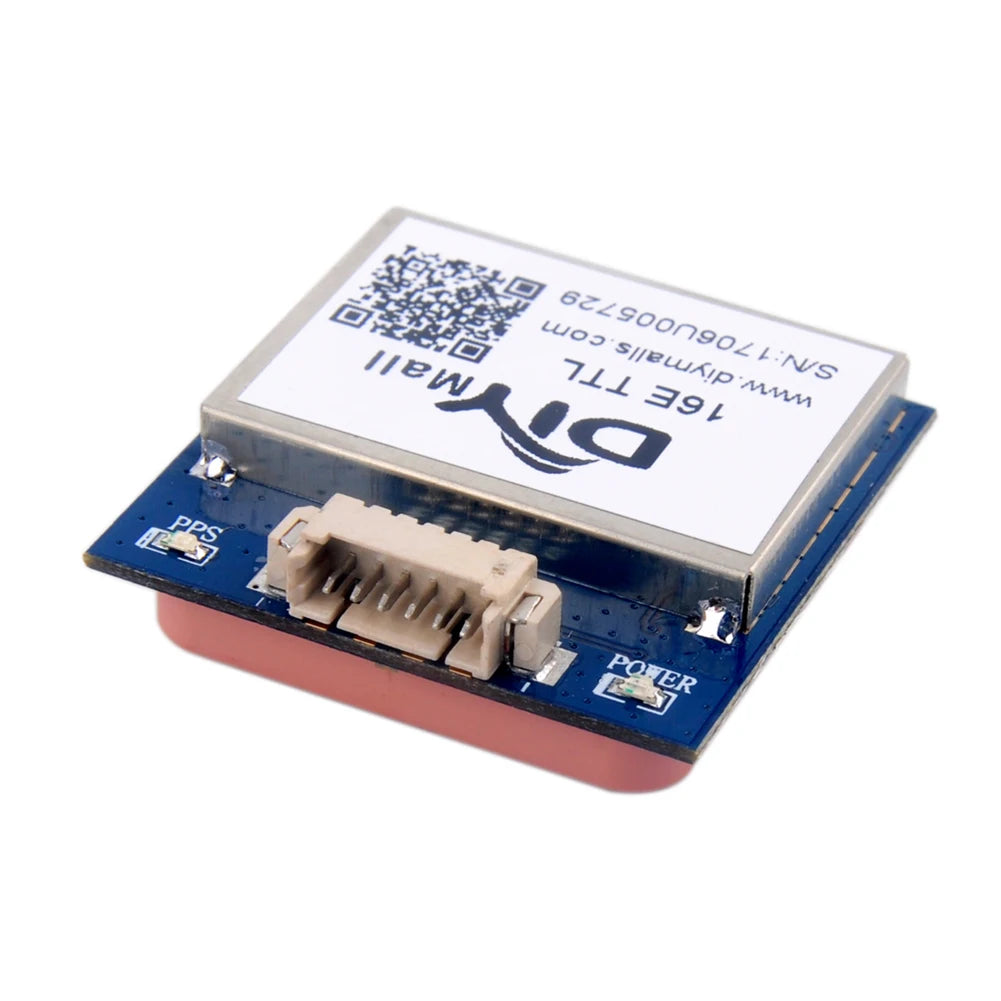

VK16E G28U7FTTL GPS Module GMOUSE Ceramic Antenna TTL Level 9600 Baud Rate Built in Flash for Flight Control Car Guide Navigation

Description:

Product main chip: 7th Chip

Built-in LNA signal amplifier

Built-in Flash, free configuration of product parameters

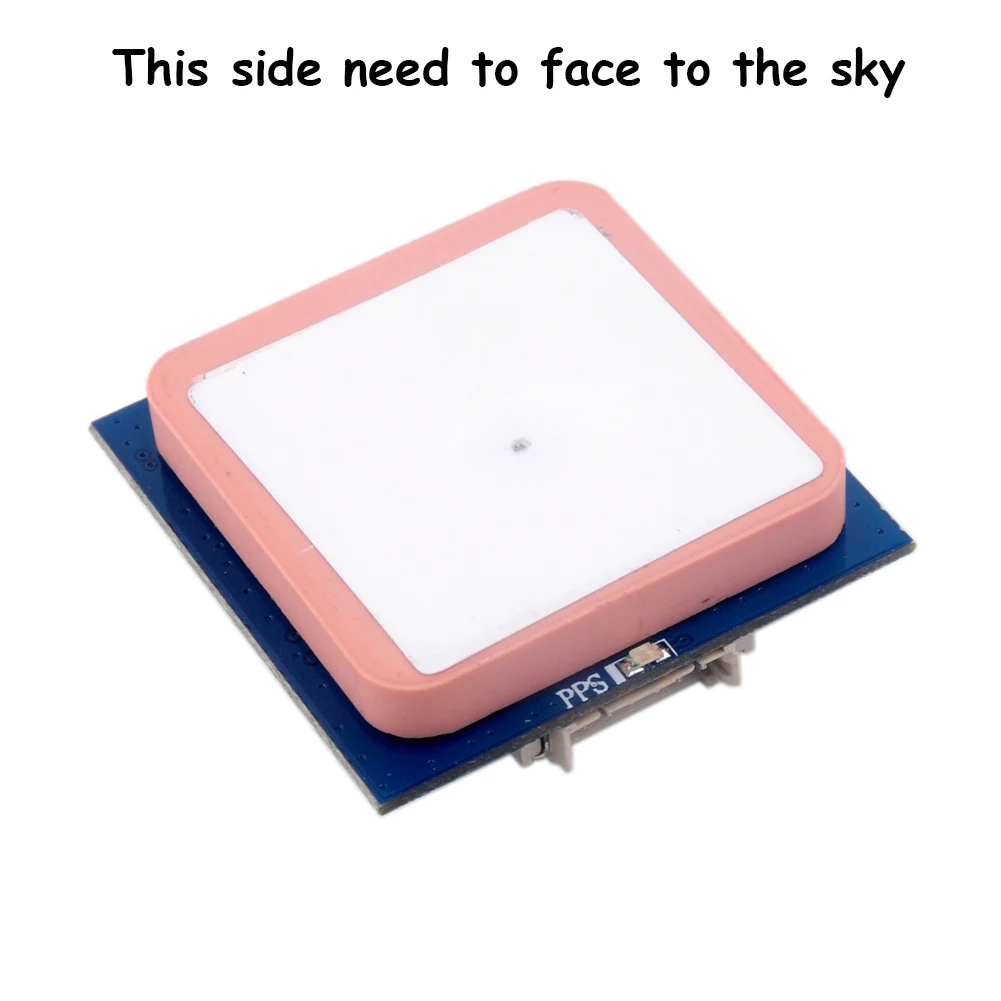

Industry-standard 25 x 25 x 4mm high-sensitivity ceramic antenna

Built-in TCXO crystal and Farah capacitor faster hot start

1-10Hz positioning update rate

Frequency: L1, 1575.42MHz

Baud rate: 4800,9600,19200,38400,57600,112500bps（default baud rate is 9600)

Channel: 56

Sensitivity tracking: -162dBm Capture: -160dBm cold start -148dBm

Cold start averages: 29 seconds

Warm start averaging: 28 seconds

Hot start averages: 1 second

Precision: HorizontalPosition: Autonomous <2.5maverage

SBAS <2.0m average

Timepulse signal: RMS 30 ns

Maximum height: 50000 meters

Maximum speed: 500 m / s

Maximum acceleration: ≦ 4G

Update frequency: 1-10 Hz

Dimensions 28 x 28 x 8.5 mm

Weight: 30 grams

Operating temperature -40 to 85 degree celsius

Storage temperature -40 to 85 degree celsius

Application:

It can be used in vehicle monitoring, bus station, car guide

Navigation, ship navigation, notebook navigation and other products

Package Included:

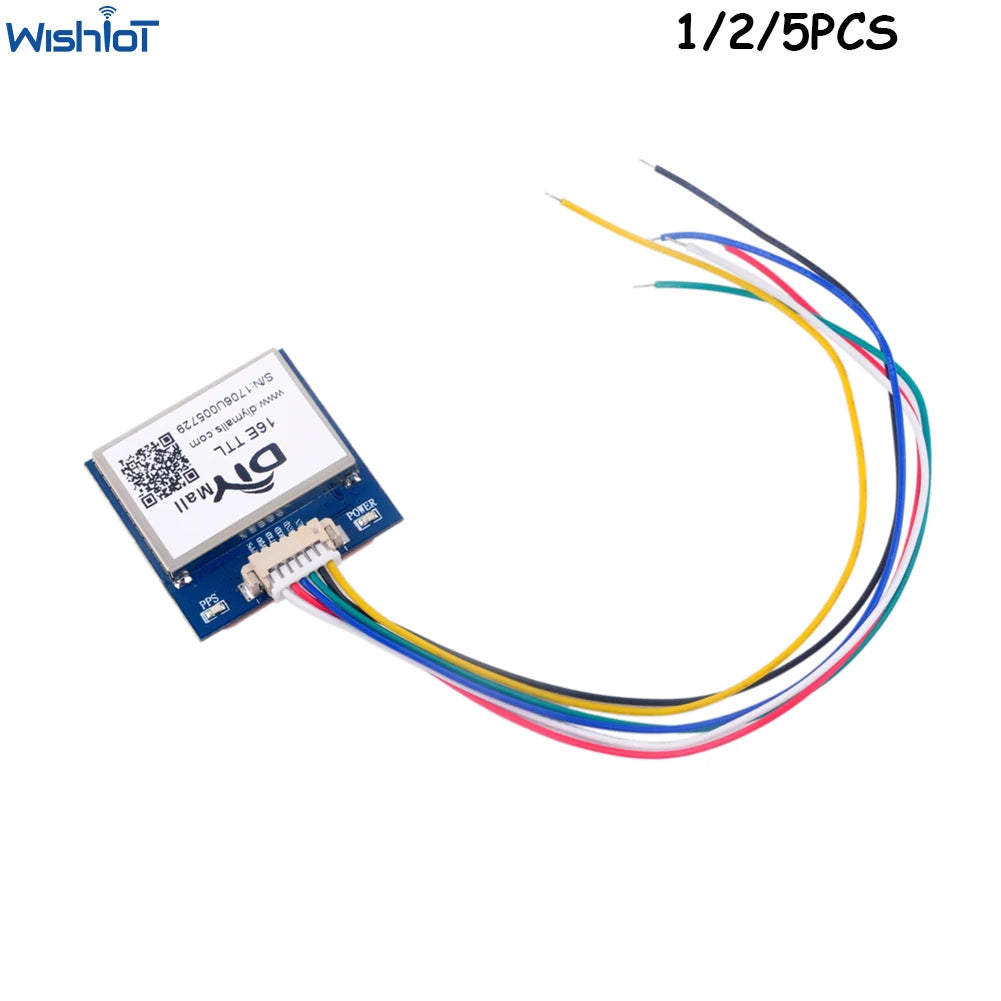

1 X G28U7FTTL Replace VK16E GMOUSE GPS Module

1 X JST 1.25mm 6P Cable

FAQ

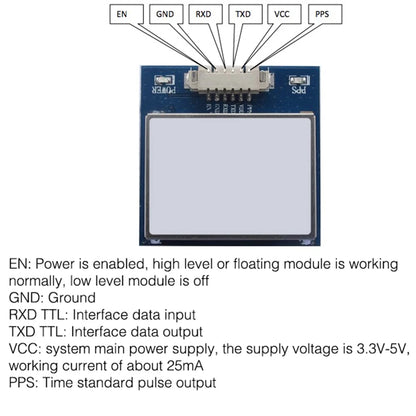

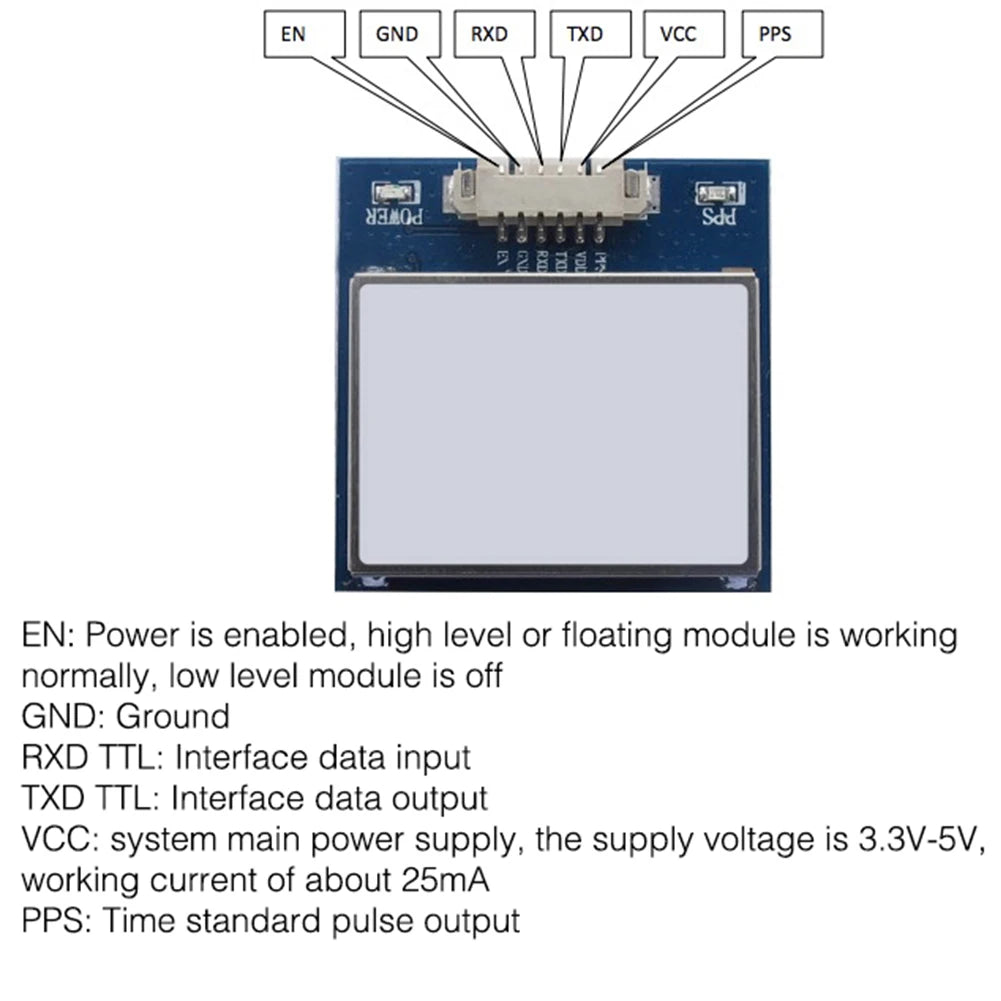

Q:The data sheet of the ubx-g7020-kt says supply and i/o 1.4 v to 3.6 v, i don't see any other parts on the board, how is it ok to supply this with 5v?

A:You can use 3.3V-5V, there is voltage converter inside the module
