Product Description

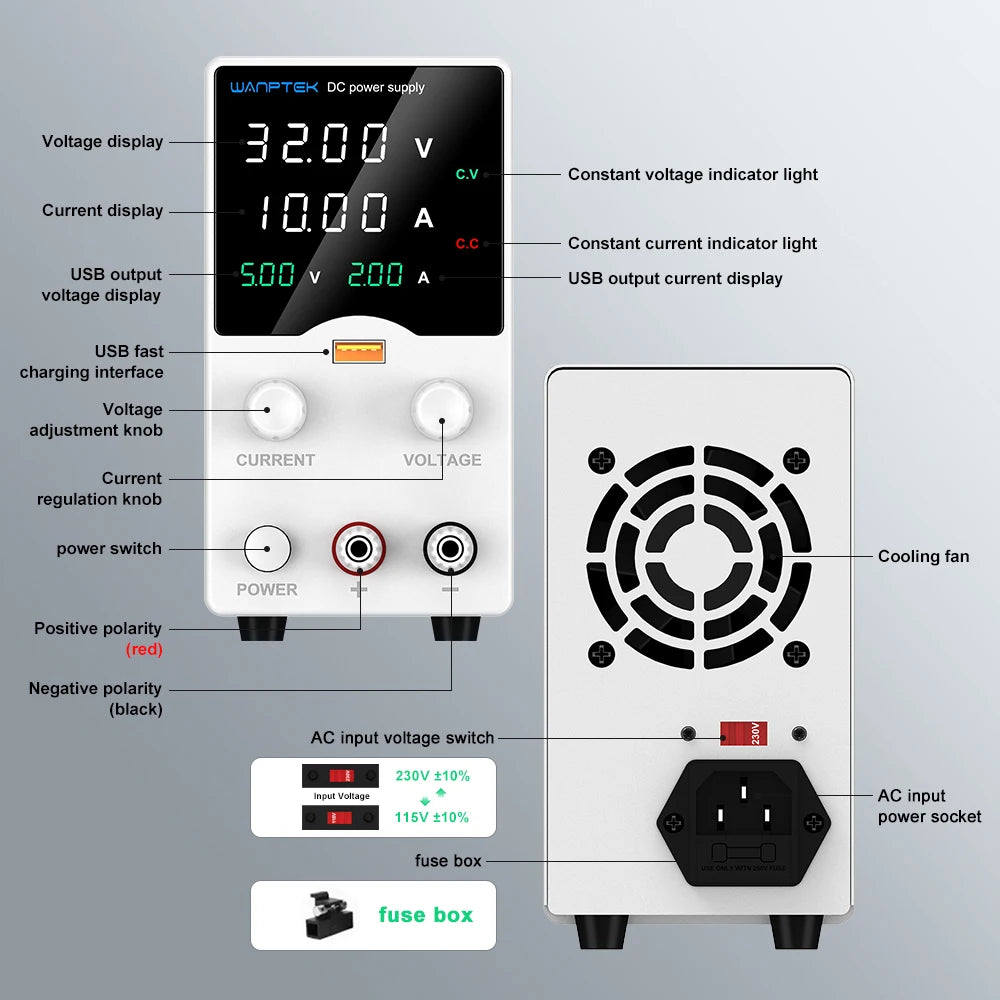

Wanptek's new series products. This model is a miniature switching DC power supply. The output voltage and current can be controlled and adjusted by variable resistors respectively, so it provides more convenience and accuracy in the adjustment of voltage and current. The panel also provides high-precision two/three-window digital tube display of voltage, current and power, so that users can intuitively see the current use status and various parameters of the machine

1.Small size, light weight and high power density. weight of only 2.6 pounds. You can easily take the DC power supply to work.

2.Constant pressure and constant current switch automatically.

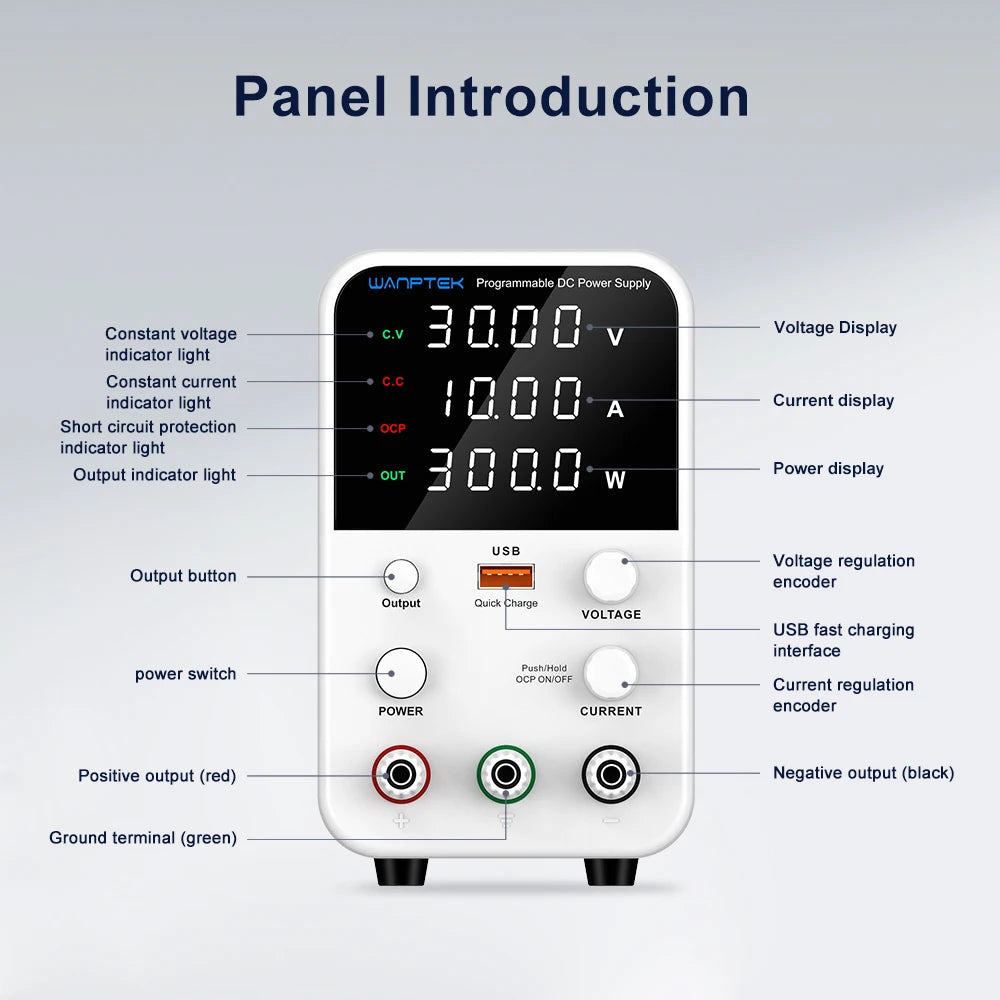

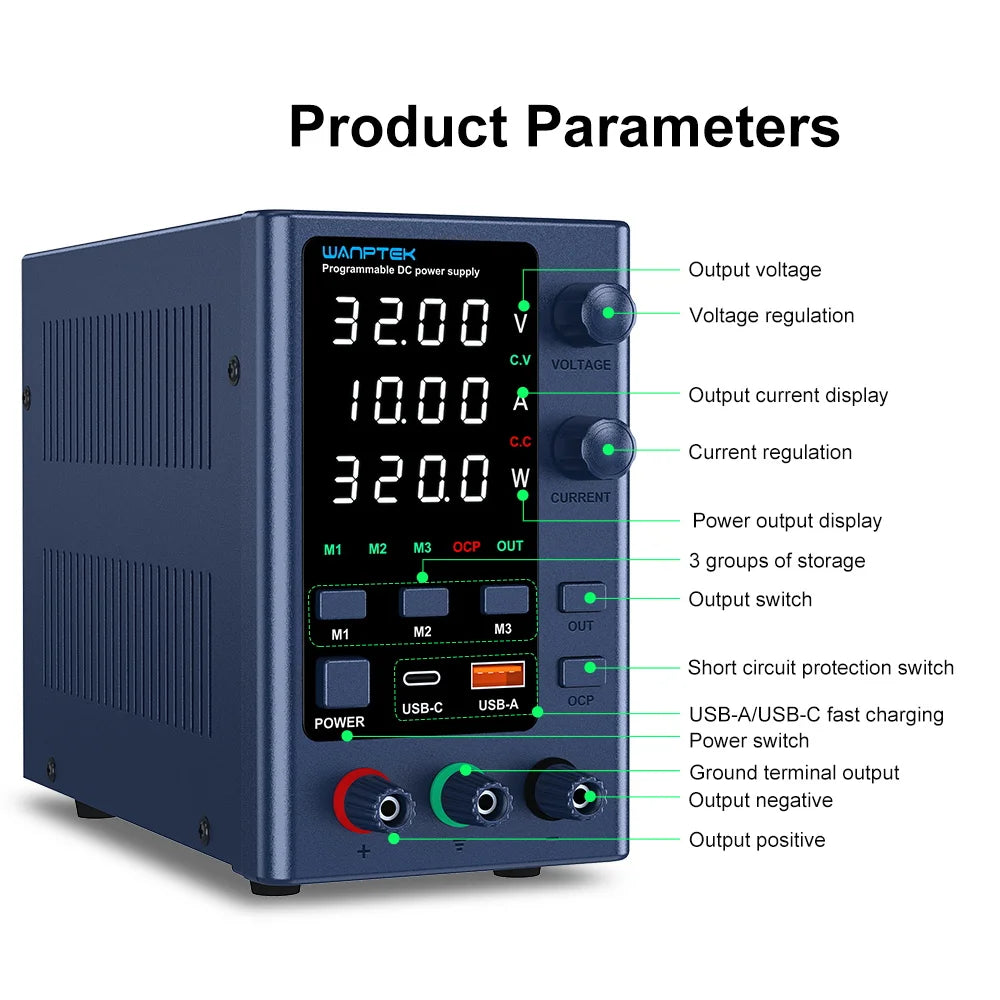

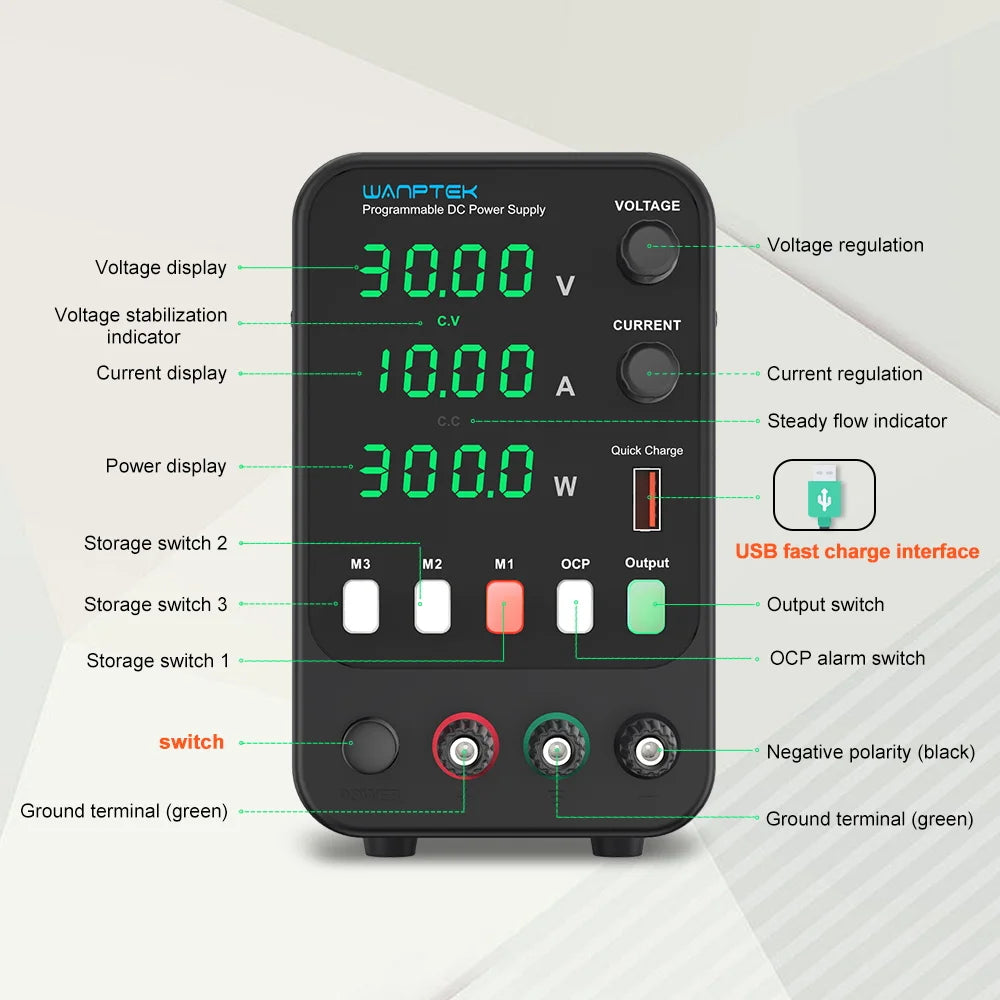

3.LED display of voltage, current and power, high precision and features of voltage stabilization, current limiting, and simple operation.

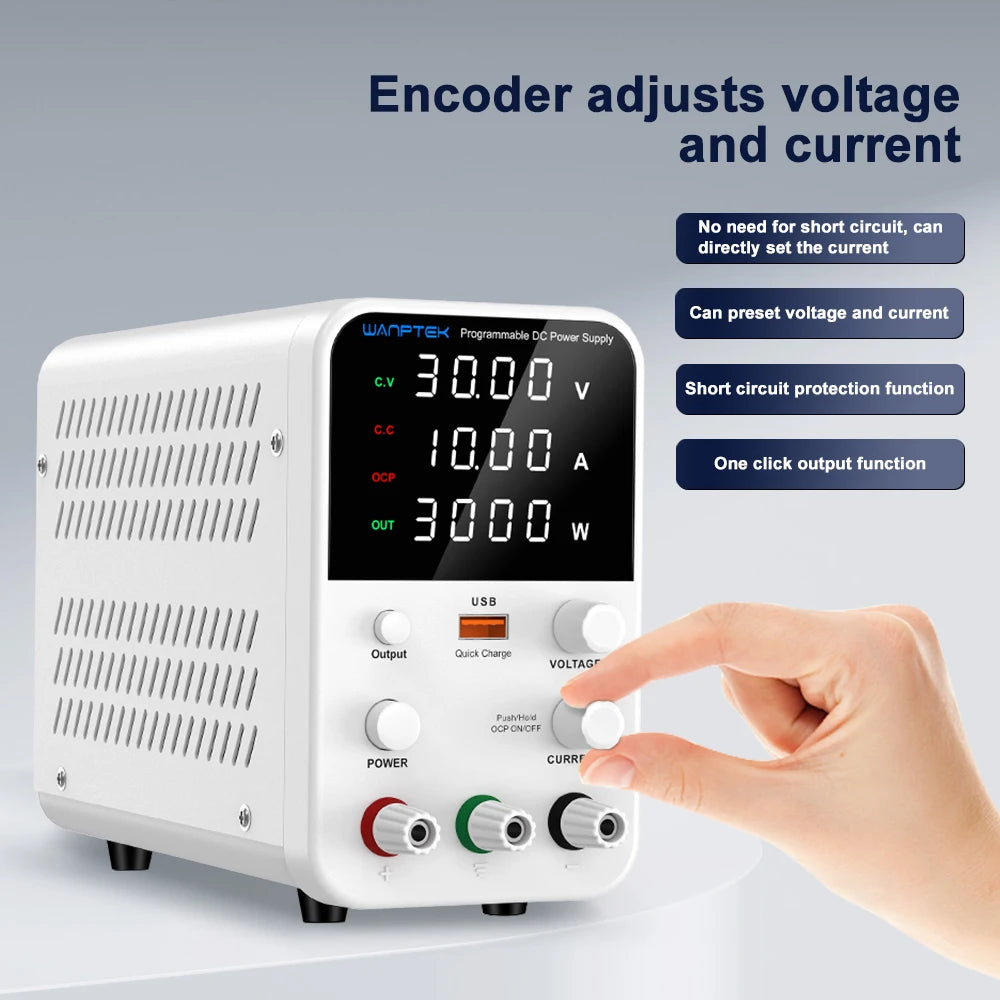

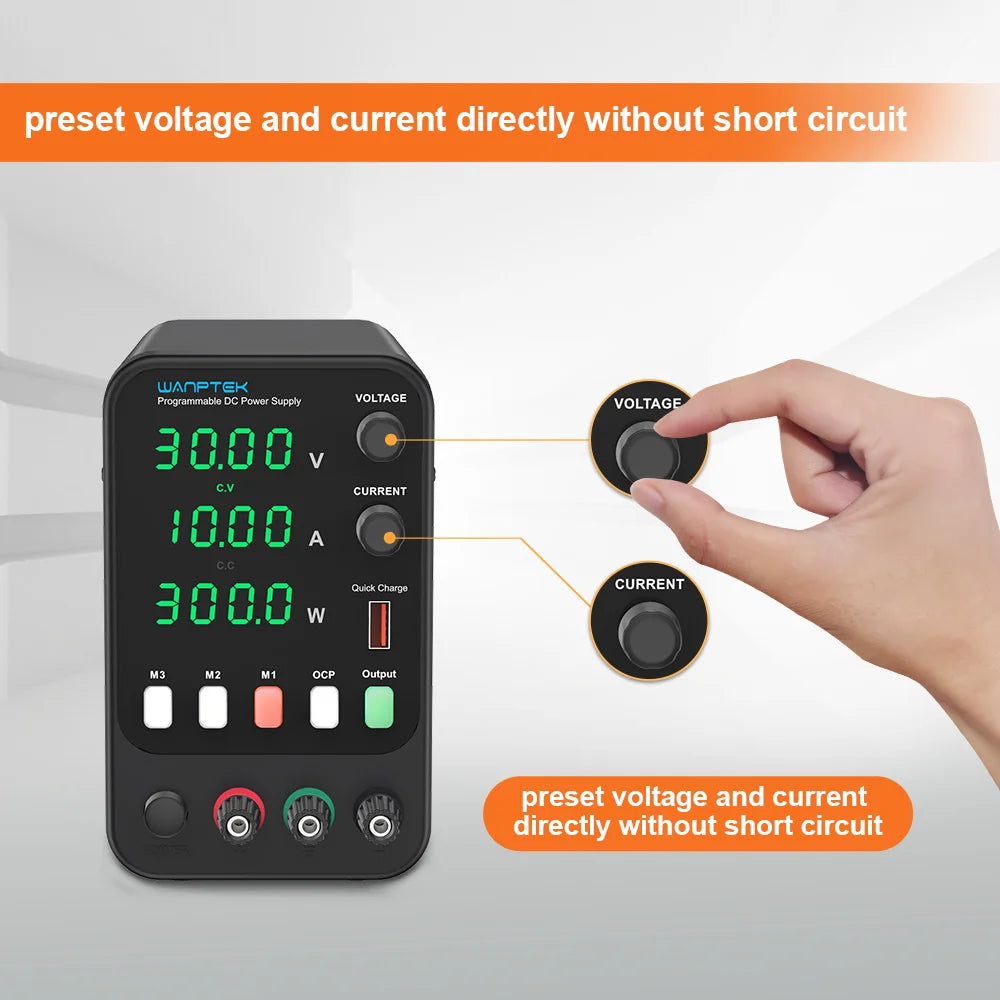

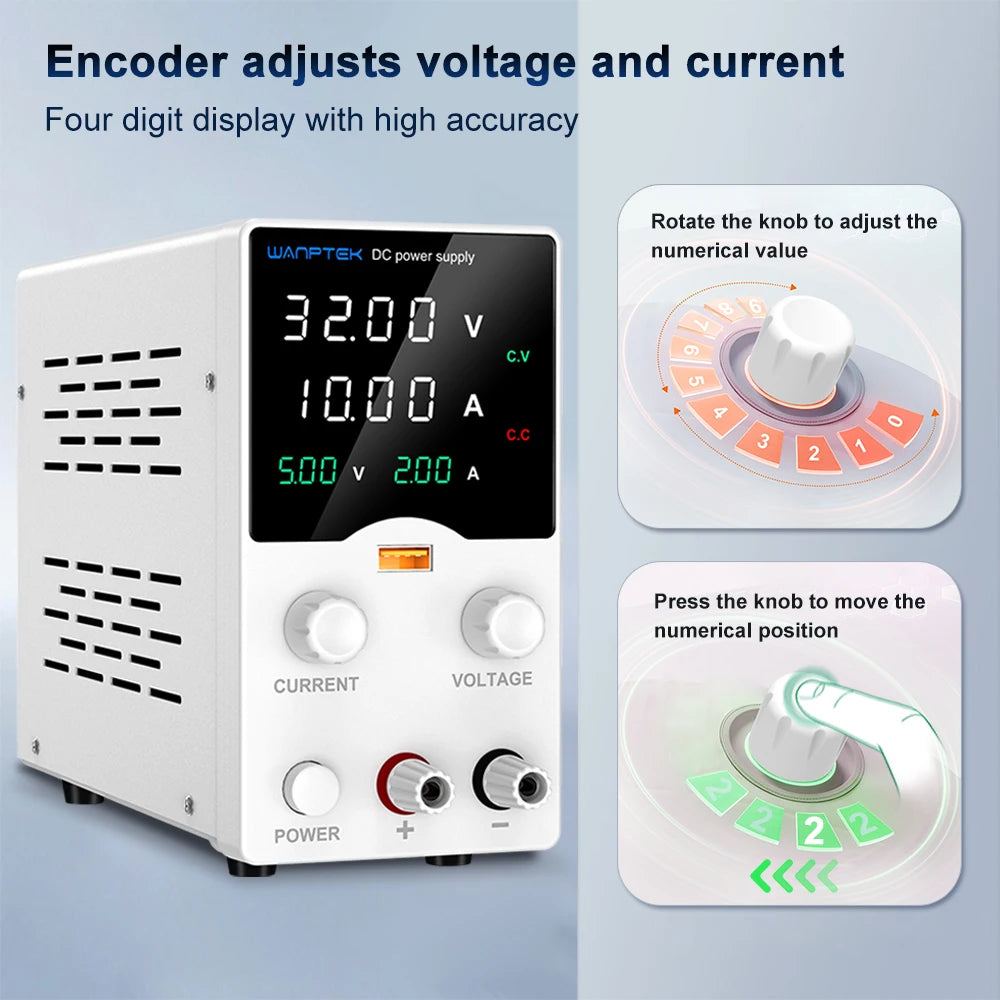

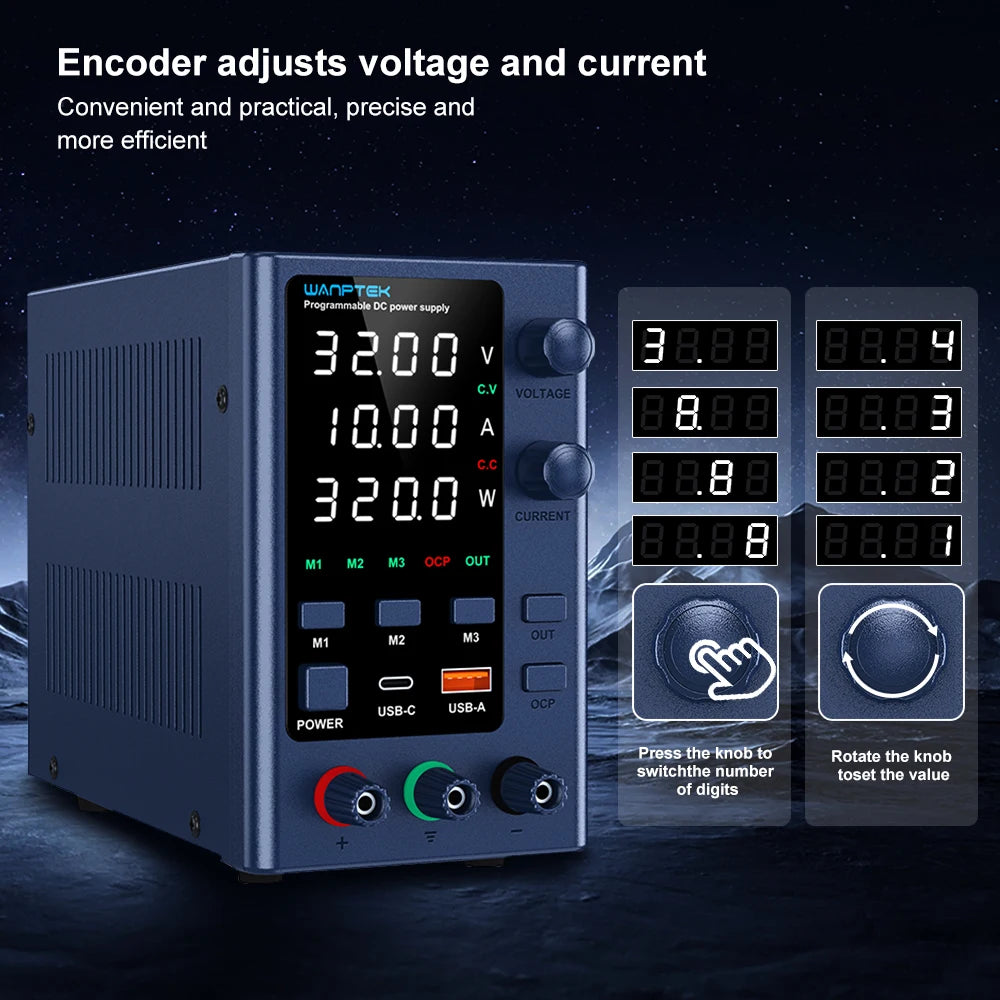

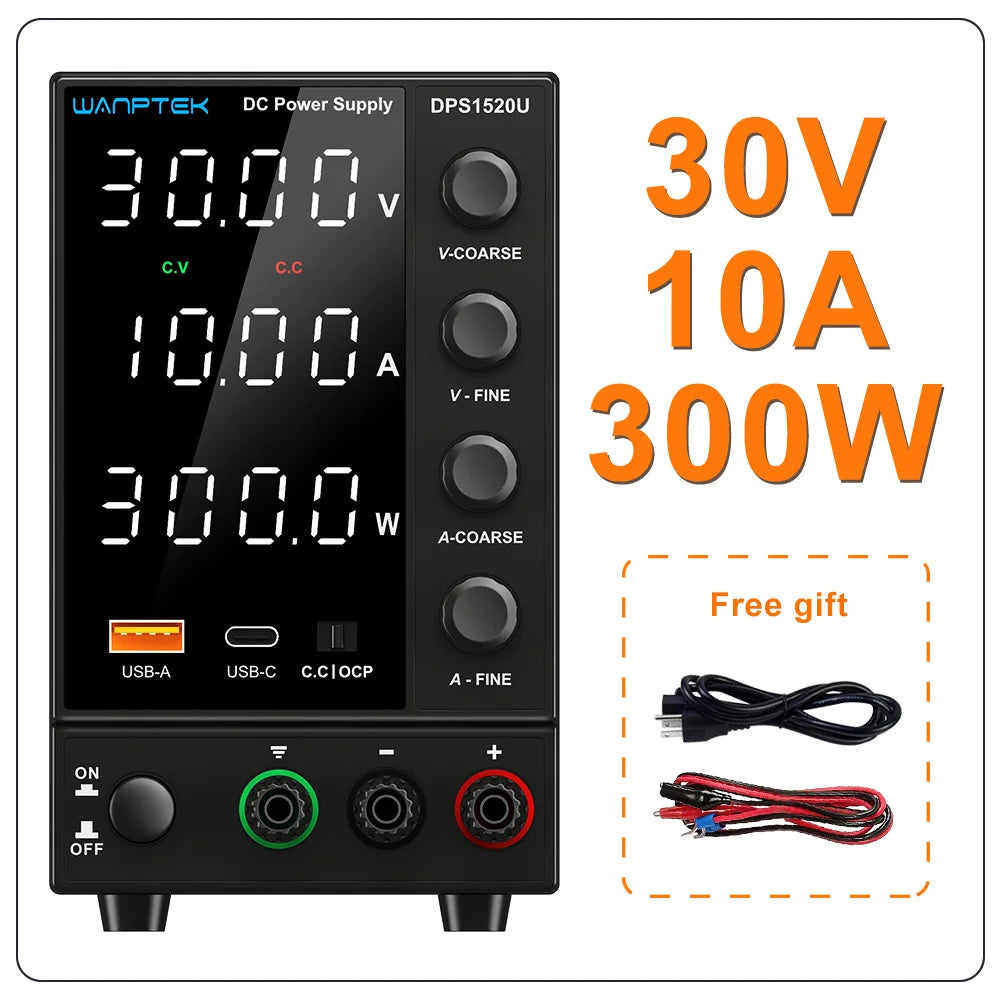

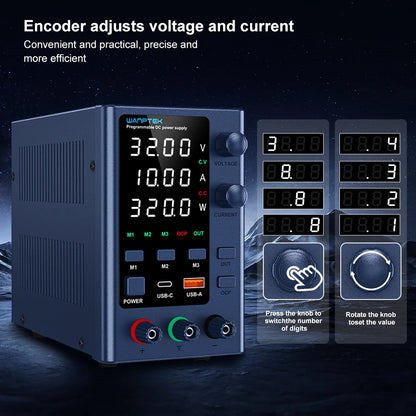

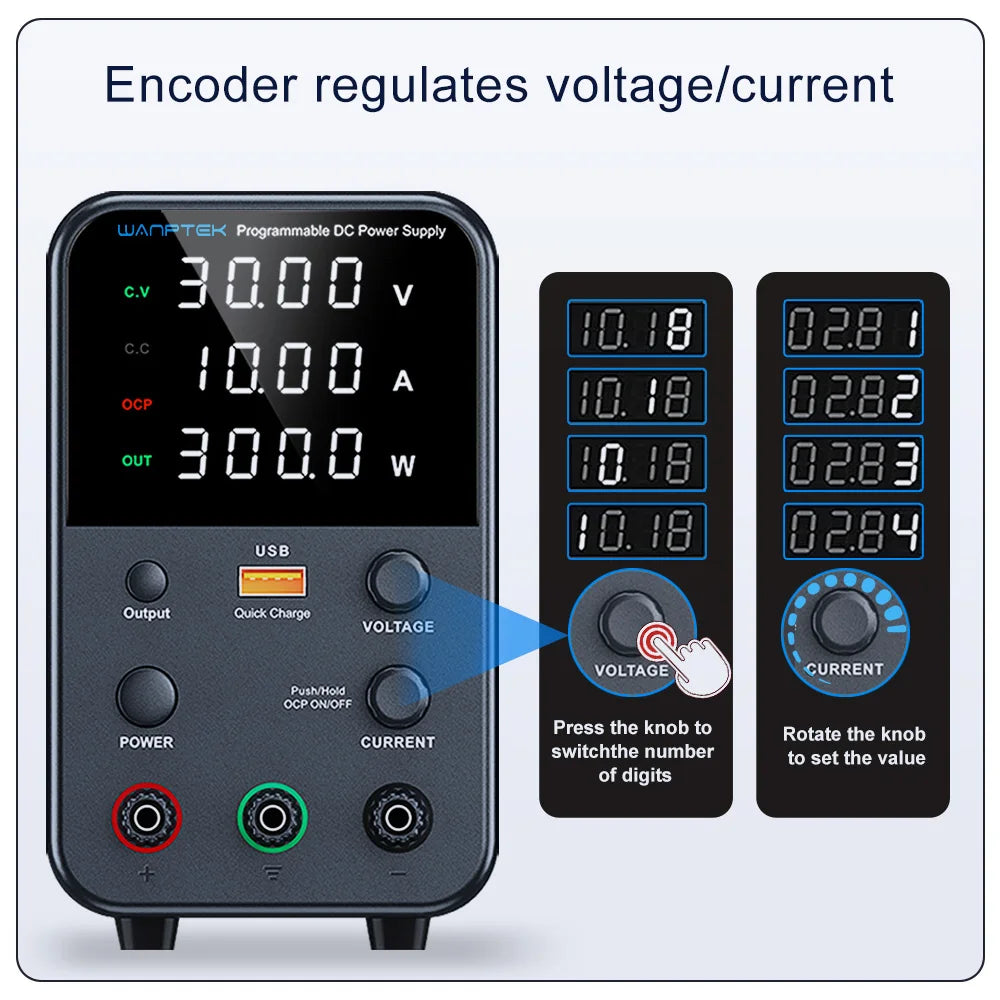

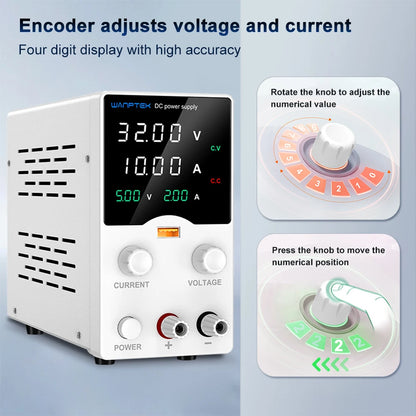

4.Adjustable Output Voltage & Current: output voltage and output current can be continuously 5.adjusted between 0 and nominal value with fine regulating and coarse regulating

6.it has over voltage protection(OVP), over current protection(OCP), over temperature protection

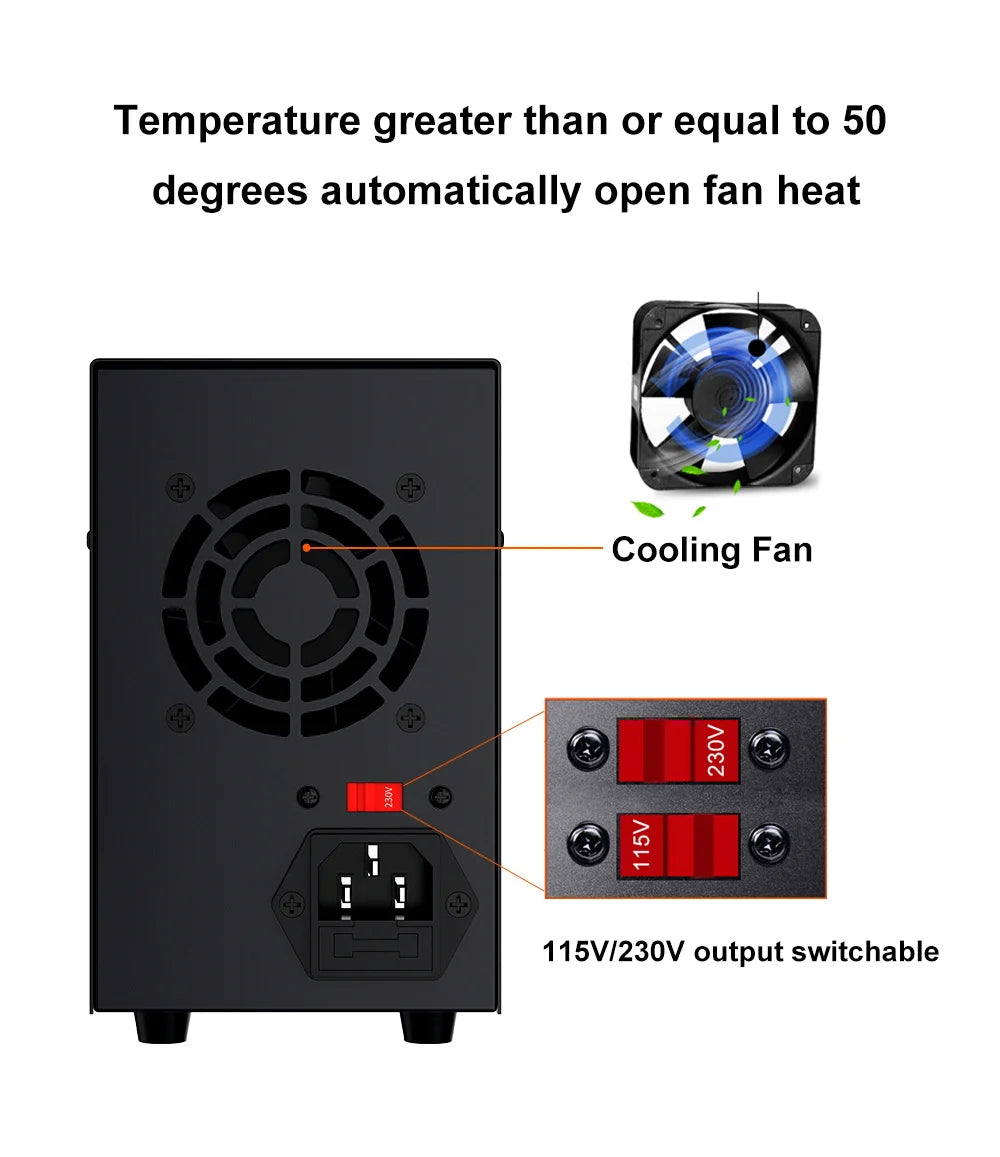

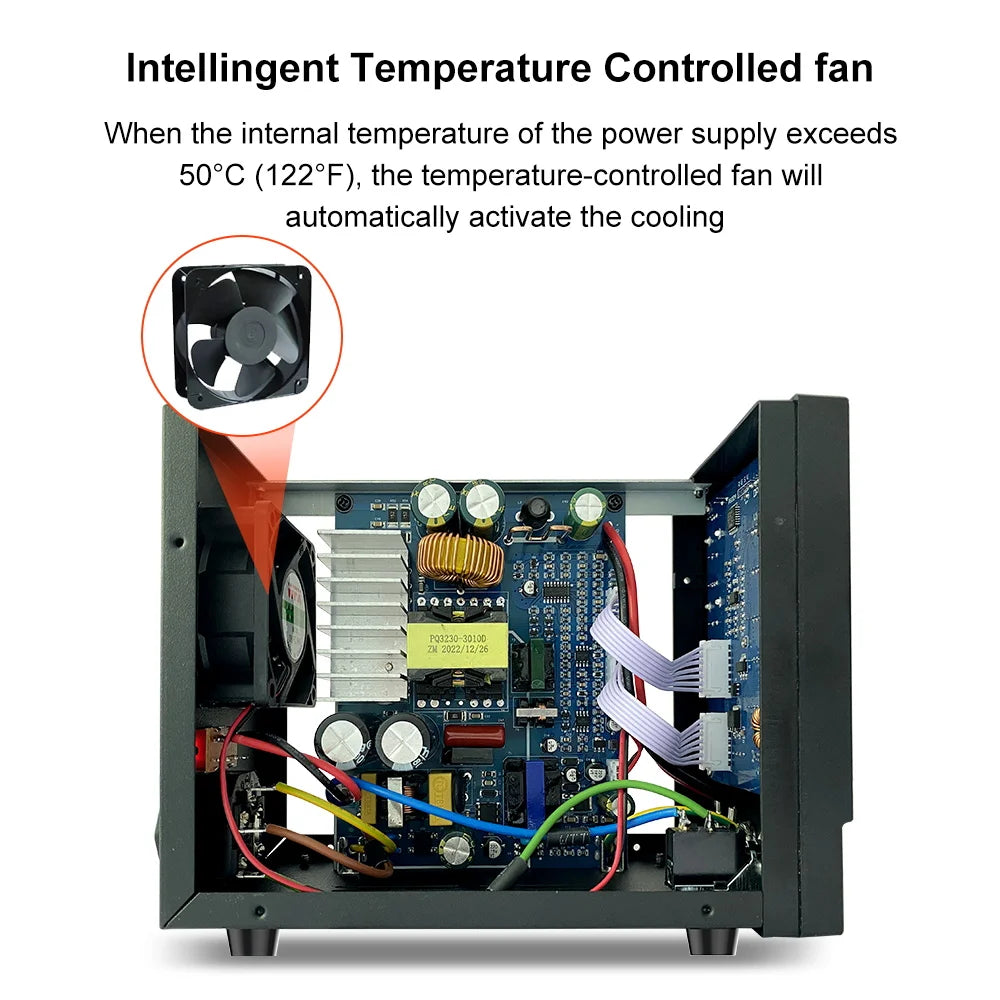

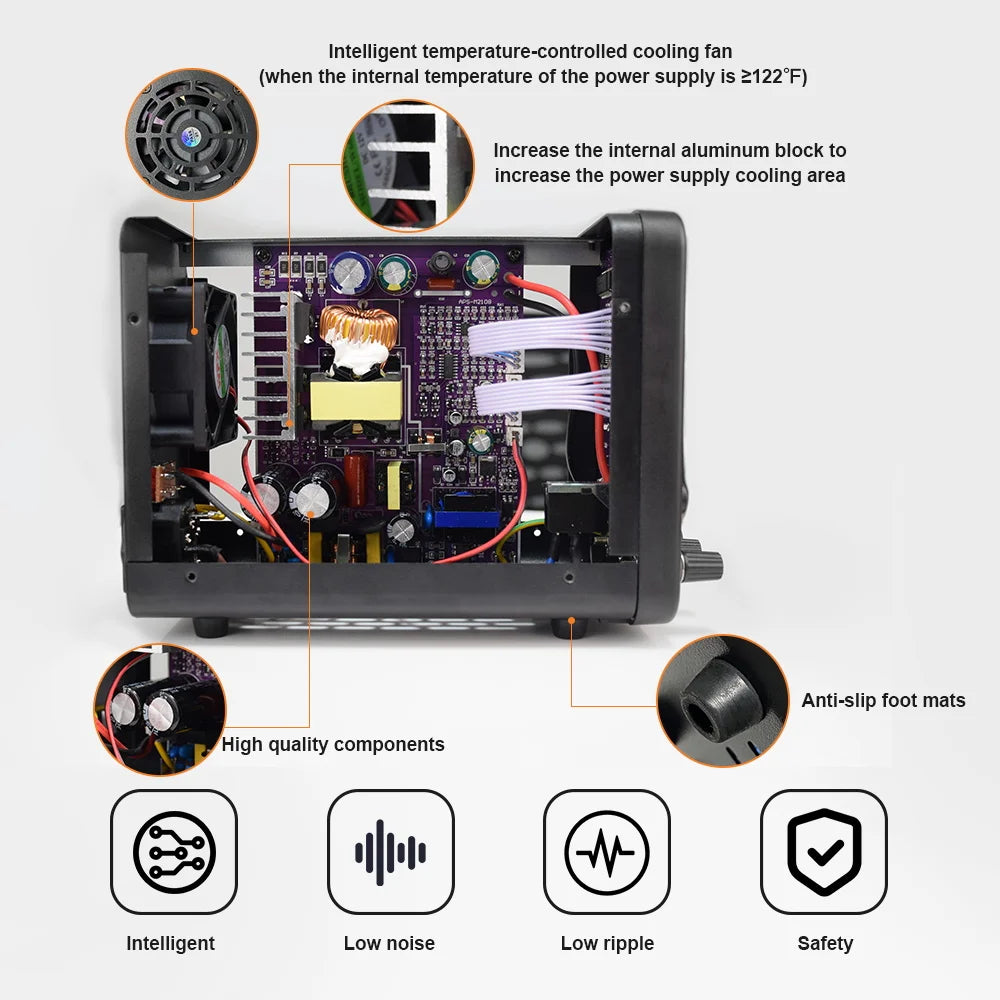

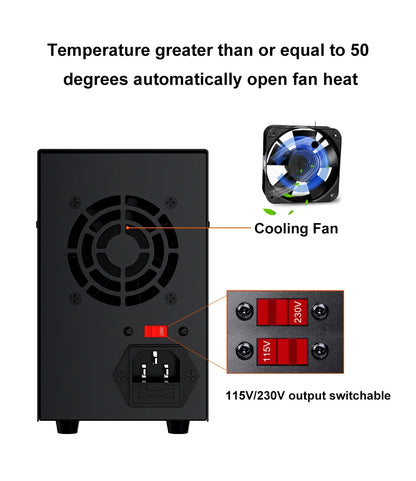

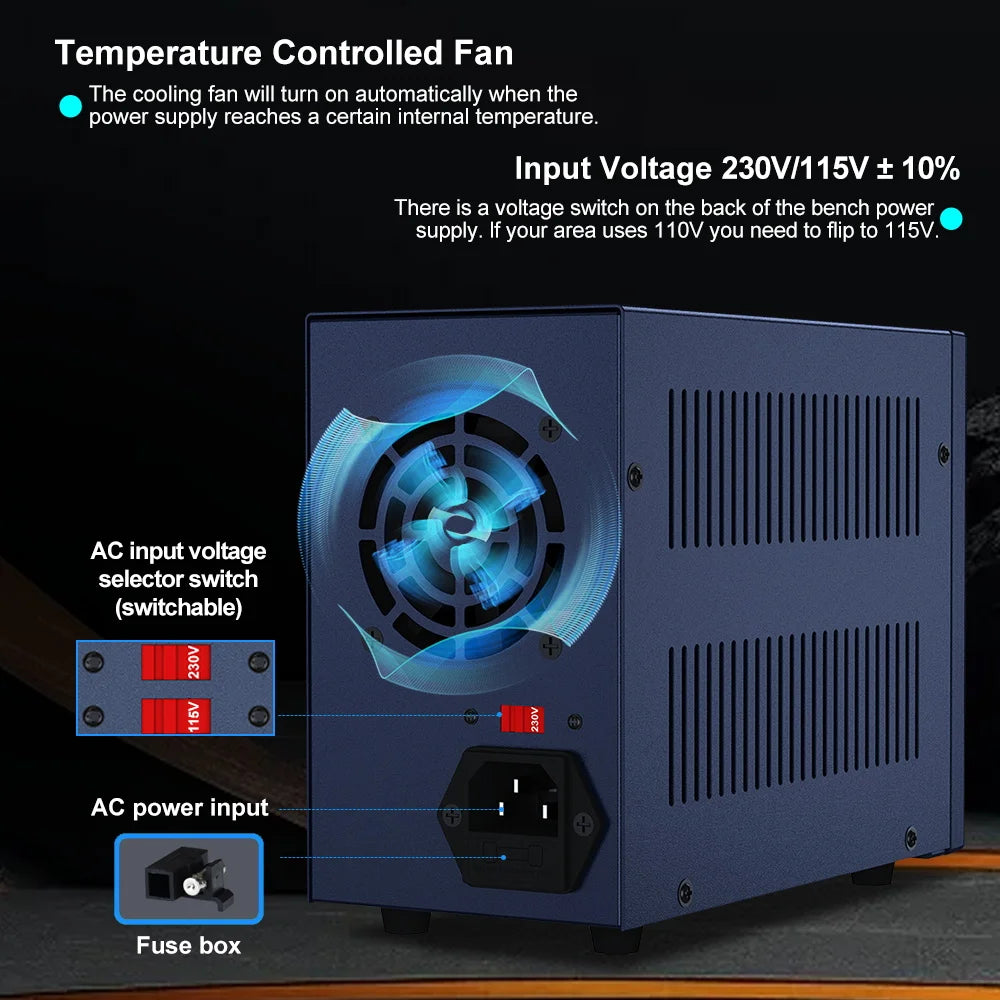

7.Temperature controlled fan cooling, low noise, long life.

8.Dual voltage input and convenient choice.

9.Output Voltage ranges from 0 to rating voltage with continuous adjustment .

10.Output current ranges from 0 to rating current with continuous adjustment .

Application areas

1. Production line testing.

2. Repair mobile phones, computers, and appliances.

3. Product aging and electroplating.

4. Battery charging.

5. Laboratory, scientific research, and teaching.

6. All other occasions that require a DC stabilized power supply.

More parameters

Protection mode OVP over-voltage protection, OCP over-current protection, over-temperature protection, short-circuit alarm stop output.

Working environment

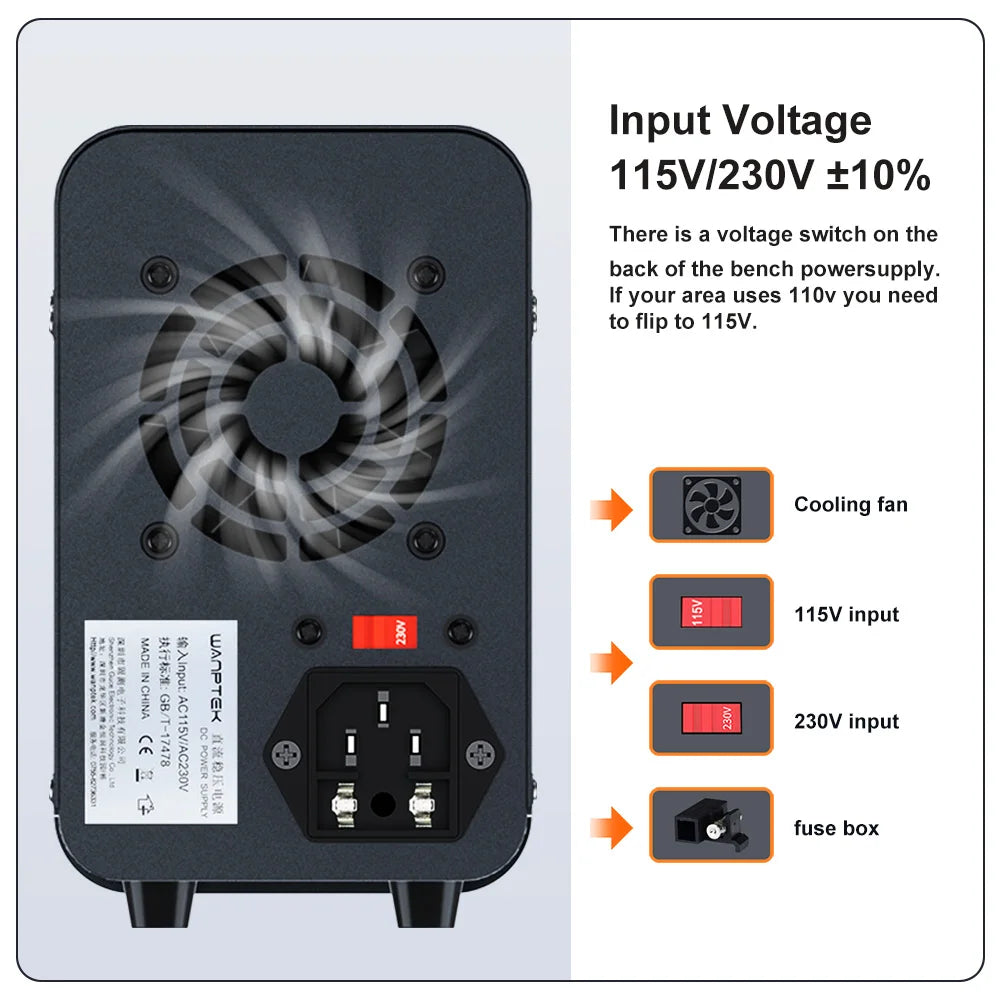

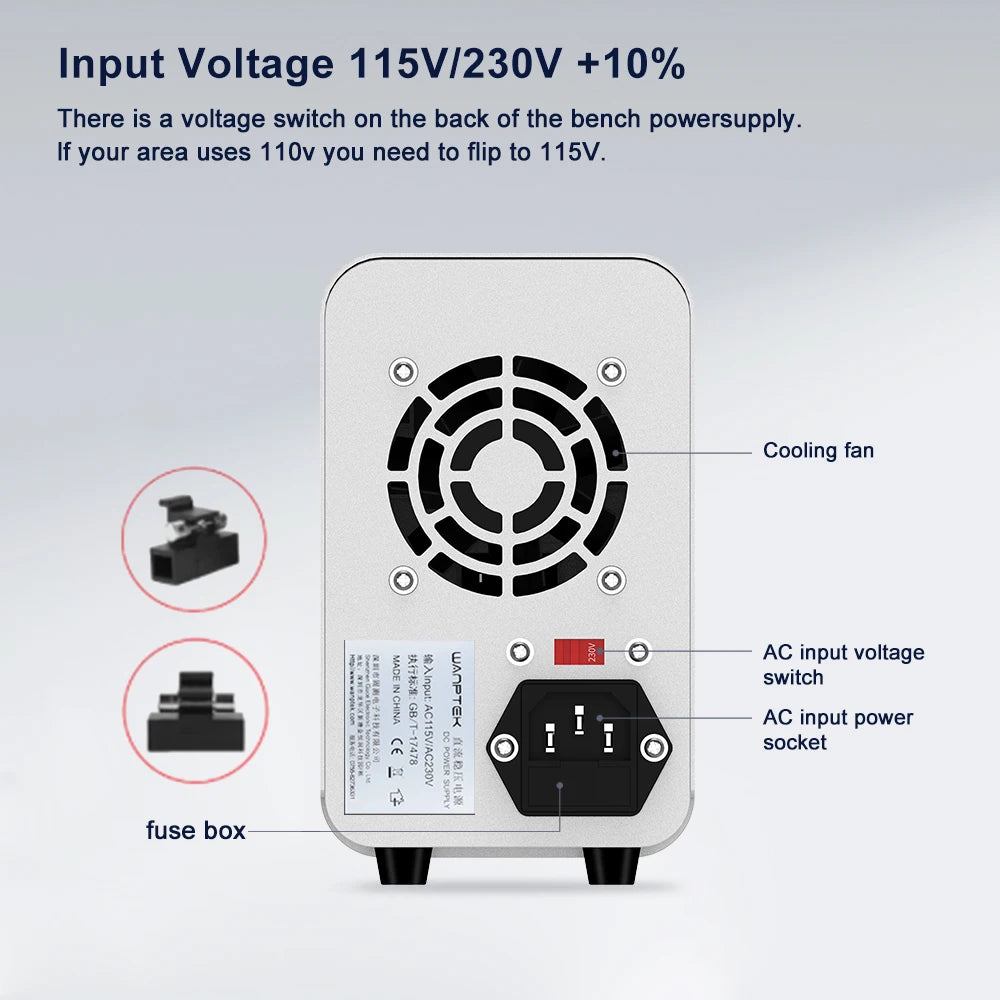

Input voltage: AC 230V/115V±10%; 50Hz/60Hz

Operating temperature: 0℃～40℃;Relative humidity:<80%RH

Storage temperature:-10℃～70℃;Relative humidity:<70%RH

Voltage stabilisation CV

Voltage stability: 0.5%±3mV

Load stability: 0.5%±3mV

Ripple voltage: ≤0.5% Vp-p

0 to rated voltage continuously adjustable

Current stabilisation CC

Current stability: 0.5%±3mA

Load stability: 0.5%±3mA

Ripple current: ≤0.5% Vp-p

Recovery time: ≤500μS

Temperature coefficient: ≤100ppm/°C

0 to rated current continuously adjustable

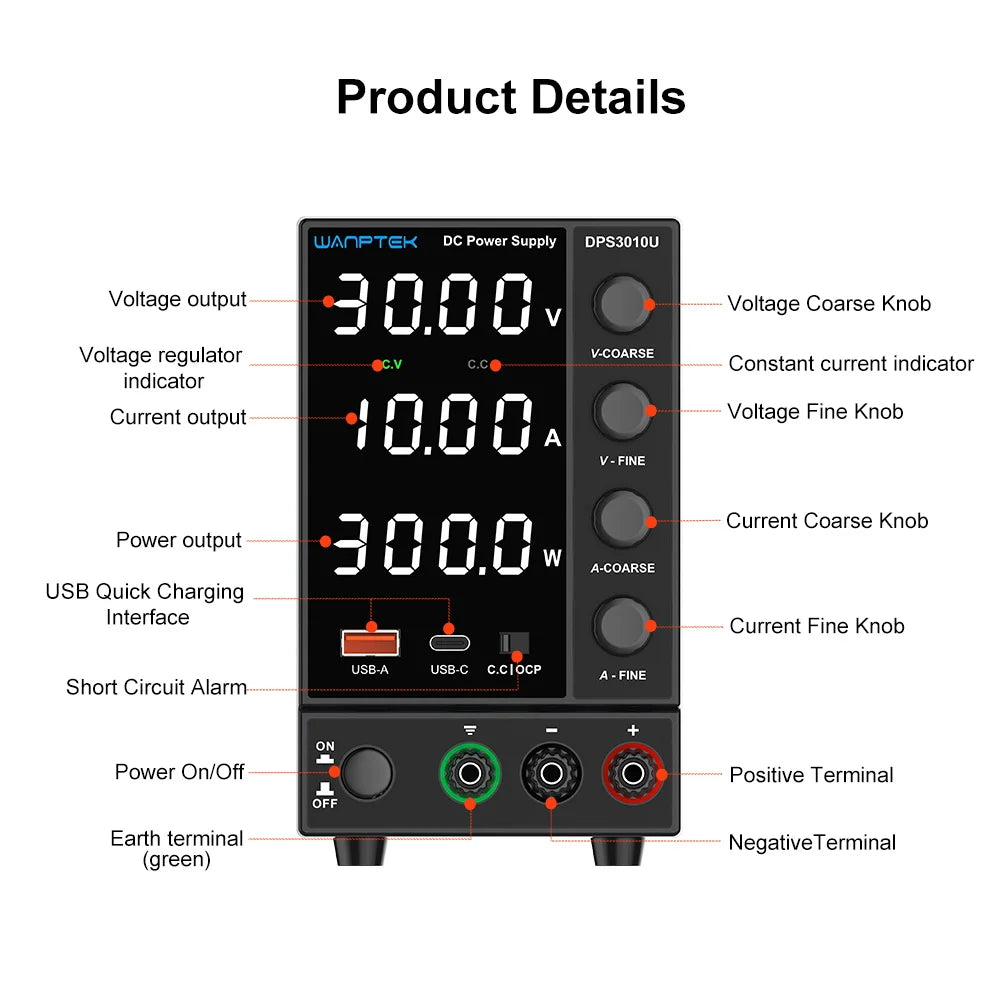

Meter display

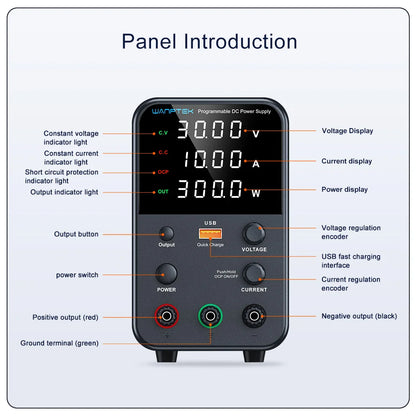

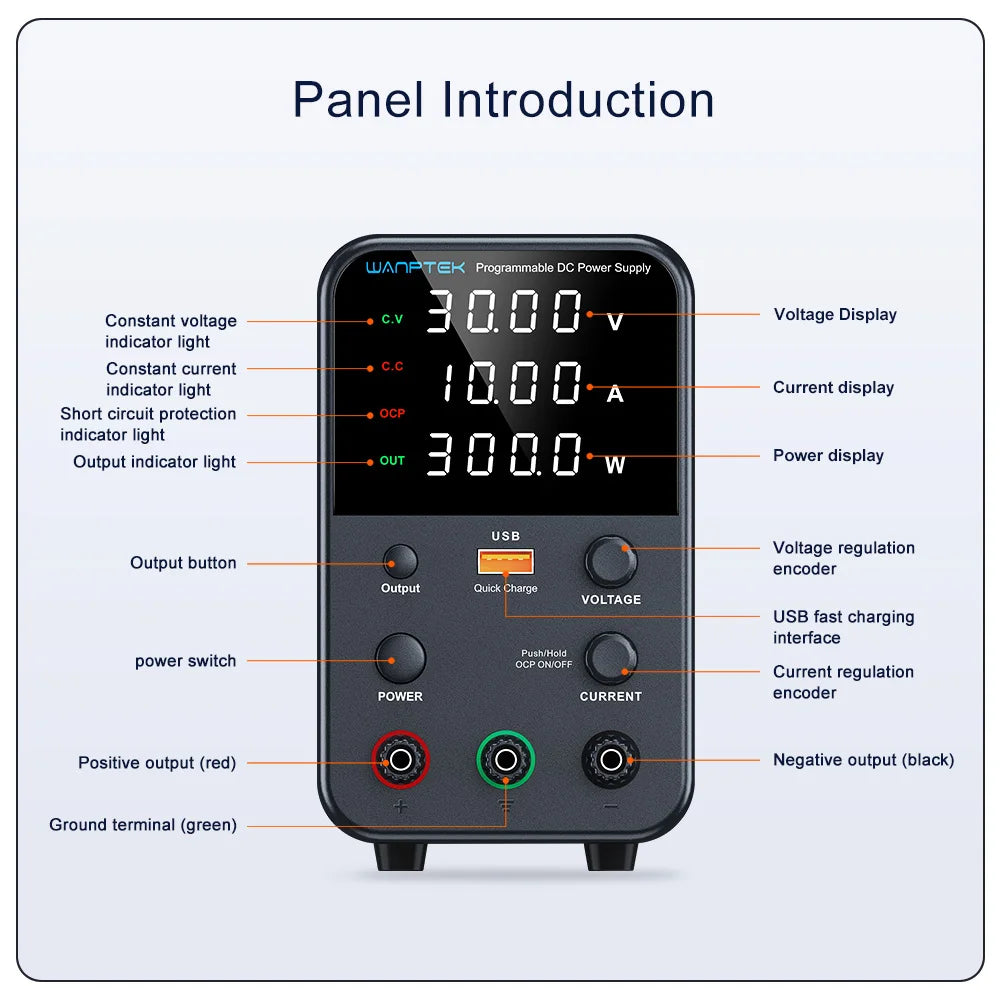

0.4-inch white four digital tube with three displays

Display accuracy: 0.5%±5 words

Display resolution: voltage 0.01V, current 0.001A

Product Characteristics

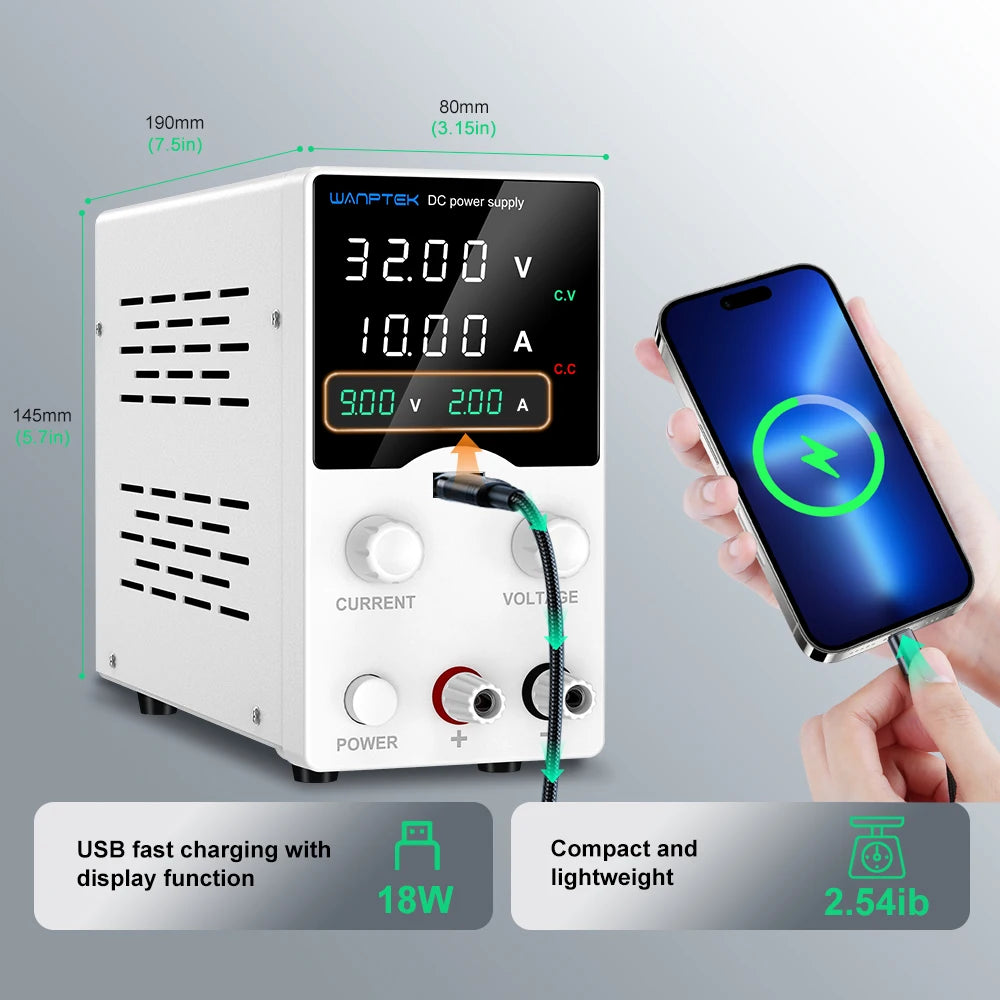

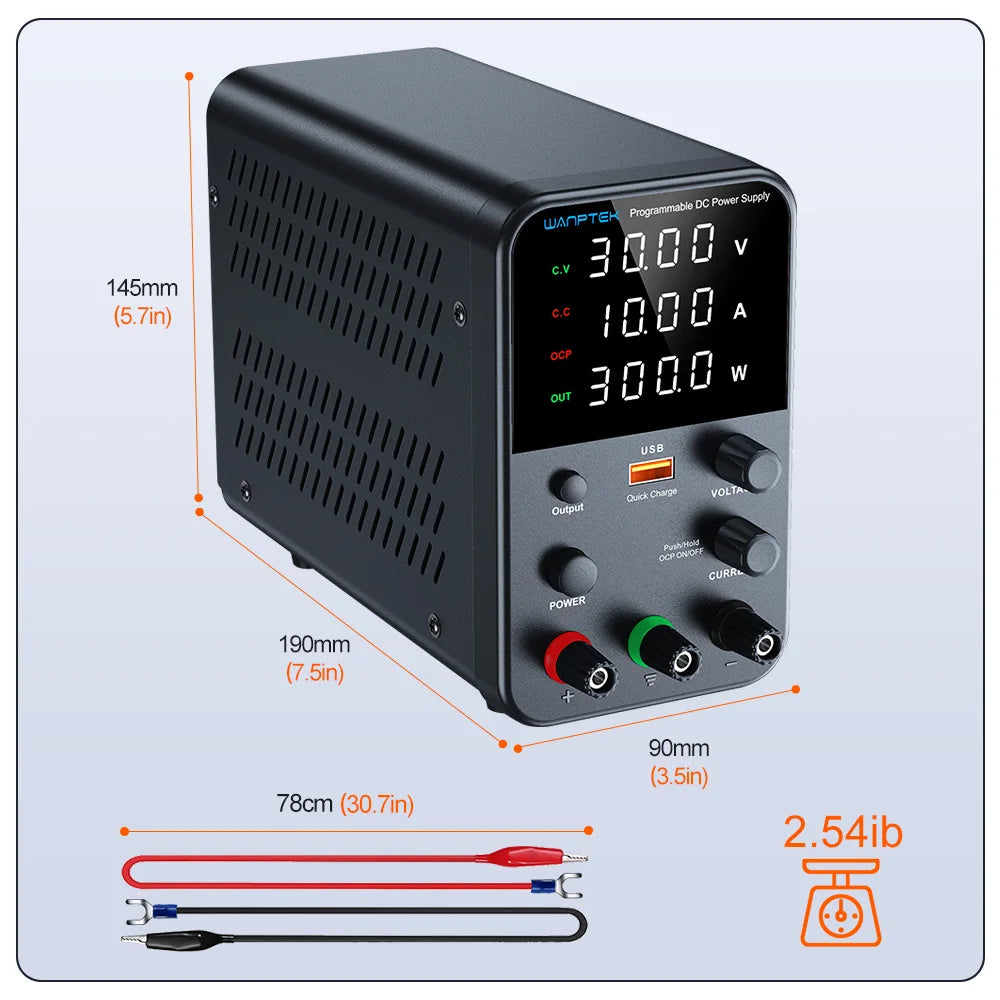

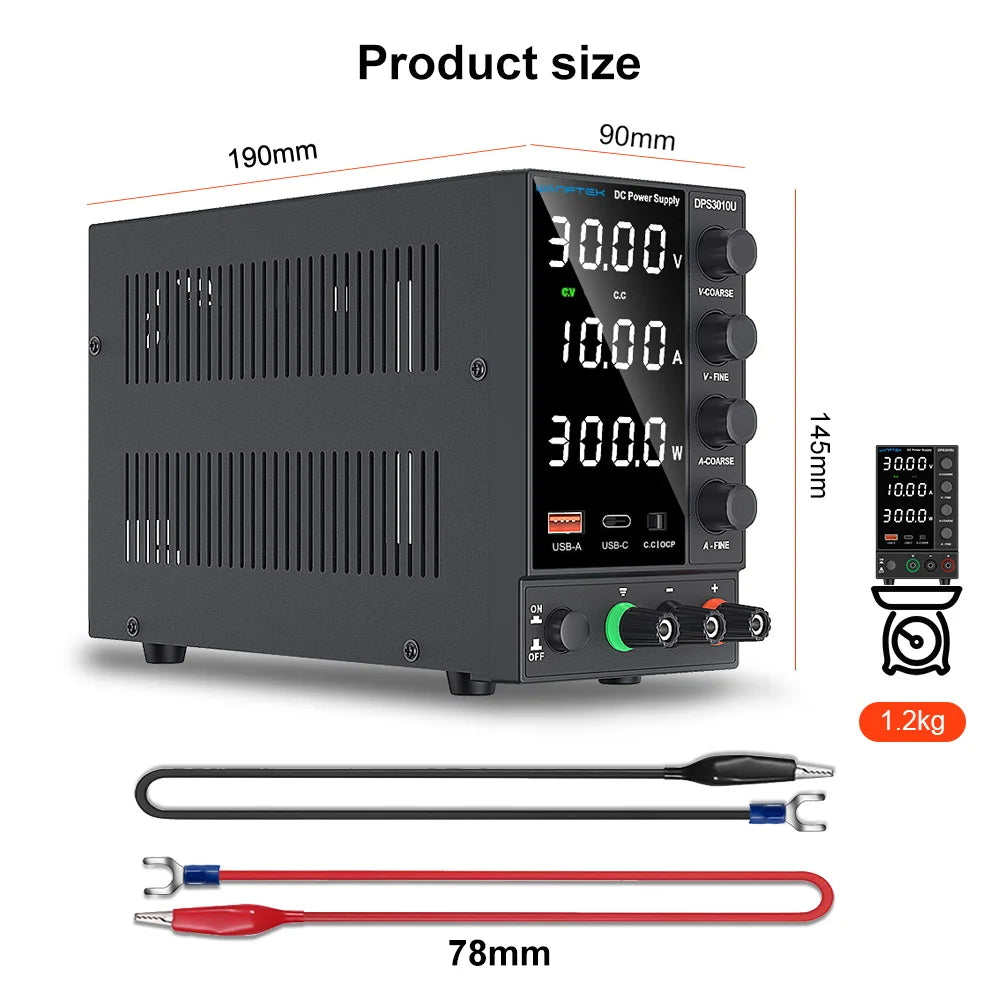

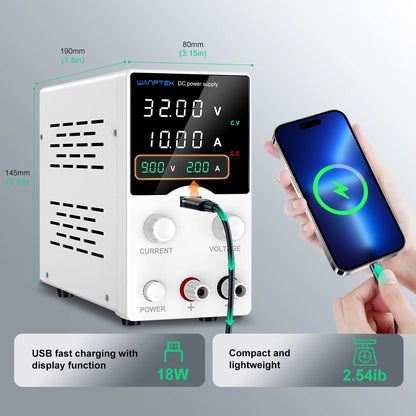

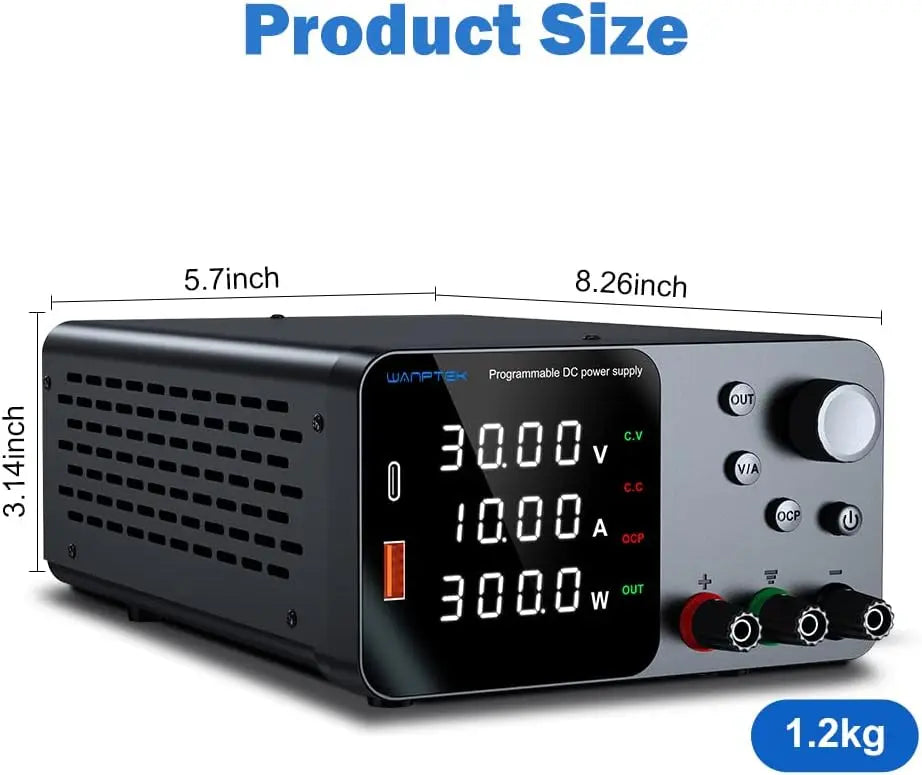

Product size: 190mm (L) X 90mm (W) X 145mm (H)

Package size: 265(L) x 135(W) x 195(H) mm

Bare weight: 1.15Kg

Weight with packing accessories: 1.5Kg

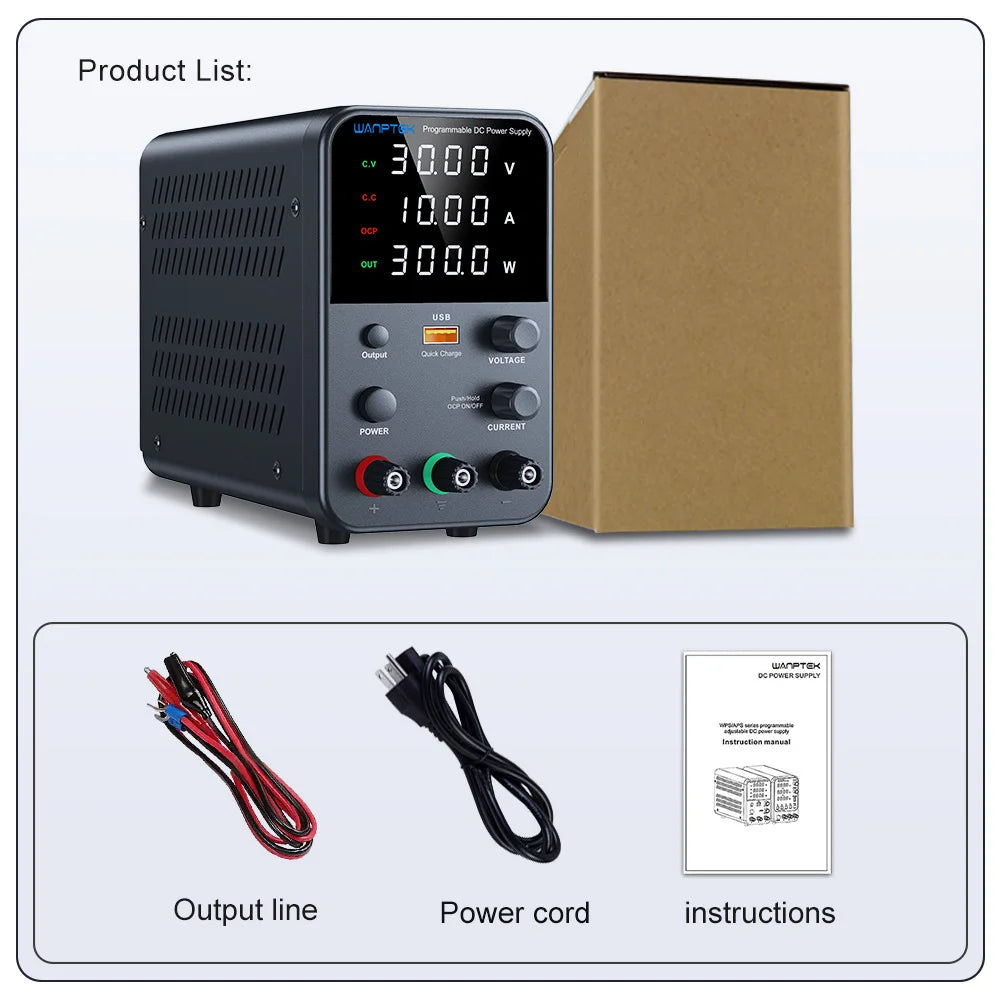

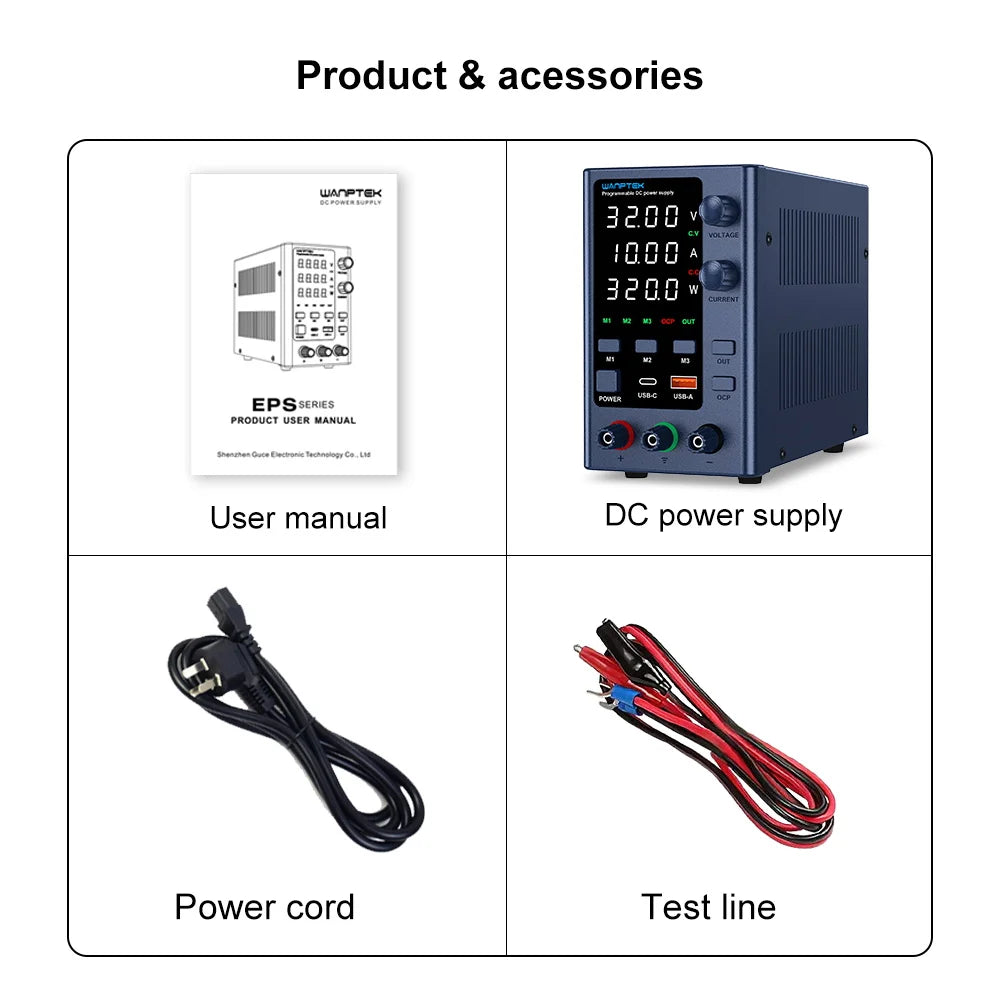

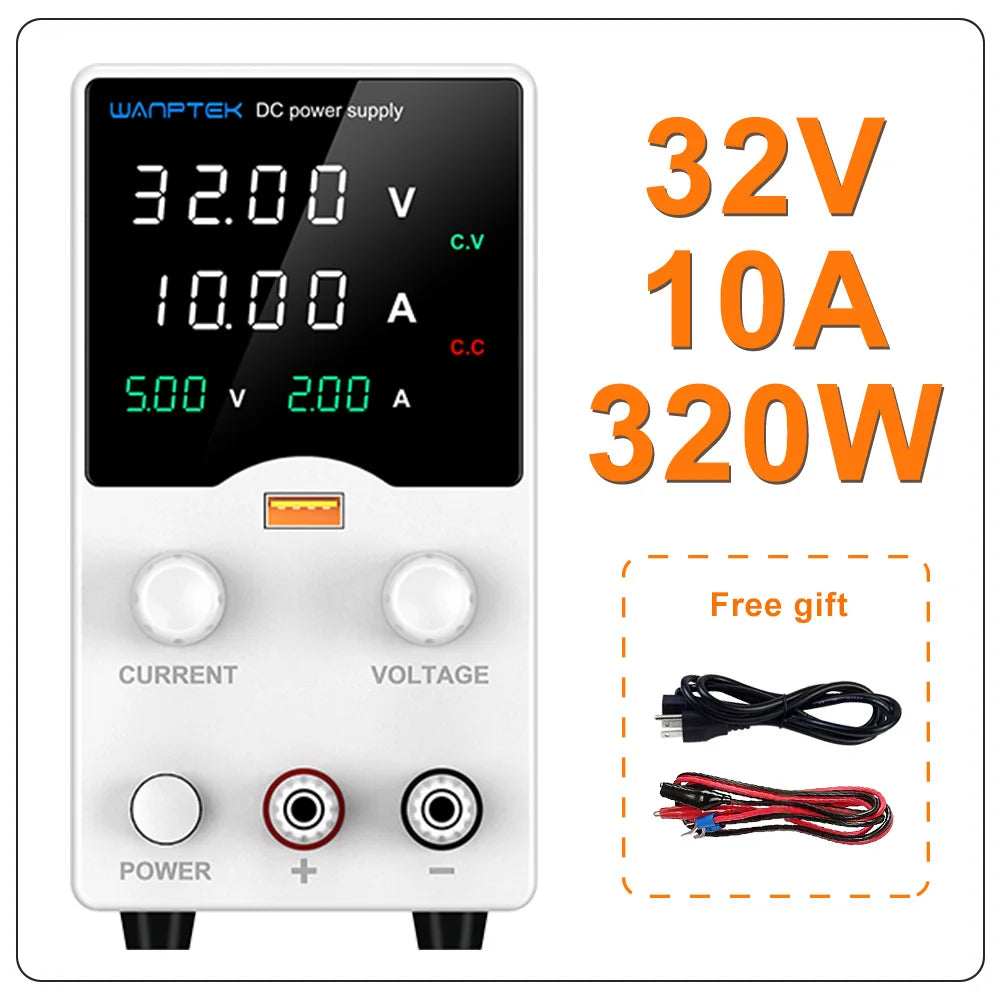

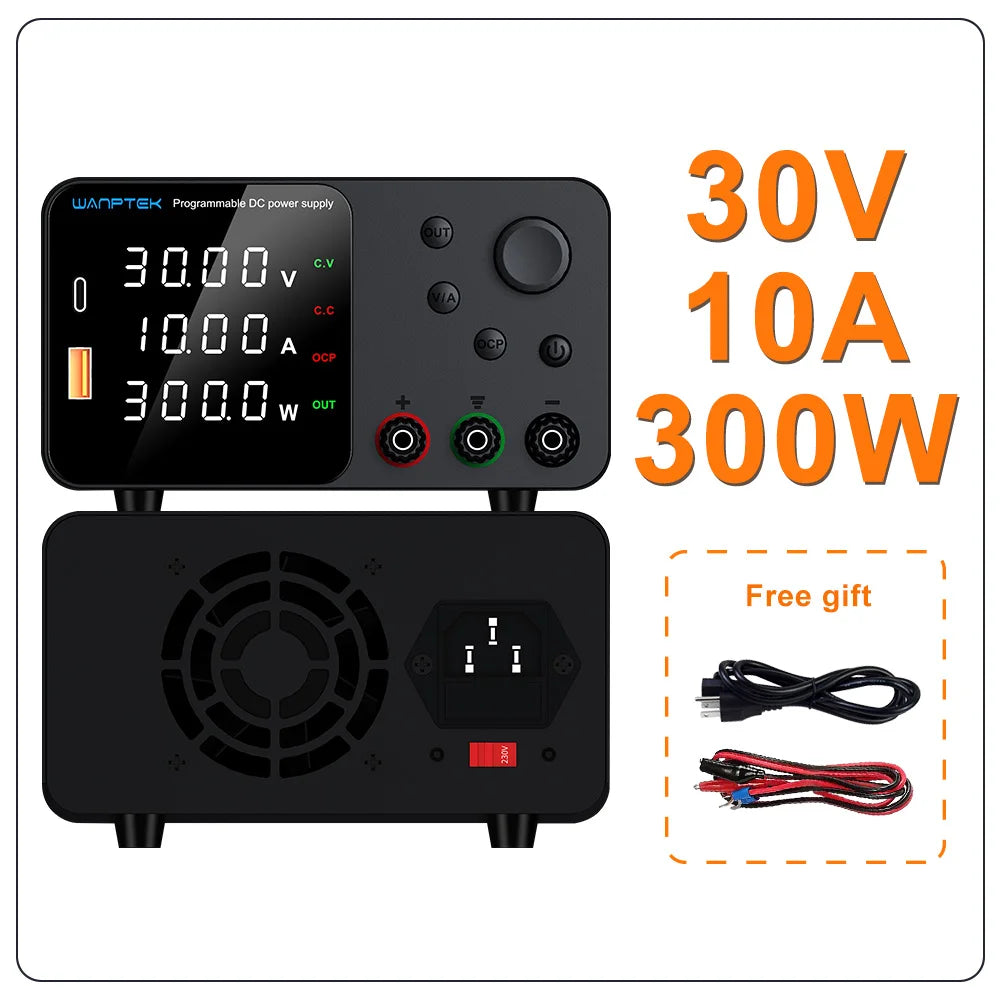

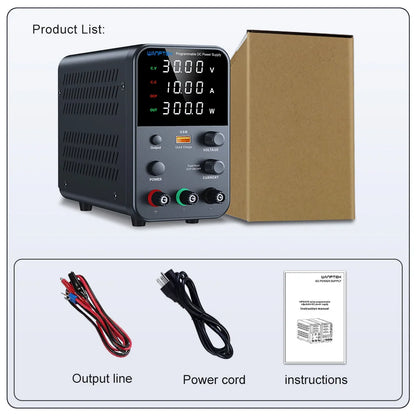

Your package includes

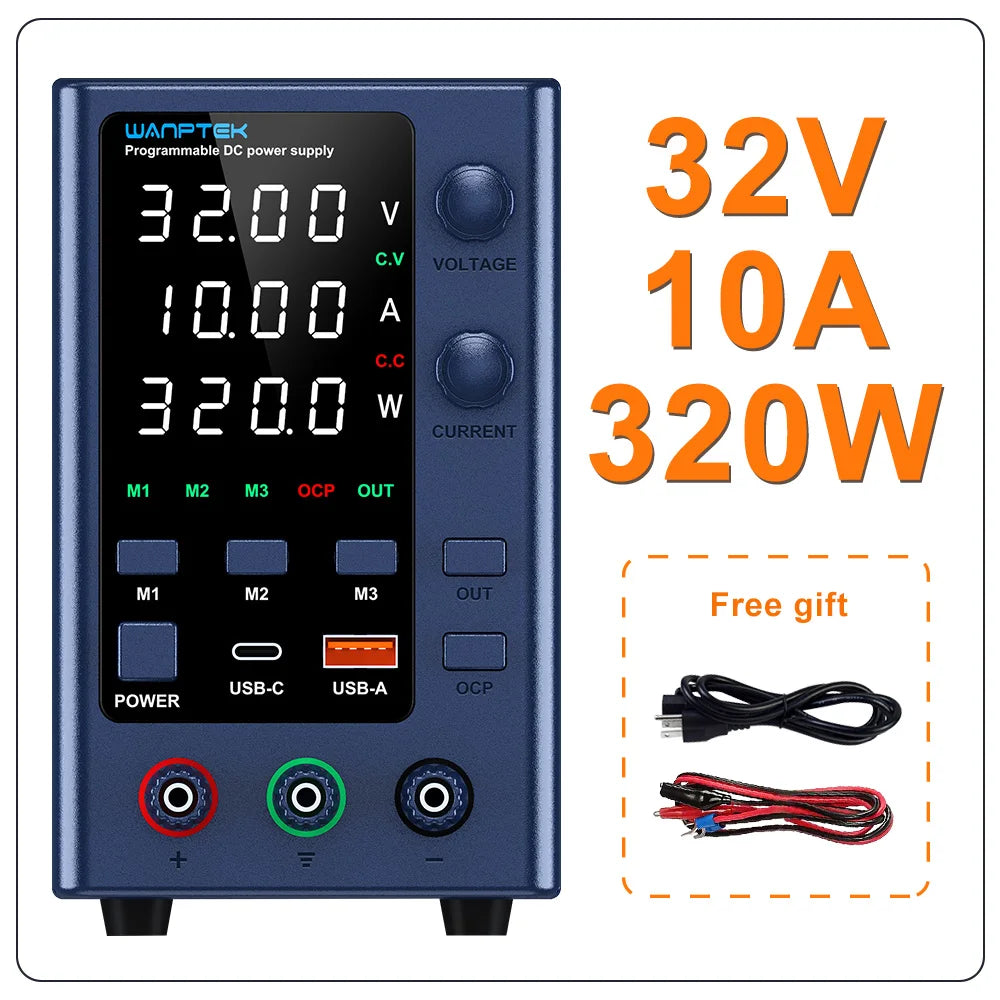

1 * DC power supply

1 * Power cord

1 * Output cable (gift)

1 * Instruction manual
