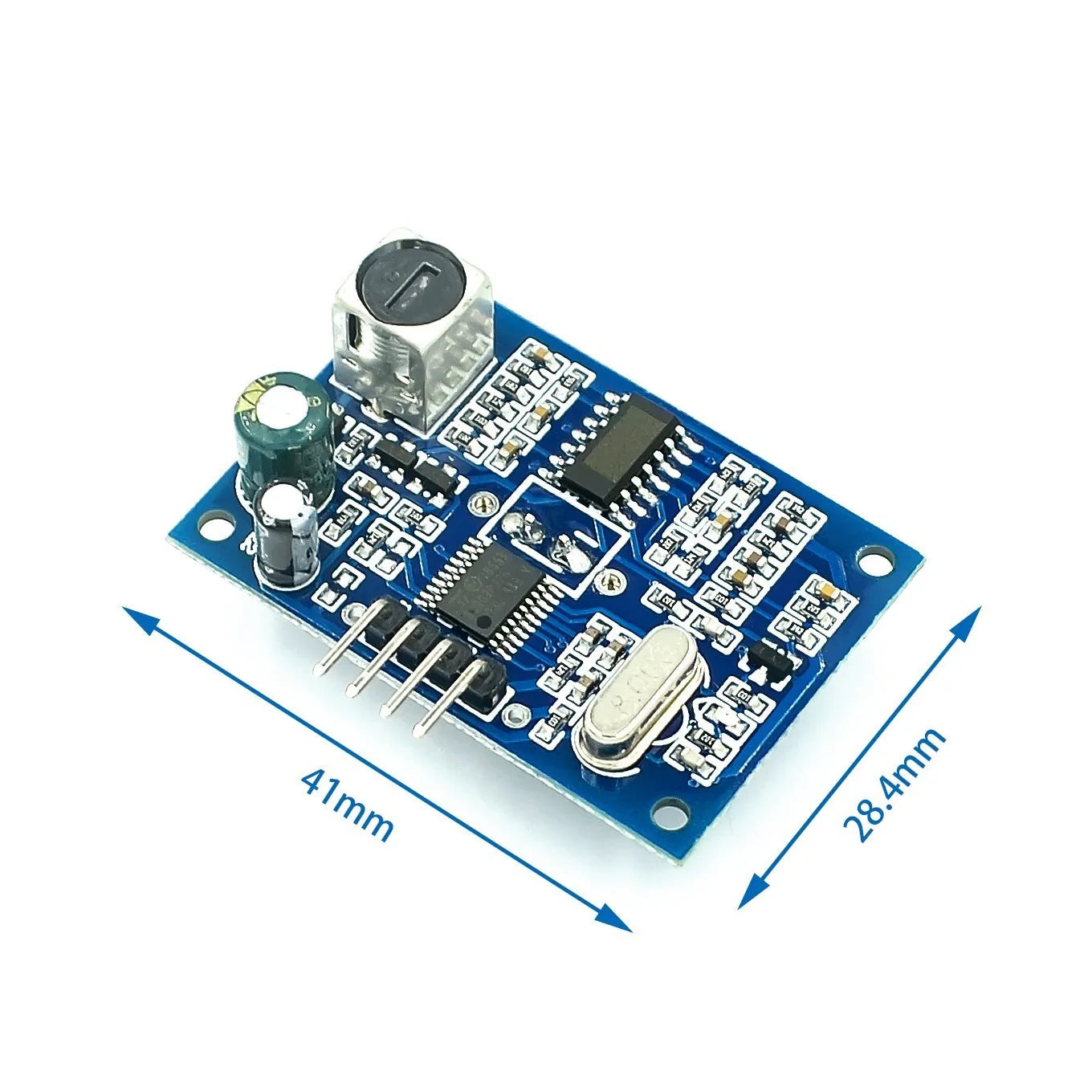

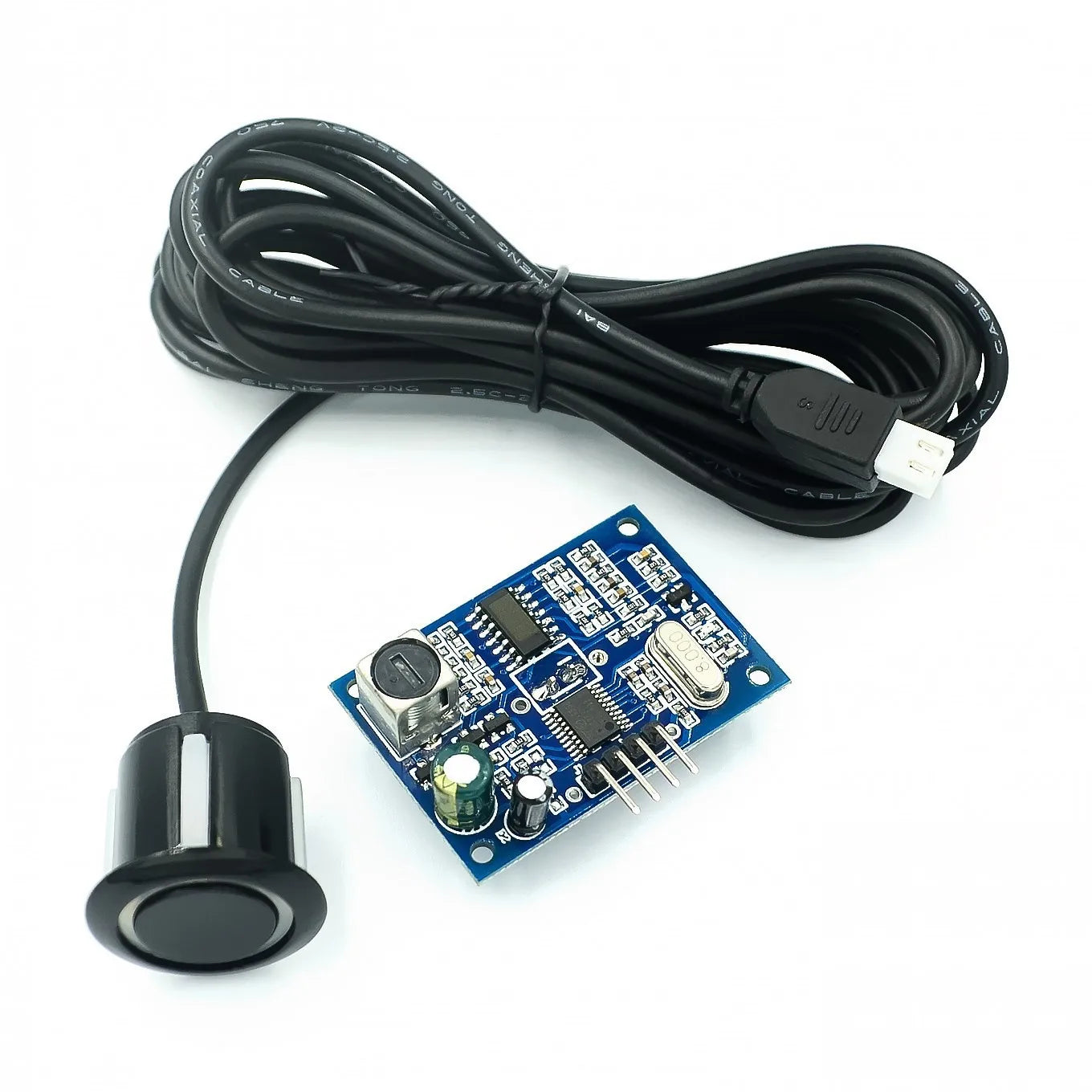

Módulo Sensor Ultrasónico Impermeable JSN-SR04T / AJ-SR04M Transductor Medición Distancia Integrado para Arduino

$8.290 CLP

~~$11.286 CLP~~ $8.290 CLP

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Color 1 SET Cable Module

Cantidad

SPECIFICATIONS

Brand Name: NoEnName_Null

Choice: yes

Condition: New

Origin: Mainland China

Type: Voltage Regulator

Electrical properties

1.Electrical parameters: JSN-SR04T

2.Operating voltage: DC 5V

3.Quiescent current: 5mA

4.Total current work: 30mA

5.Acoustic emission frequency: 40khz

6.Farthest distance: 4.5m

7.Blind: 25cm

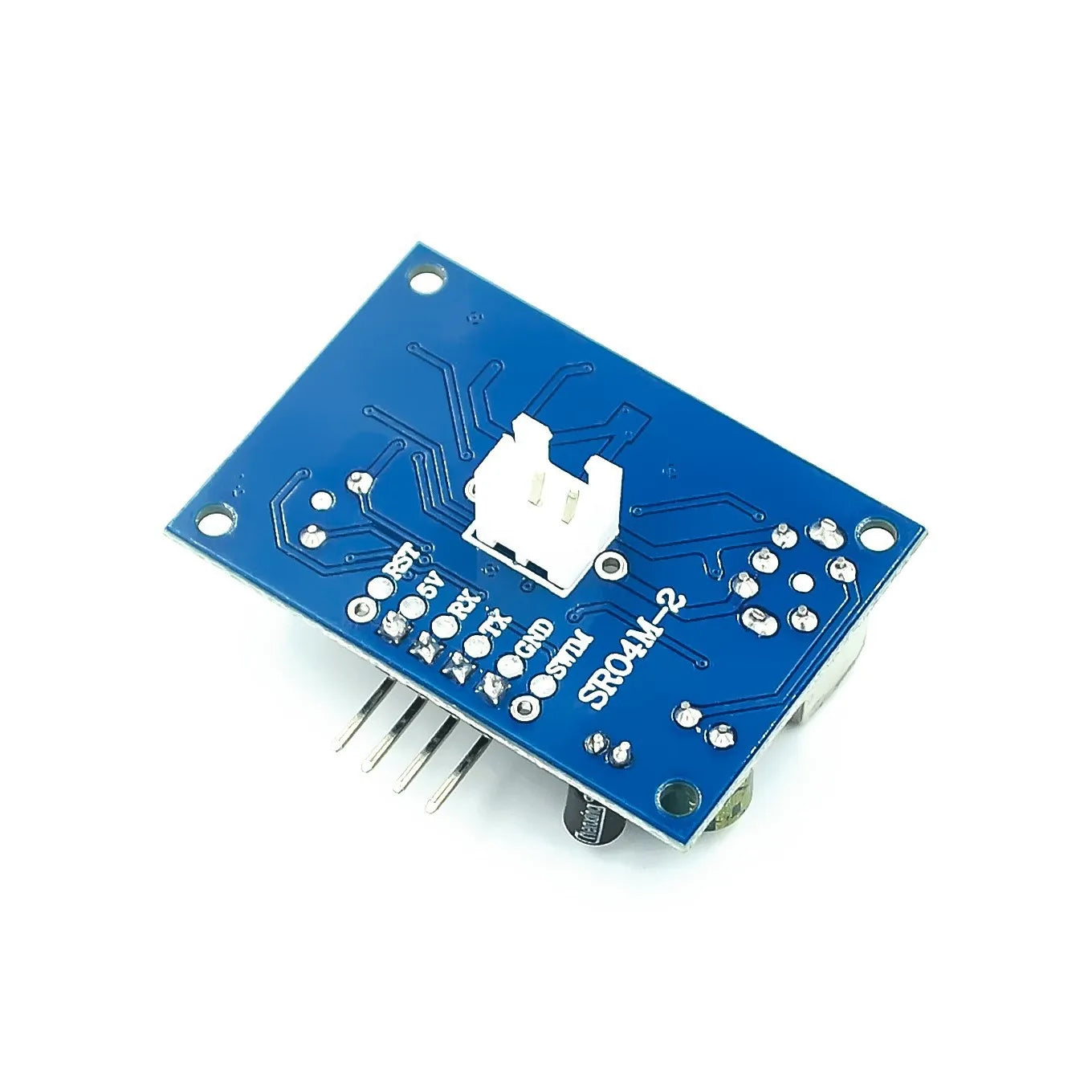

8.Wiring: + 5V (positive power supply)

Trig (control side) RX

Echo (the receiver) TX

GND (negative)

9.Resolution: about 0.5cm

10.Angle: less than 50 degrees

11.Working temperature: -10 ~ 70 Celsuis

12.Storage temperature: -20 ~ 80 Celsuis

Product Features

1.Small size, easy to use

2.Low voltage, low power consumption

3.High accuracy

4.Strong anti-jamming

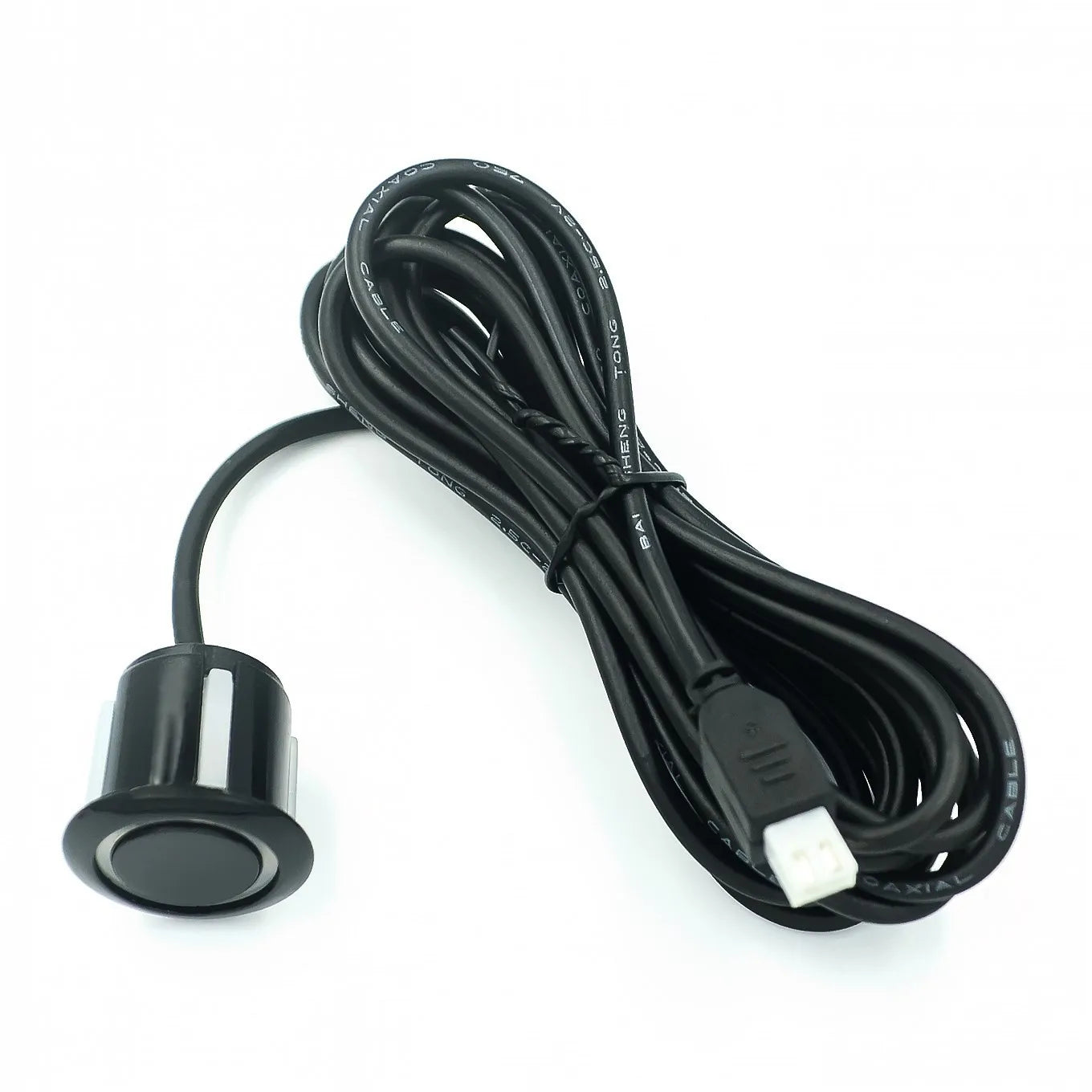

5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions

Application

1.Horizontal distance;

2.Obstacle avoidance, automatic control;

3.The object approaches, there is a perceived

4.Traffic control;

5.Security, industrial control;

6.Artificial intelligence, and research
