Estación Rework BGA 3 en 1 (Aire Caliente, Cautín, Precalentador) WEP 853AAA+ 1200W Programable
Estación Rework BGA 3 en 1 (Aire Caliente, Cautín, Precalentador) WEP 853AAA+ 1200W Programable
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Air gun type: Brushless fan
Brand Name: WEP
Certification: CE
Function 1: Programming desoldering
Function 2: ℃ & °F temperature mode
Function 3: Digital temperature correction
Function 4: 3 storage channels
Function 5: Sleep mode
Hign-concerned Chemical: None
Hot air gun part max air flow: 120L/min
Hot air gun part temperature range: 100°C-480°C
Input voltage: 110V/220V/230V/240V
Model Number: WEP 853AAA+
Origin: Mainland China
Power: 1200W
Preheater temperature range: 50°C-400°C
Soldering iron temperature range: 200°C-480°C
is_customized: No
WEP 1200W Program -Controlled Soldering Station Automatic Preheating Desoldering Hot Air Gun 3 in 1 BGA Rework Station 853AAA+
Product Parameters
Whole machine:
Model: 853AAA+
Power: 1200W
Volatage: AC 220-240V,50Hz/ AC 110V,60Hz
Weight: 5.6KG
Preheating part
Temperature range: 50°C-400°C
Display form: LED
Area of preheate plate: 120*120MM
Temperature stablity:±2°C

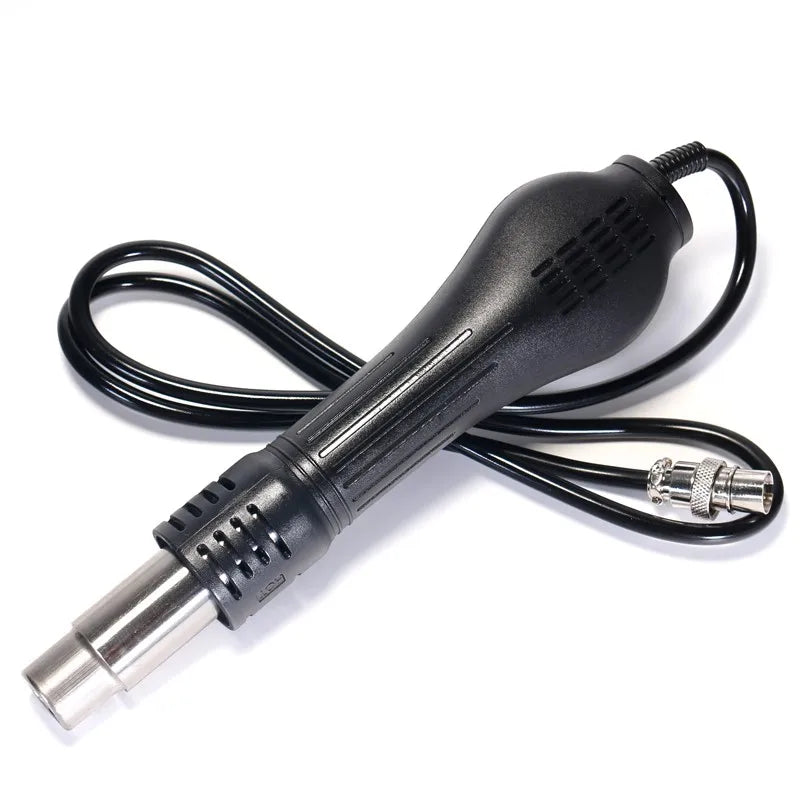

Hot air gun part
Air flow type: brushless fan with soft wind
Max Air flow：120L/min
Temperature range:100°C-480°C
Display form: LED
Temperature stablity:±1°C
Handle length:≥100CM
Soldering iron part
Temperature range: 200°C-480°C
Display form: LED
Temperature stablity:±1°C
Handle length:≥100CM
Soldering iron tip over the ground resistance: <2ohm
Soldering iron tip over the ground voltage: <2mV
Functions

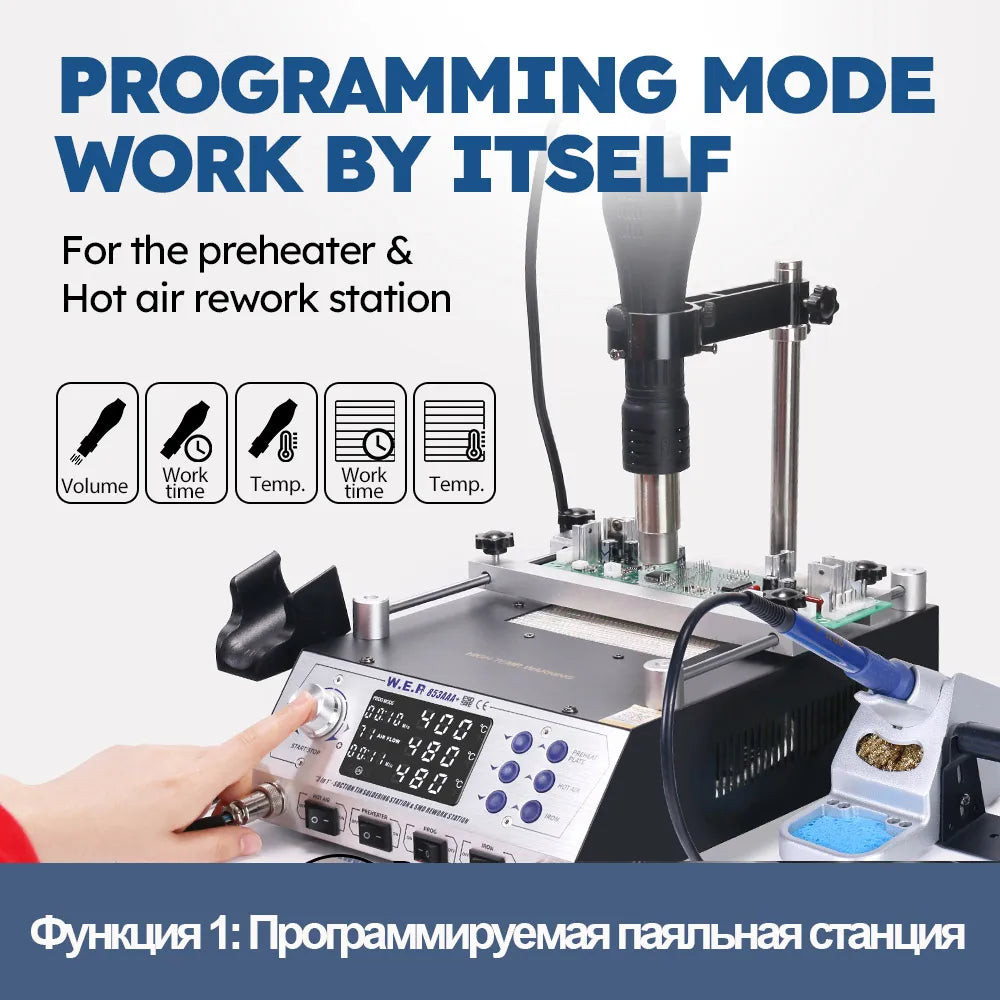

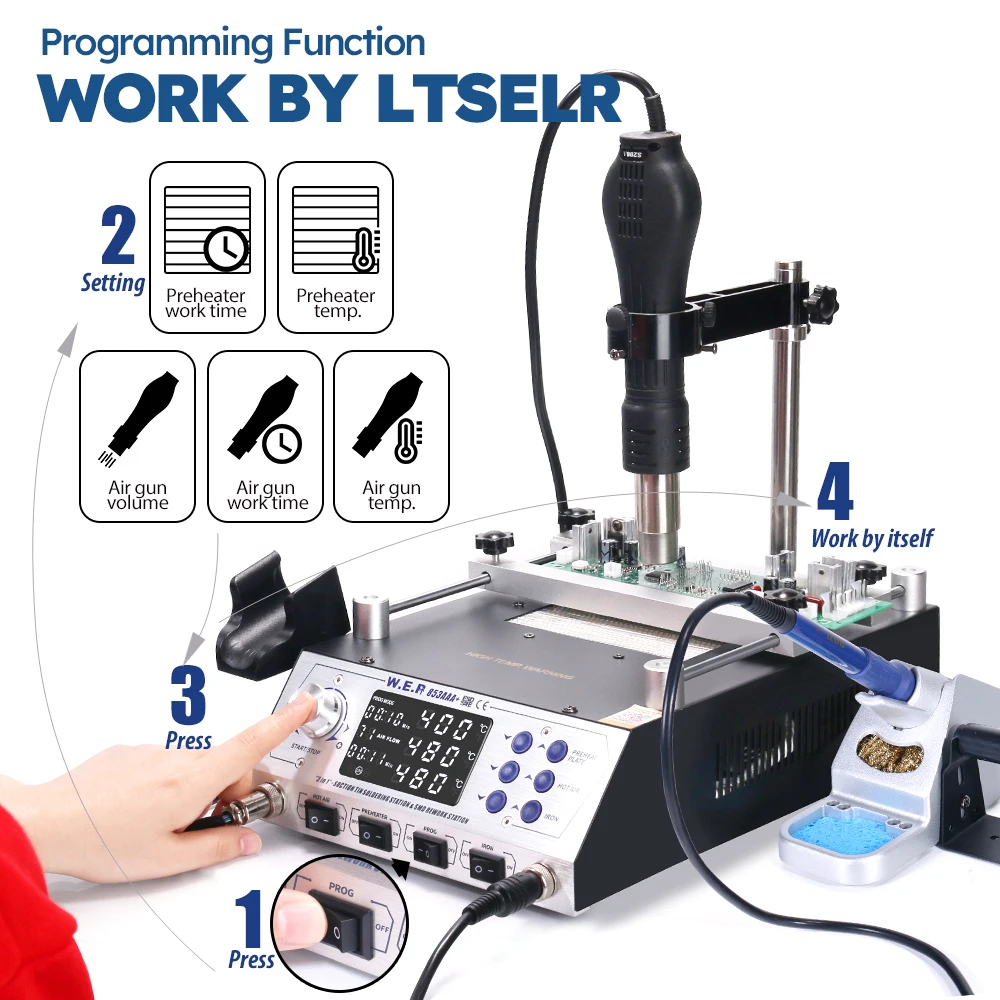

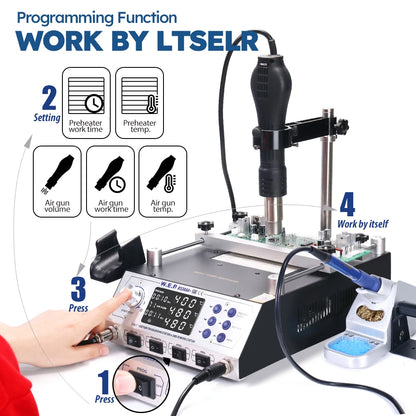

1. Programming desoldering
a step: open the power button of Preheating plate + hot air gun + program
b step: set the working time/temperature/ air flow of preheating and hot air gun
c step: click the START/STOP button., proramming desoldering start, will preheat firtly, and then hot air gun work
2.℃ & °F temperature mode
3.Temperature correction
4.CH1/CH2/CH3 3 Preset storage
5.Working time character6.fixed 10 mins sleep time of soldering iron

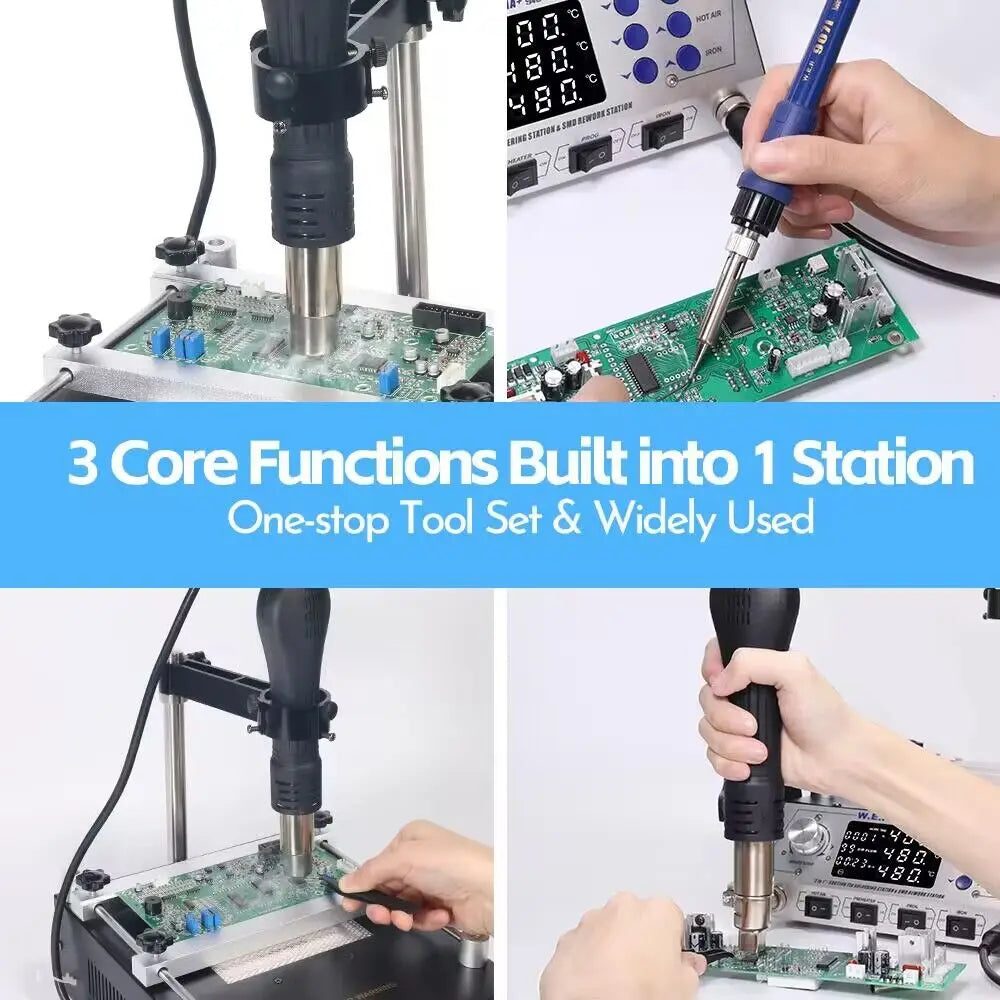

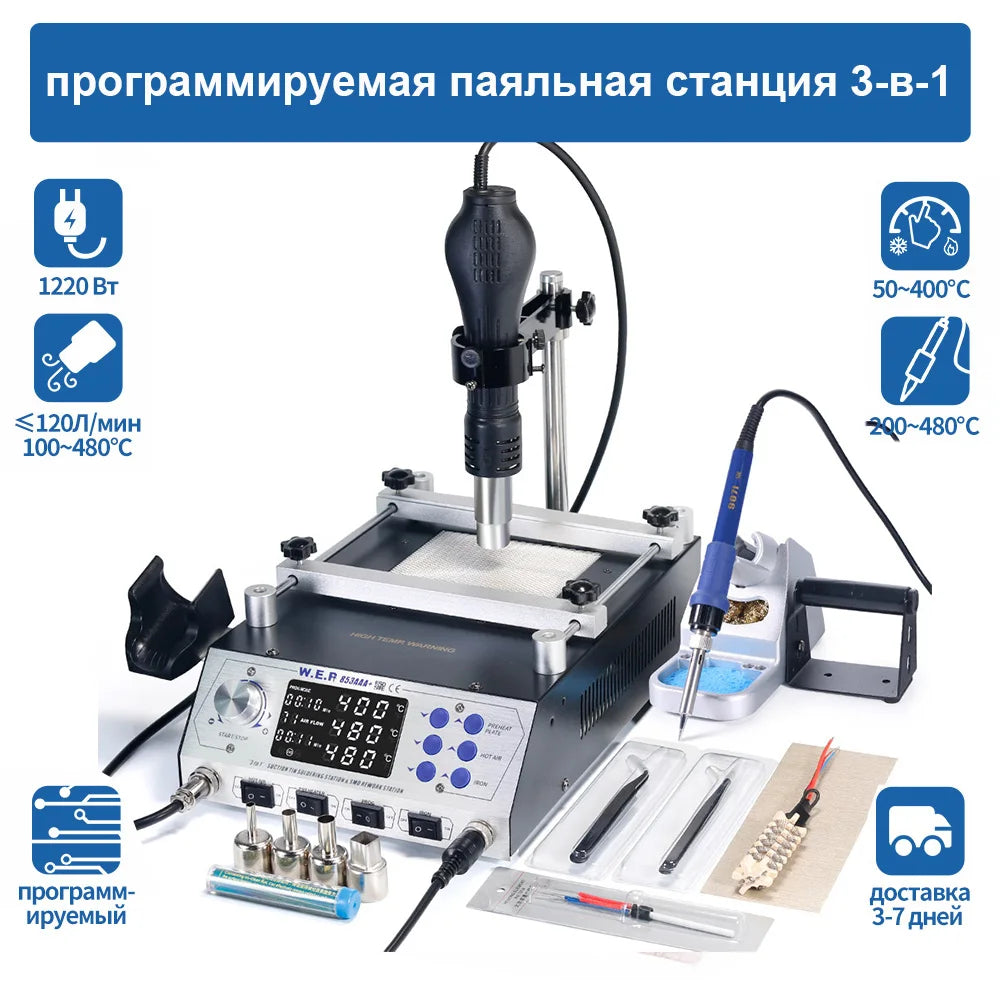

3-in-1 Soldering Station
WEP 853AAA+ Programming BGA Soldering Station
Your good partner when soldering

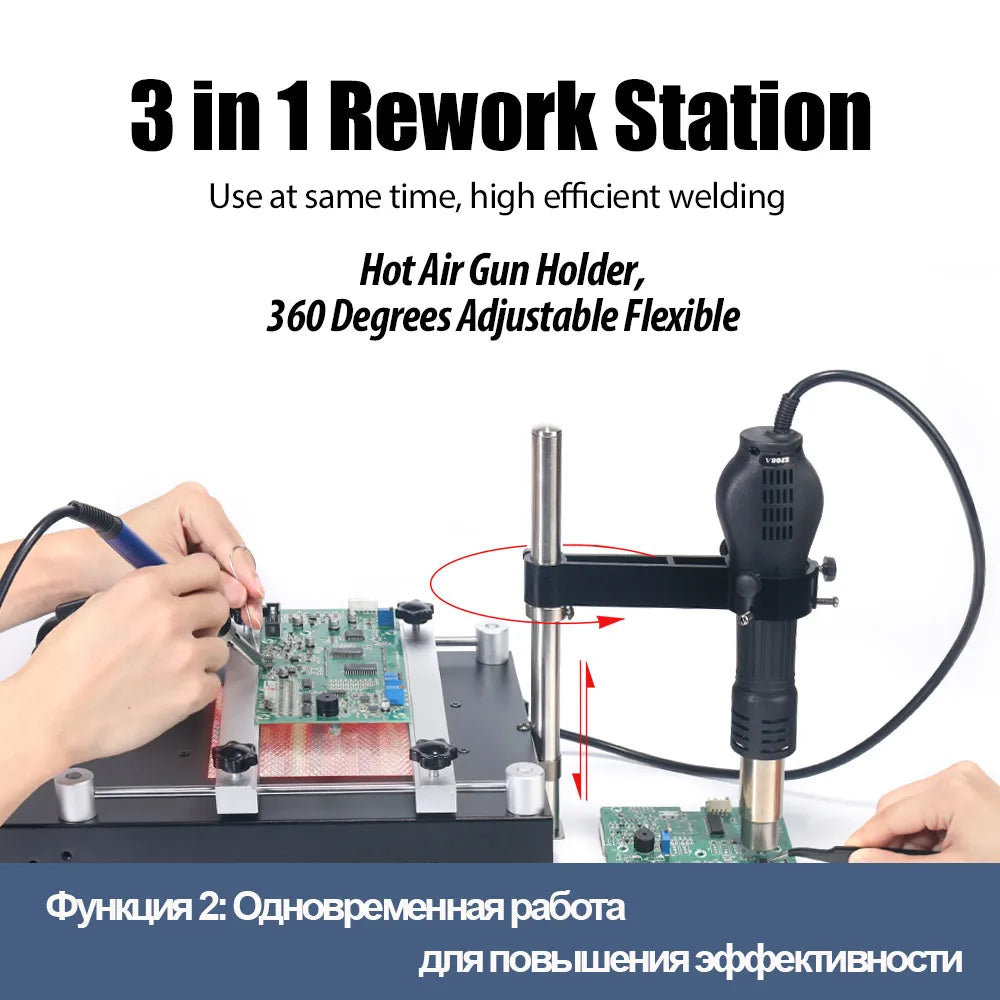

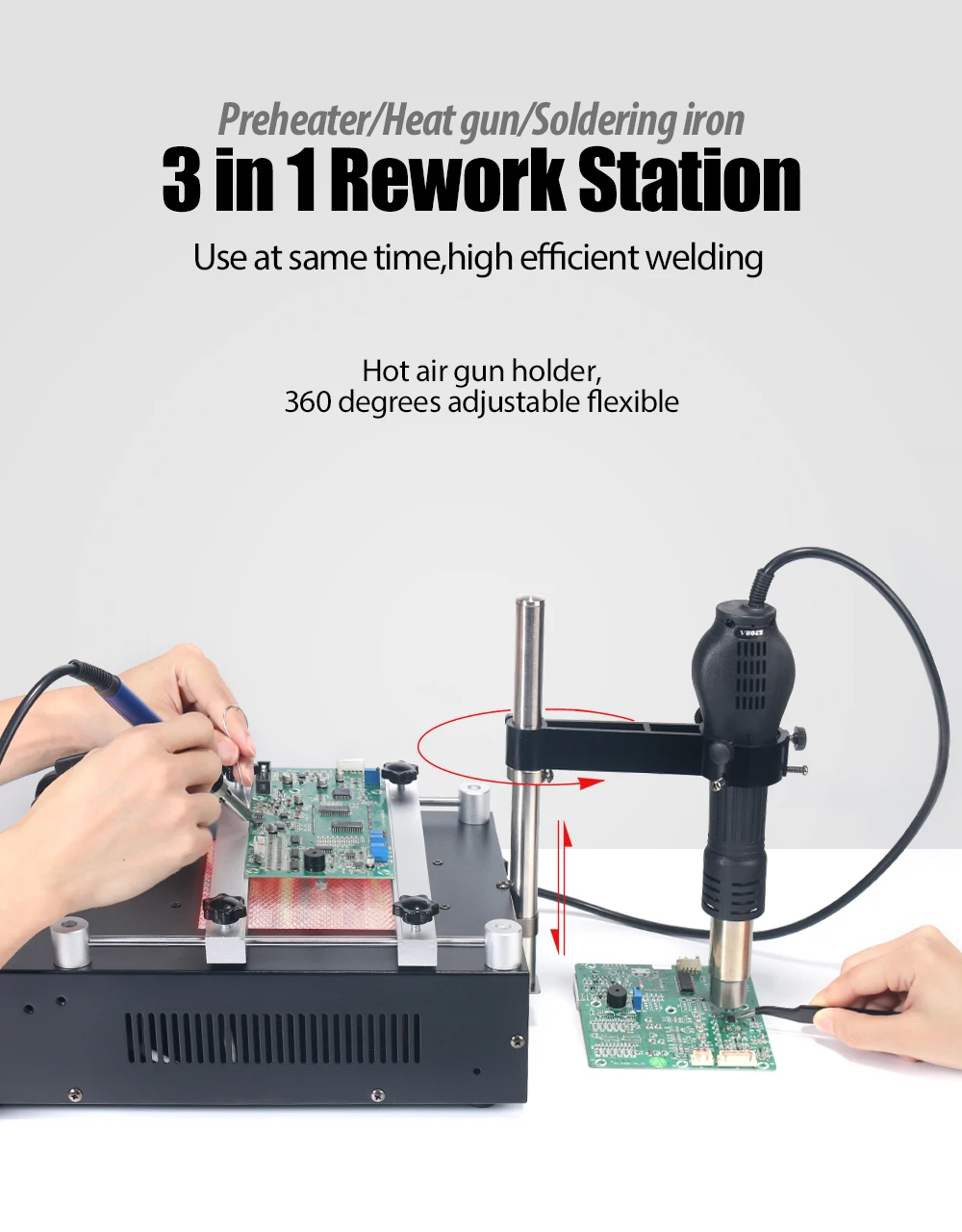

3 in 1 Rework Station
1.You can use preheater, heat gun and soldering iron at same time.
2.Hot air gun holder can be rotated at 360 degrees.
3. This rework station will help you to weld more efficiently.

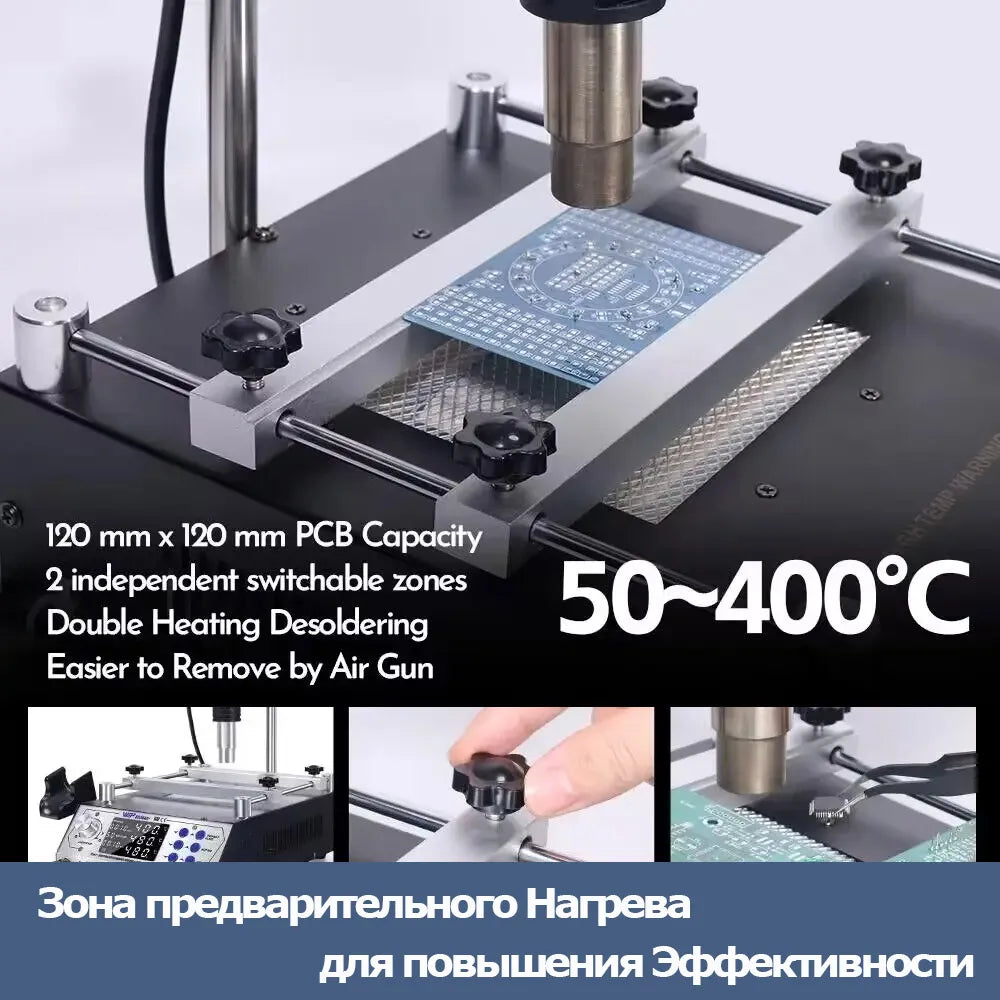

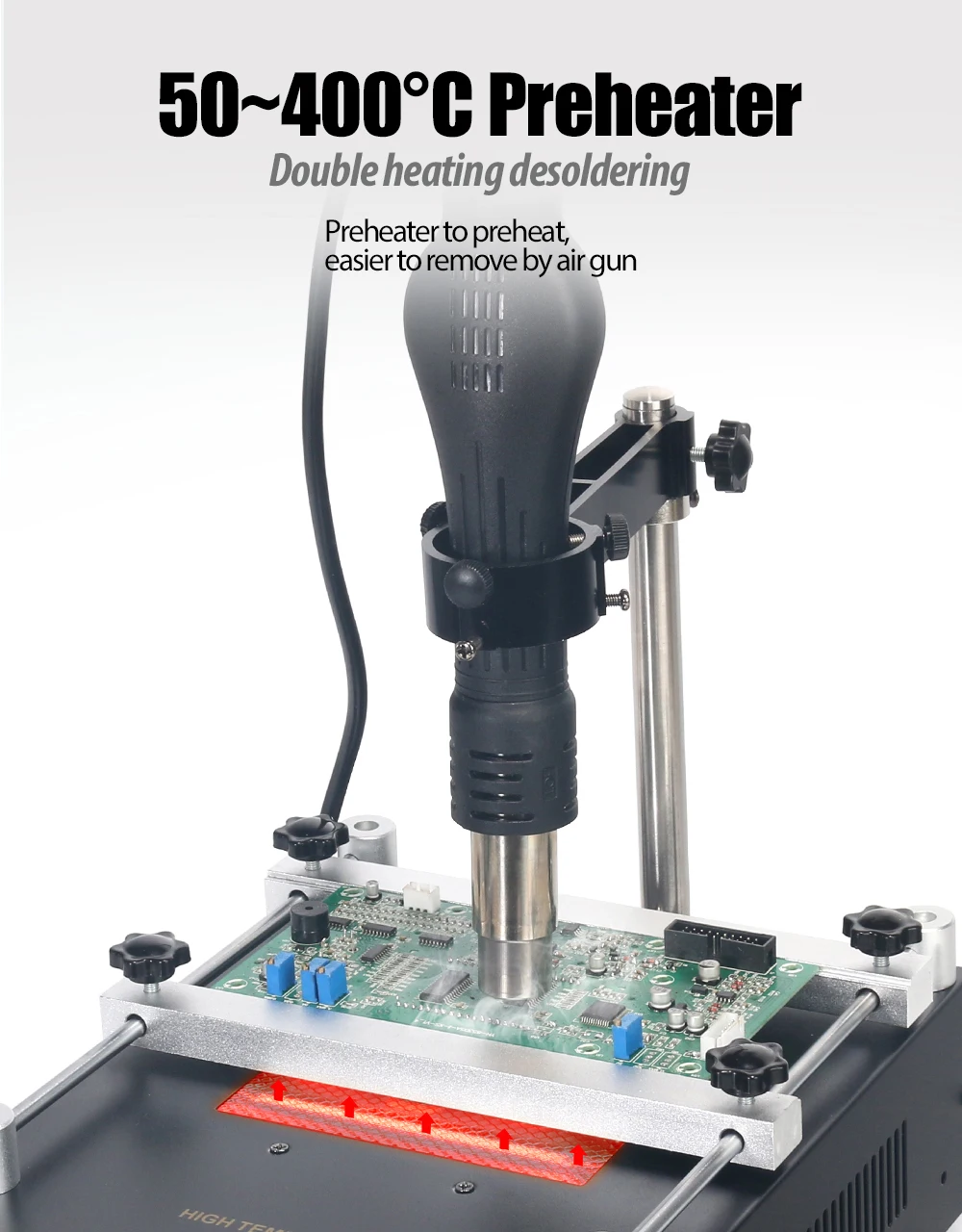

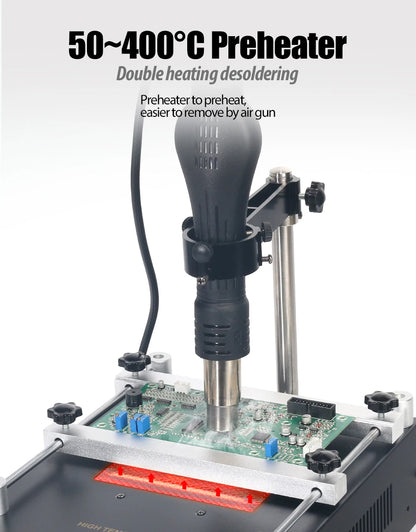

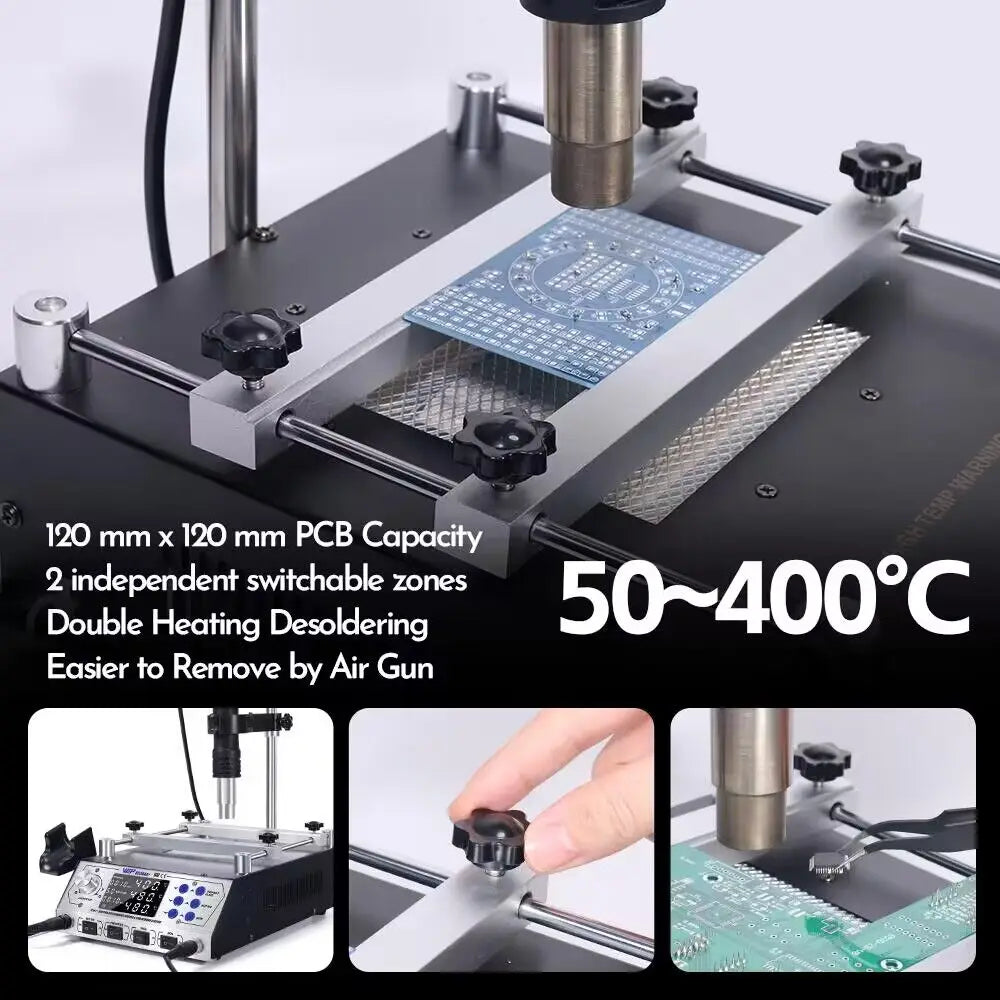

50~400°C Preheater
Preheater to preheat, easier to remove by air gun

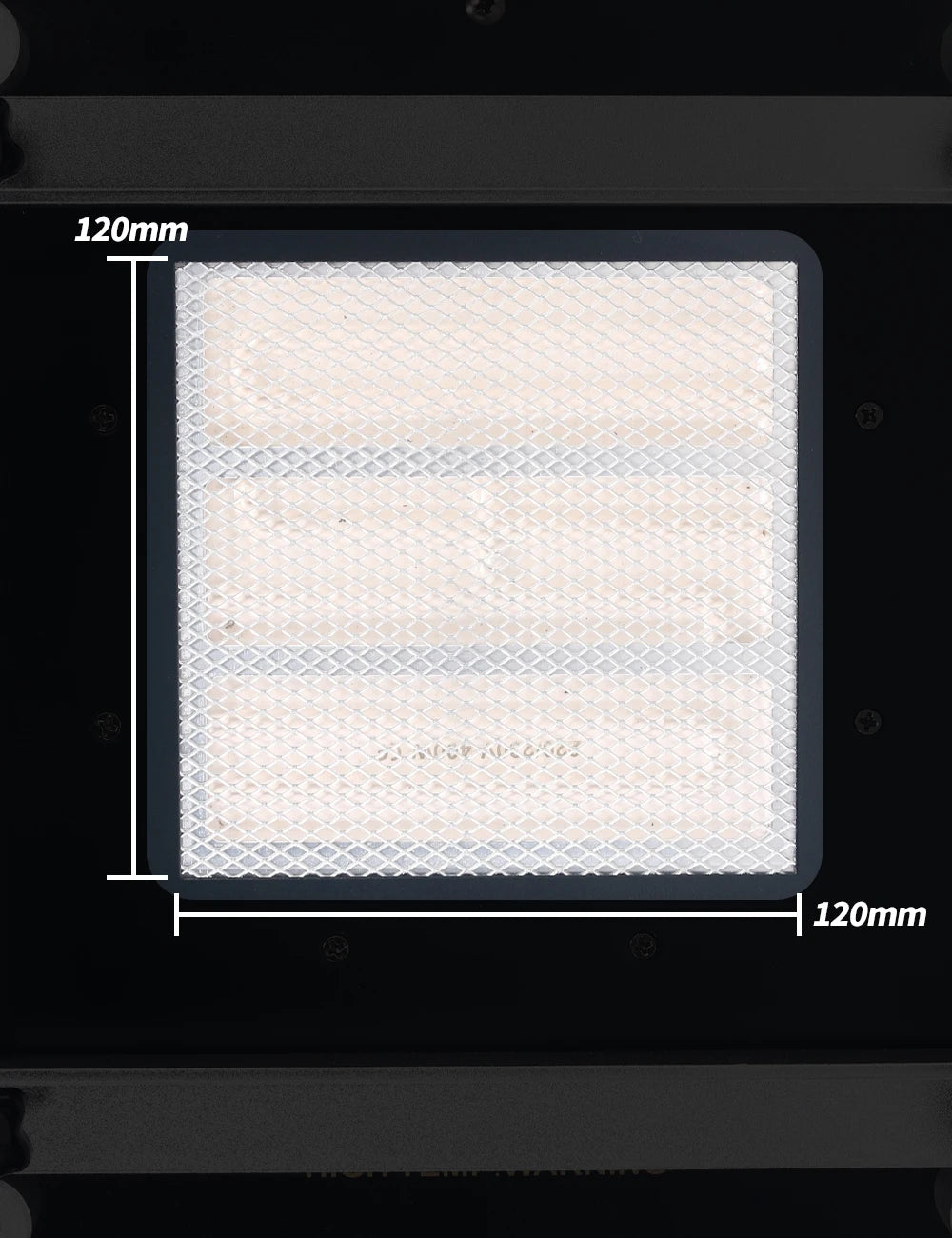

Dimension of preheater
Enough space to operate

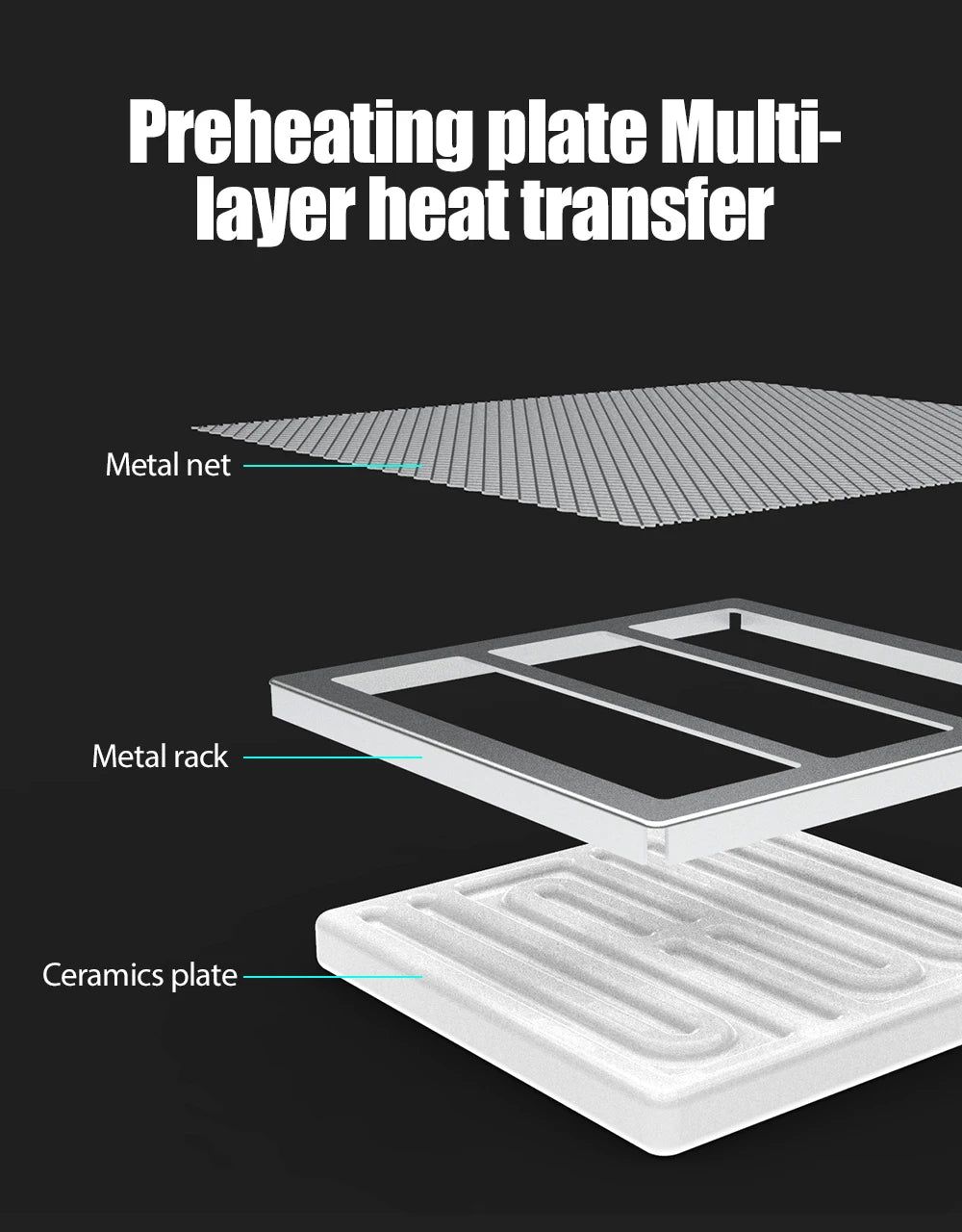

Preheating plate Multilayer heat transfer
It consists of metal net, metal rack and ceramics plate, which will offer fast heating, high efficiency and long service life.

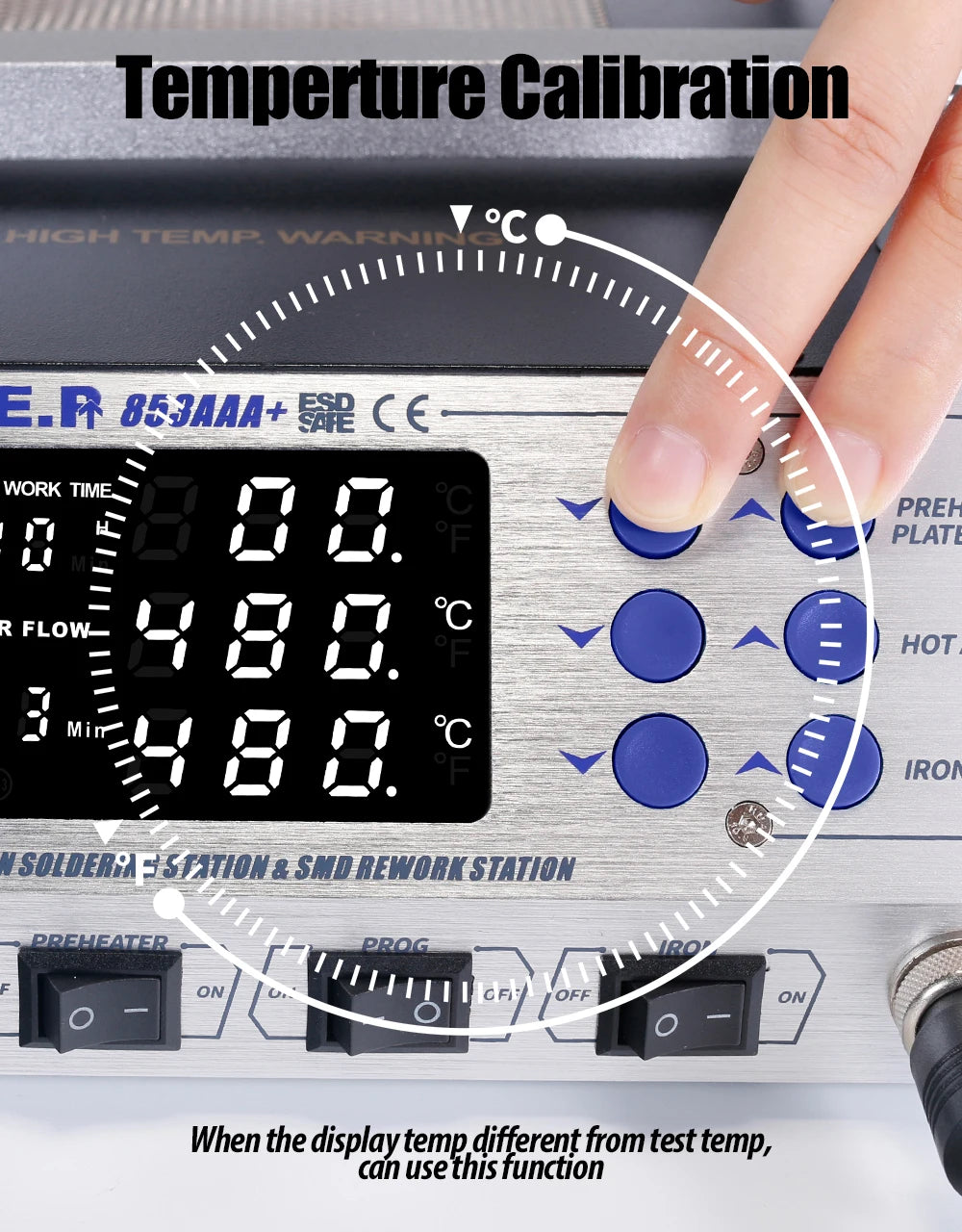

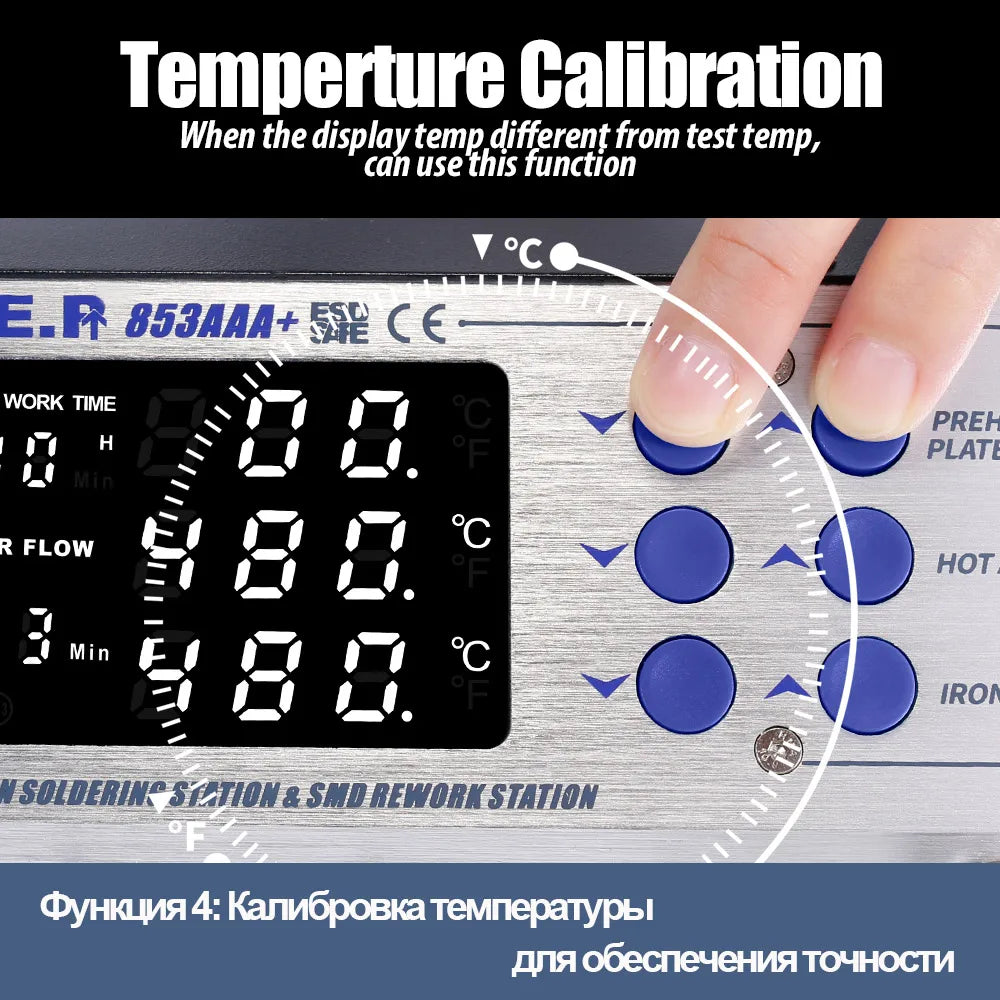

Temperature Calibration
When the display temp,different from test temp.can usethis function
Temperature range:-50C~+50°C

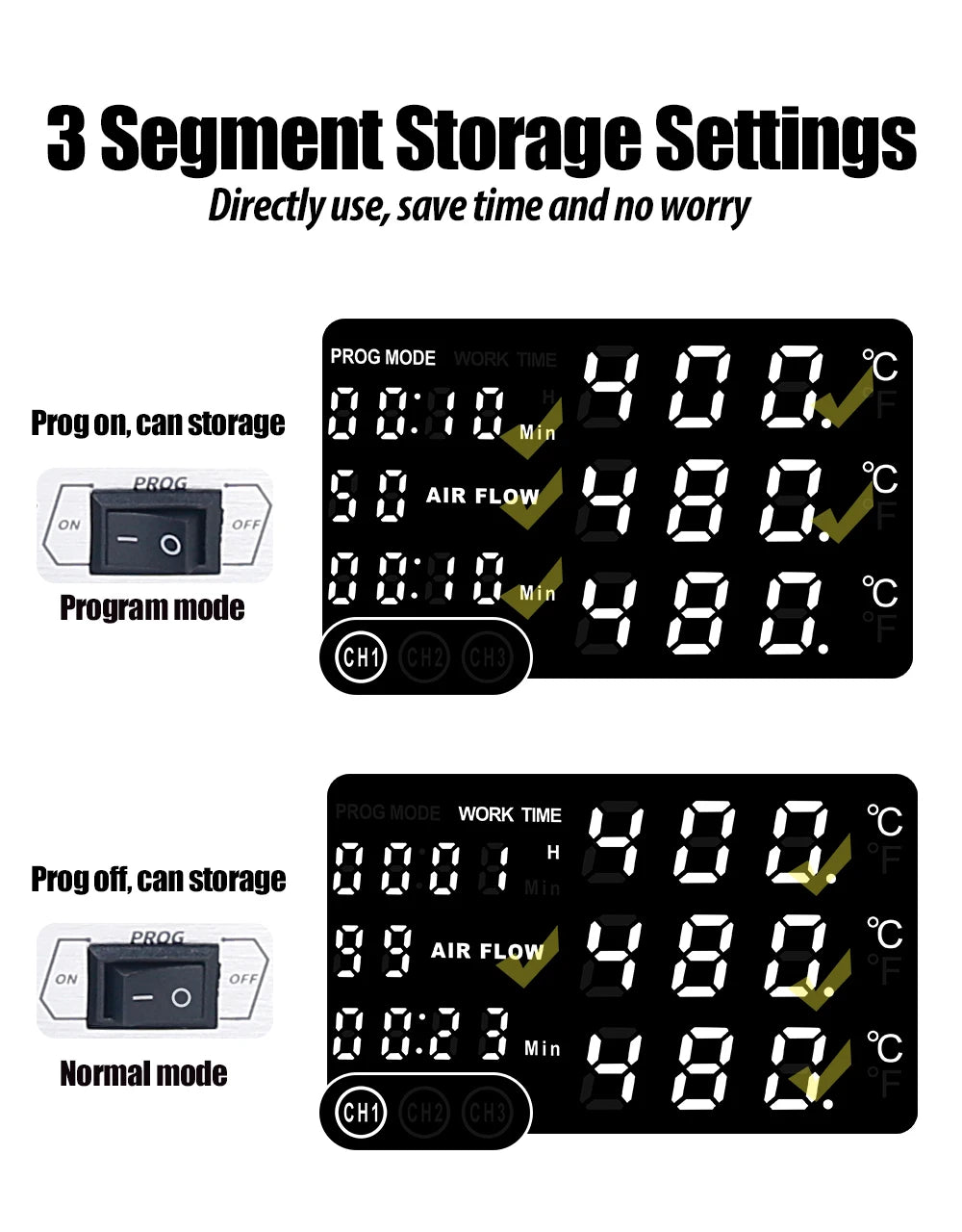

3 Storage Function :Directly use, save time and no worry
Available to storage 3 different sets common use data(soldering iron temp/hot air temp/air volume)

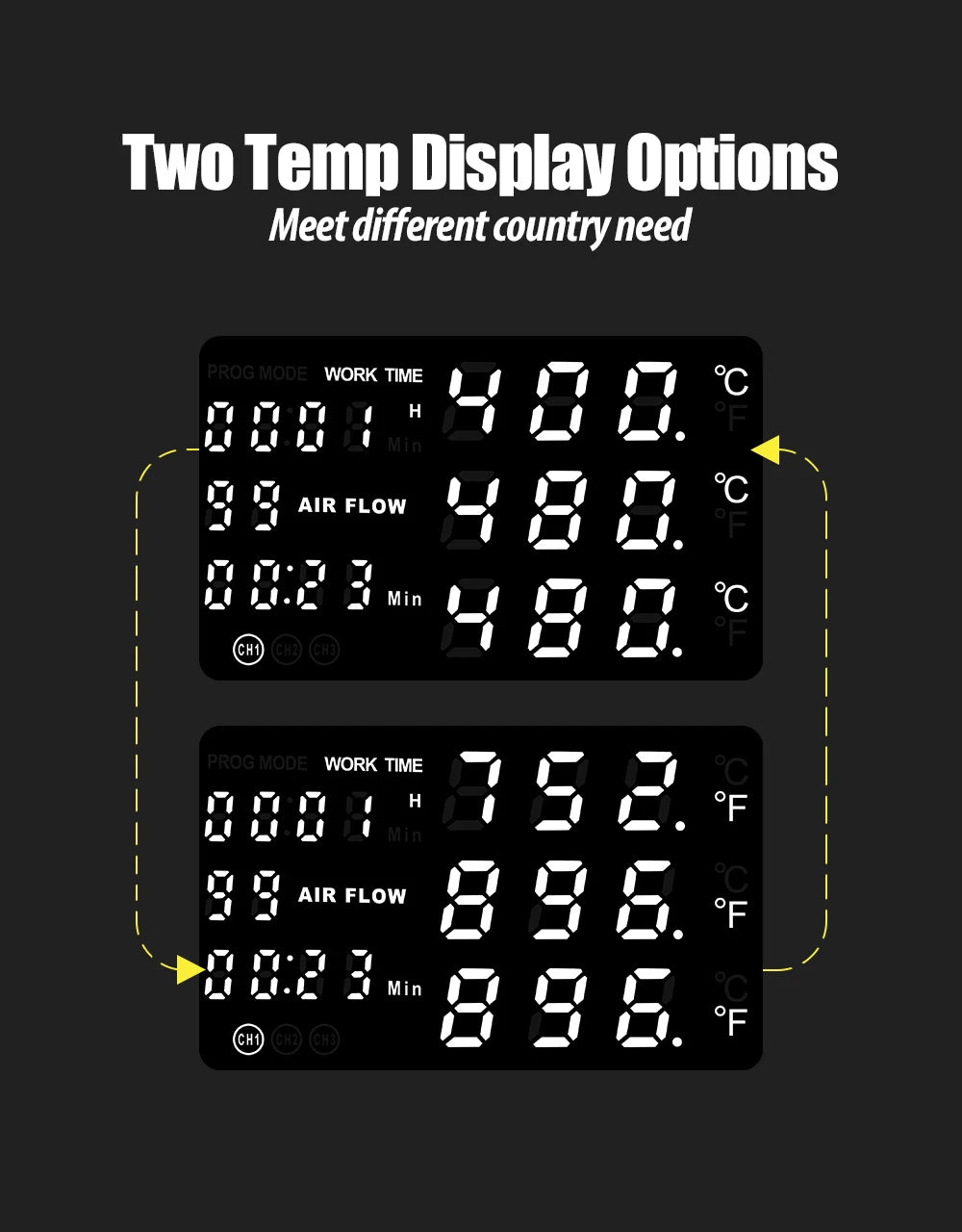

Two Temperature Display Options
You can choose ℃ display & °F display as you like.

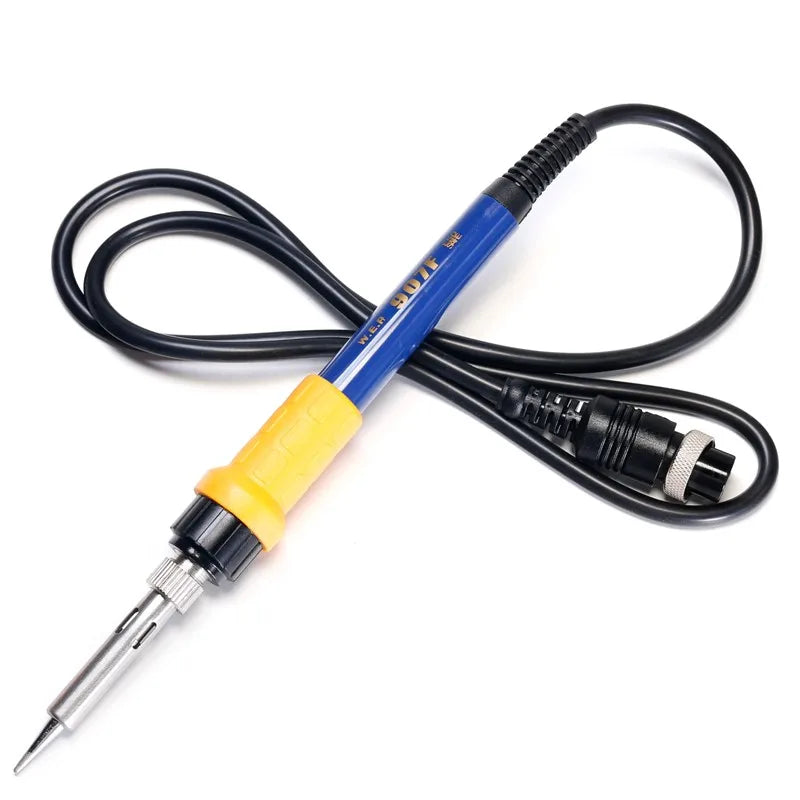

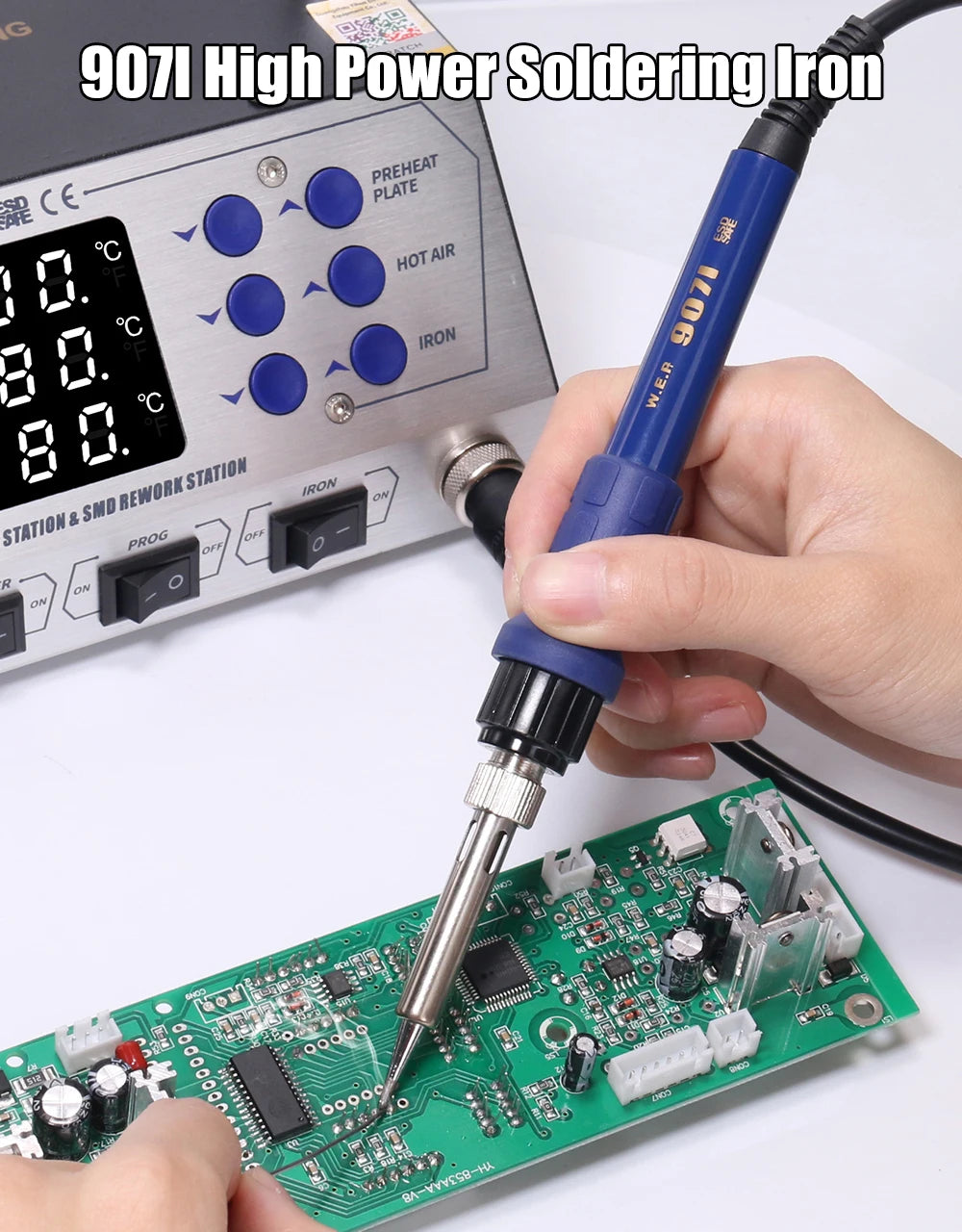

907I high power soldering iron

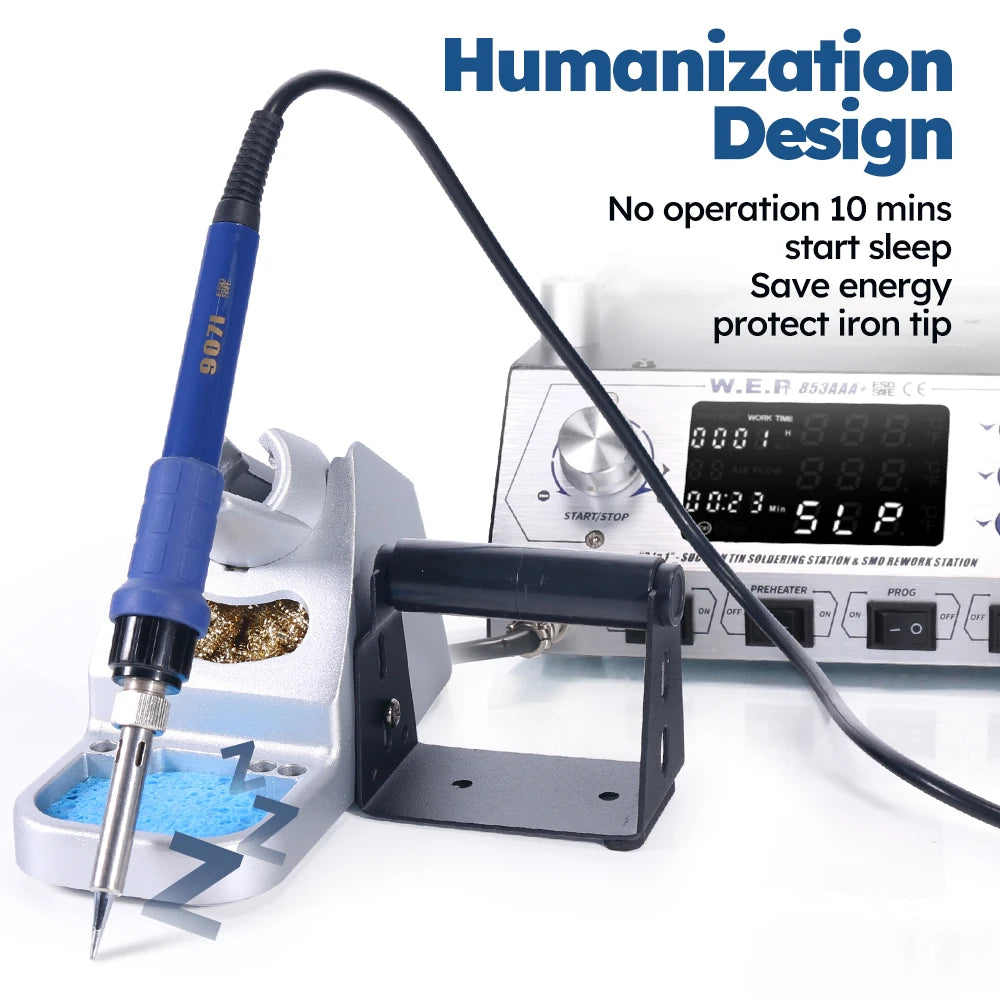

Iron Sleep Energy Saviny
Without operation at 10 mins, the iron will be into start sleep mode.
Save energy, extand the lifespan of iron tip
*the time can be set according to your needs.

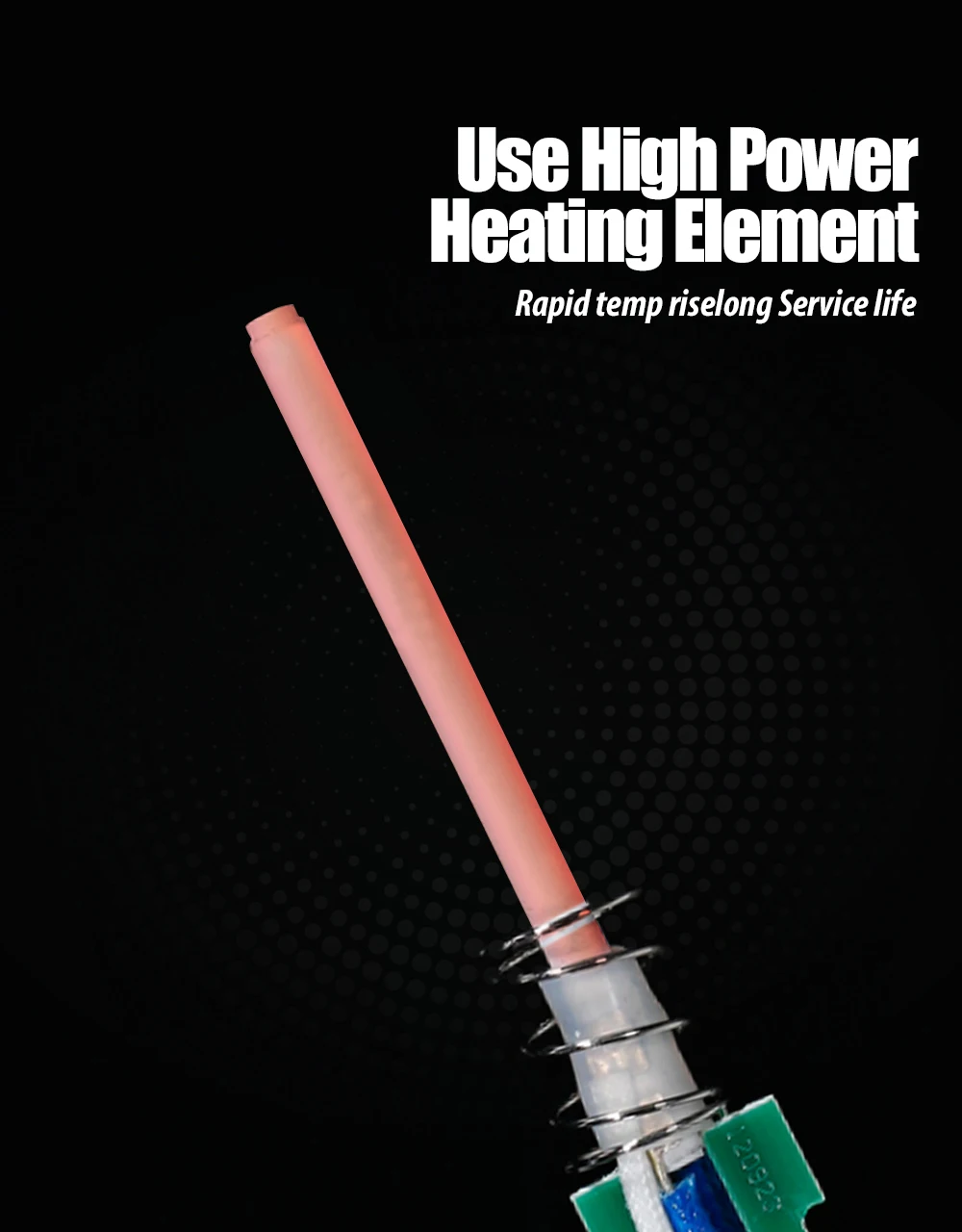

Use High Power Heating Element
Rapid temp riselong Service life

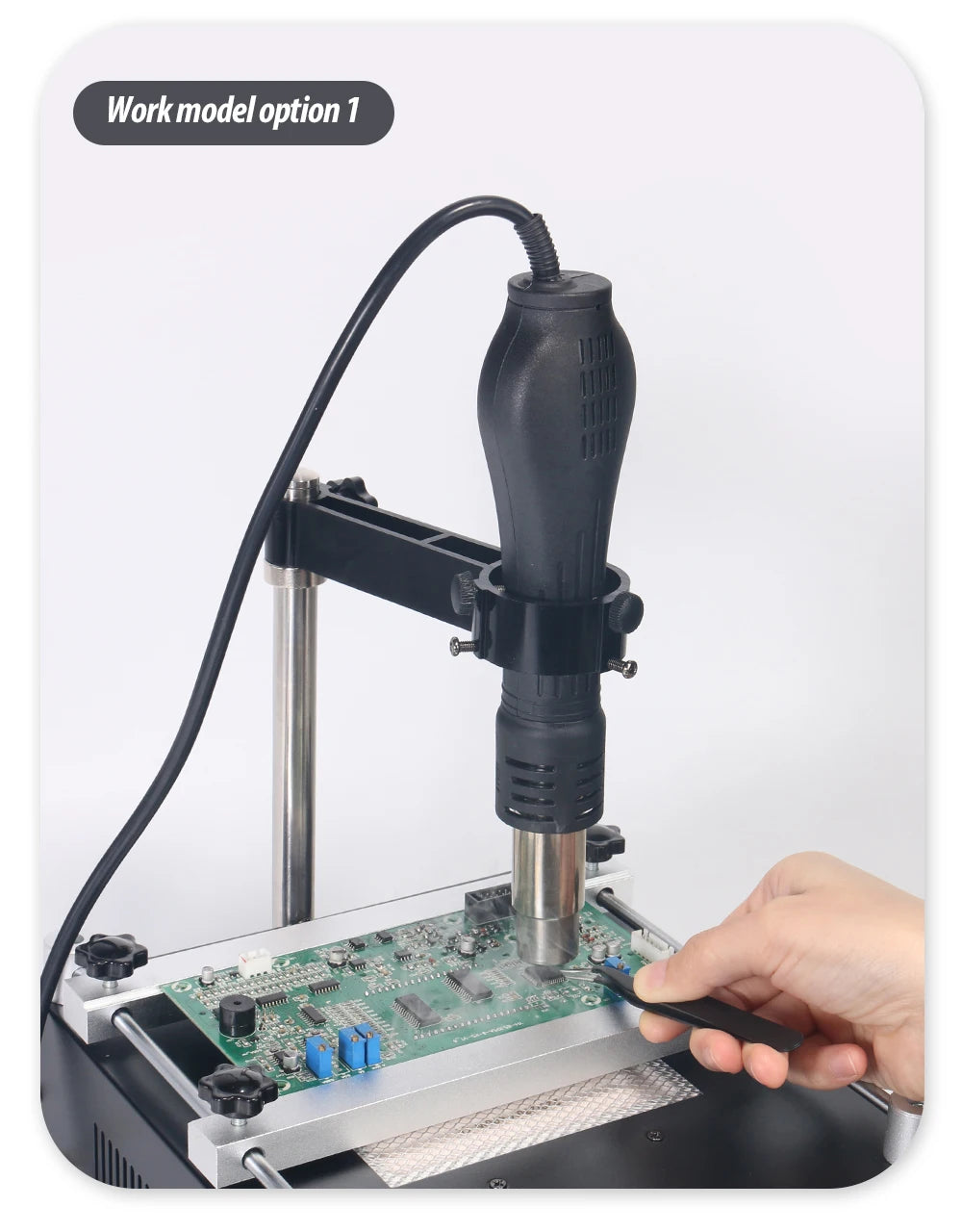

Work model option 1

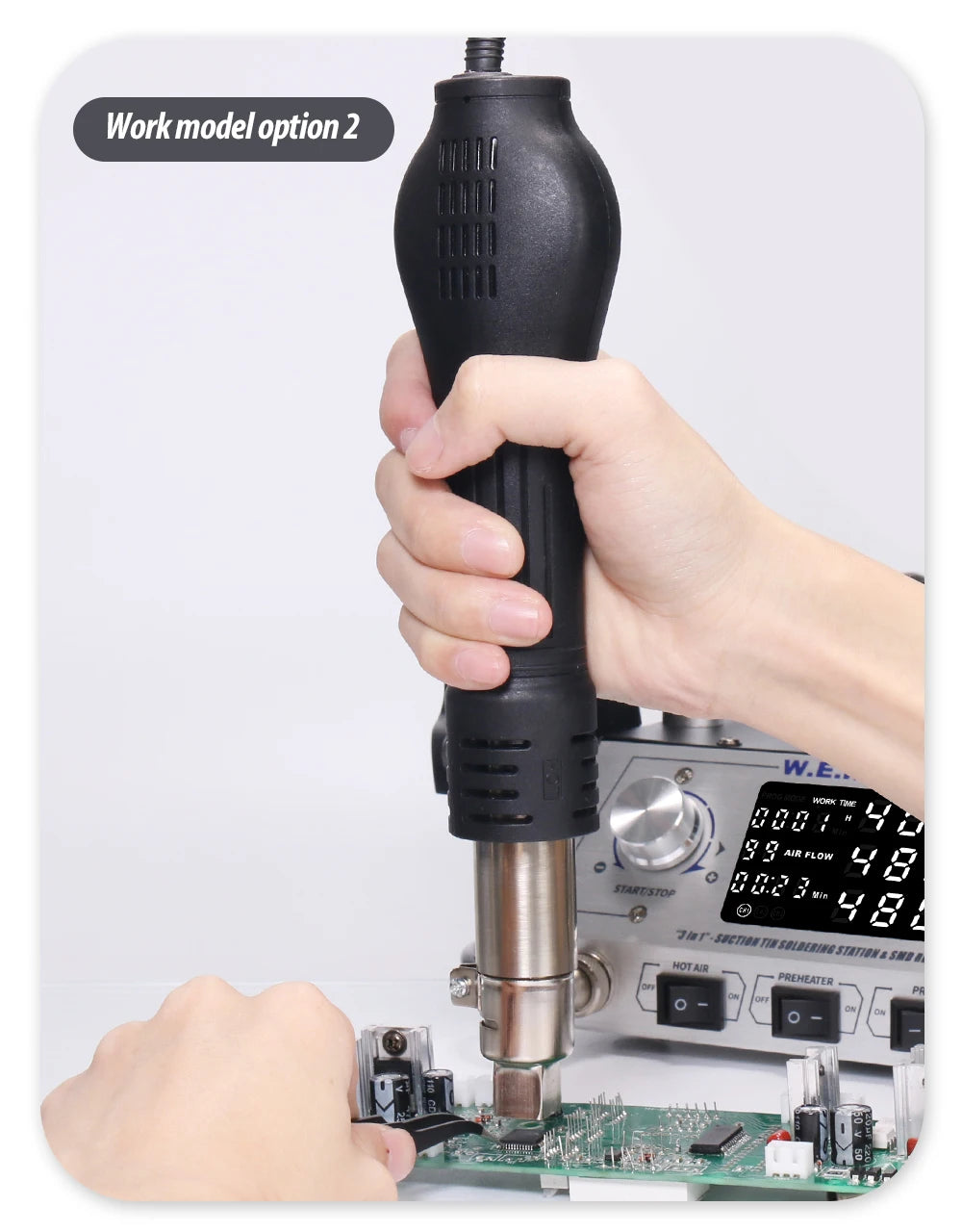

Work model option 2

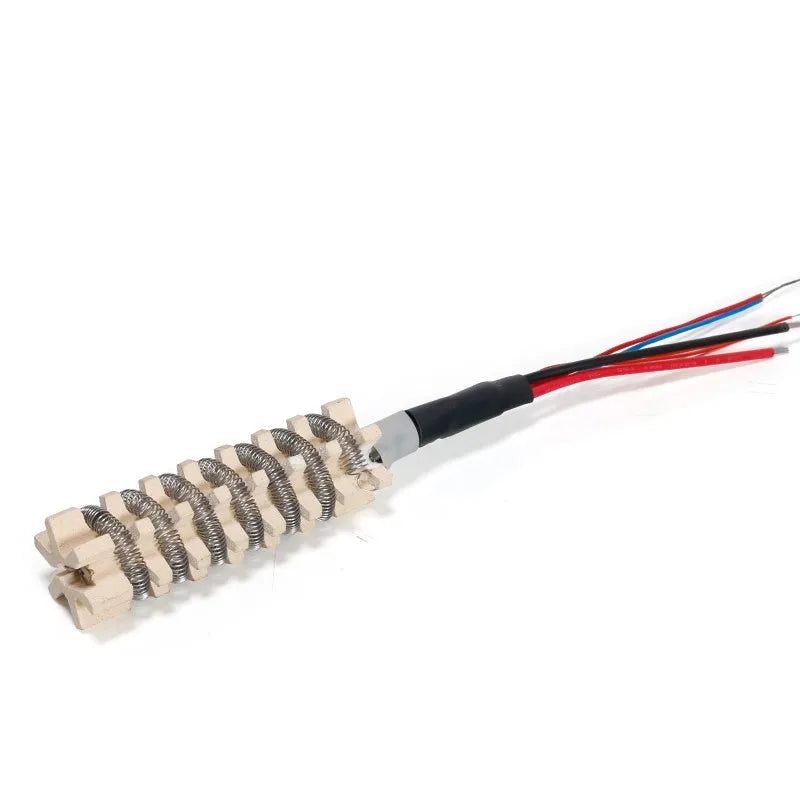

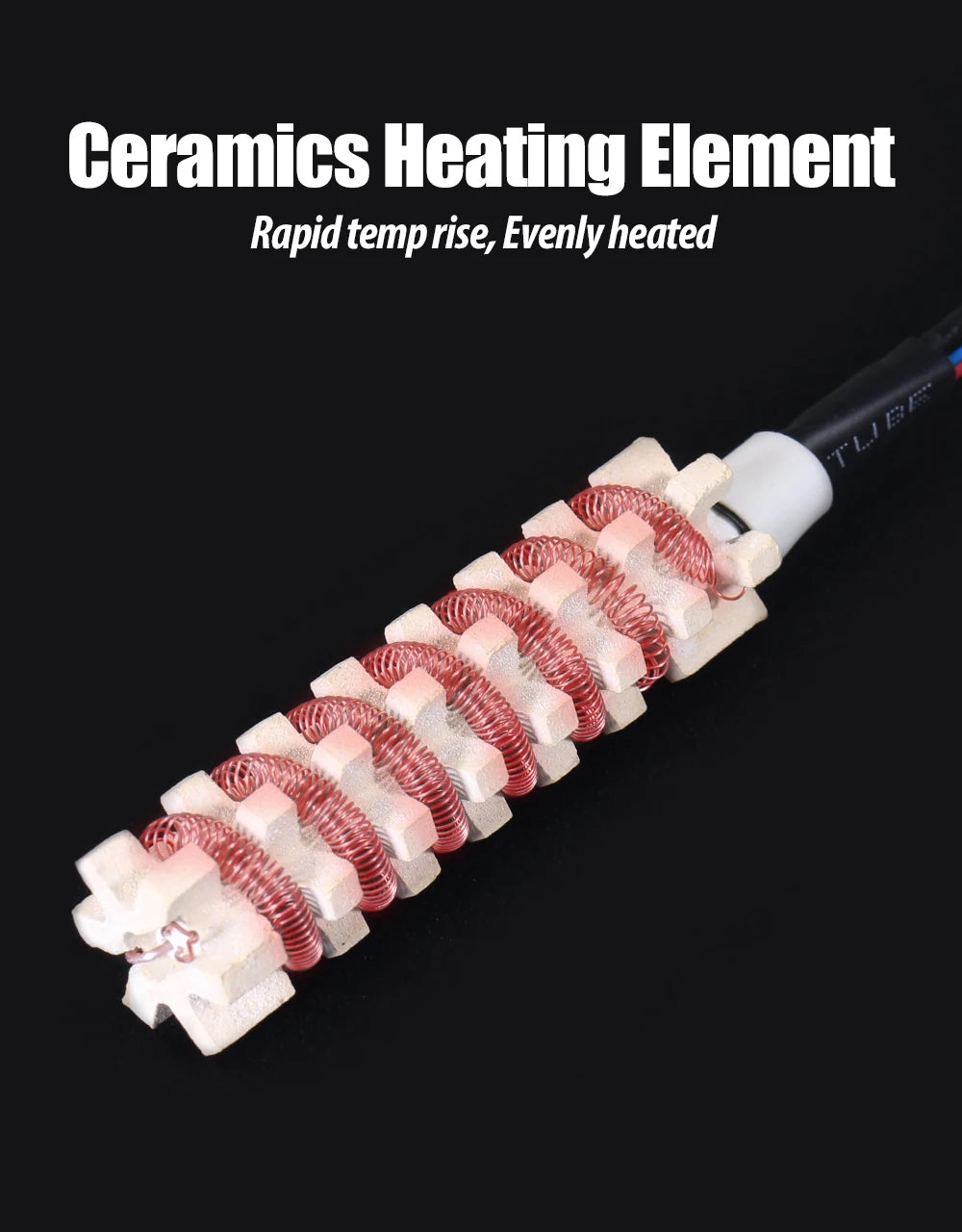

Ceramics Heating Element
Rapid temp rise, Evenly heated

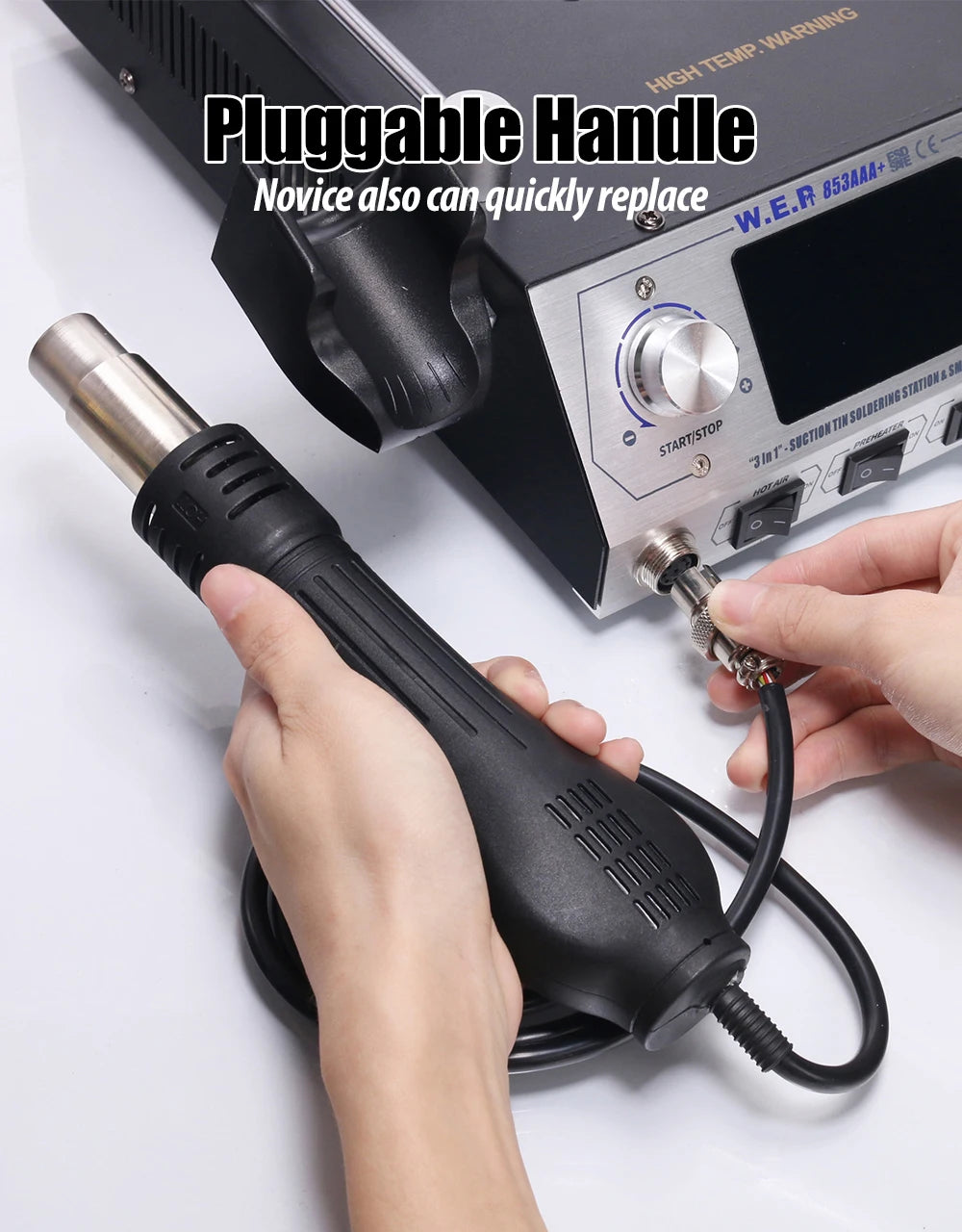

Pluggable Handle
Novice also can quickly replace

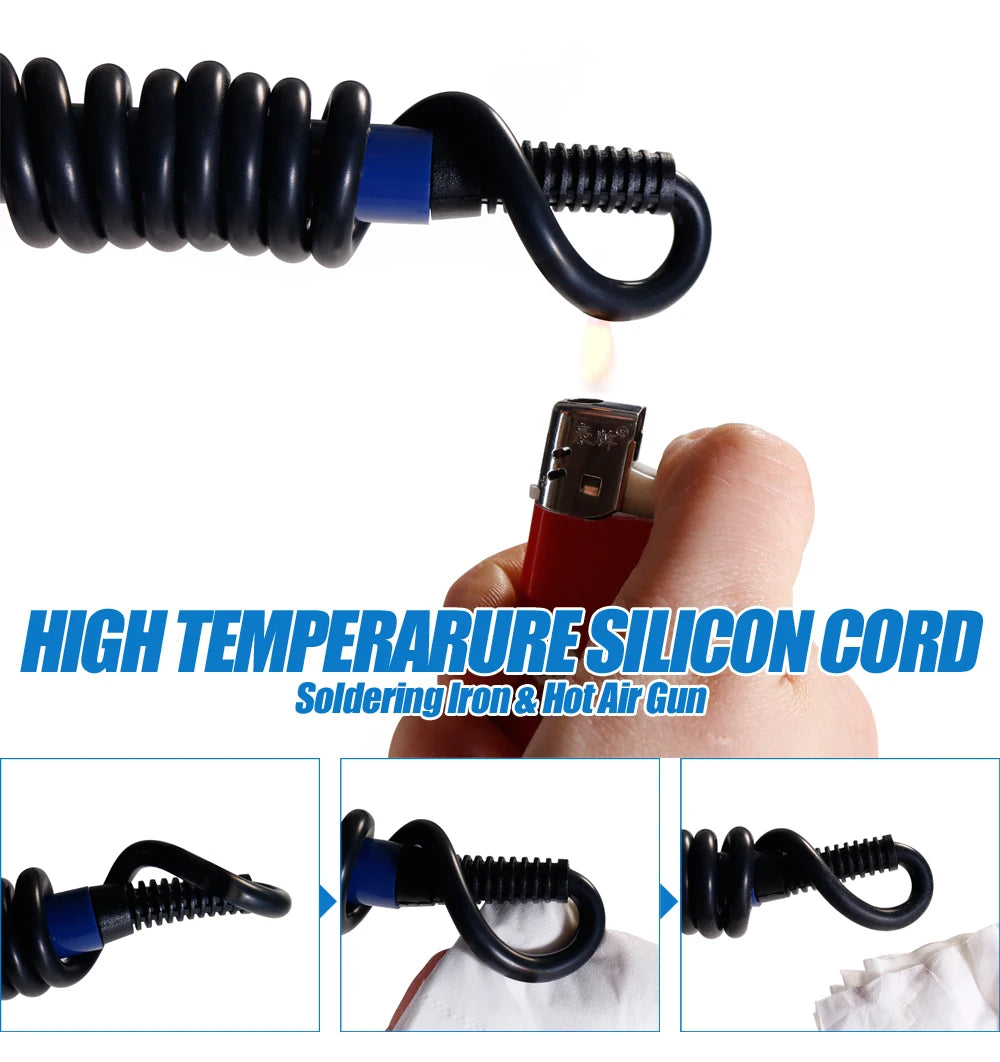

High Temperarure Silicone Cord
It had stronge temperature resistance to ensure safety
Using
1. Suitable for a variety of original welding, such as: SOIC, CHIP, QFP, PLCC, BGA and so on
2. It is suitable for heat shrinkage, drying, removing paint, adhesive removal, thawing, preheating, disinfection, glue welding and so on.
853AAA+ Package Content
1x Soldering station
1x IC extractor
1x Air gun heating element
1x Soldering iron heating element
1x Tubular soldering wire( 1.0mm15g)
2x Tweezers

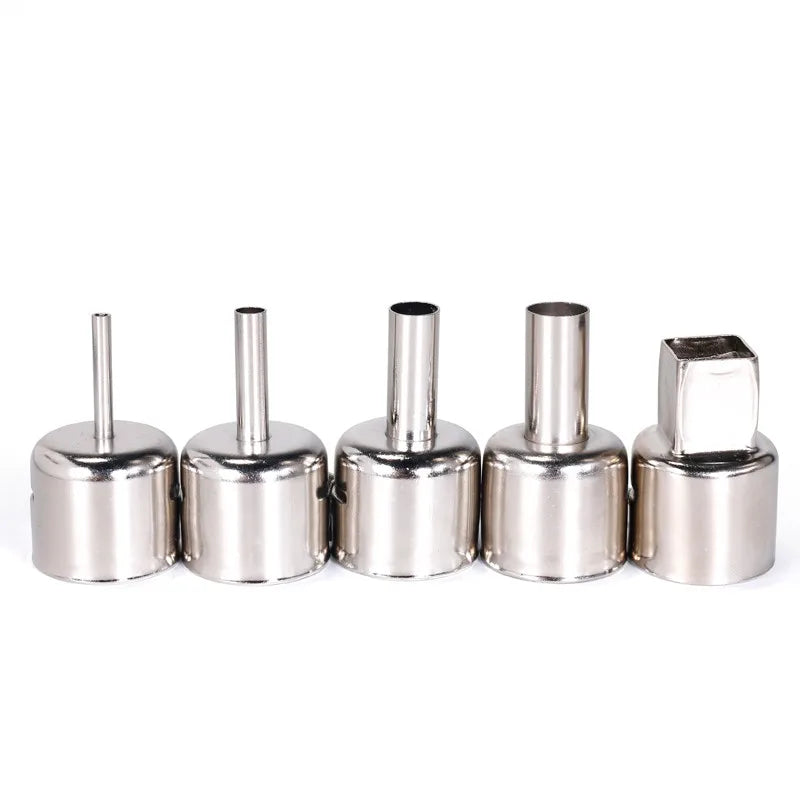

4x Nozzles
