SPECIFICATIONS

Brand Name: caozhengwen

CAOZHENGWEN Model: X5FCAM4K8MPA

Certification: CE

Drawtube: Trinocular,Trinocular

Features: High Definition,Portable,Digital

Hign-concerned Chemical: None

Image sensor: SONY imx678

Is Smart Device: YES

Magnification Ratio: 500X - 1500X

Material: Metal,Metal

Model Number: X5FCAM4K8MPA

Origin: Mainland China

OutPut: HDMI-compatible, WiFi, GE port, USB

Preview Frame rate: 60fps for 4K under HDMI-compatible

Resolution: 4K (3840x2160)

Theory: Video Microscope,Video Microscope

sensor size: 1/1.8 inch

X5FCAM4K8MPA 60SPF Auto Focus 4K Ultra HD HDMI-USB WiFi GE port SONY IMX 678 1/1.8" Sensor 4K 1080P Microscope Camera

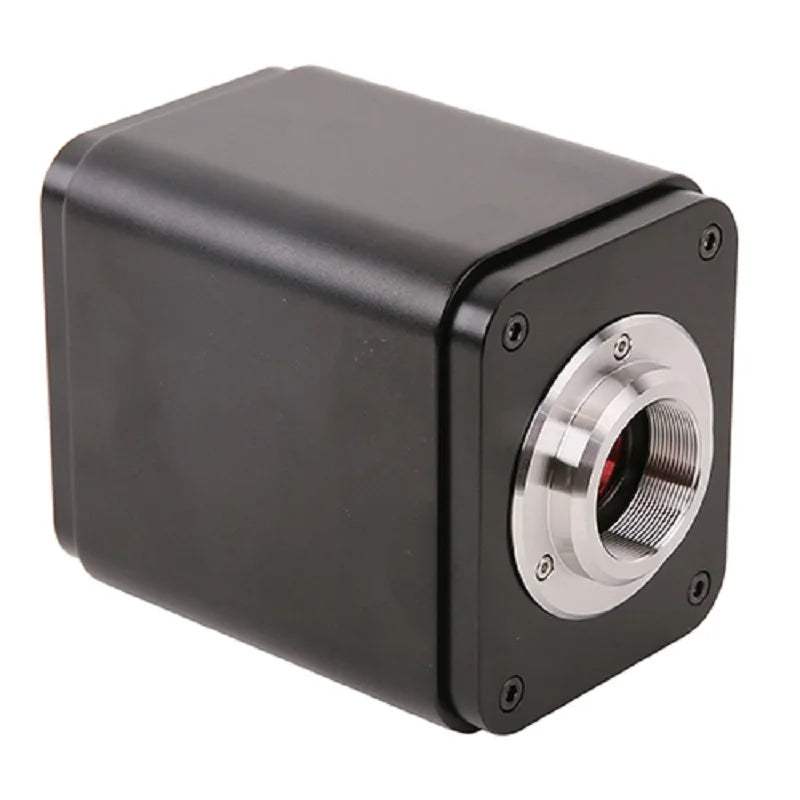

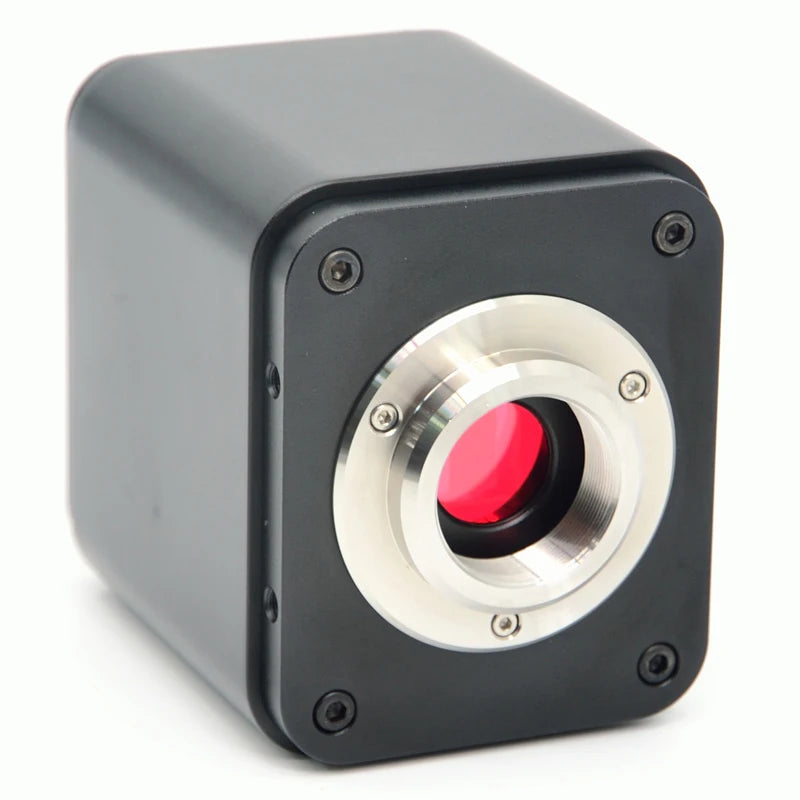

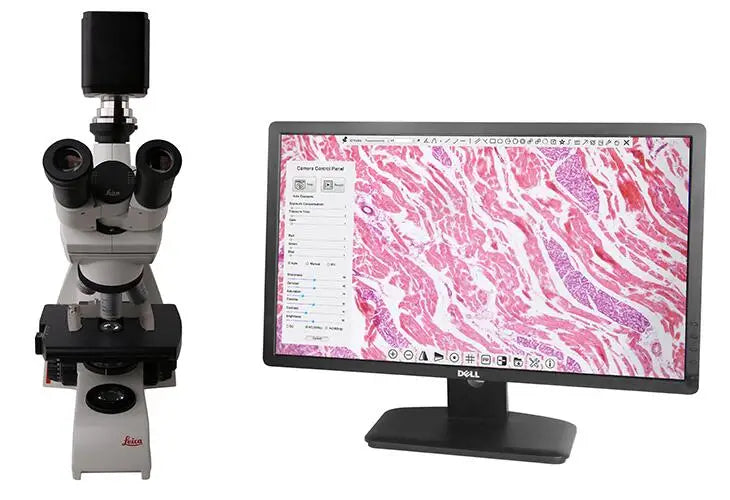

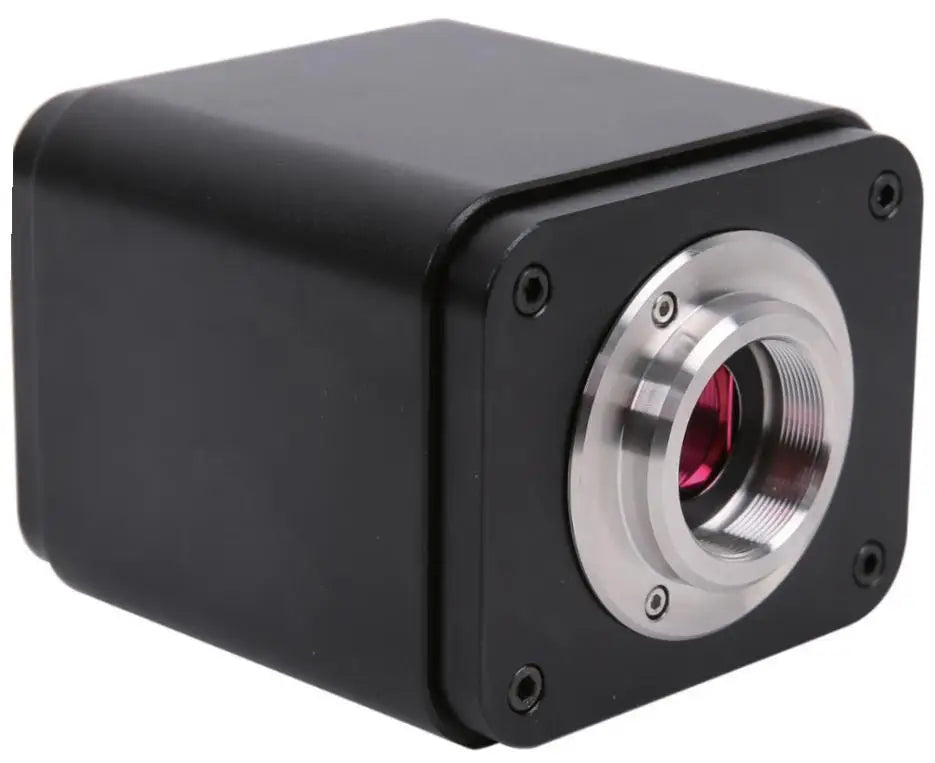

The X5FCAM4K8MPA is a HDMI Camera designed by ToupTek that includes multiple modes of output (HDMI/WiFi/USB), where X in X5FCAM’ means a CMOS Camera with multiple interfaces, and F means auto focus. It uses ultra-high- performance CMOS sensor. The Camera can be directly connected to an HDMI display, or it can be connected to a computer via WiFi or USB, and the image and video can be saved in an SD card /USB flash drive for on-site analysis and subsequent research.

Enhanced with an embedded ARM core, this Camera integrates various functions inside. With the help of a USB mouse and well-designed UI on the HDMI monitor, all functions could be easily controlled.

The X5FCAM4K8MPA HDMI Camera comes with the built-in Auto Focus system, which can realize Auto Focus on specific areas of the sample.

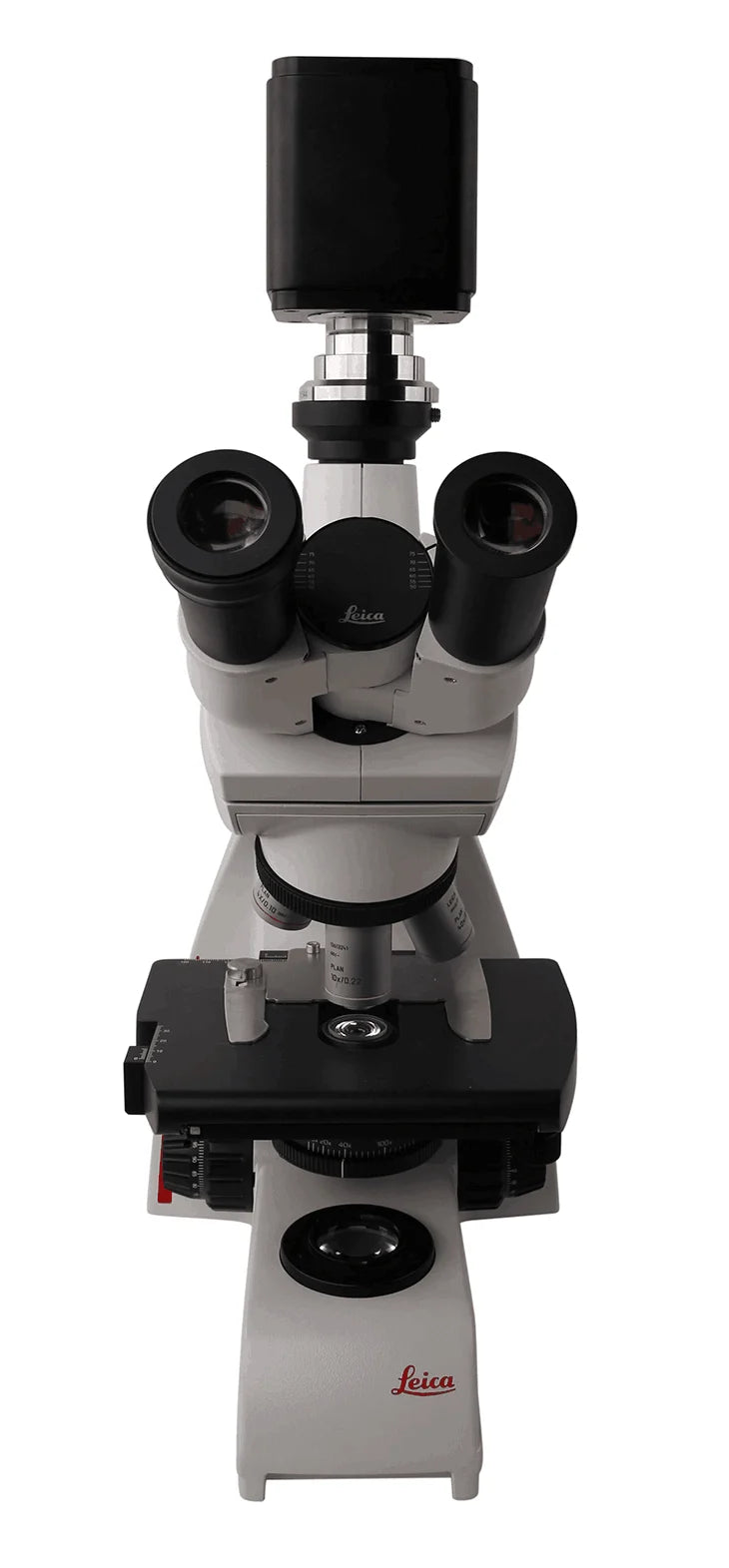

By inserting a WiFi module or connecting to a computer via a USB cable, the user can directly control the camera's hardware with the software ToupView or ToupLite. The X5FCAM4K8MPA Camera can be used for tool field inspection, microscope observation, etc.

Camera Application:

• Scientific research, digital teaching (teaching, demonstration and academic discussing);

• Digital laboratory, medical research;

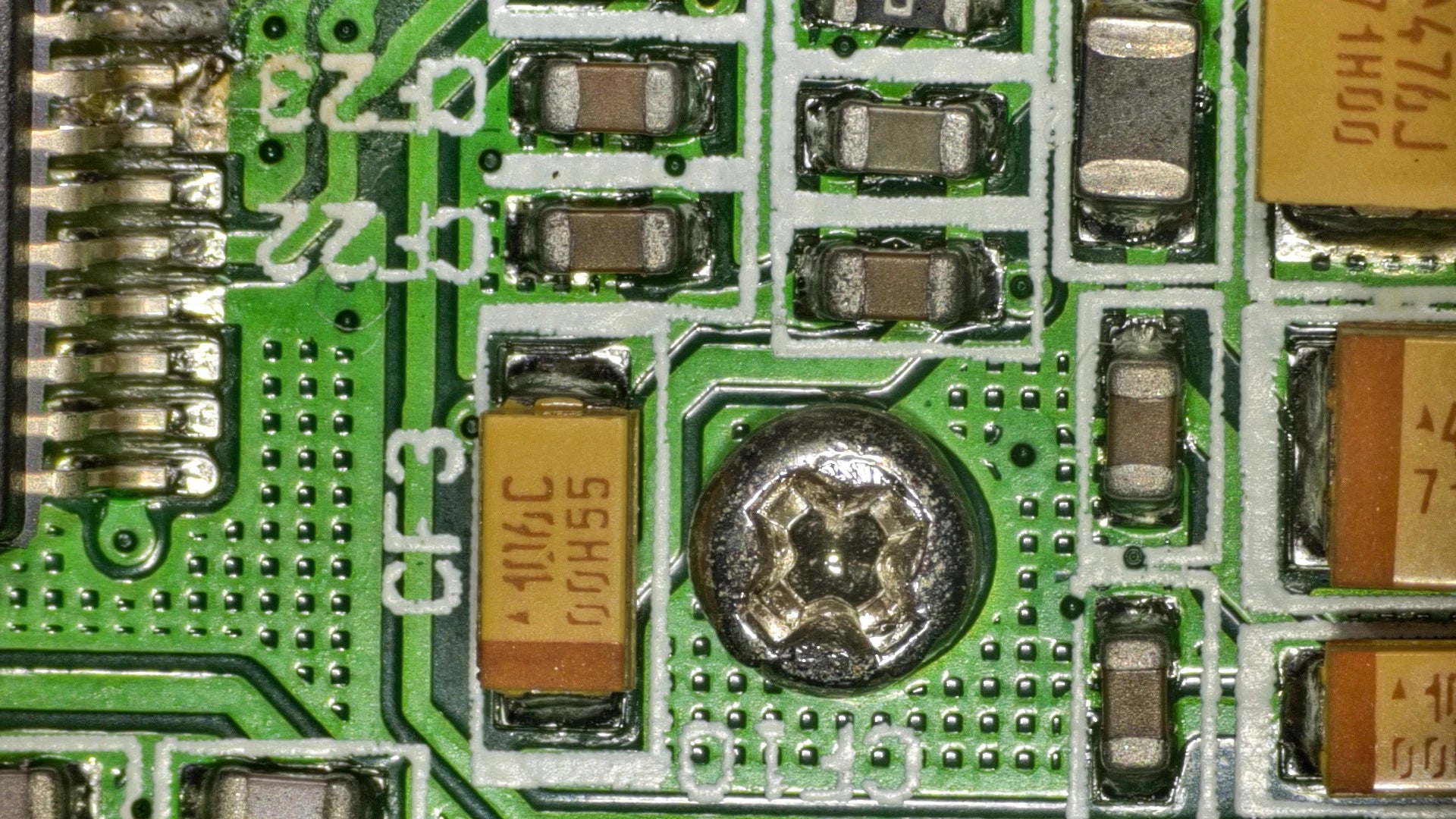

• Machine vision (PCB detection, IC quality control);

• Medical treatment (pathological observation);

• Food (microbial colony observation and counting);

• Aviation and military;

Auto Focus

Live EDF( Extend Depth of Field)

Auto Focus and Live EDF can working at same time (Under HDMI output mode)

HDMI,USB,WIFI output ( WiFi for Optional)

SONY imx678 Sensor, senzor size:1/1.8"

Resolution: 4K Ultra HD (8mp
3840x2160)

High G sensitivity: 3541(mV/lx/s)

Preview frame rate： 60fps @ 4K under HDMI output

Real time measurement

Support U disk and SD card storage

Sony STARVIS 2 back-illuminated CMOS sensor

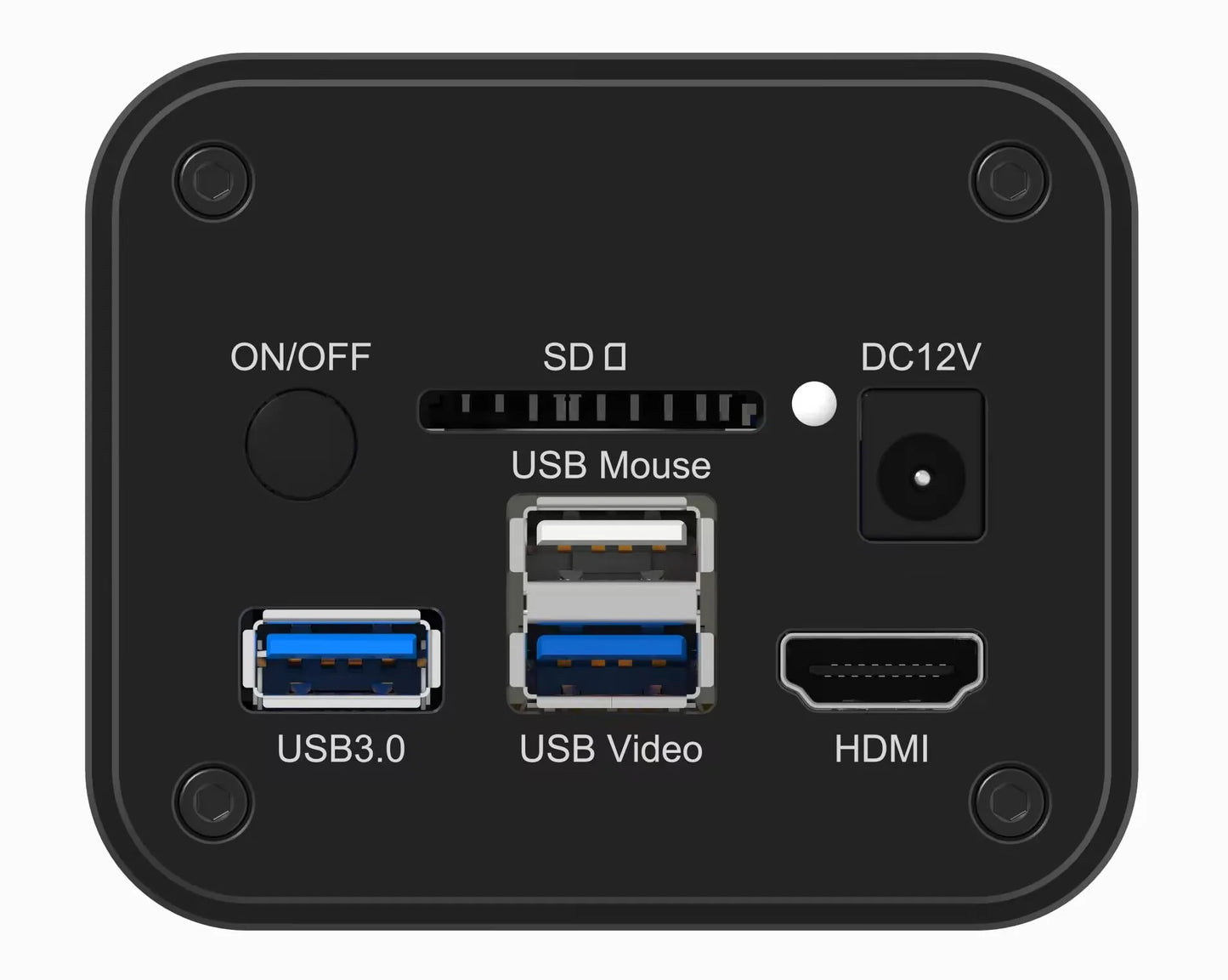

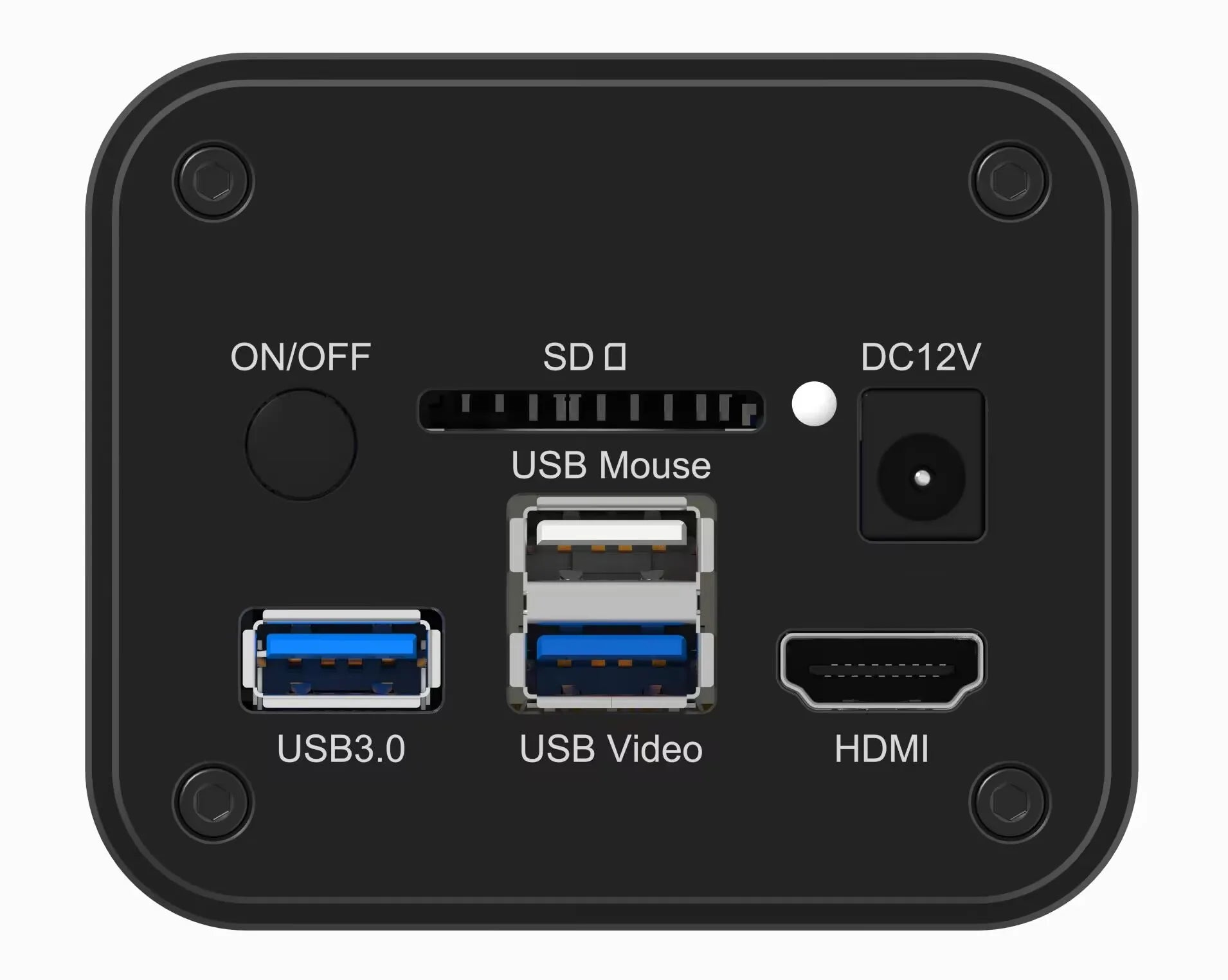

4K HDMI/ WiFi / USB multiple video synchronous outputs
4K/1080P auto switching according to monitor resolution

Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
SD card/USB flash drive for captured image and video storage, support local preview and playback
New browsing function, providing rich file operation functions, image to image comparison, image to
real-time video comparison, multi-image EDF and other functions
Provide multiple focusing methods, and the size of the focusing area can be modified;

Provide AF+EDF,
facilitating the synthesis of high depth of field images in multiple focus areas at high magnification
Excellent ISP with local tone mapping and 3D denoising
Provide real-time video EDF function and real-time video WDR output function
Provide two sets of default ISP parameters for biological microscope and stereo microscope
Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions

ToupTekSoftware for PC

Note:

1. Camera Frame rate is not fixed, Frame rate relate to camera exposure time, long exposure time will reduce frame rate,So set shorter exposure time can get higher frame rate. Frame rate relate to Computer's hardware too

2. WiFi output for optional, please select when place order

SONY imx678 Sensor, senzor size:1/1.8"

Resolution: 4K Ultra HD (8mp  3840x2160)

4k/1080P switch adaptively, Under HDMI-output Preview frame rate 60fps@4K, Max recording frame rate 60fps

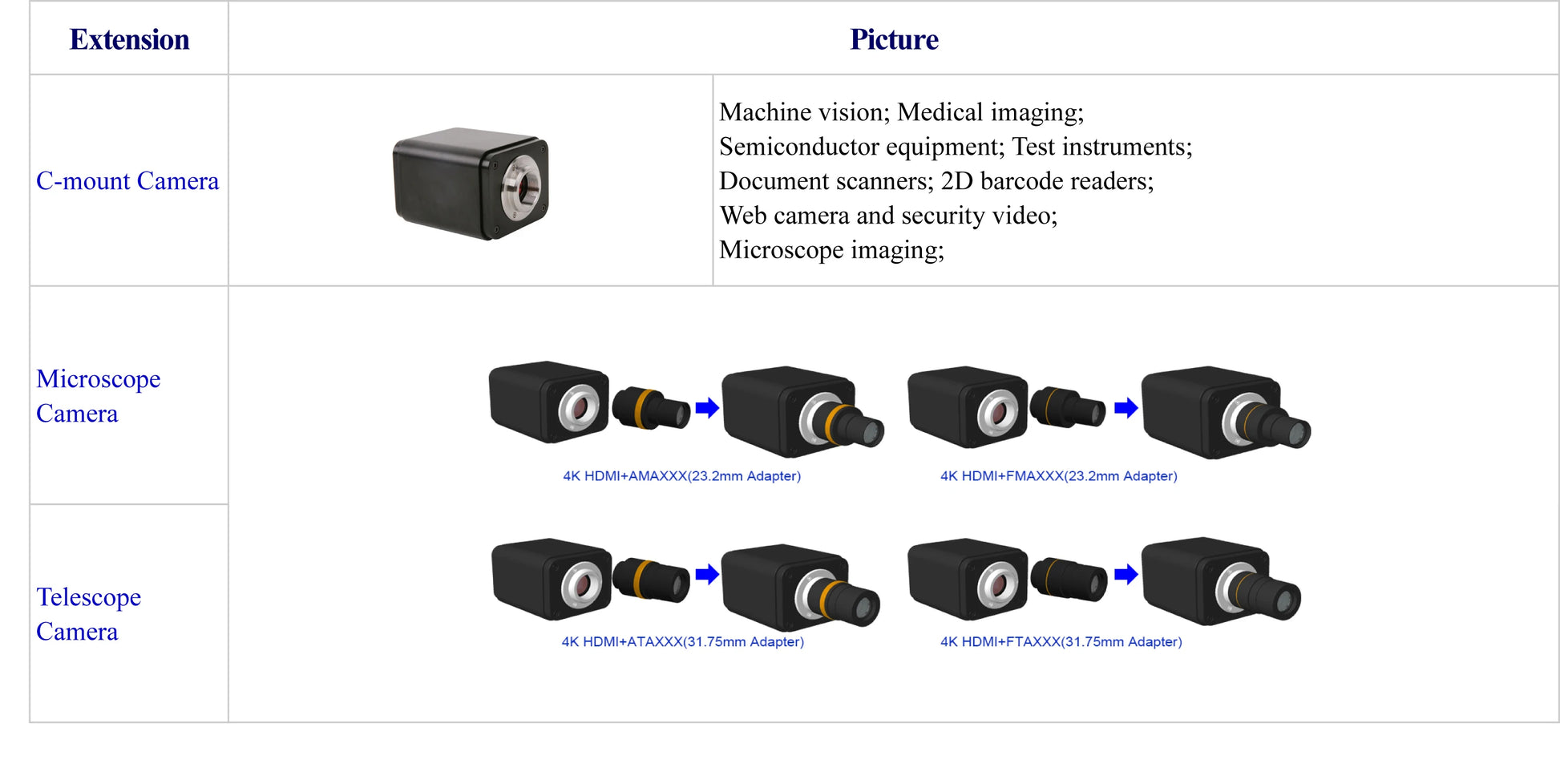

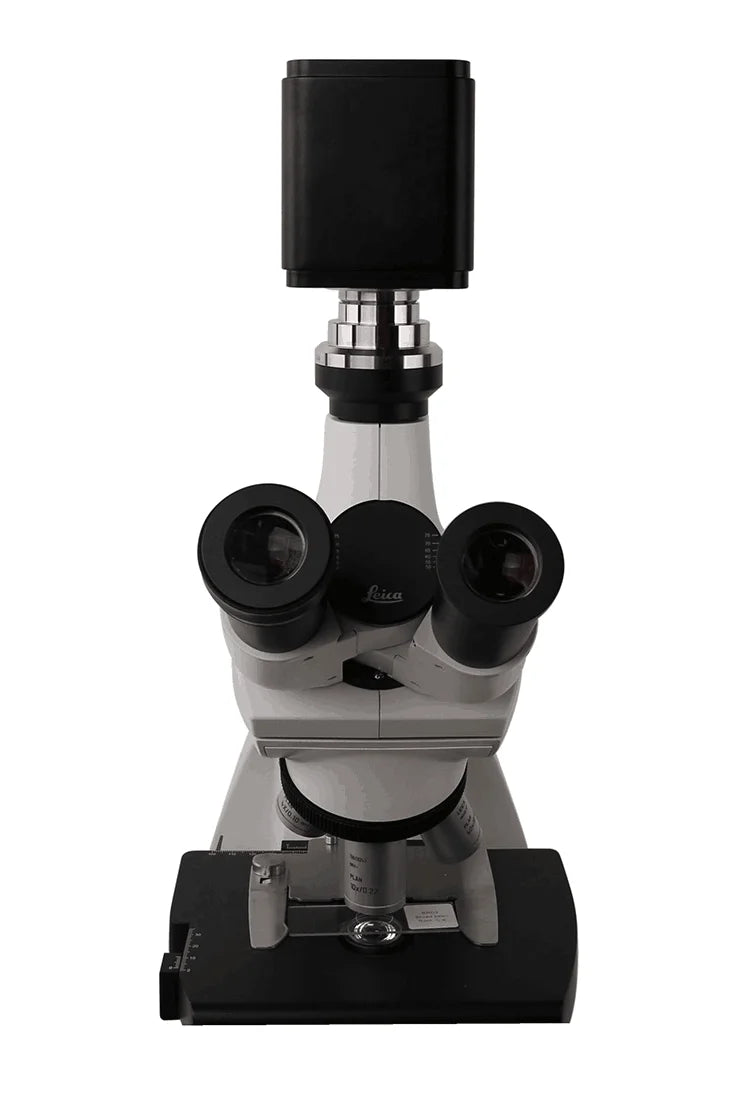

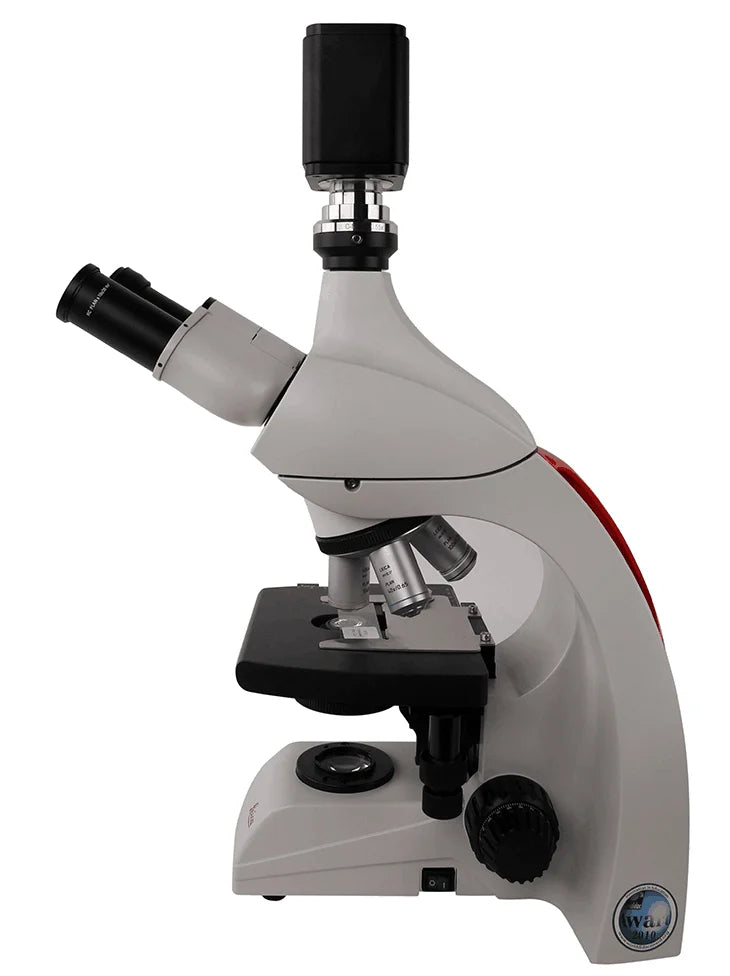

Extension of XCAM4K Series with Microscope or Telescope Adapter：

Application of X5FCAM4K8MPA Series Camera：

• Scientific research, digital teaching (teaching, demonstration and academic discussing);

• Digital laboratory, medical research;

• Machine vision (PCB detection, IC quality control);

• Medical treatment (pathological observation);

• Food (microbial colony observation and counting);

• Aviation and military;


Warranty 1 year !

• If the camera has quality problems during the warranty period,we will provide technical support to the buyer.

• If the camera needs to be returned to Chinafor repair, we will repair it free.

• Out of warranty period,we will still provide buyers with technical support services and maintenance services
