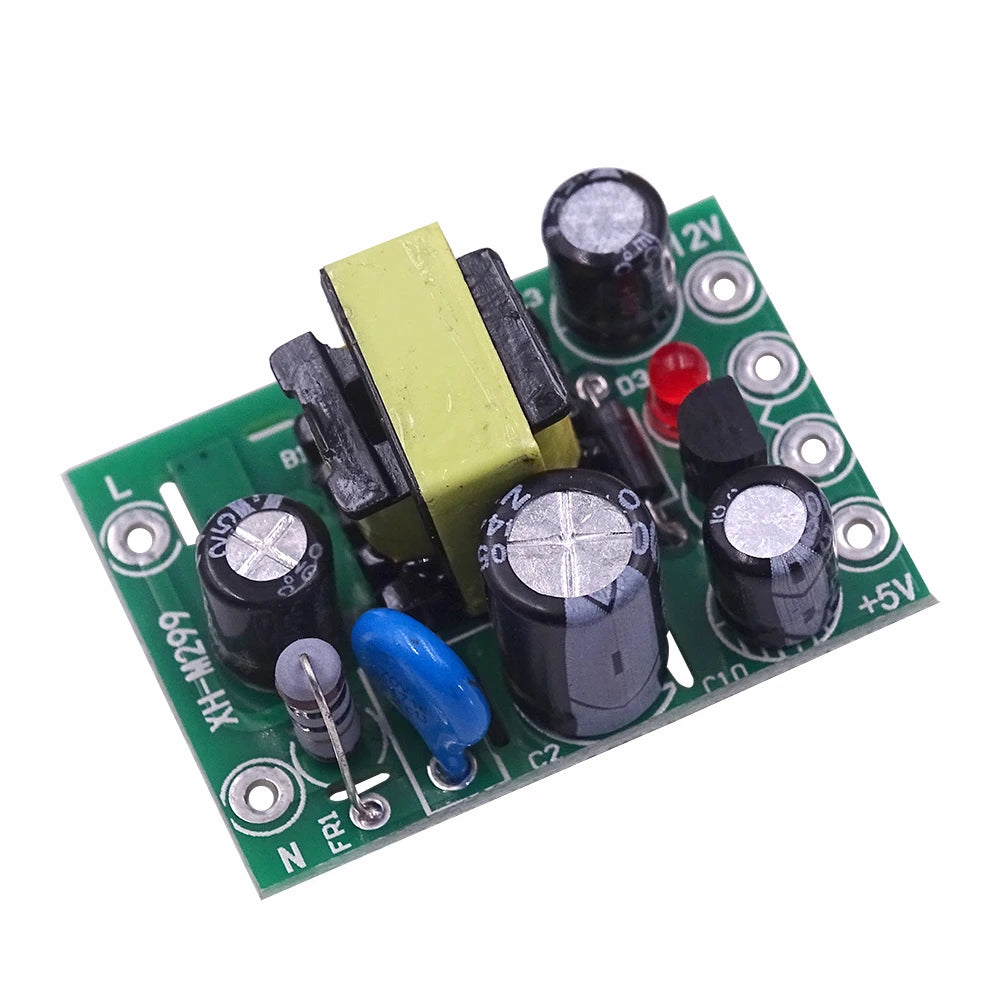

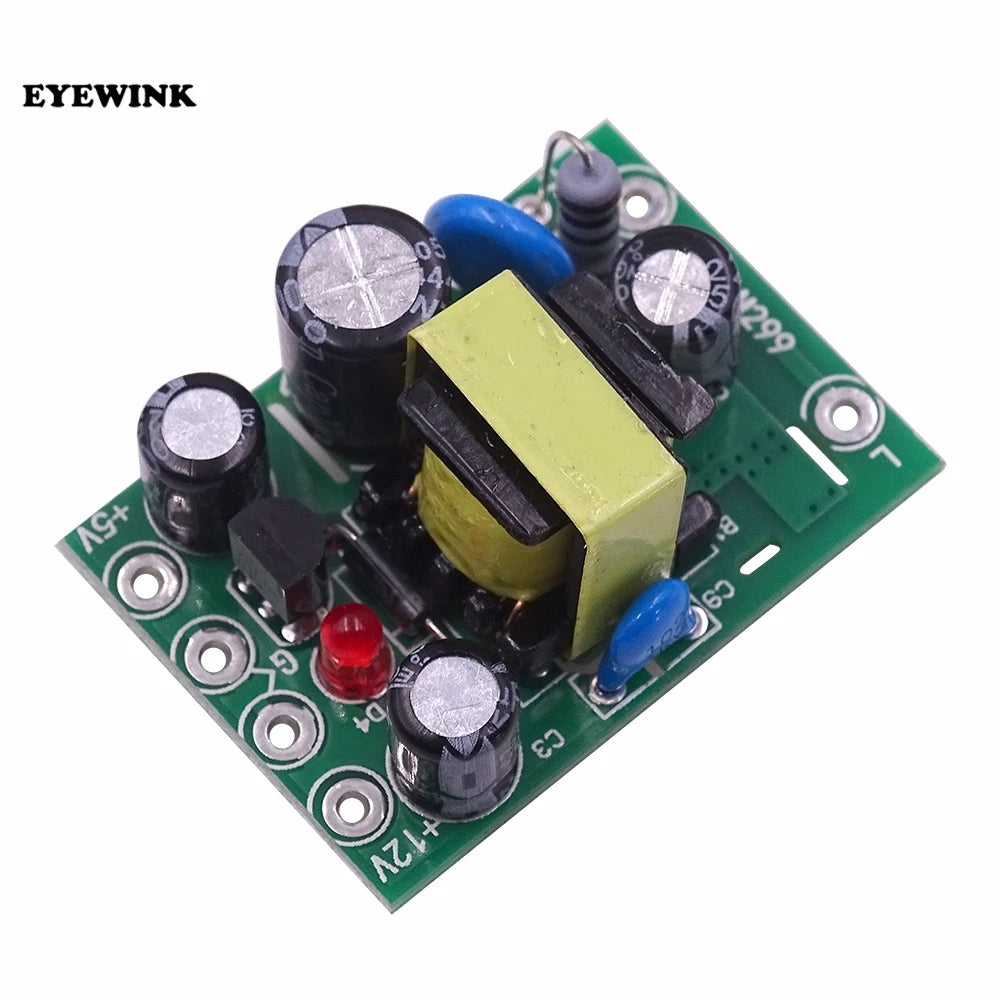

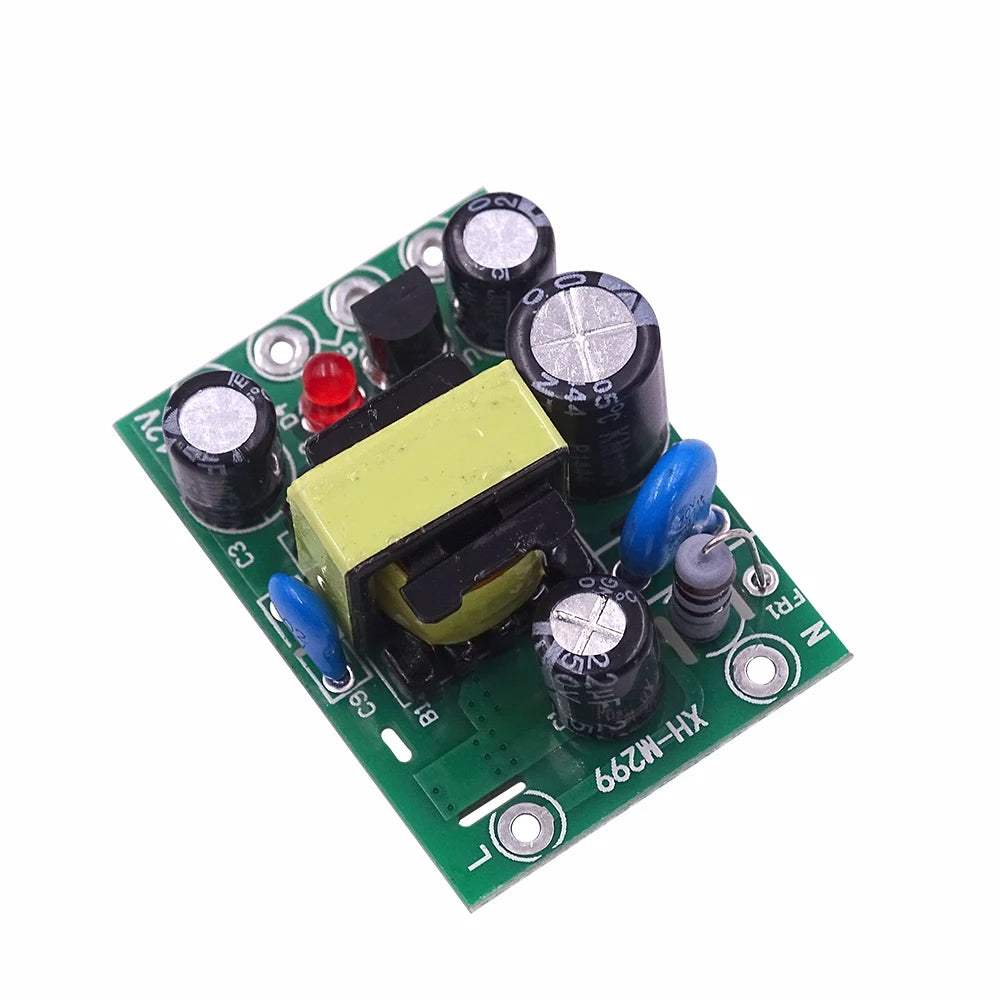

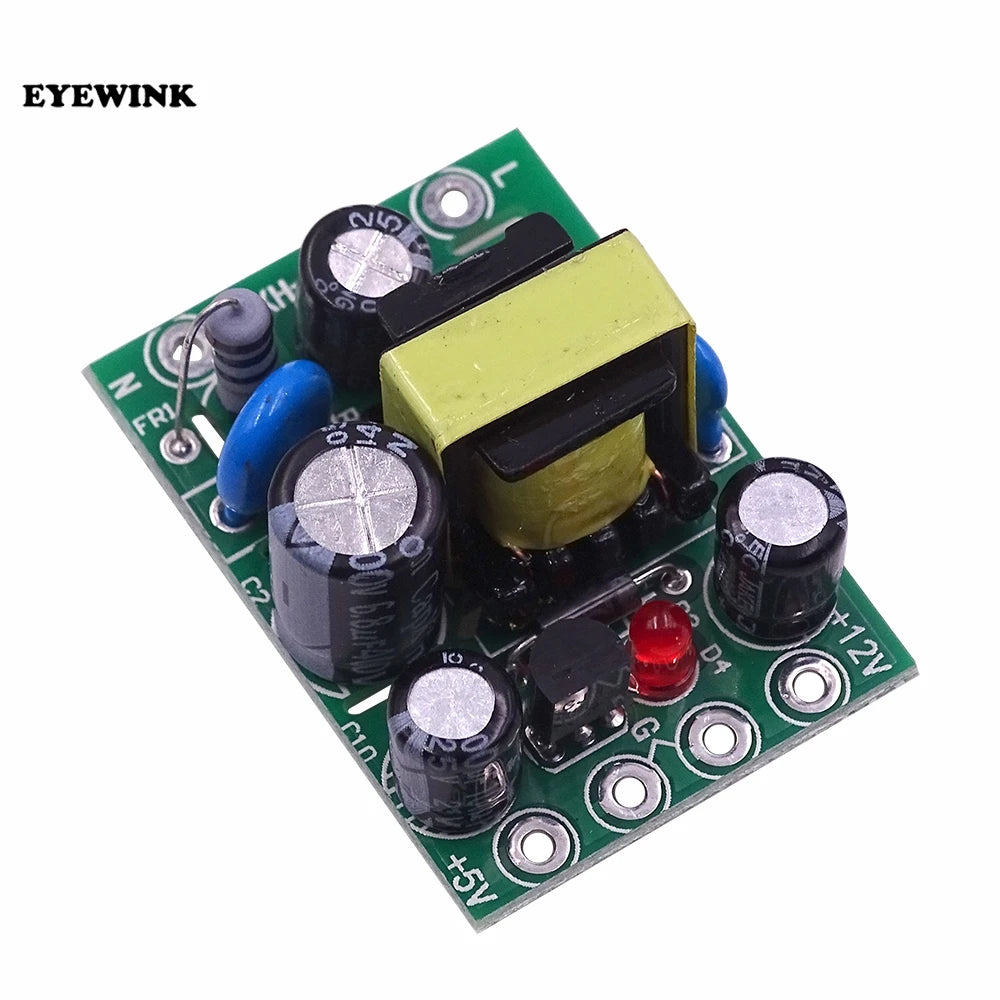

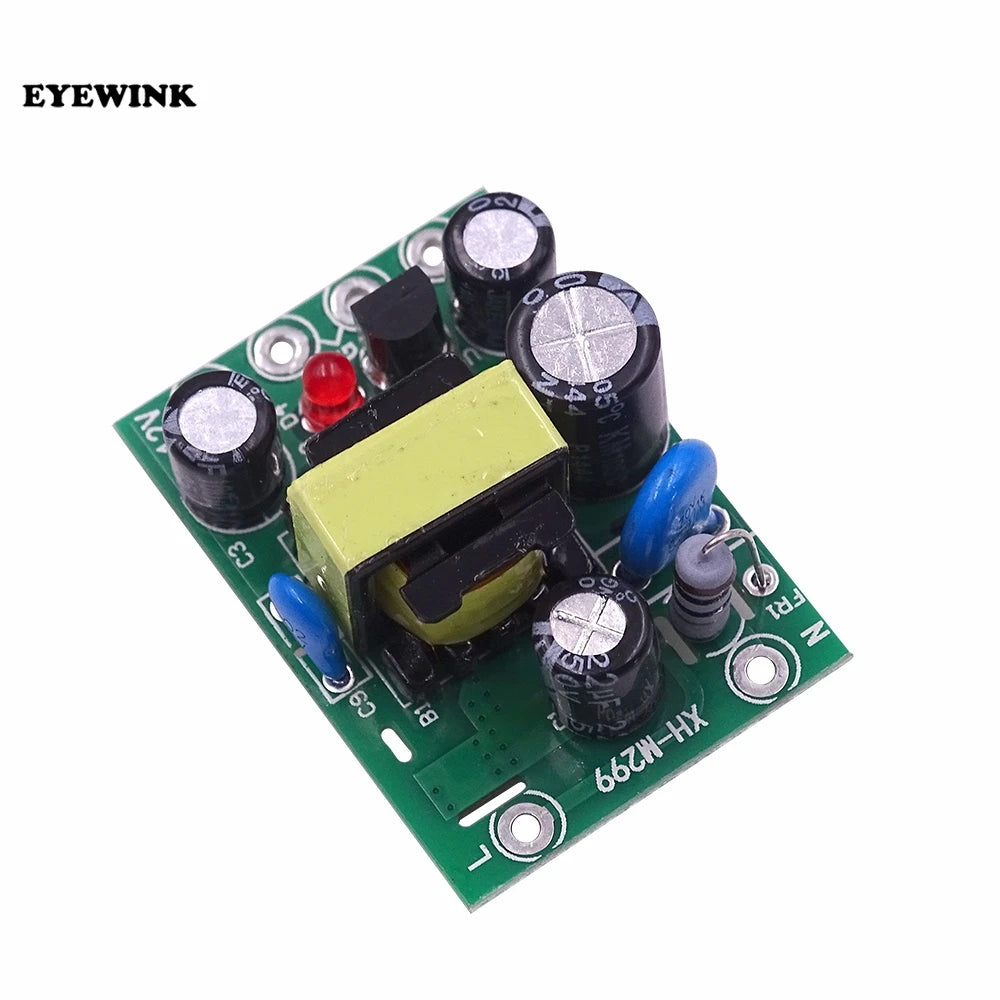

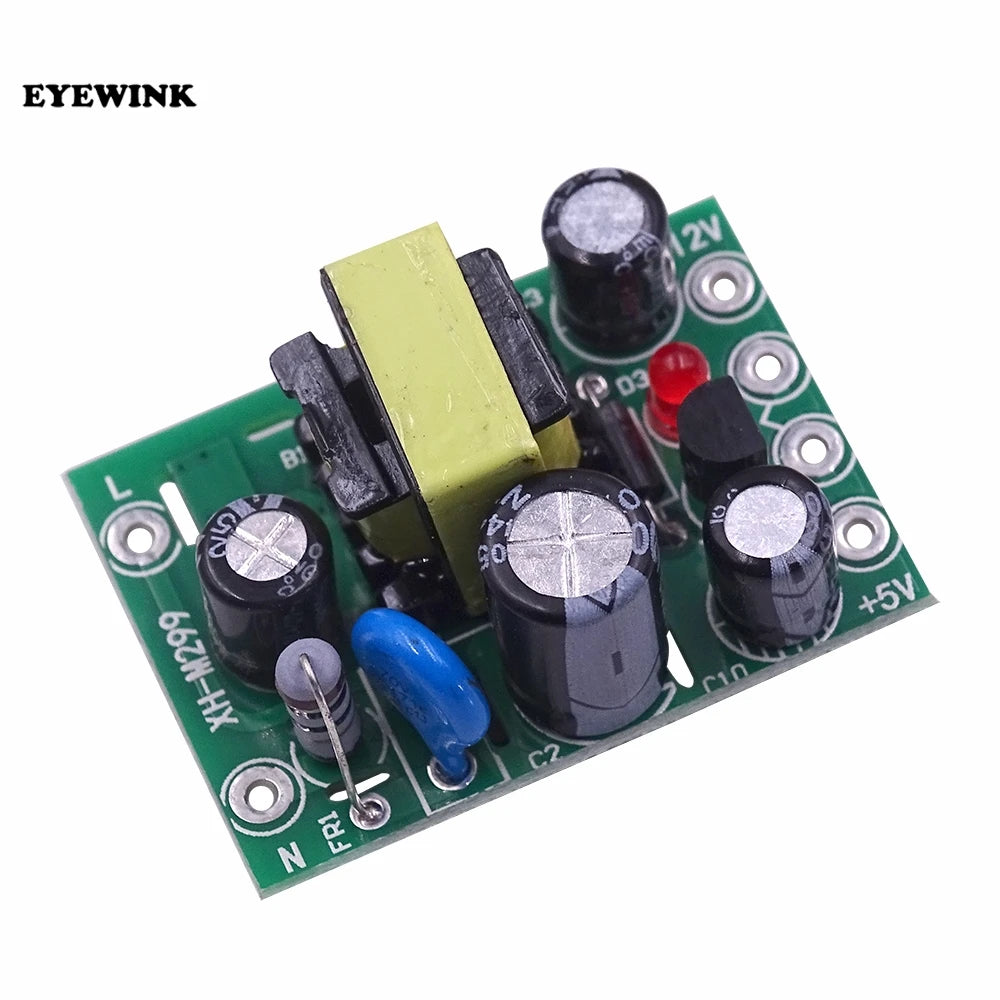

Módulo Fuente Alimentación Switching XH-M299 AC-DC Aislado PCB Input 110-220V Output 12V 0.5A / 5V
Módulo Fuente Alimentación Switching XH-M299 AC-DC Aislado PCB Input 110-220V Output 12V 0.5A / 5V
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Computer
Brand Name: CFsunbird
Condition: New
Model Number: XH-M299
Origin: Mainland China
Package: SMD
Supply Voltage: 110-220V Output 12V0.5A + 5V
Type: Voltage Regulator
is_customized: Yes
Description:

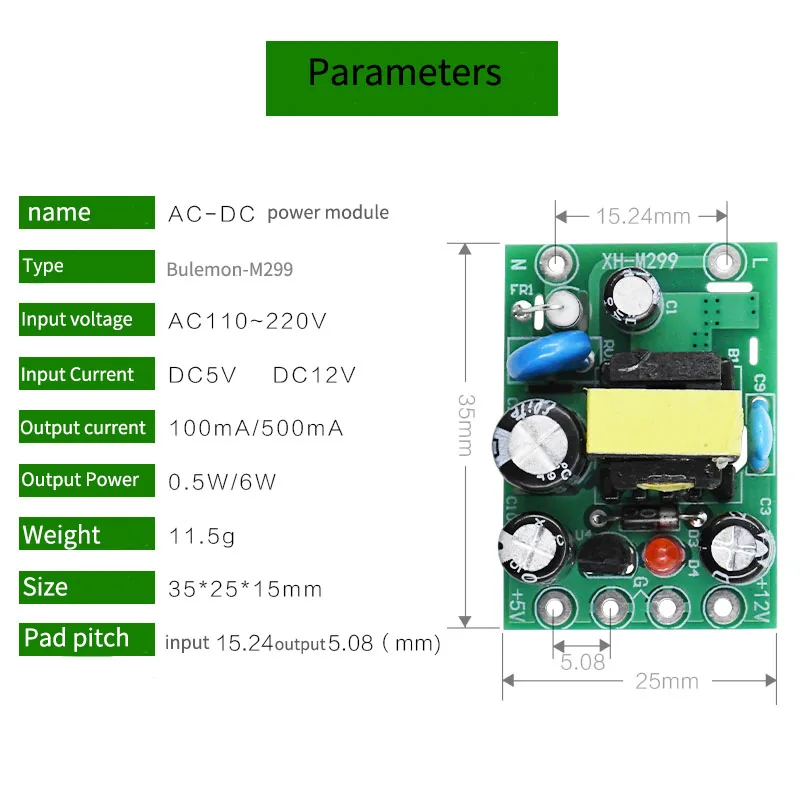

Product model: XH-M299
Input voltage: AC110-240V
Output voltage: DC5V DC12V
Output current: 100mA / 500mA
Output power: 0.5W / 6W
Product net weight: 11.5g
Product size: 35 * 25 * 15mm
Pad pitch: Input 15.24 output 5.08 (mm)
Instructions for use:
Introduction:
XH-M298 is an AC to DC power module with isolated power, dual output, strong anti-interference and other characteristics;
The input voltage is AC110-220VV, the dual outputs are DC5V and DC12V, and the maximum output current is
100mA / 500mA, the maximum power is 0.5W and 6W; the input and output can be used directly by pad connection, and can also be used with pin headers and other circuit board soldering.
Explanation:
1. Connect AC110-220V power at the power input.
2.Dual output, 5V and 12V respectively, can be connected to the load matching the output voltage at the same time, note the difference between the positive and negative poles of the power supply. (As shown below)
Package Included:
1 * switching power supply board
