Módulo Control Carga Batería XH-M601 12V Cargador Inteligente Panel Control Automático
Módulo Control Carga Batería XH-M601 12V Cargador Inteligente Panel Control Automático
Precio habitual
$12.654 CLP
Precio habitual
$15.653 CLP
Precio de oferta
$12.654 CLP
Precio unitario
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
SPECIFICATIONS
Application: Charger Controller
Brand Name: NoEnName_Null
Certification: RoHS
Hign-concerned Chemical: None
Is Smart Device: No
Maximum Current: Standard
Model Number: 12V Battery Charging Control Board XH-M601
Origin: Mainland China
is_customized: Yes

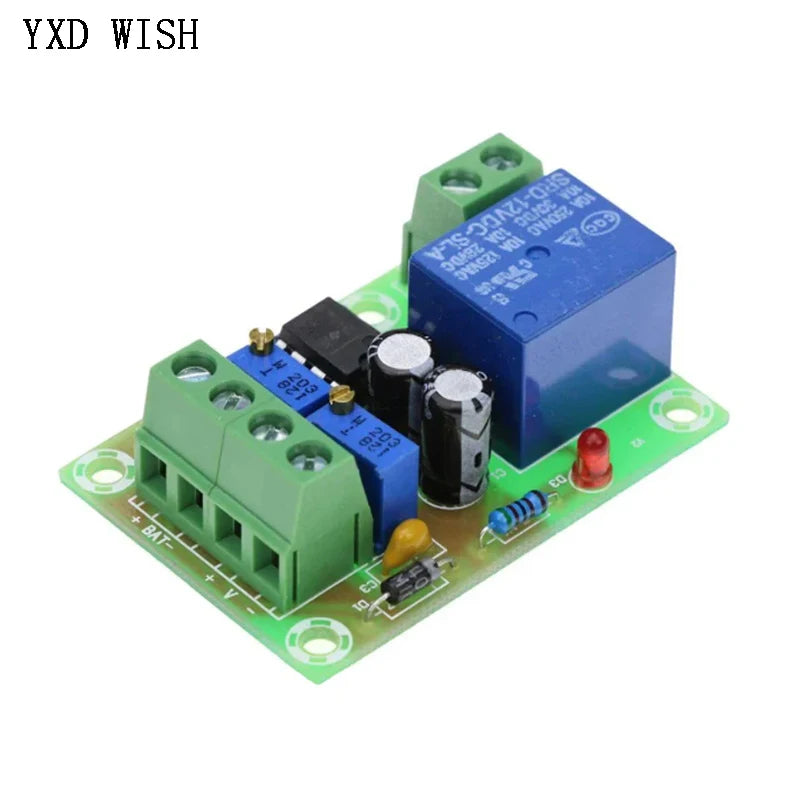

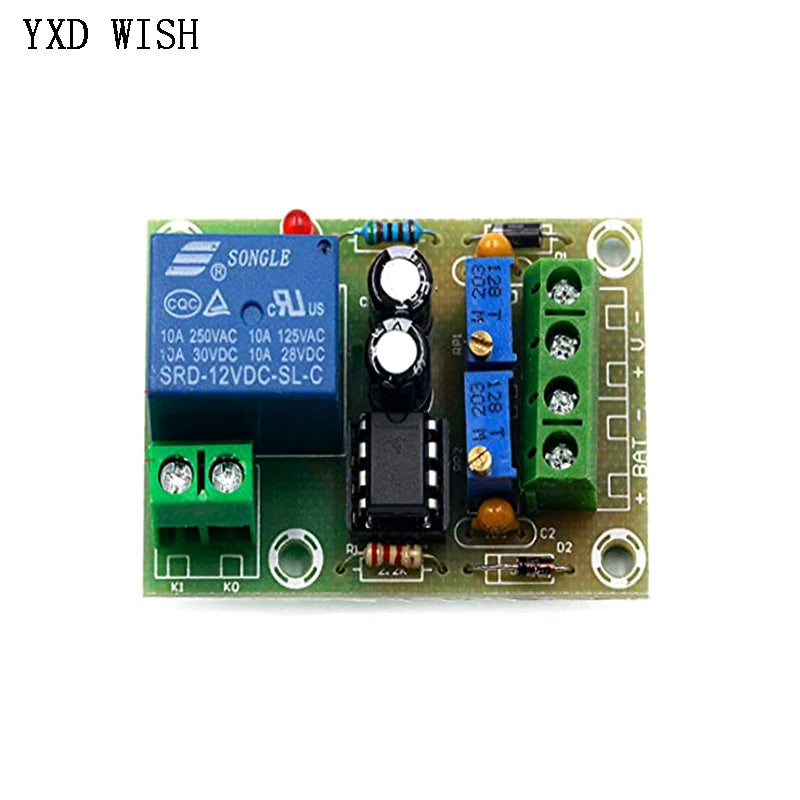

XH-M601 Battery Charging Control Board 12V Intelligent Charger Power Control Panel Automatic Charging Power Supply
Product Introduction:
1.Name:12V charger power control board
2.Model:XH-M601
3.Power Supply Voltage:13.8-14.8V
4.Relay Operating Voltage:12.4V
5.Relay Disconnect Voltage:14.8V
6.Voltage Tolerance:+/-0.1V
7.Voltage Detection Way:DC voltmeter
8.Charging Type:12V storage battery
9.Potentiometer Adjustment:RP1 RP2
10.Size:50*32*18mm

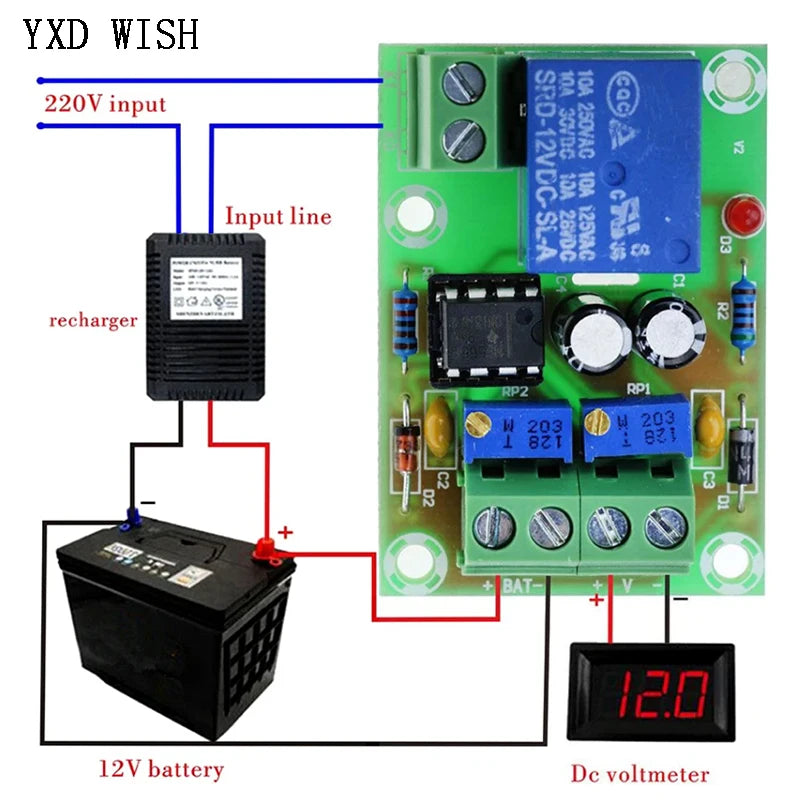

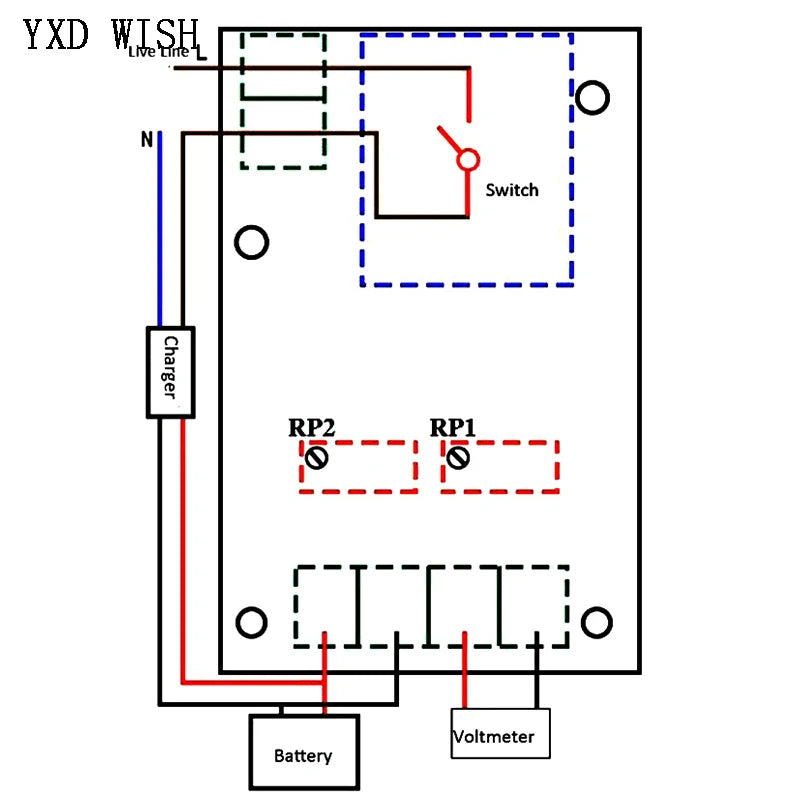

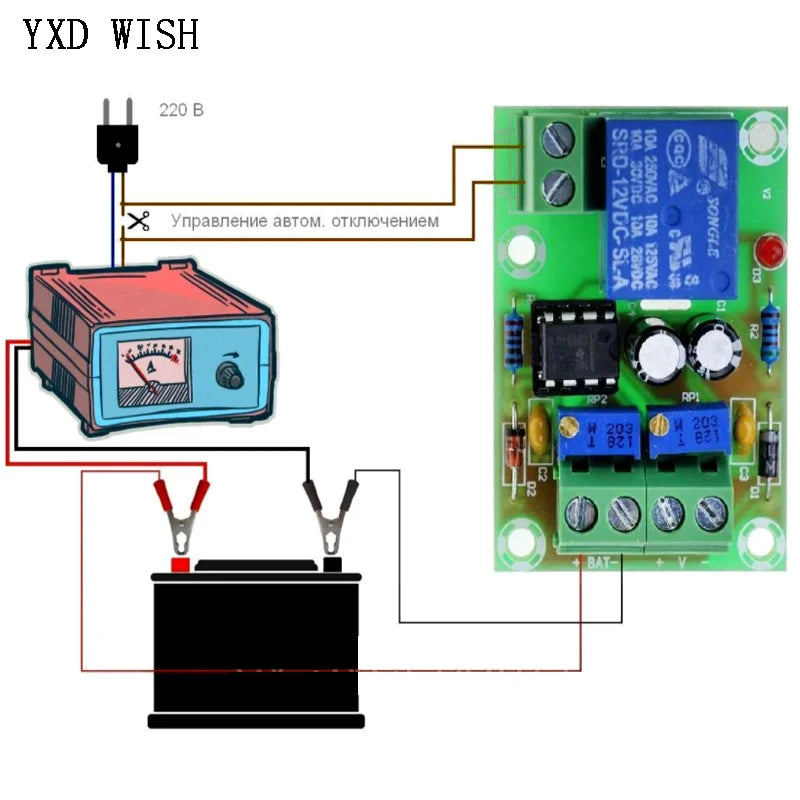

Potentiometer Adjustment:
1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
1.Name:12V charger power control board
2.Model:XH-M601
3.Power Supply Voltage:13.8-14.8V
4.Relay Operating Voltage:12.4V
5.Relay Disconnect Voltage:14.8V
6.Voltage Tolerance:+/-0.1V
7.Voltage Detection Way:DC voltmeter
8.Charging Type:12V storage battery
9.Potentiometer Adjustment:RP1 RP2
10.Size:50*32*18mm
Potentiometer Adjustment:
1.RP1:adjust storage battery start charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
2.RP2:adjust storage battery disconnect charging voltage (low voltage setting:clockwise becomes higher,counter-clockwise becomes lower)
