SPECIFICATIONS

Brand Name: Aideepen

Certification: None

Choice: yes

Current Type: DC

Model Number: XL4015

Origin: Mainland China

Phase: single phase

Usage: SVC

is_customized: Yes

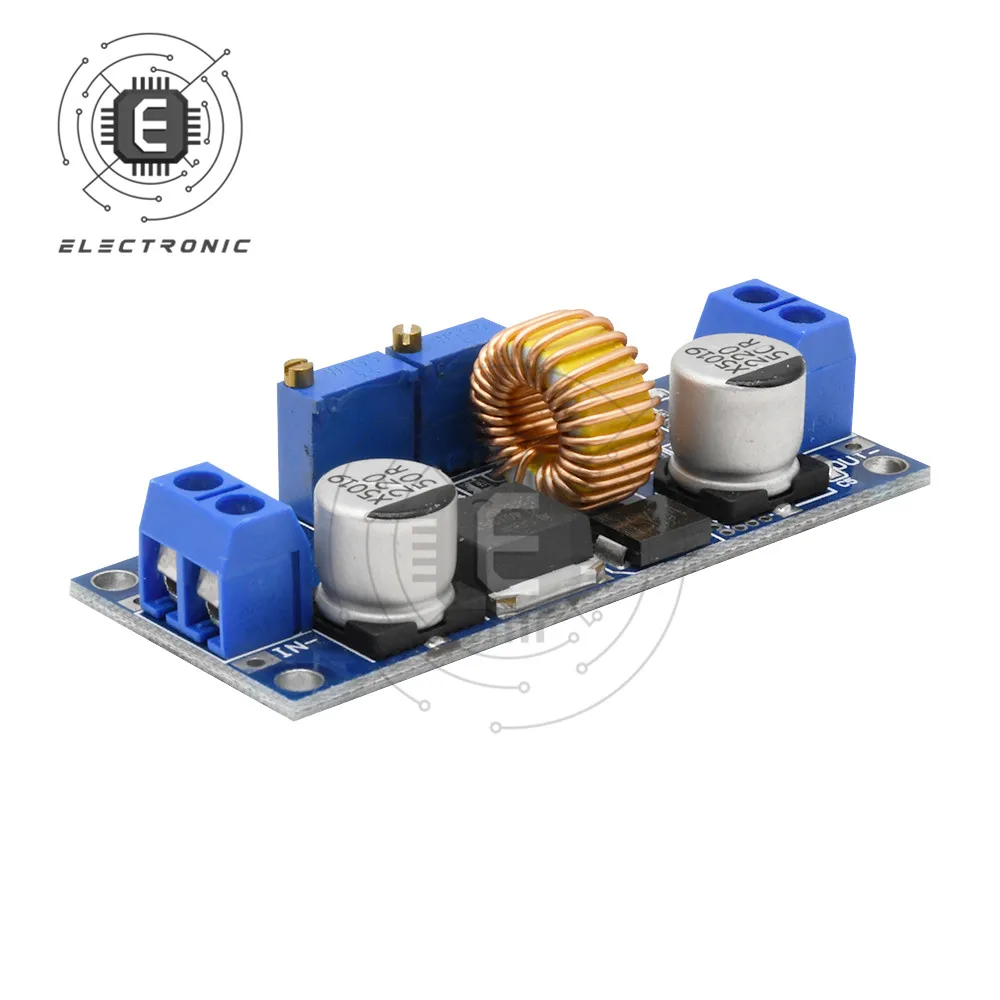

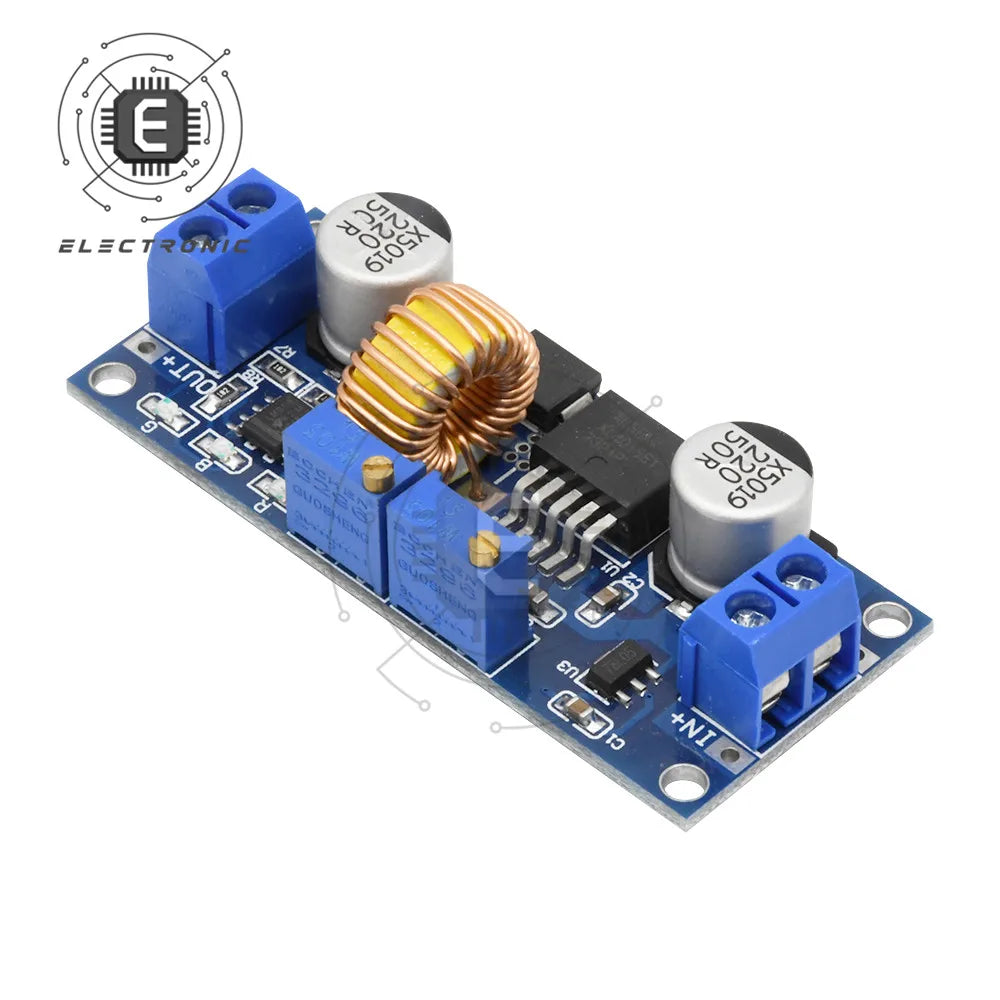

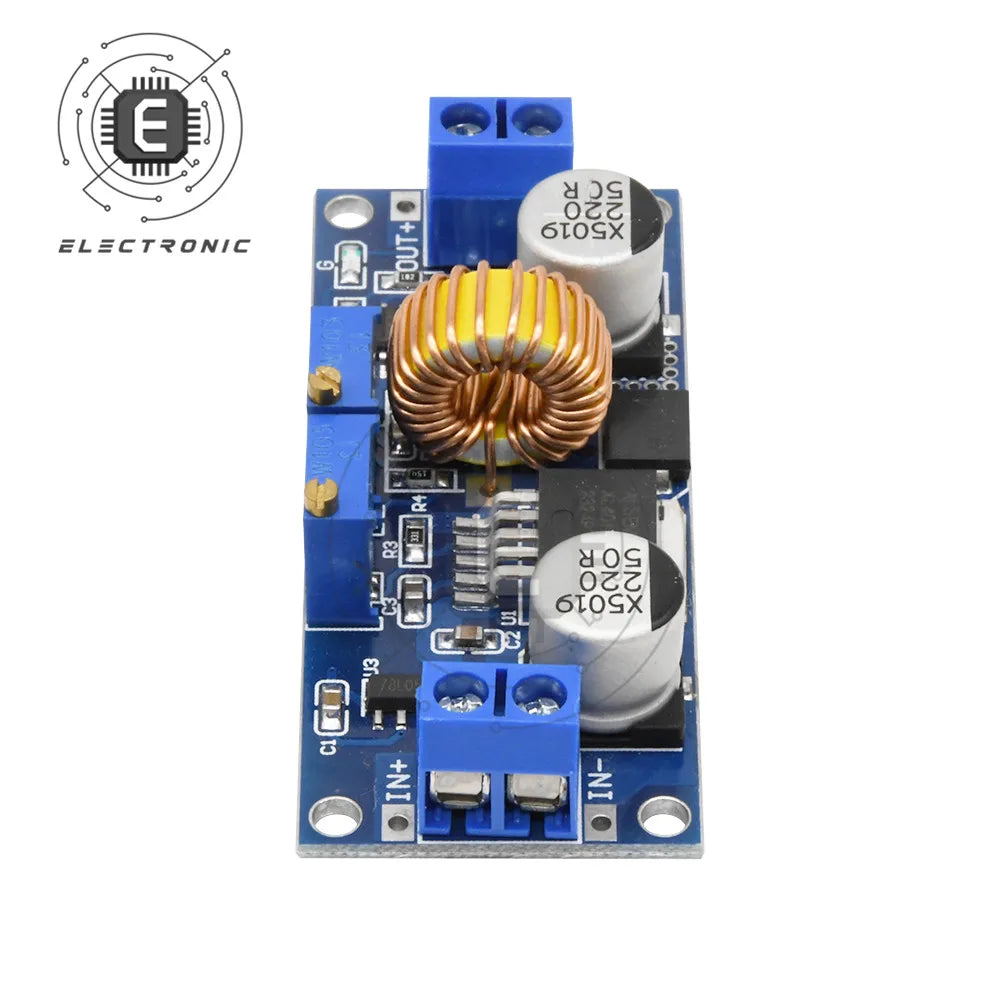

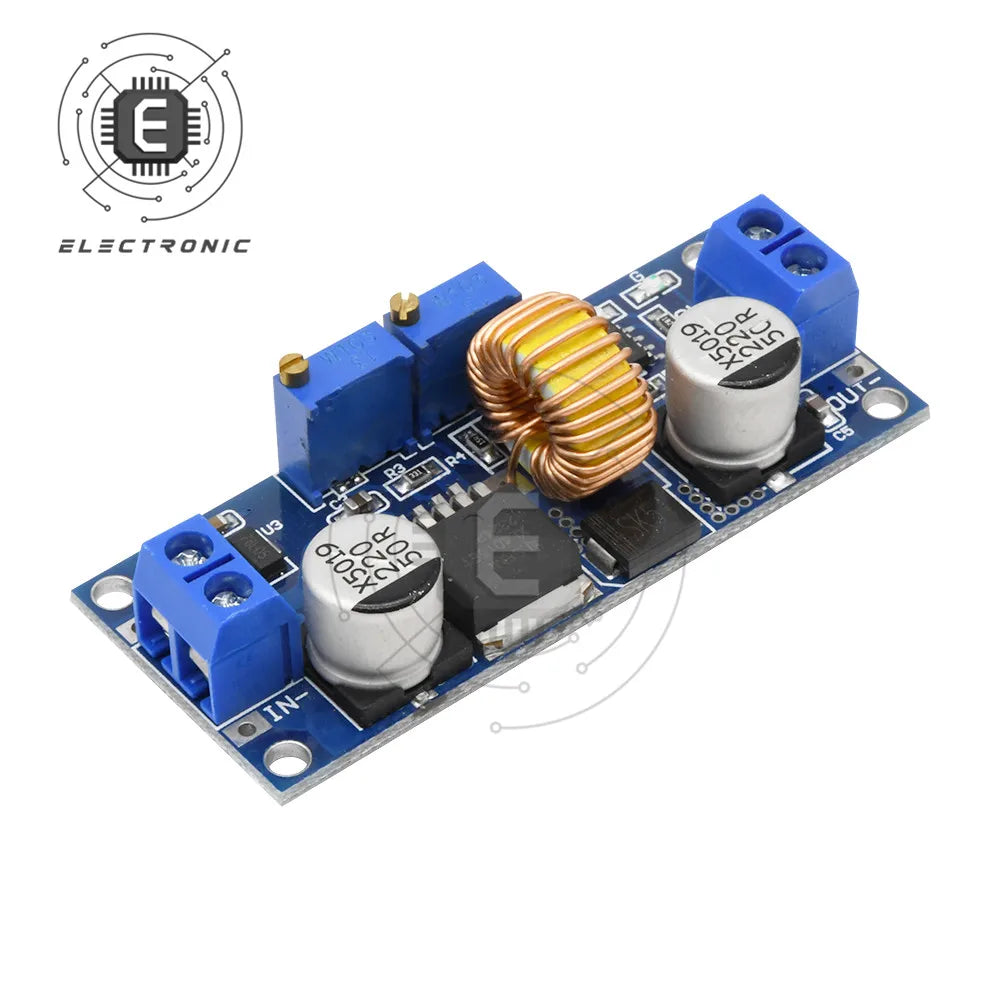

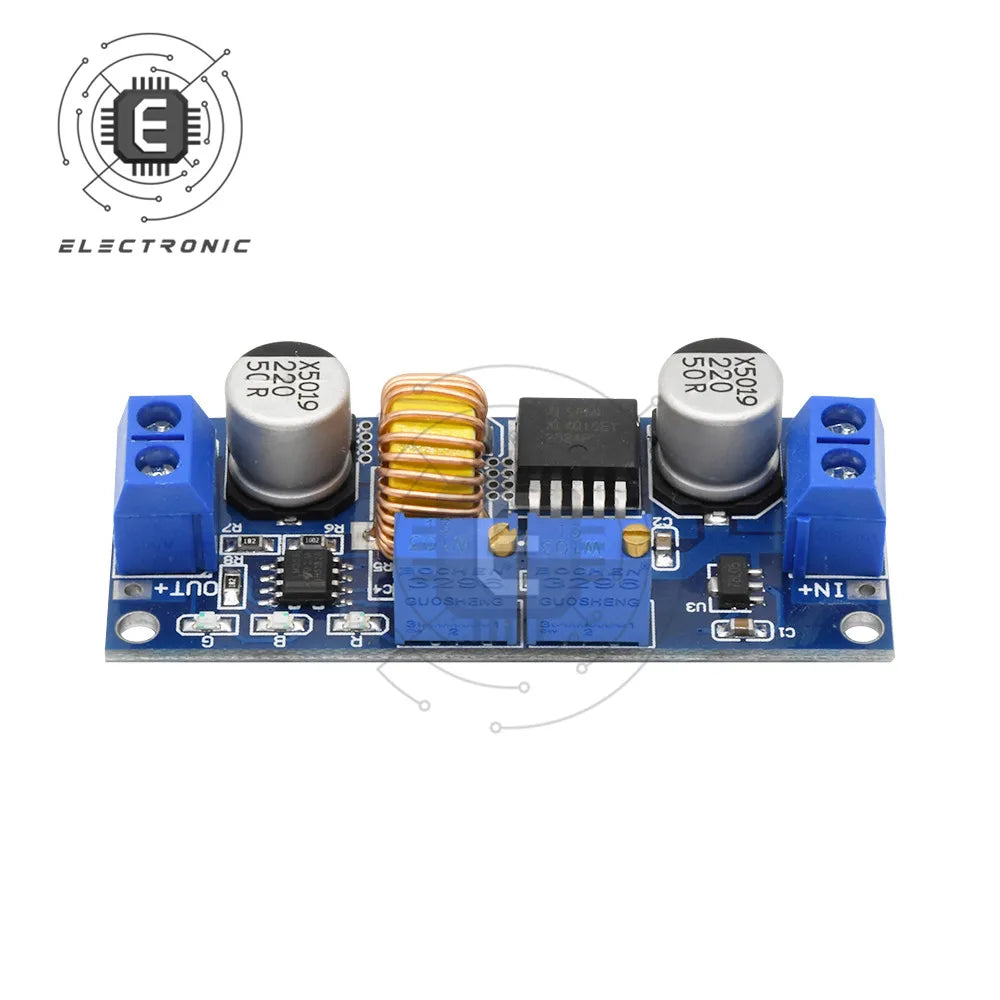

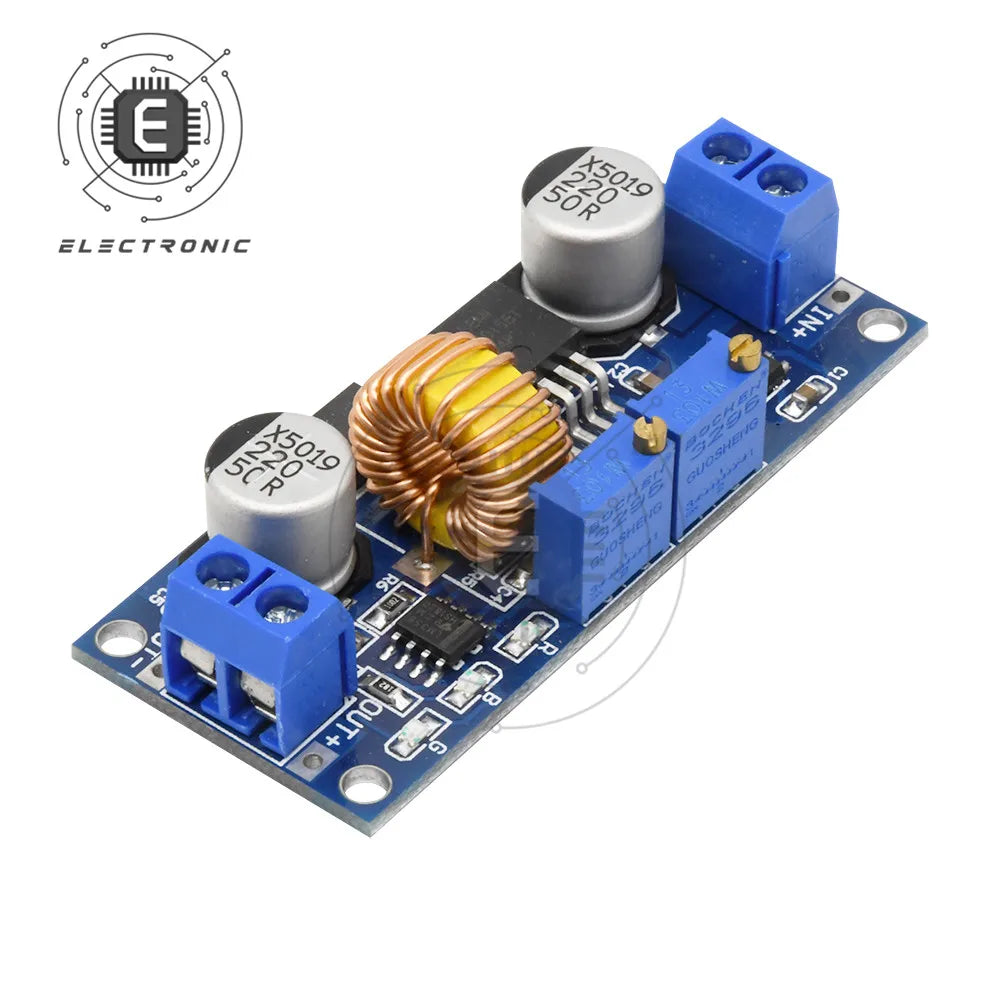

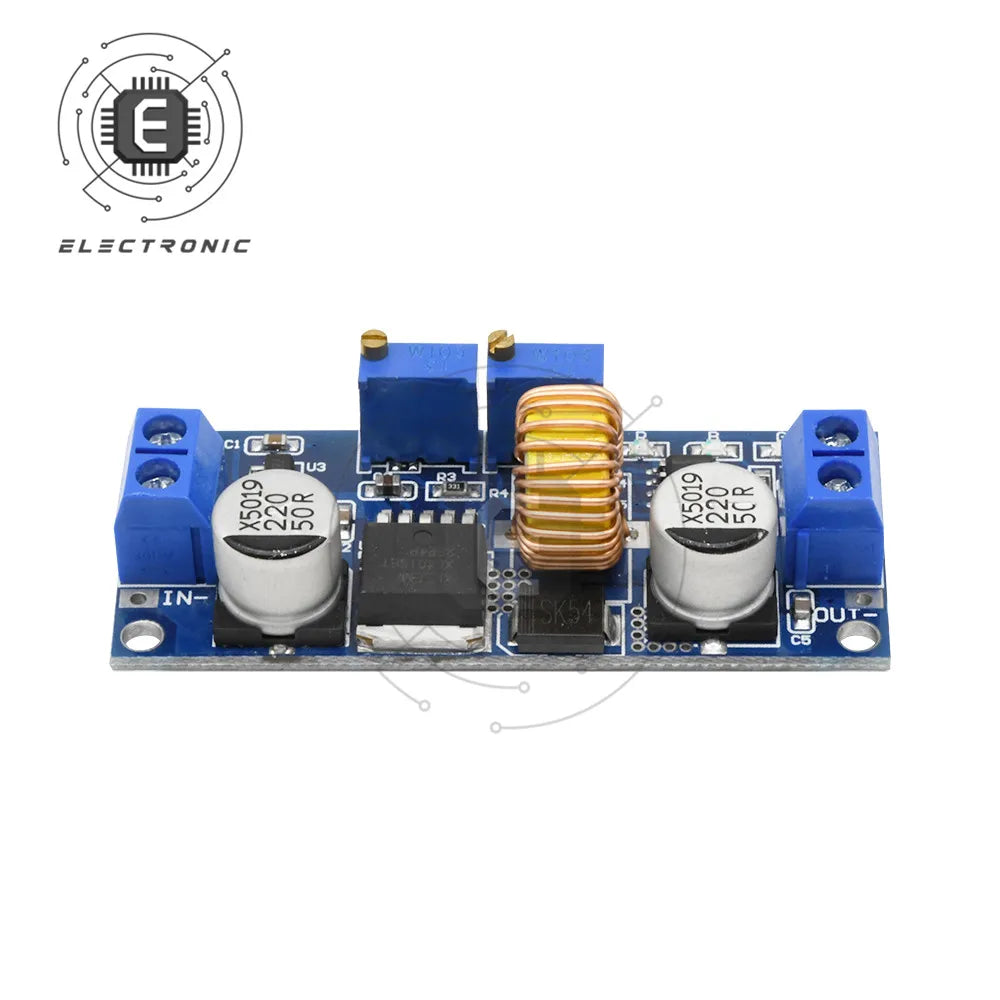

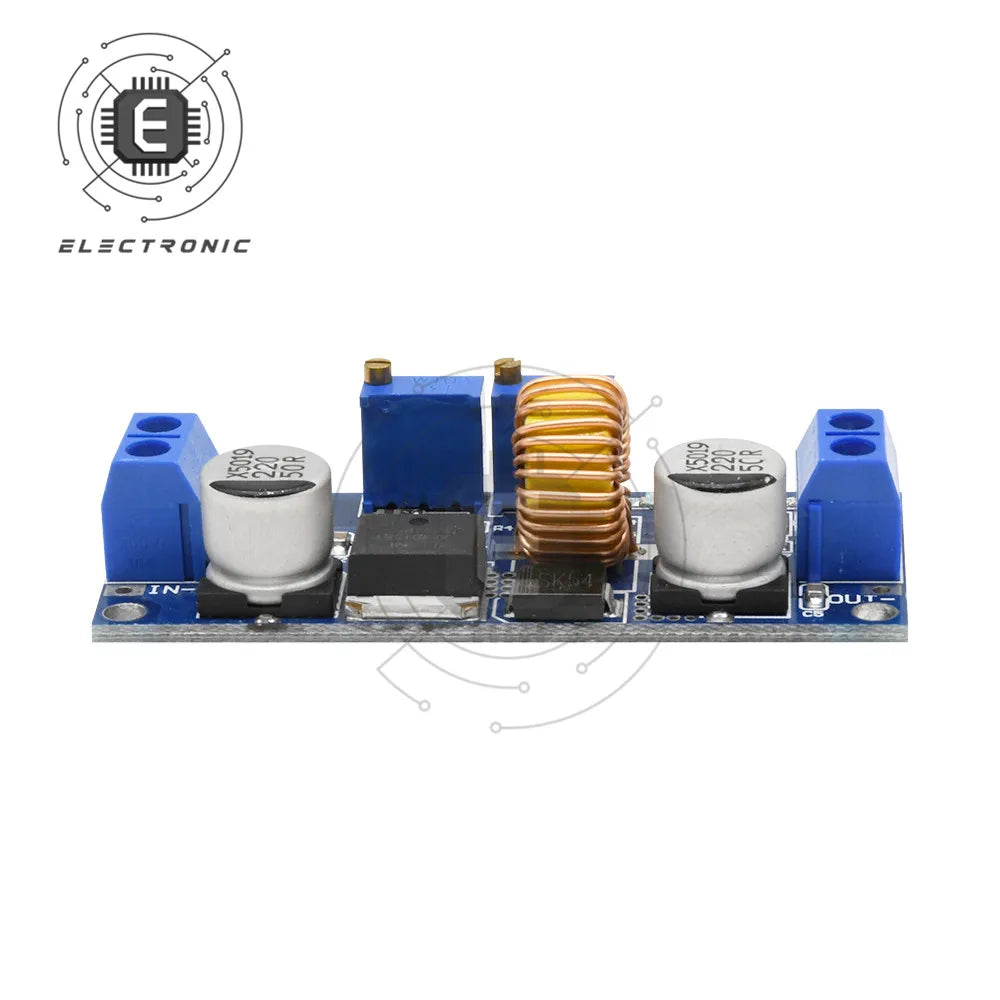

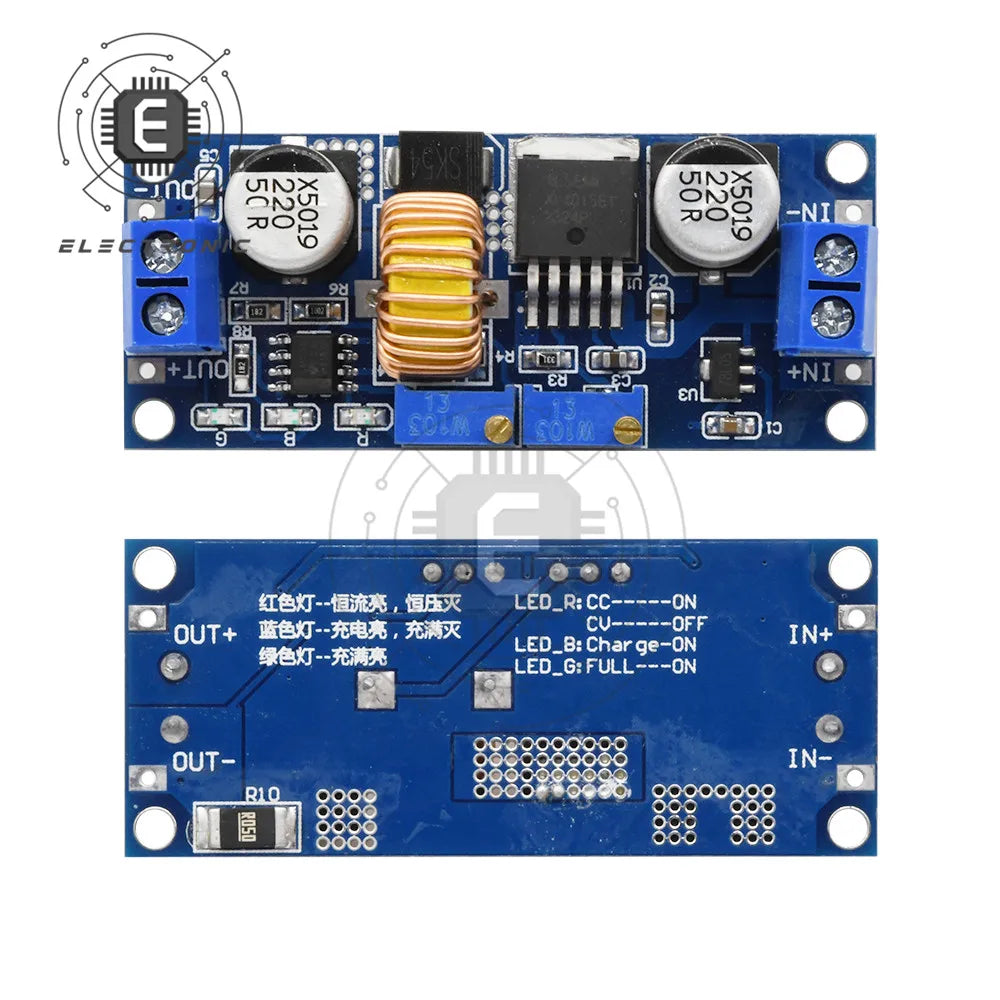

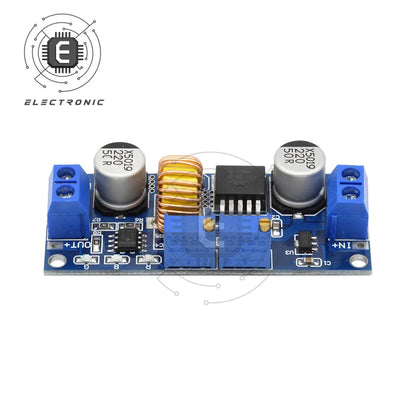

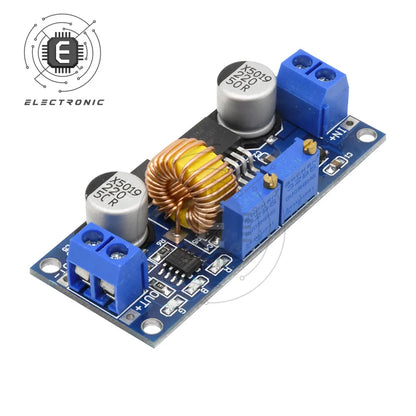

XL4015 DC 4-38V to DC 1.25-36V Continuously Adjustable Constant-Current Constant Voltage 5A Low-Ripple Buck Board Buck Converter

1. High power, high efficiency, 5A, low ripple;

2. Three in one:

(1) Use as an ordinary step-down module with over-current protection capability;

(2) Used as a charger for various voltage values of lithium batteries, batteries, nickel-cadmium nickel-metal hydride batteries (battery packs), used in solar panels, wind generators and other occasions;

(3) Use as a high-power LED constant current drive module;

3. It has two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in;

4. When used as a lithium battery charger, the float voltage and charging current can be set, and an indicator light indicates

Shows whether it is charging or fully charged;

5. With current-limiting protection function, the module will not be burnt out even if the output is short-circuited.

Parameter:

1. Input voltage: 4-38V

2. Output voltage: 1.25-36V continuously adjustable

3. Output current: adjustable, maximum 5A

4. Output power: max 75W

5. Working temperature: -40~+85 degrees

6. Working frequency: 180KHz

7. Conversion efficiency: up to 96%

8. Short circuit protection: Yes (limited current 8A)

9. Over-temperature protection: Yes (automatically shut down the output after over-temperature)

10. Input reverse connection protection: None, (if necessary, please connect a high-current diode in series with the input)

11. Installation method: 4 3mm screws

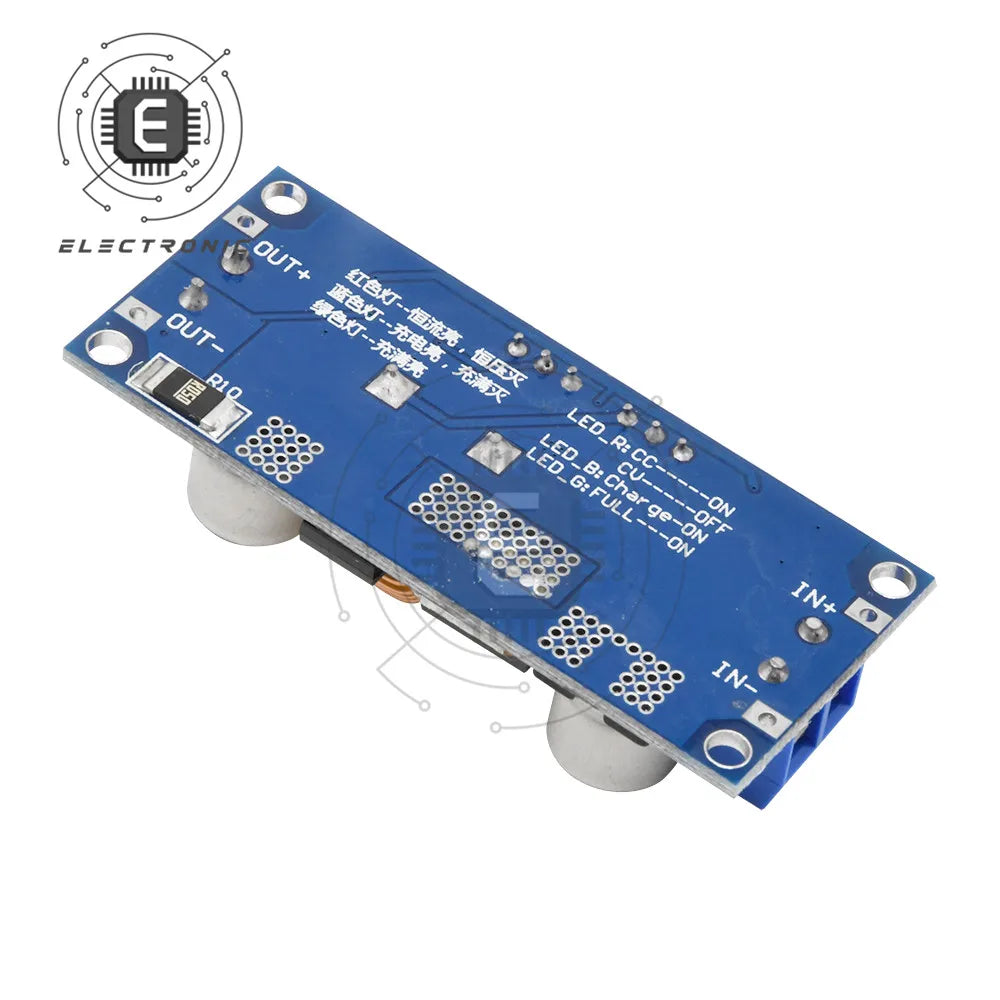

12. Wiring mode: wiring terminal or welding terminal, V-IN is input, V-OUT is output

13. Module size: length 61.7mm width 26.2mm height 15mm

14. Weight: 25g

Scope of application:

1. Use as an ordinary step-down module with over-current protection capability

Instructions:

(1) Adjust the constant voltage potentiometer to make the output voltage reach the voltage value you want

(2) Use a multimeter to measure the output short-circuit current with a 10A current file (directly connect the two test leads to the output terminal), and adjust the constant current potentiometer to make the output current reach the predetermined overcurrent protection value. (For example, the current value displayed by the multimeter is 4A, then the maximum current when you use the module can only reach 4A, when the current reaches 4A, the red constant voltage constant current indicator will be on, otherwise the indicator will be off)

Note: When used in this state, since the output terminal has a current sampling resistor of 0.05 ohm, there will be a voltage drop of 0~0.3V after the load is connected. This is a normal phenomenon! This voltage drop is not pulled down by your load, but dropped to the sampling resistor.

2. Use as a battery charger

The module without the constant current function cannot be used to charge the battery. Because the voltage difference between the exhausted battery and the charger is large, the charging current is too large and the battery is damaged. Therefore, the battery must be constant at the beginning. Current charging, when the charging reaches a certain level, it will automatically switch back to constant voltage charging.

Instructions:

(1) Determine the floating voltage and charging current of the rechargeable battery you need; (If the lithium battery parameter is 3.7V/2200mAh, then the floating voltage is 4.2V and the maximum charging current is 1C, which is 2200mA)

(2) Under no-load conditions, the multimeter measures the output voltage and adjusts the constant voltage potentiometer to make the output voltage reach the float voltage; (if charging a 3.7V lithium battery, adjust the output voltage to 4.2V)

(3) Use a multimeter to measure the output short-circuit current with a 10A current file (directly connect the two test leads to the output terminal), and adjust the constant current potentiometer to make the output current reach the predetermined charging current value;

(4) The default charging current of the rechargeable lamp is 0.1 times the charging current; (The current of the battery is gradually reduced during the charging process, and gradually changes from constant current charging to constant voltage charging. If the charging current is set to 1A, then when the charging current is set to 1A, When the charging current is less than 0.1A, the blue light is off and the green light is on, and the battery is fully charged at this time)

(5) Connect the battery and charge it.

(Steps 1, 2, 3, 4 are: the input terminal is connected to the power supply, and the output terminal is not connected to the battery without load)

3. Use as a high-power LED constant current drive module

(1) Determine the operating current and maximum operating voltage you need to drive the LED;

(2) Under no-load conditions, the multimeter measures the output voltage and adjusts the constant voltage potentiometer to make the output voltage reach the highest LED operating voltage;

(3) Use a multimeter to measure the output short-circuit current at 10A current level, and adjust the constant current potentiometer to make the output current reach the predetermined LED operating current;

(4) Connect the LED and test the machine.

(Steps 1, 2, and 3 are: the input is connected to the power supply, and the output is no-load without the LED light.)

Note: Please strengthen heat dissipation when this module is used over 3A and 35W! ! !
