YIHUA 853A SMD BGA rework soldering station preheating desoldering welding tools PCB holder rework soldering station Bottom Heating

Product Description

1. YH-853A preheater bga rework stations pcb preheater use special air conduction and no carbon brush AC power supply, which make the airflow keep constant when cooling or preheating, and the lifetime longer.

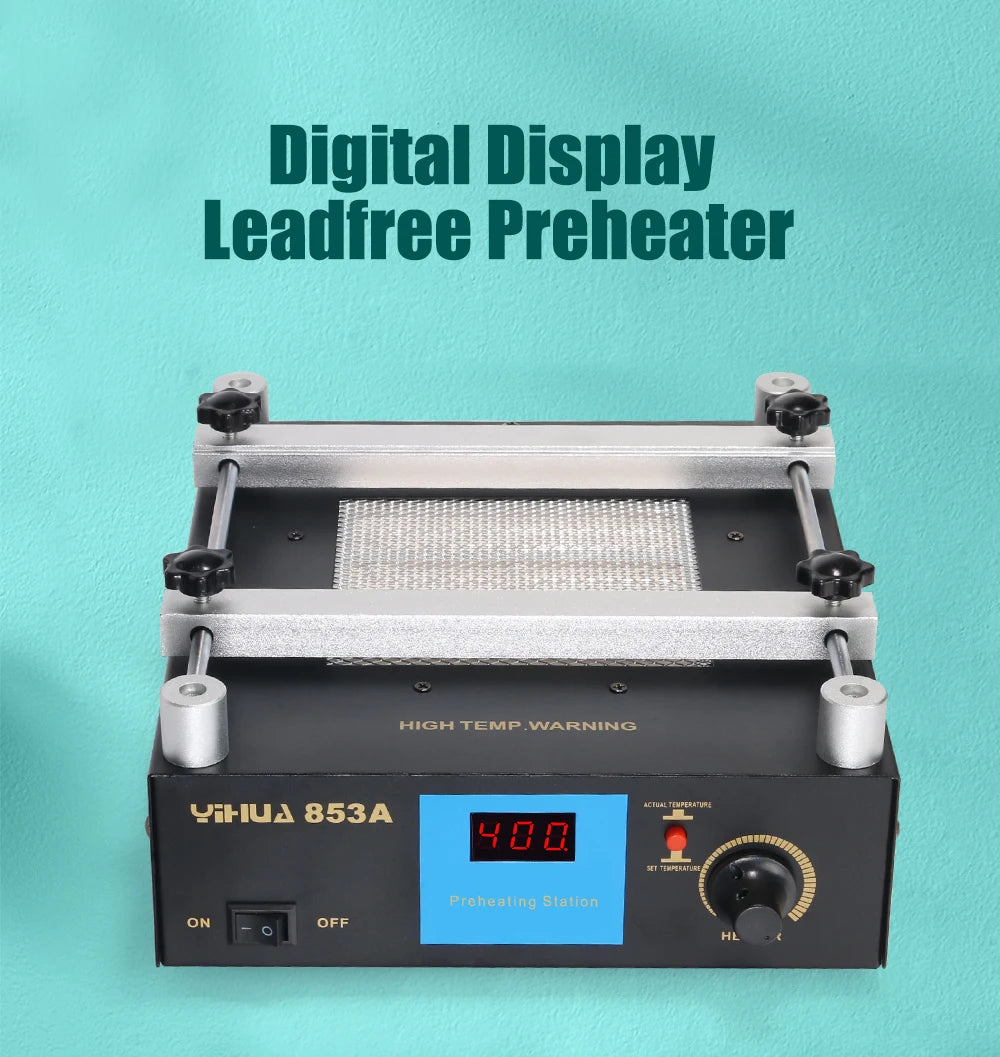

2.Digital and thermos tic set controlled conveniently.
3.The platform made of stainless steel, it can be use although rust.
4.Preheating with low-temperature to save electric energy, the components can’t be damaged for preheating with low temperature.

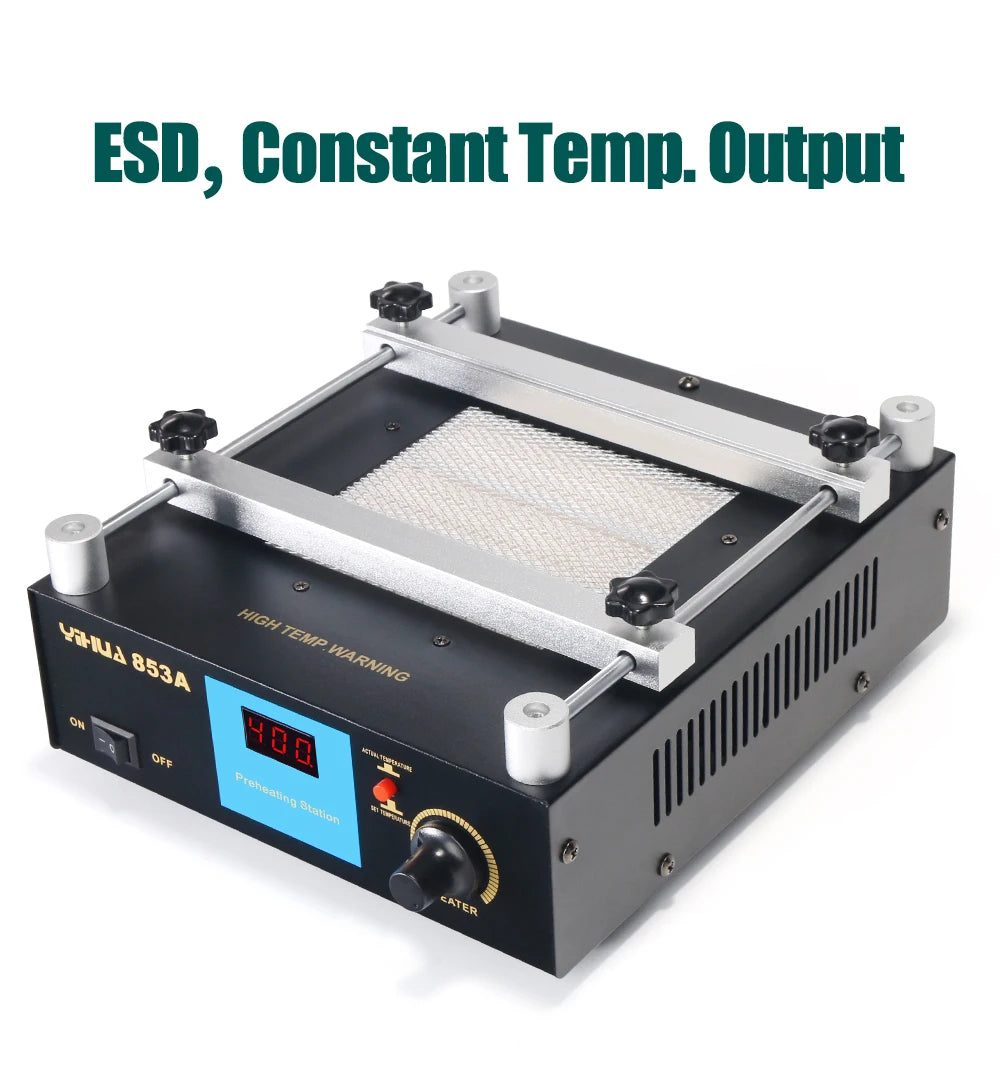

5.It is safe of sensitive element because of using anti-static electricity materials.

Parameters:
Power supply:AC 220V/110V 50/60HZ
Heating power: 450W

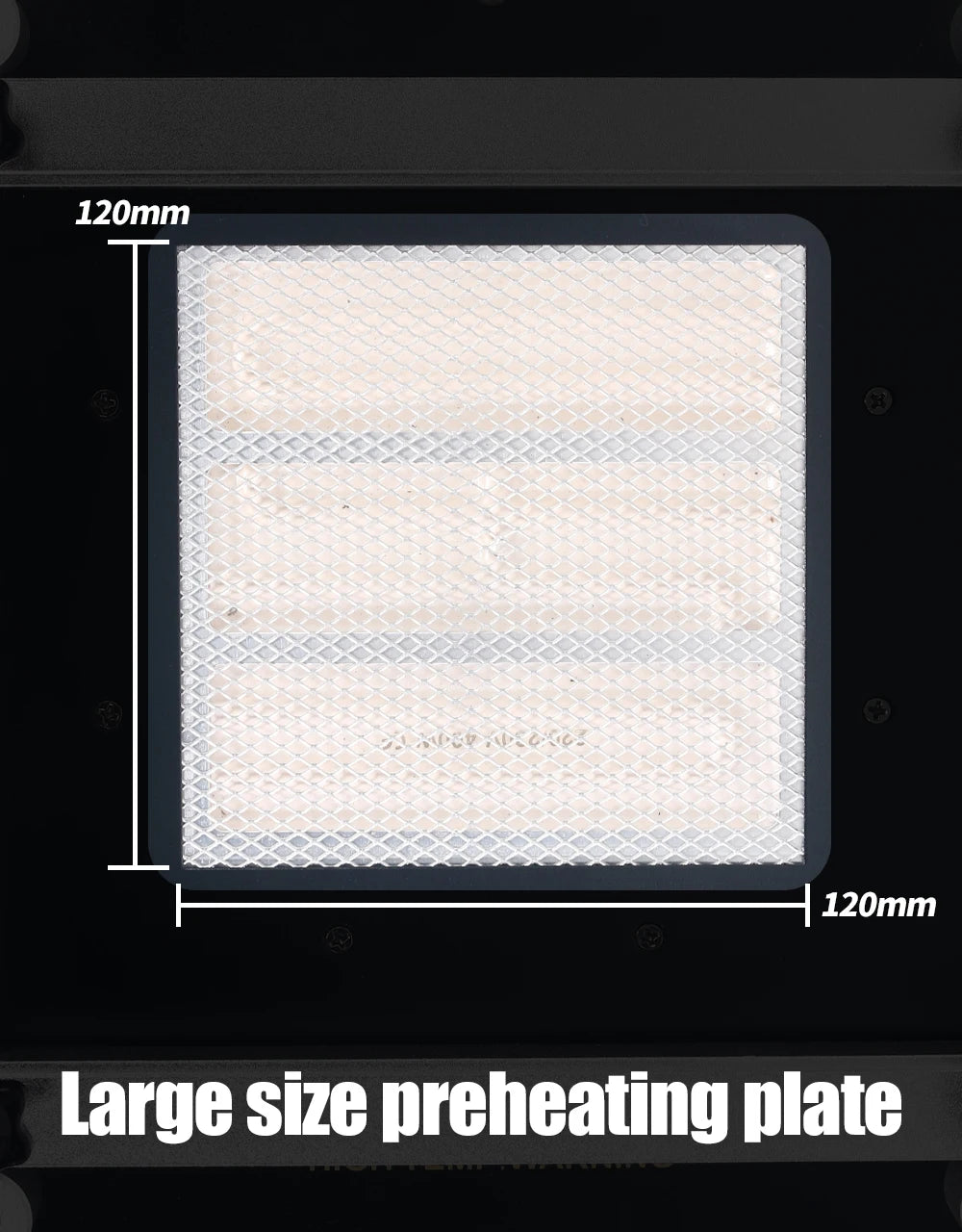

Heating area: 120mm X120mm

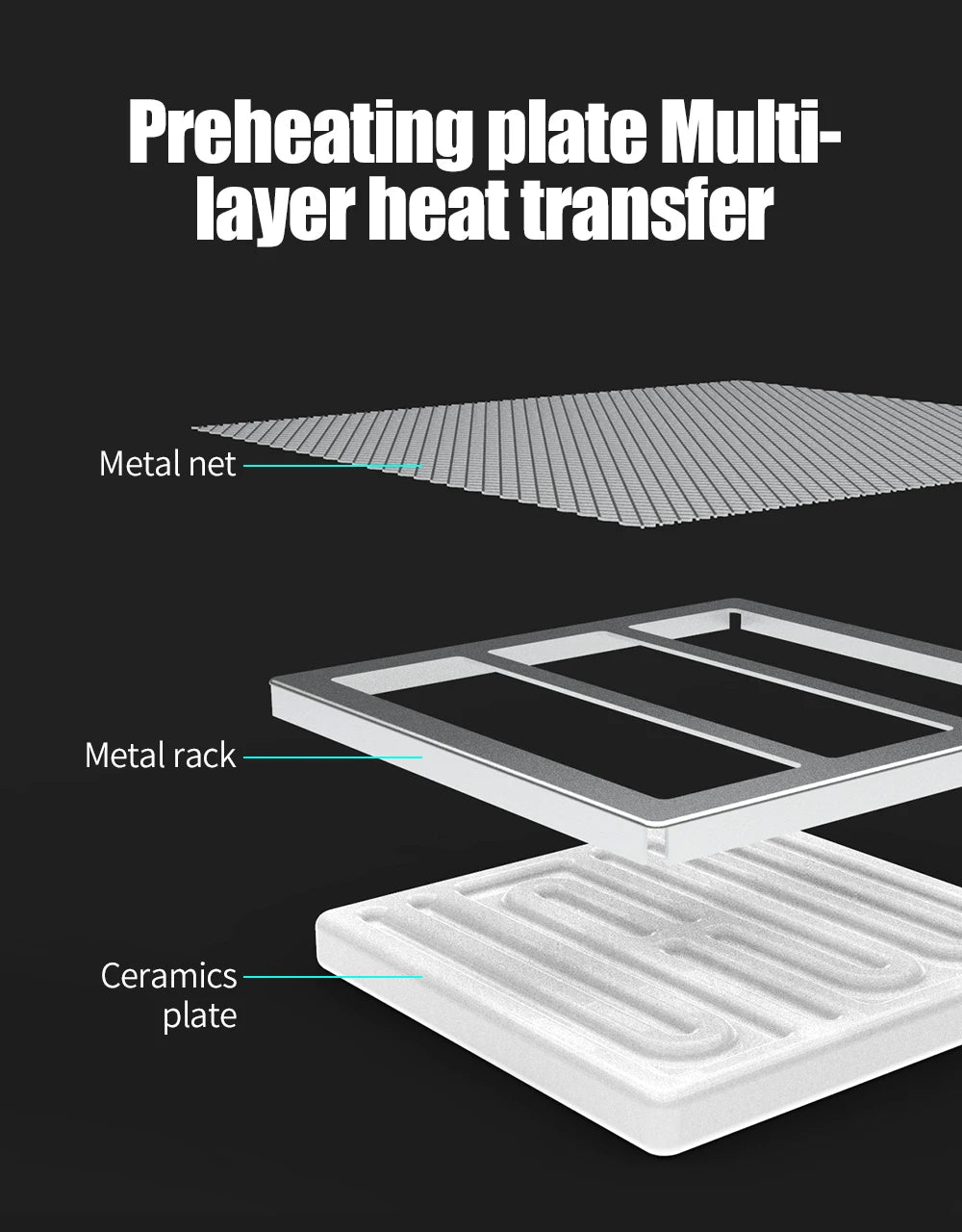

Heating Hugh material: ceramic heating body
The temperature sensor: K thermocouple type

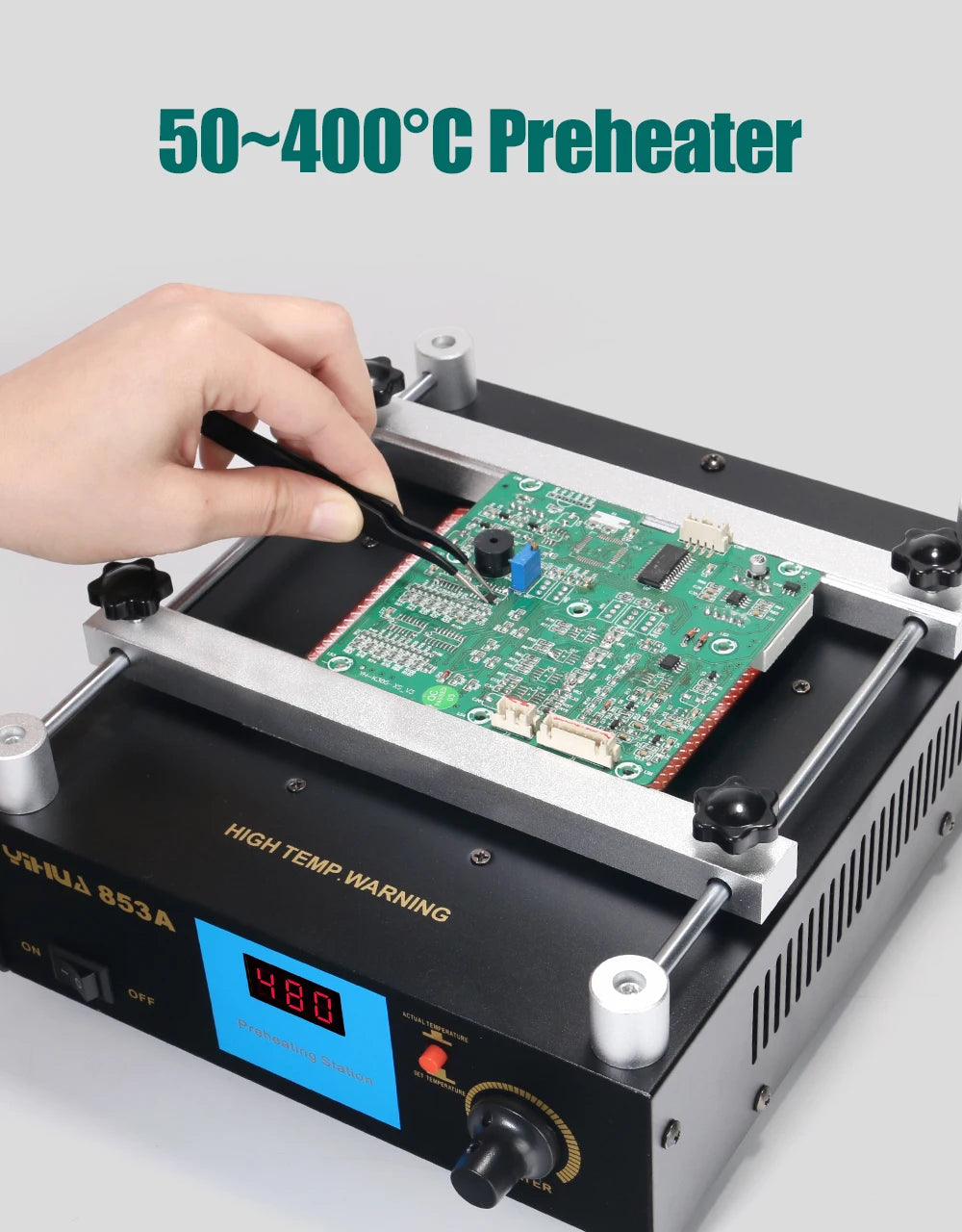

Temperature range: 50 degrees Celsius - 350 degrees Celsius
The thermometer test range: 0-400 degrees Celsius
Use of the environment temperature: 0-40 degrees Celsius
Temperature stability degree is: +_1 degrees Celsius

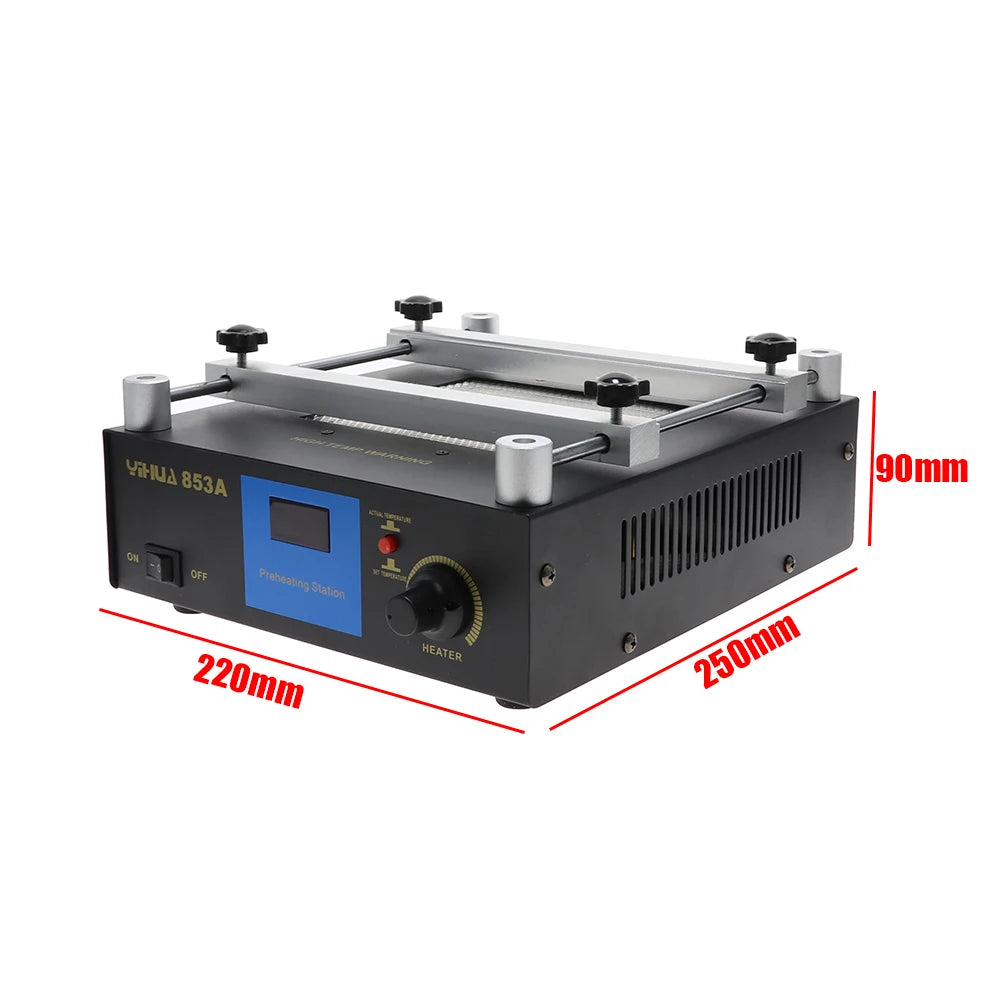

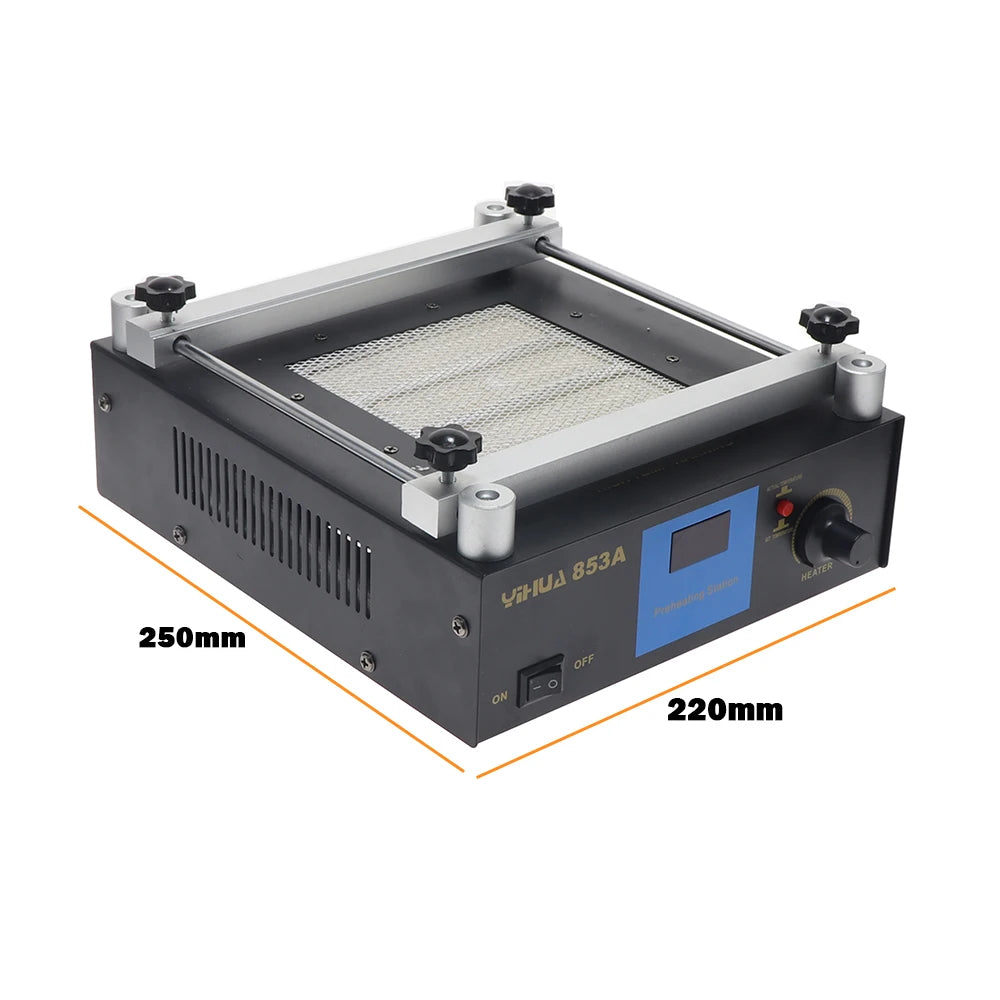

Envelop dimensions :255 (L) X200 (W) X63 (H) mm
Weight: About 2.5 Kg
